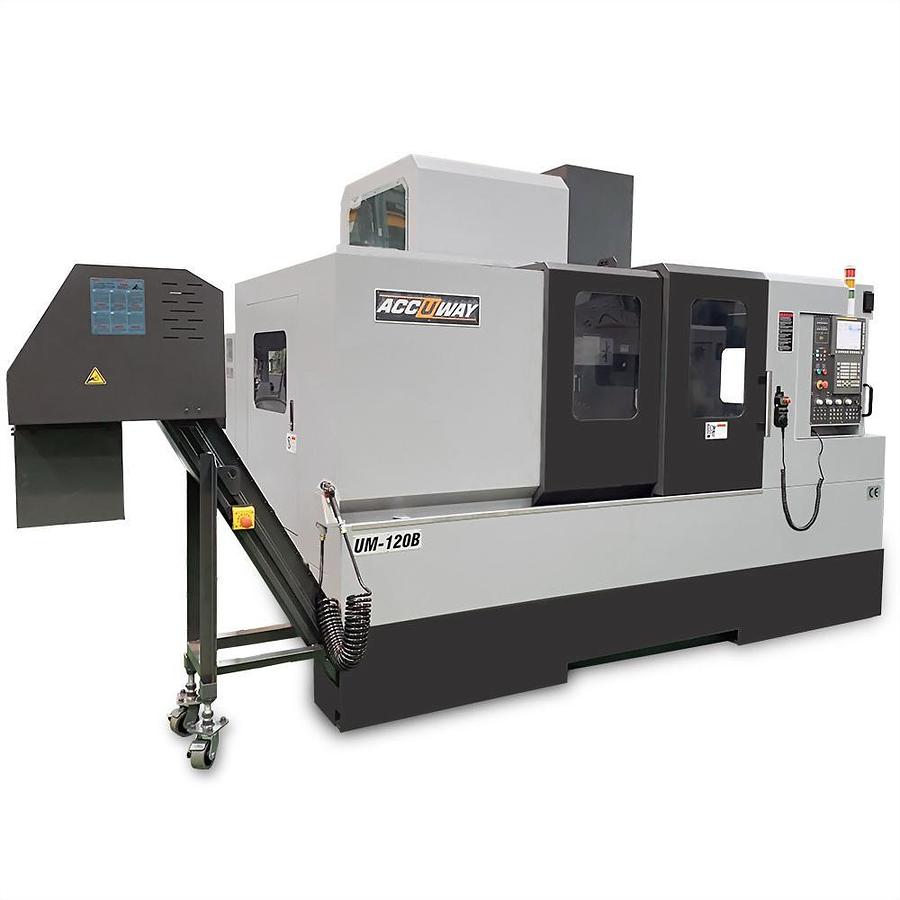

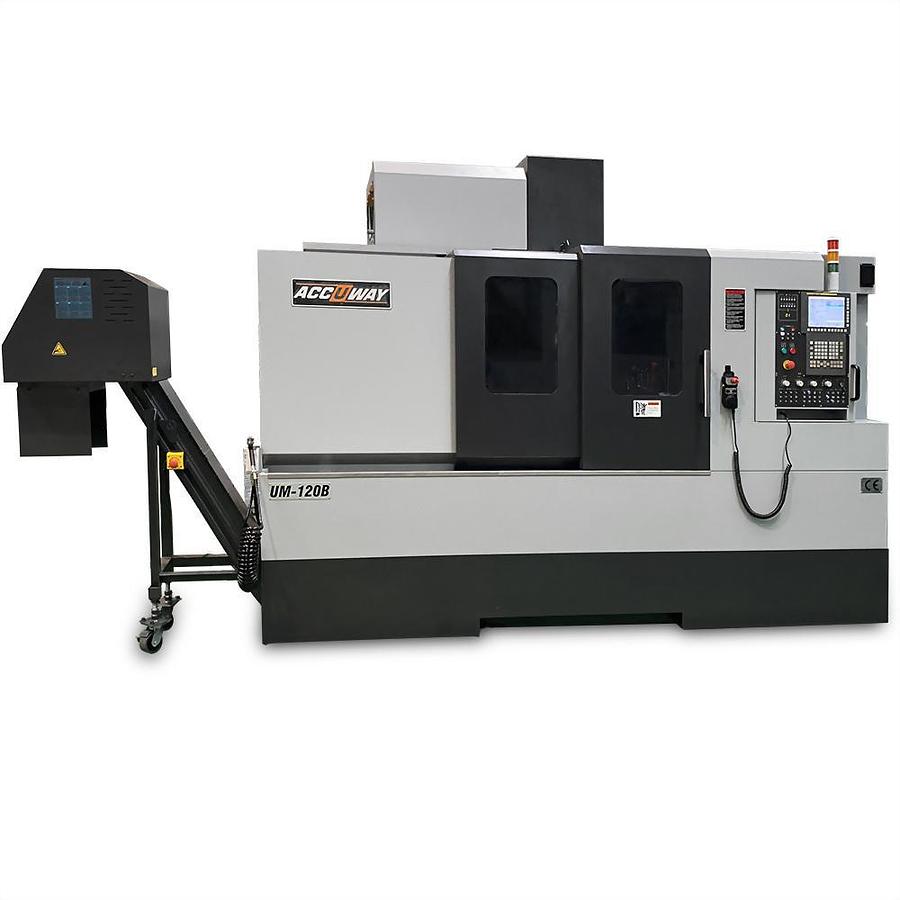

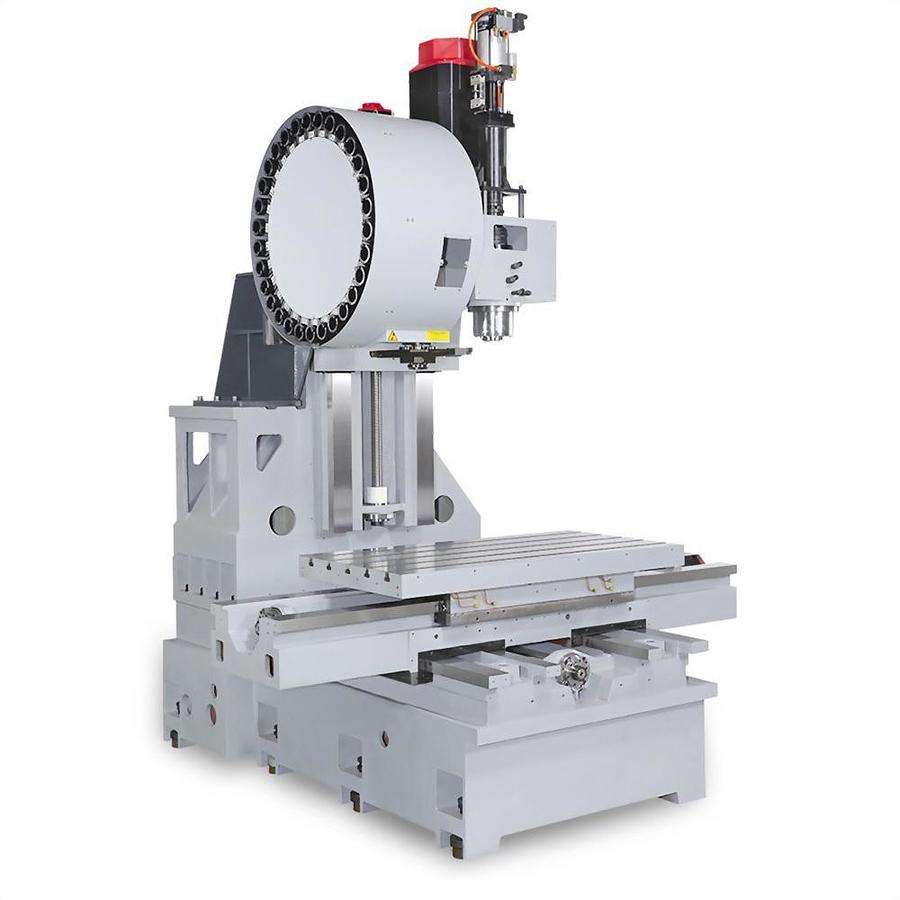

UM-120B
Contact us for price
Description

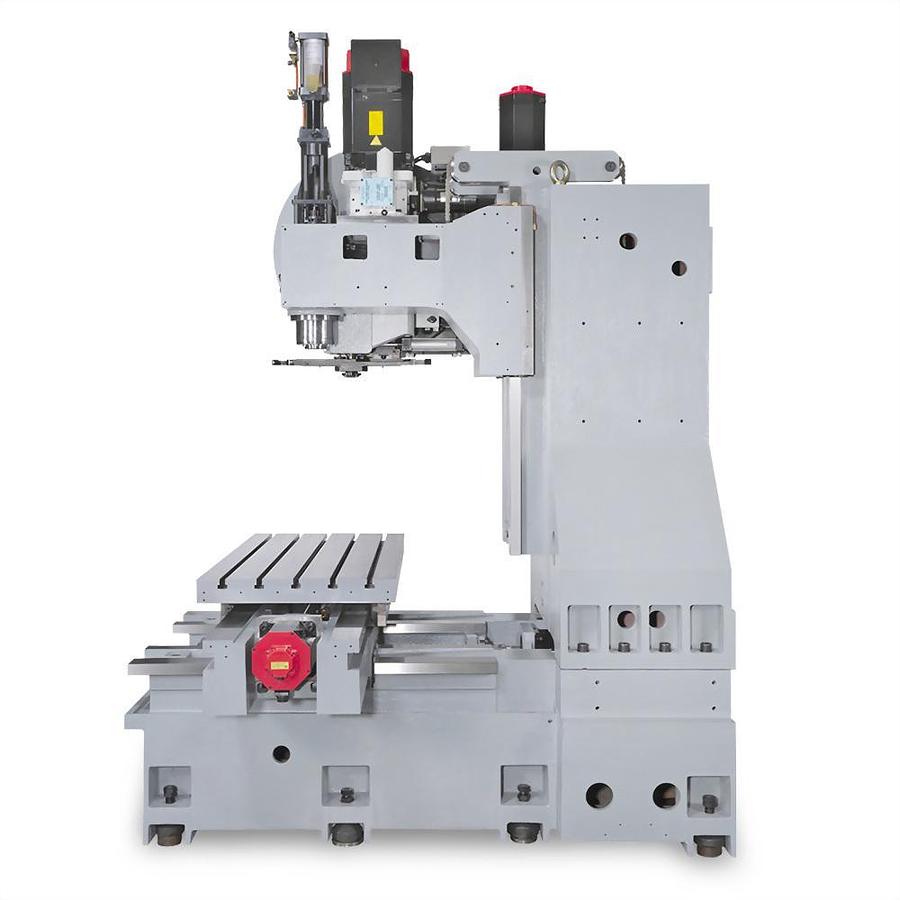

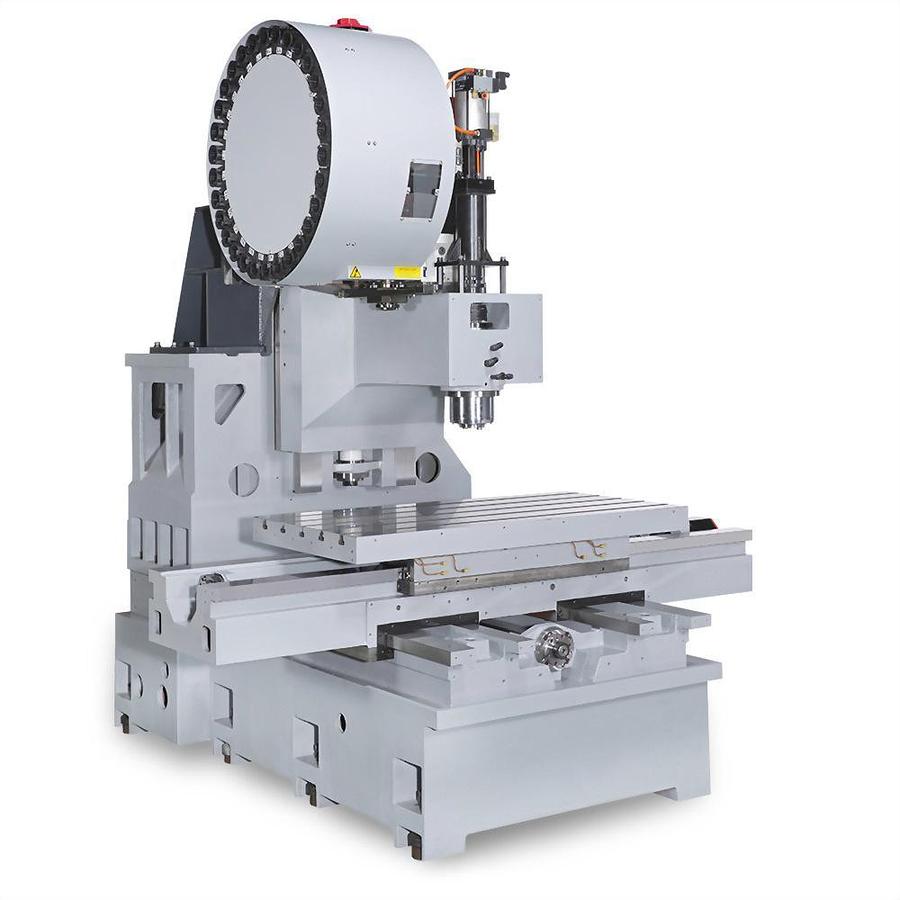

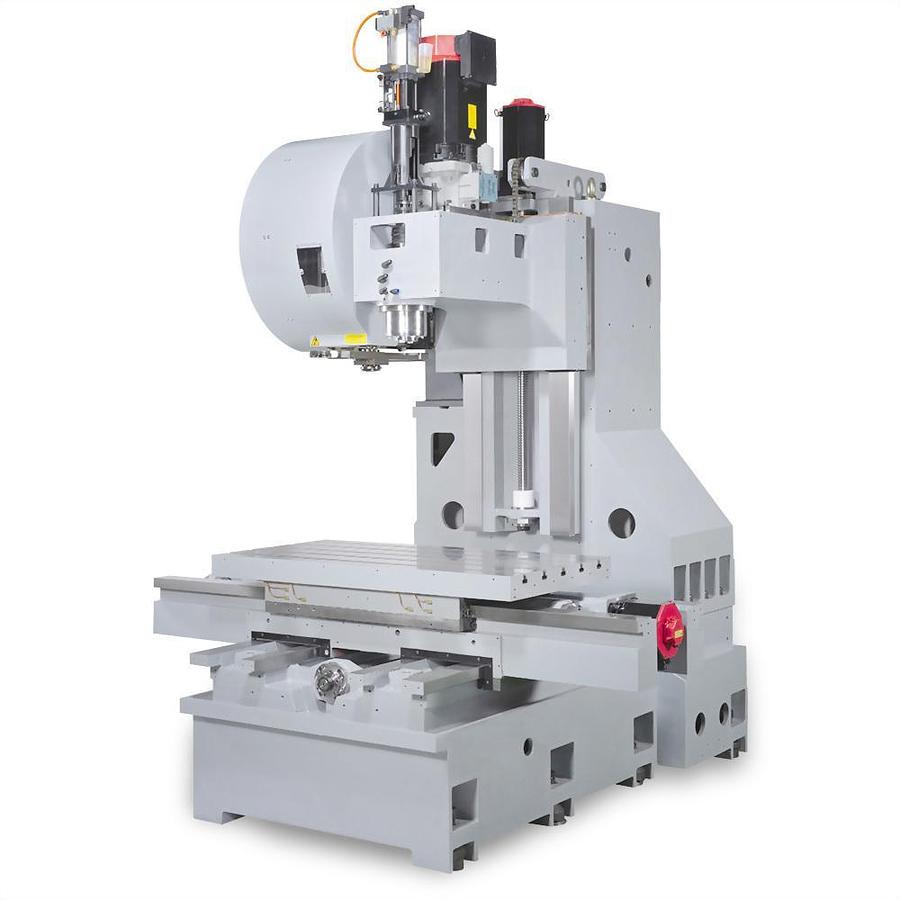

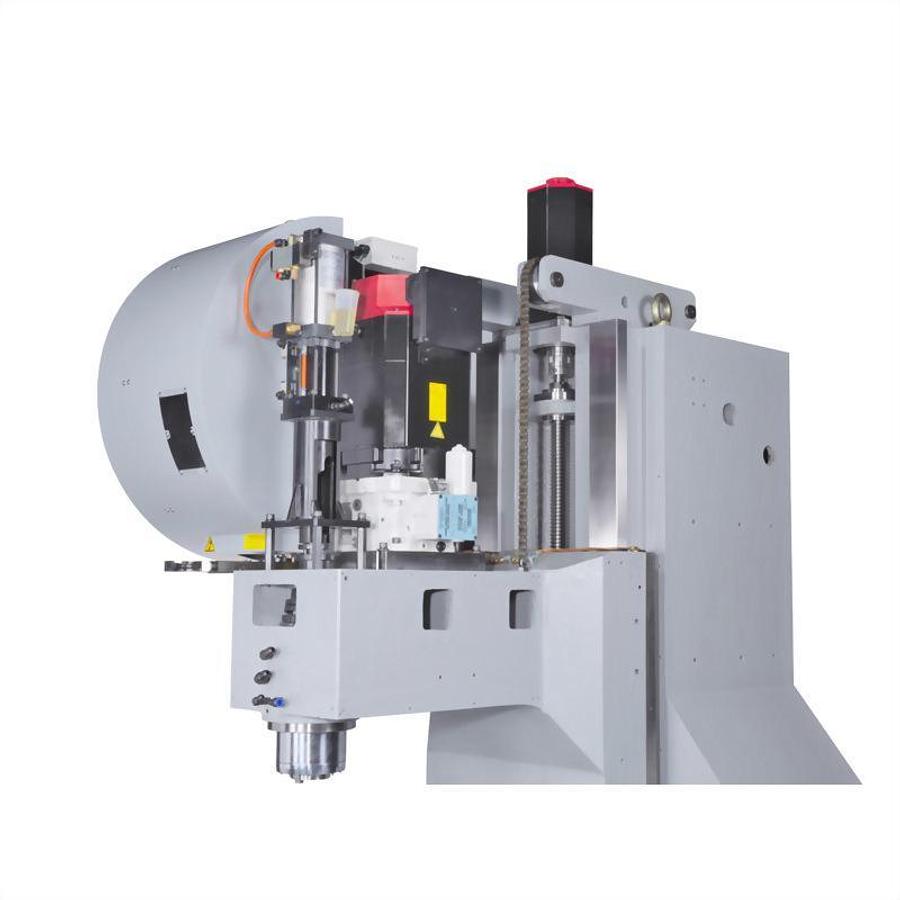

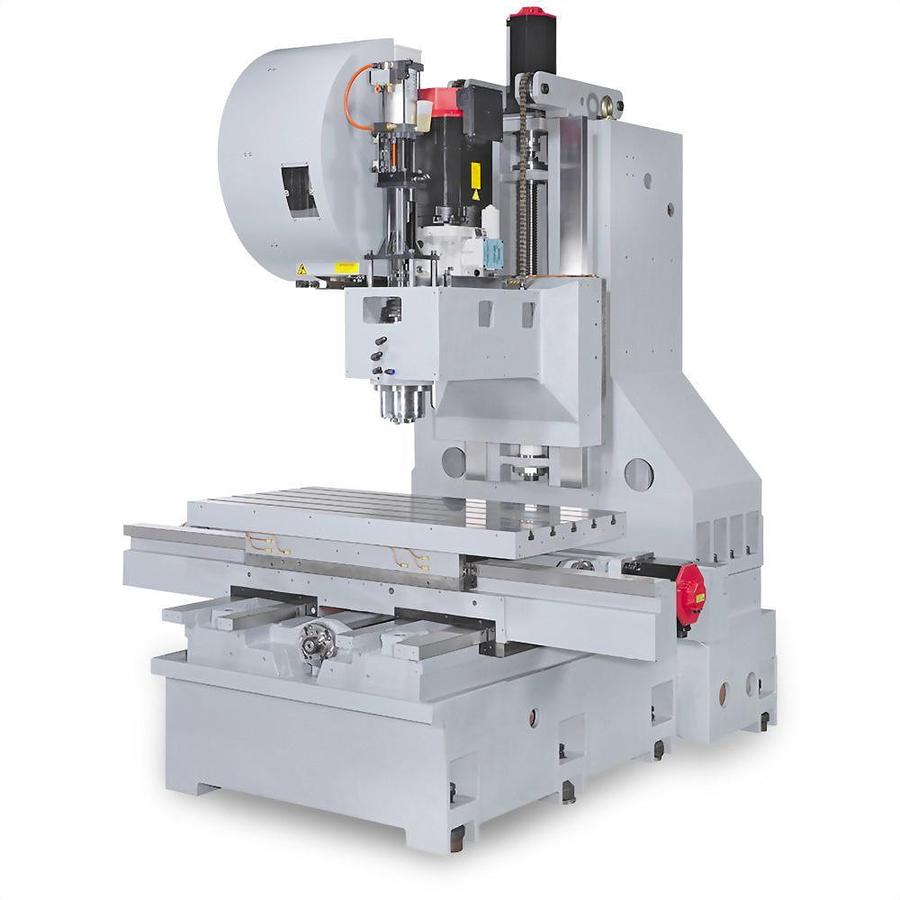

Vertical Machining Center
STANDARD ACCESSORIES
FANUC 0i-M controller + AICC II
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Cutter air blast
Spray gun
Three-color warning light
Spindle oil cooling system
OPTIONAL ACCESSORIES
Data server 2G
Linear scale (Heidenhain)

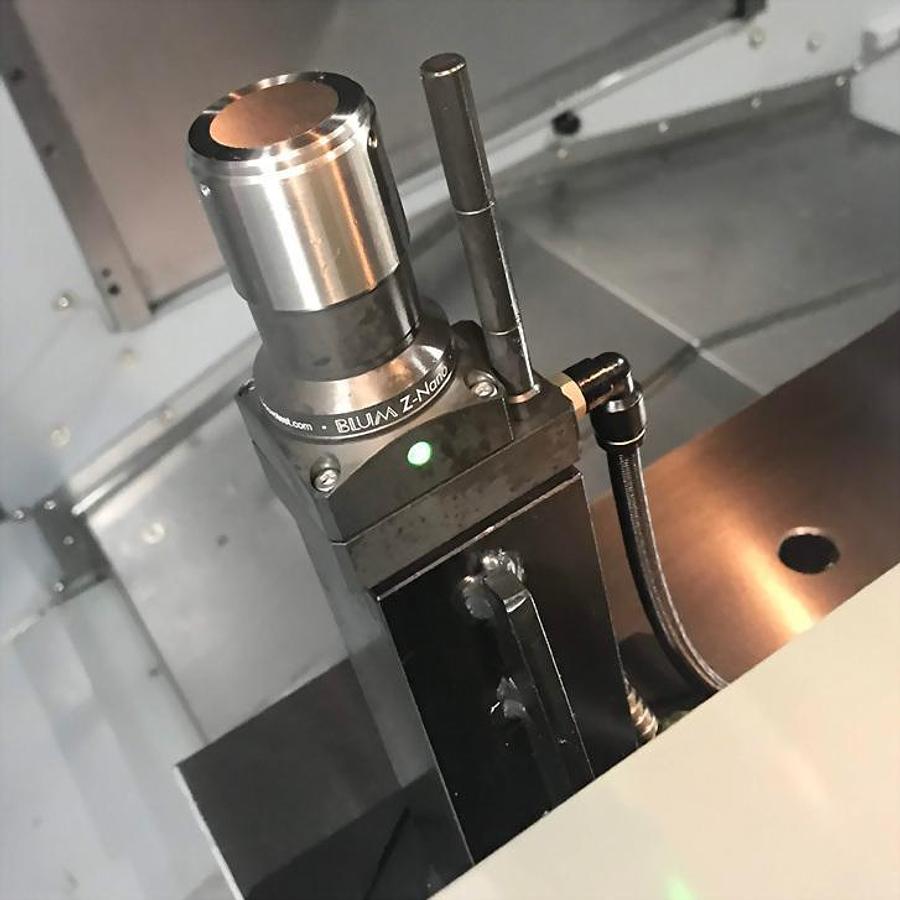

Contact tool setter
Workpiece touch probe
2-step gear box
Air cooler for electric cabinet
Spindle speed upgrading
Upgrade to 15" Colored LCD monitor
20 bar coolant through spindle system
Oil-coolant skimmer
Oil mist collector
4th axis interface + FANUC motor & driver
4th axis rotary table
Auto door
Chain type chip conveyor + chip cart
Transformer
CE version
Specifications
| Model | UM-120B |
| Condition | New |
| Controller | FANUC 0i-M |
| Spindle speed | rpm 10000(12000) |
| Spindle nose taper | BT40 |
| Bearing inner diameter | mm 70 |
| Drive system | Belt(Direct) |
| X-axis travel | mm 1200 |
| Y-axis travel | mm 650 |
| Z-axis travel | mm 600 |
| Spindle nose to table | mm 150~750 |
| Table dimension | mm 1300 x 650 |
| T-slot(No. of T-slot x width x pitch) | mm 5 x 18 x 120 |
| Max. weight on table | kg 1200 |
| X-axis Rapid Traverse Rate | m / min 24 |
| Y-axis Rapid Traverse Rate | m / min 24 |
| Z-axis Rapid Traverse Rate | m / min 24 |
| Cutting feed rate | m / min 12 |
| Ball screw diameter (X/Y/Z) | mm 45/45/45 |
| Guideway bearing type | Box |
| Tool magazine capacity | units 24 (30/32) |
| Max. tool weight | kg 7 |
| Max. tool diameter | mm 75 |
| Max. tool diameter without adjacent tools | mm 150 |
| Method of tool exchange | Arm type |
| Max. tool length | mm 300 |
| AI contour control | AICC I (AICC II) |
| Spindle motor power(Cont./30min) | kW 7.5/11 (15/18.5) |
| X/Y/Z feed motor | kW 3/3/4 |
| Coolant pump motor(50Hz/60Hz) | kW 0.75+1.27(1.01+1.73) |
| Air supply | kg/cm² 5.5 |
| Machine dimension L x W x H | m 3.1 x 2.3 x 2.8 |
| Net weight | kg 7500 |
