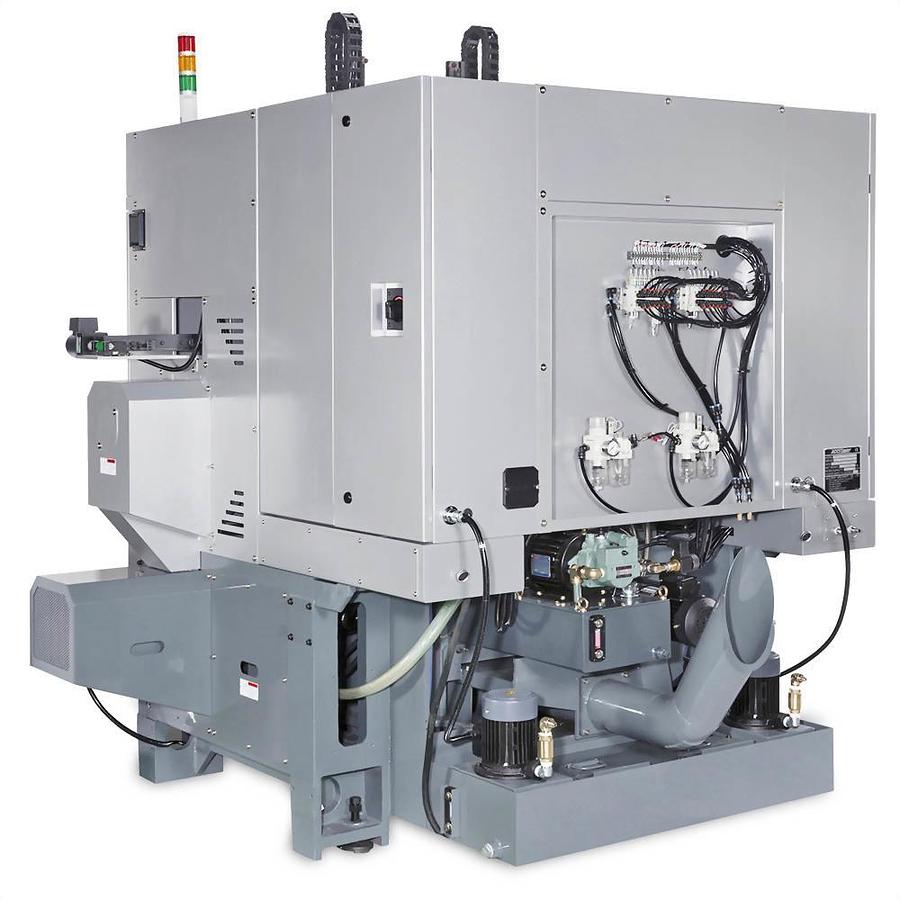

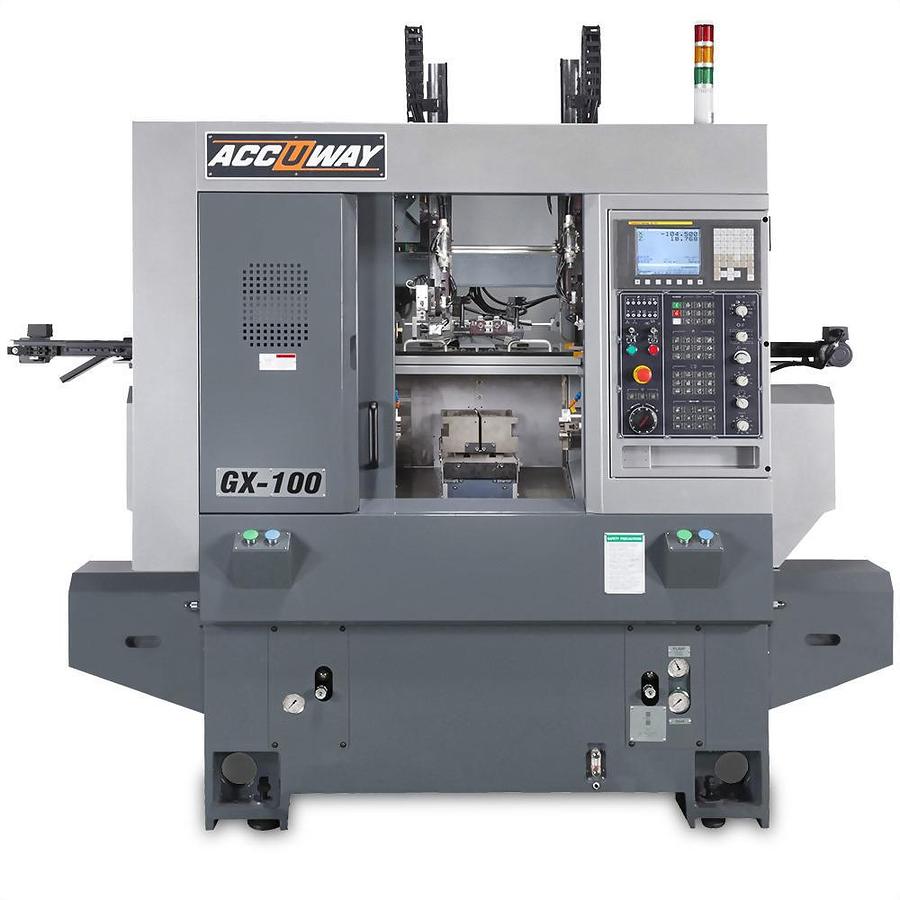

GX-100
Contact us for price
Description
Compact CNC Lathe for Automatic Machining
STANDARD ACCESSORIES
Fanuc 0i-T controller

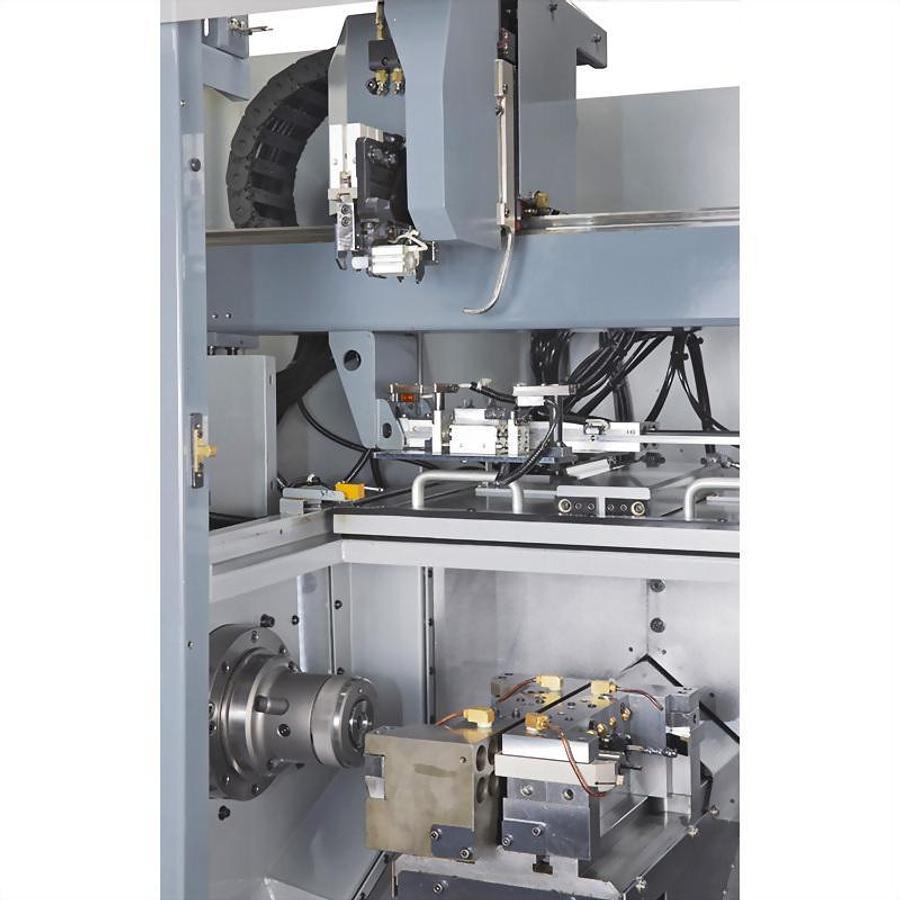

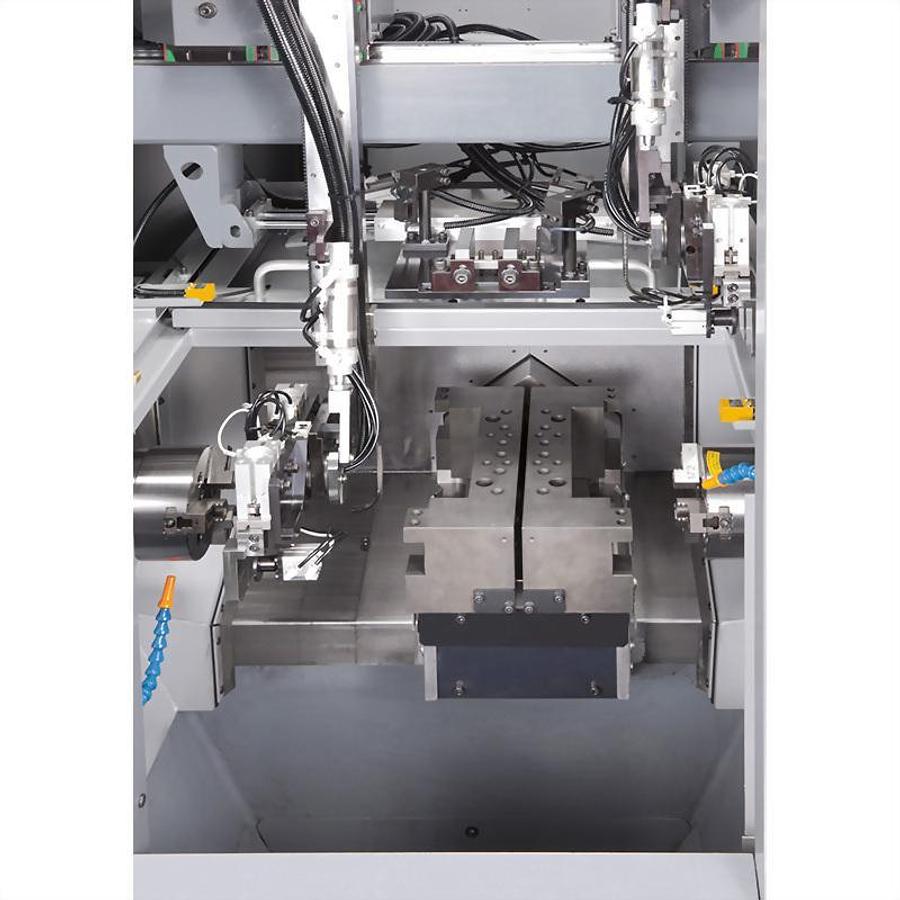

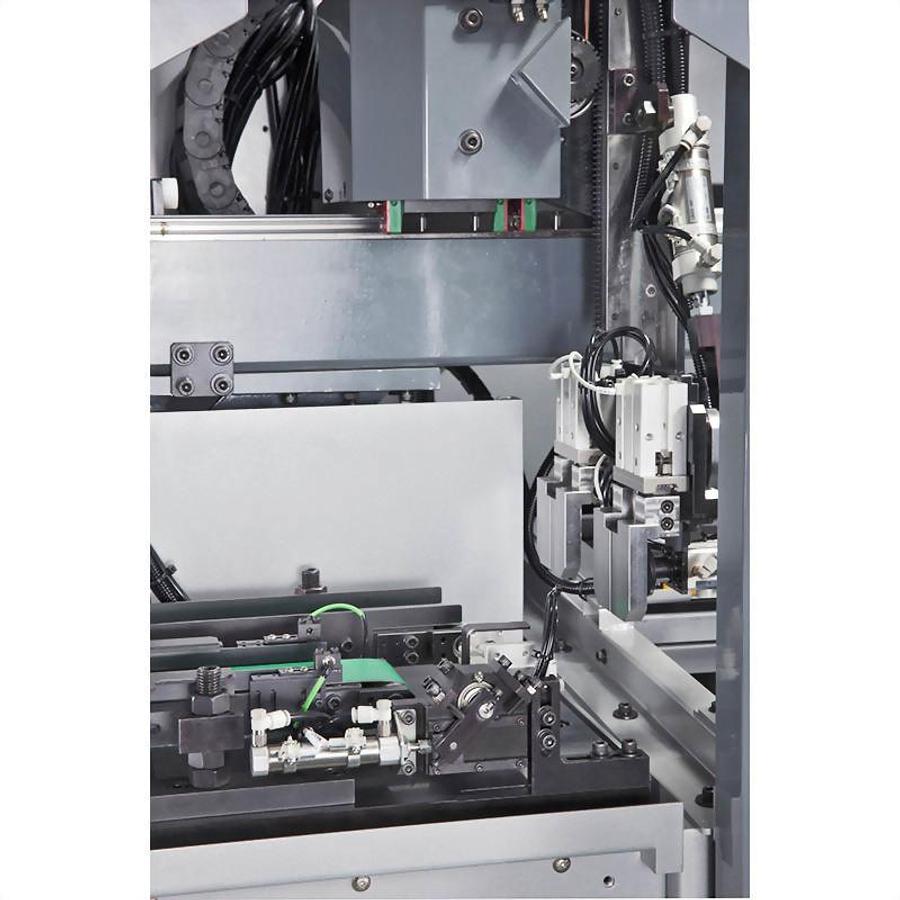

Integrated loader
Spindle air blow
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color working light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
CTS + Spindle air blow system
Gripper blank
Specifications
| Manufacturer | Accuway |
| Model | GX-100 |
| Condition | New |
| Controller | FANUC 0i-T |
| Max. Turning Diameter(SP1) | mm 50 |
| Max. Turning Diameter(SP2) | mm 50 |
| Max. Turning Length | mm 60 |
| Guide way type | Linear |
| Spindle Nose | ASA A2-5 |
| Chuck Diameter | inch 5 |
| Bar Capacity | mm 30 |
| Spindle Speed | rpm 6000 |
| Spindle Motor Power(Cont. /30min) | kW 5.5/7.5 |
| X-axis Travel | mm 210 |
| Z-axis Travel | mm 310(±155) |
| X-axis Rapid Traverse Rate | m/min 18 |
| Z-axis Rapid Traverse Rate | m/min 24 |
| Tooling system | Gang |
| Turret driven type | - |
| Square Tool Shank Size | mm 20 |
| Round Tool Shank Size | mm 25 |
| Machine dimension L x W x H | m 2.7 x 2.0 x 2.4 |
| Machine Weight | kg 3200 |
| Diameter | mm 10~50 |
| Length | mm 20~60 |
| Weight (One side) | kg 0.5 |
| Stroke | mm 500 |
| Rapid traverse rate | m/min 84 |
