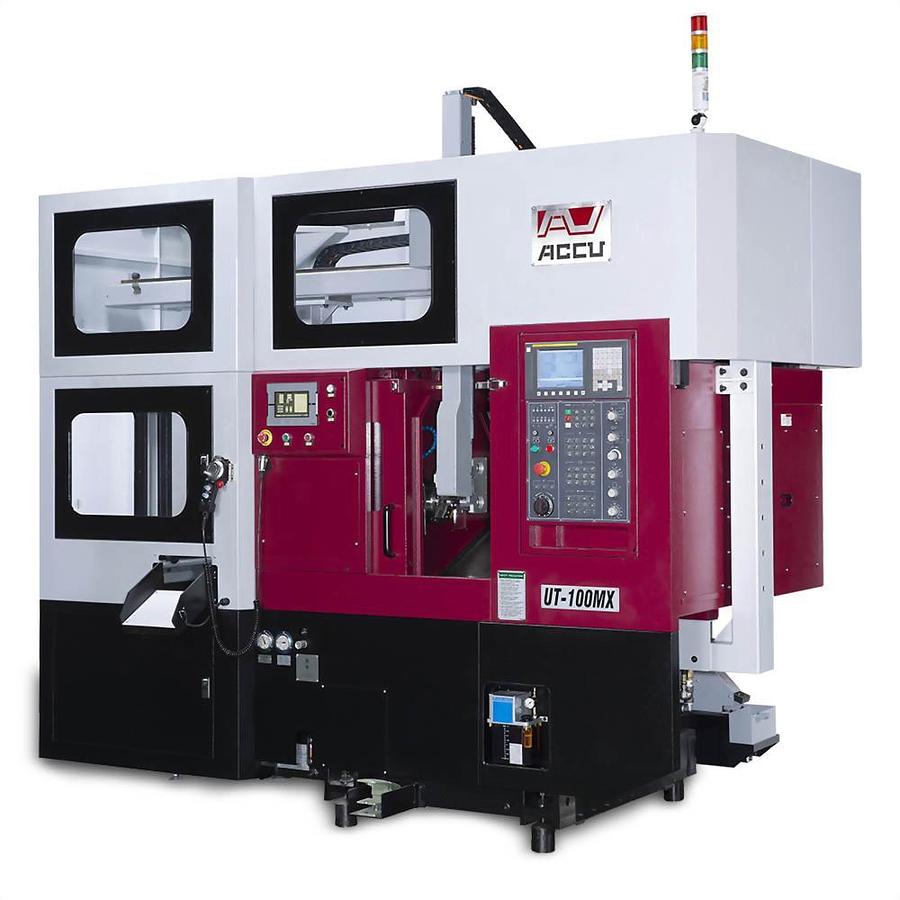

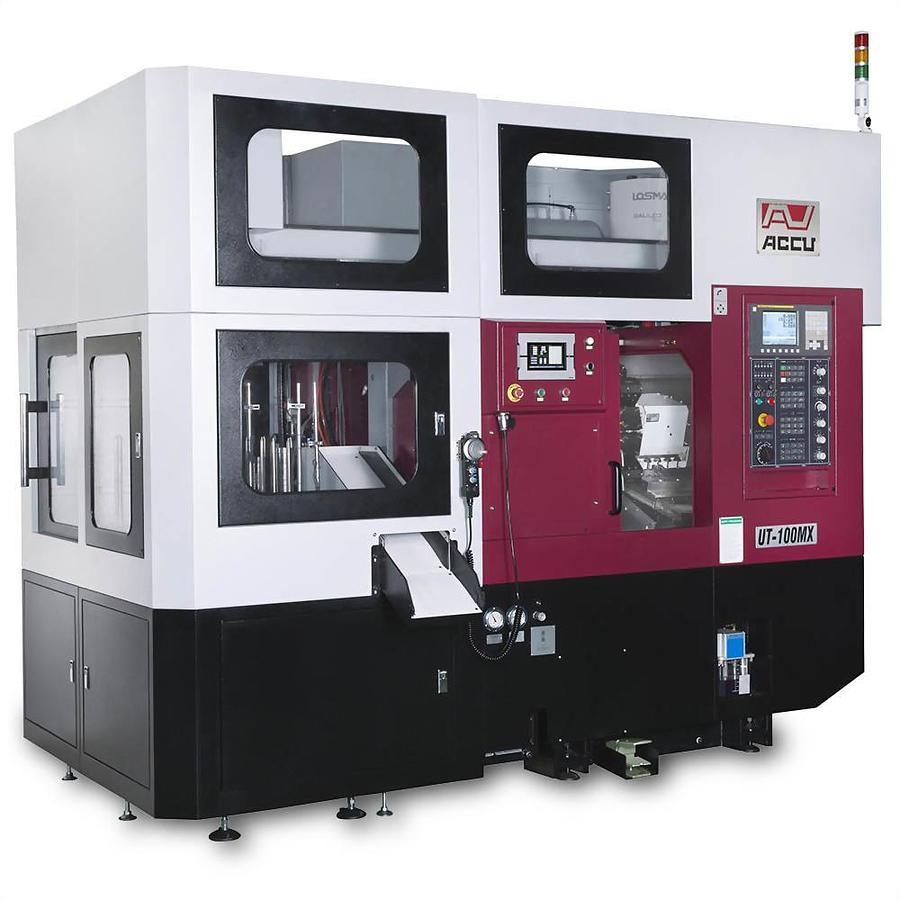

UT-100MX

Contact us for price
or
Call (519) 212-1782

Description

Compact CNC Lathe for Automatic Machining STANDARD ACCESSORIES FANUC 0i-T controller RJ-45 interface Rigid tapping Heat exchanger for electric cabinet 10.4" Colored LCD monitor Lubrication system 4-bar coolant system Three-color warning light OPTIONAL ACCESSORIES Collet chuck Tool setter Oil mist collector Oil-coolant skimmer Air cooler for electric cabinet Transformer CE version 15 bar high pressure coolant system 0 degree rotary tool holder 90 degree rotary tool holder Linear scale
Show All

Specifications

ModelUT-100MX
ConditionNew
ControllerFANUC 0i-T
Swing over bedmm 380
Swing over saddlemm 320
Max. turning diametermm 220
Max. turning lengthmm 155
Guide way typeBox
Spindle nose taperASA A2-5
Chuck diameterinch 6
Bar capacitymm 30
Spindle speedrpm 6000
Spindle motor power(Cont. / 30min)kW 5.5/7.5
X-axis Travelmm 120
Z-axis Travelmm 230
X-axis Rapid Traverse Ratem/min 12
Z-axis Rapid Traverse Ratem/min 18

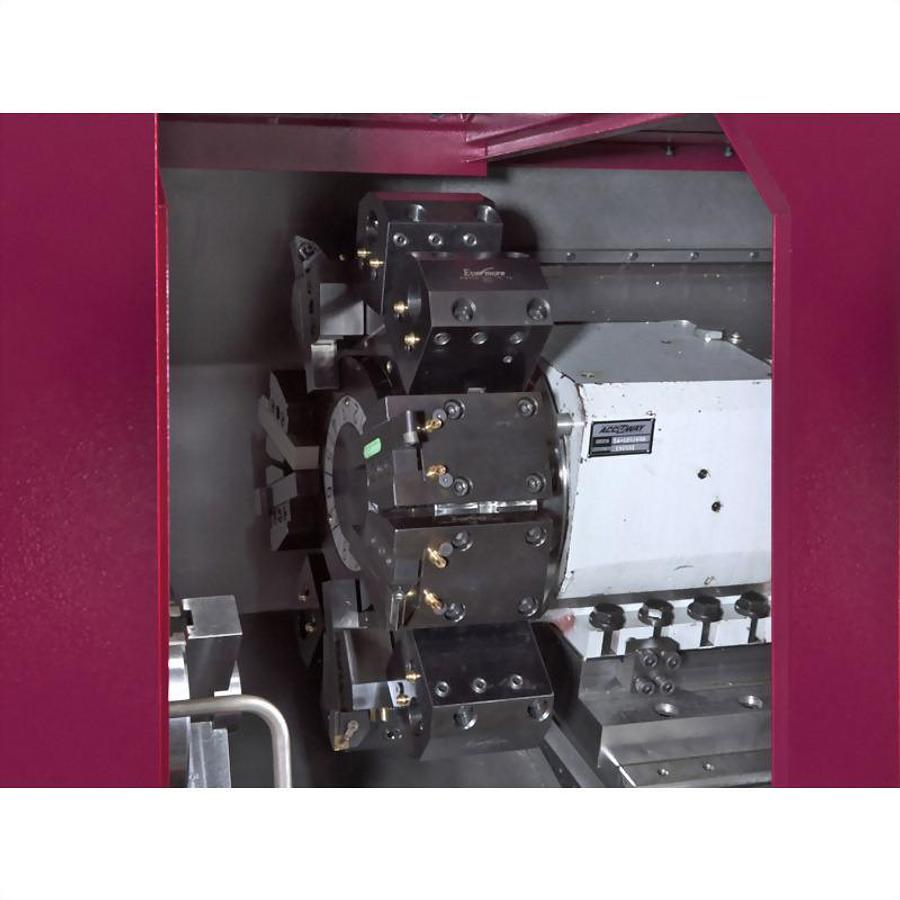

Turret driven typeBMT-55
Tooling systemServo mechanical
Number of toolsstation 12
Square tool shank sizemm 25
Round tool shank sizemm 40
Max. Rotary Tool Speedrpm 6000
Rotary Tool driver powerkW 3.7/5.5
Machine dimension L x W x Hm 3.1 x 1.7 x 2.4
Net weightkg 2200

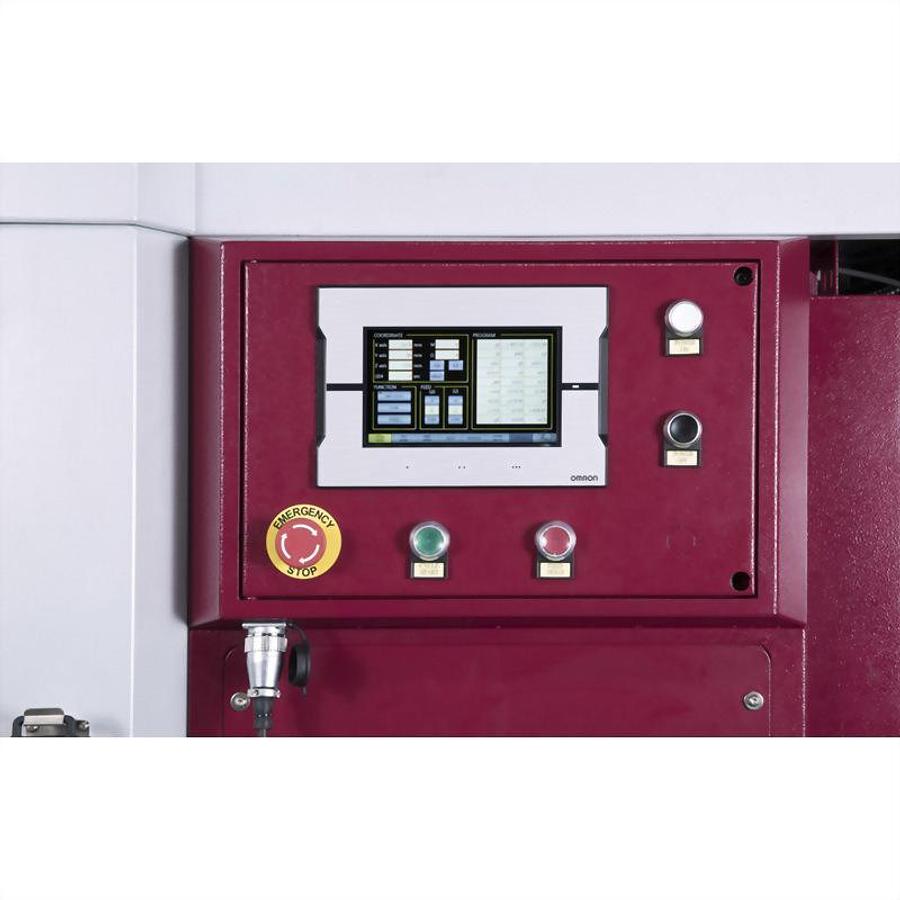

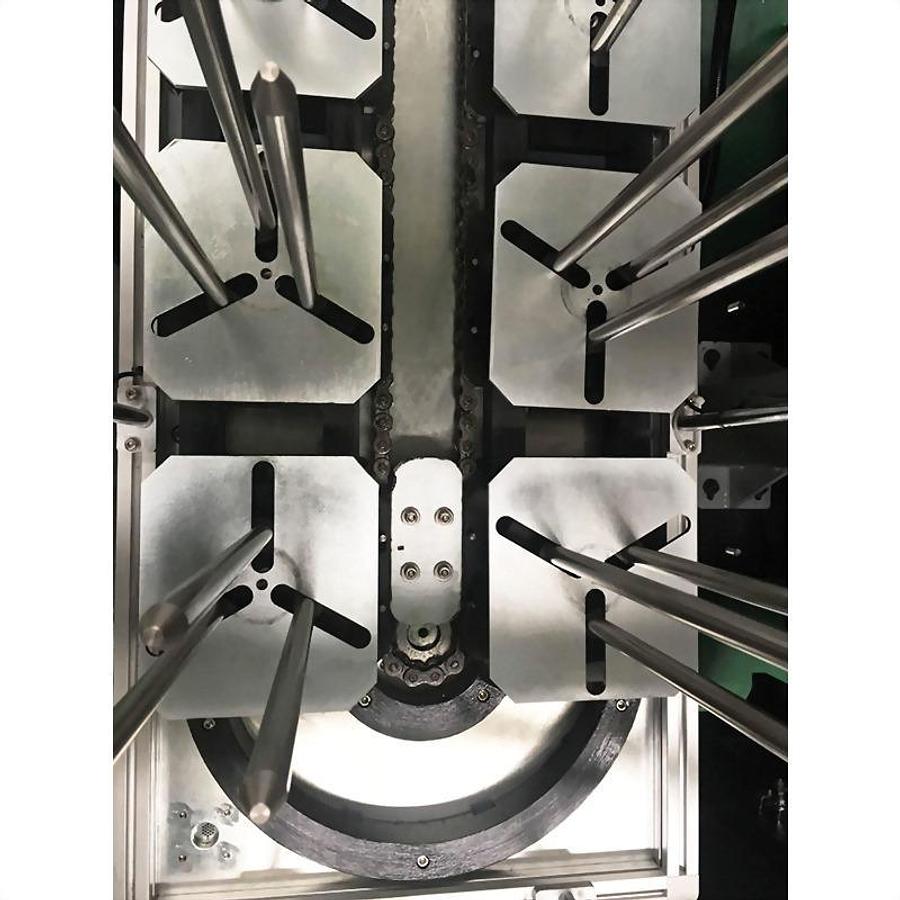

Loader control systemOMRON
Diametermm 20~150
Lengthmm 20~100
Weight (One side)kg 1
Strokemm 360
Rapid traverse ratem/min 75
