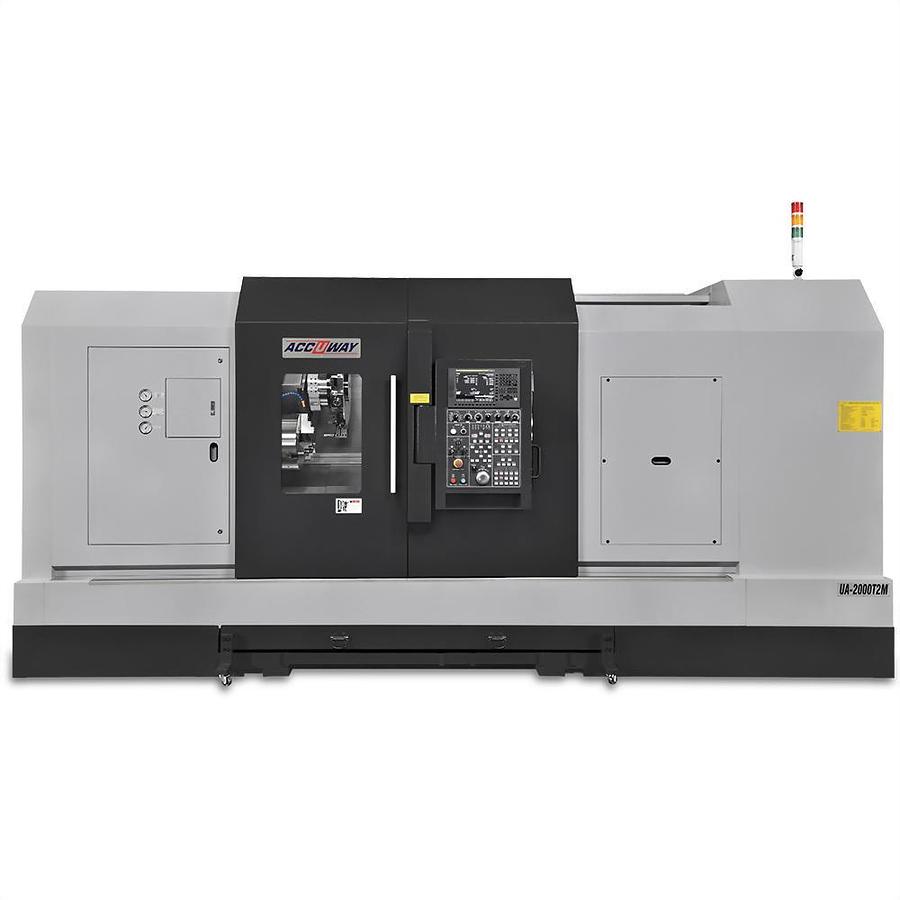

UA-2000T2M / UA-2000T2MB
Contact us for price
Description

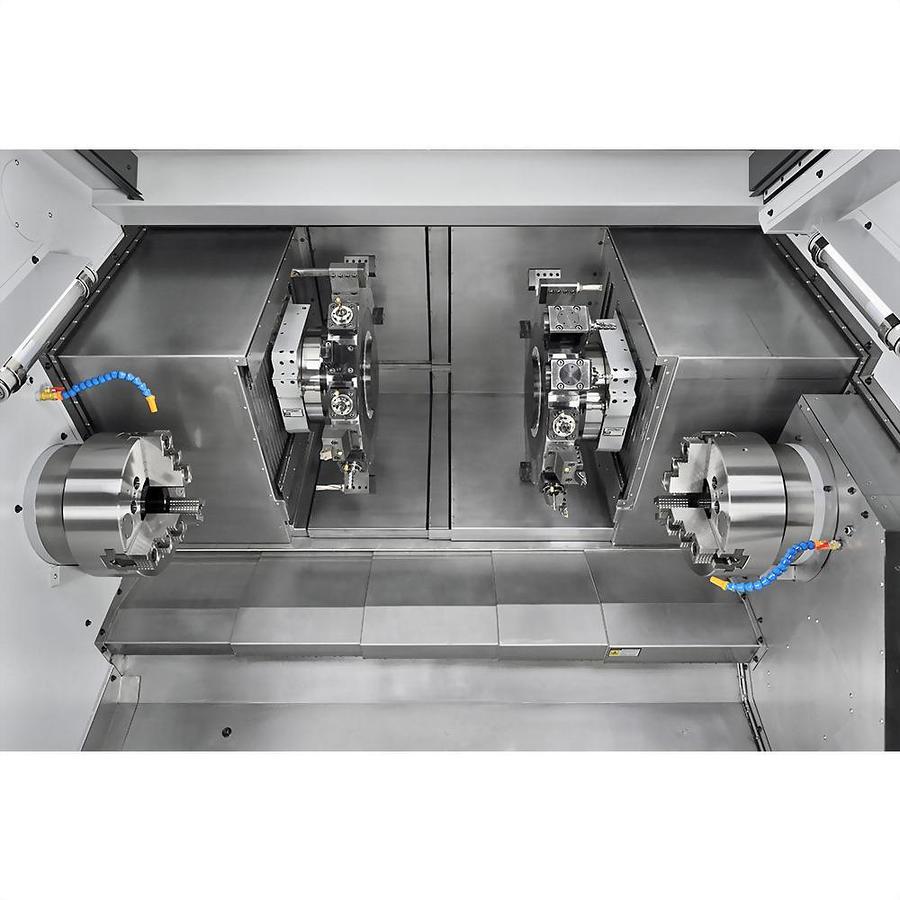

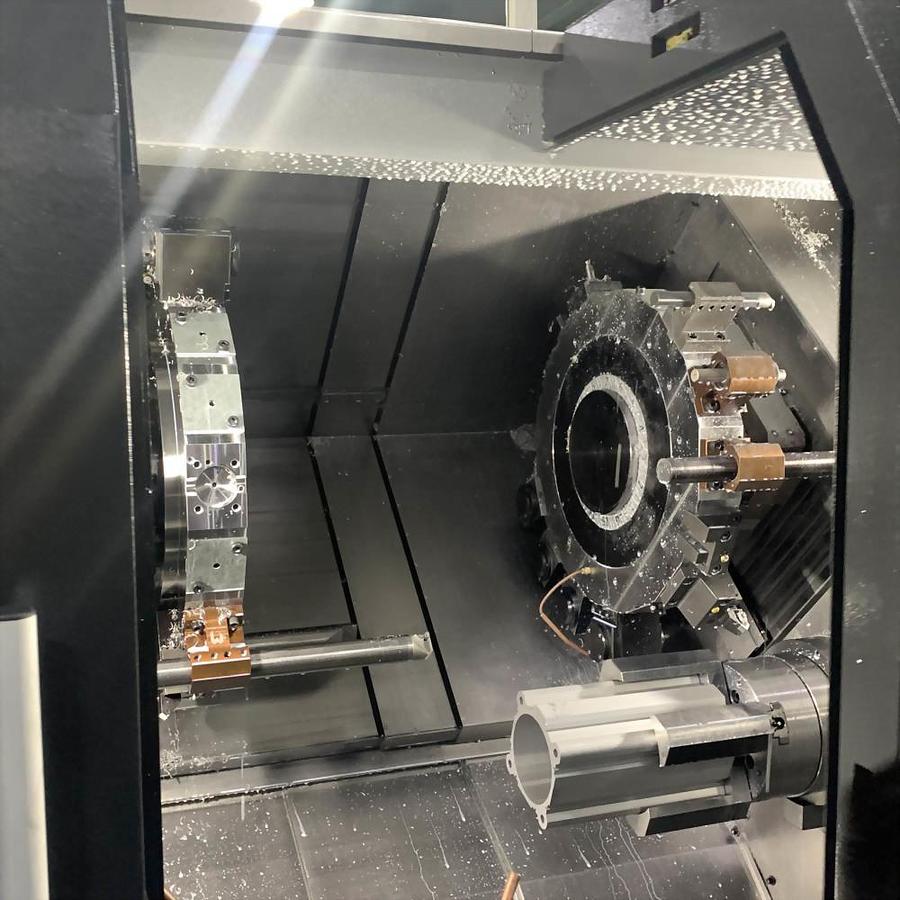

Multi-axis Complex Turning-milling Center
Specifications
| Model | UA-2000T2M UA-2000T2MB |
| Condition | New |

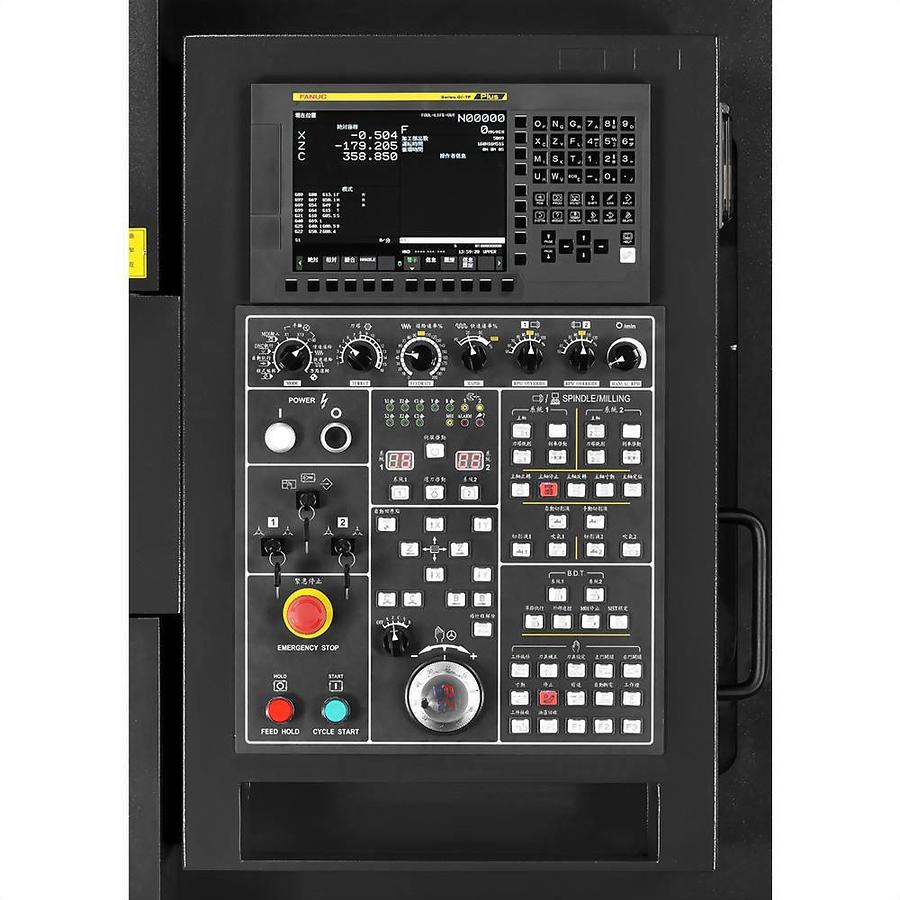

| Controller | FANUC 0i-T |
| Swing over bed | mm 660 660 |
| Swing over saddle | mm 620 620 |
| Max. Turning Diameter (SP1) | mm 340 340 |
| Max. Turning Diameter (SP2) | mm 340 340 |
| Max. turning length | mm 510 440 |
| Guide way type | Linear + Box |
| Spindle Nose | ASA A2-8 A2-11 |
| Chuck Diameter | inch 10 12 15 |
| Bar Capacity | mm 75 75 105 |
| Spindle Speed | rpm 3500(3 jaw) 2500(3 jaw) 2500(3 jaw) |
| Spindle Motor Power(Cont. /30min) | kW 11/15 15/18.5 |
| X1/X2 axis Travel | mm 210 210 |
| Z1/Z2 axis Travel | mm 600 600 |
| B-axis Travel | mm 1500 1400 |
| X1/X2 axis Rapid Traverse Rate | m/min 20 20 |
| Z1/Z2 axis Rapid Traverse Rate | m/min 30 30 |
| B-axis Rapid Traverse Rate | m/min 30 30 |
| Tooling system | BMT-55N |
| Turret driven type | Servo mechanical |
| Number of tools | station 16+16 16+16 |
| Square tool shank size | mm 20(25) 20(25) |
| Round tool shank size | mm 32(40) 32(40) |
| Max. Rotary Tool Speed | rpm 6000 6000 |
| Rotary Tool power | kW 3.7/5.5 3.7/5.5 |
| Machine dimension L x W xH | m 6.0 x 2.4 x 2.4 6.0 x 2.4 x 2.4 |
| Net weight | kg 11500 13000 |
