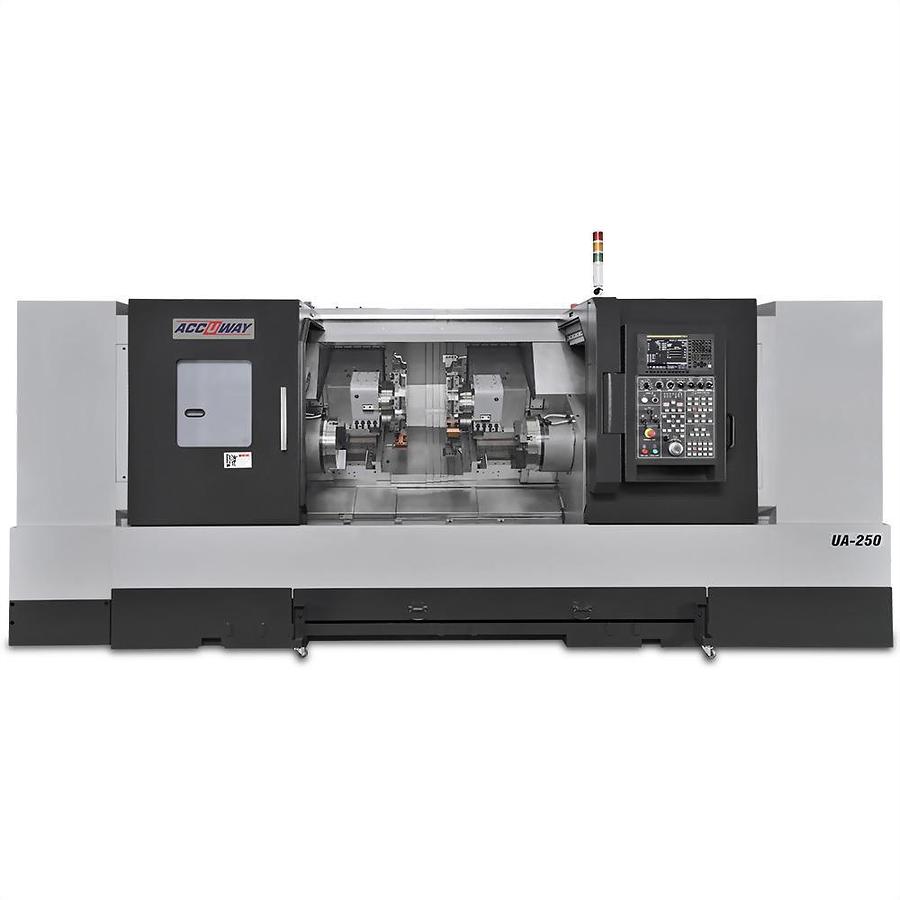

UA-250
Contact us for price
Description

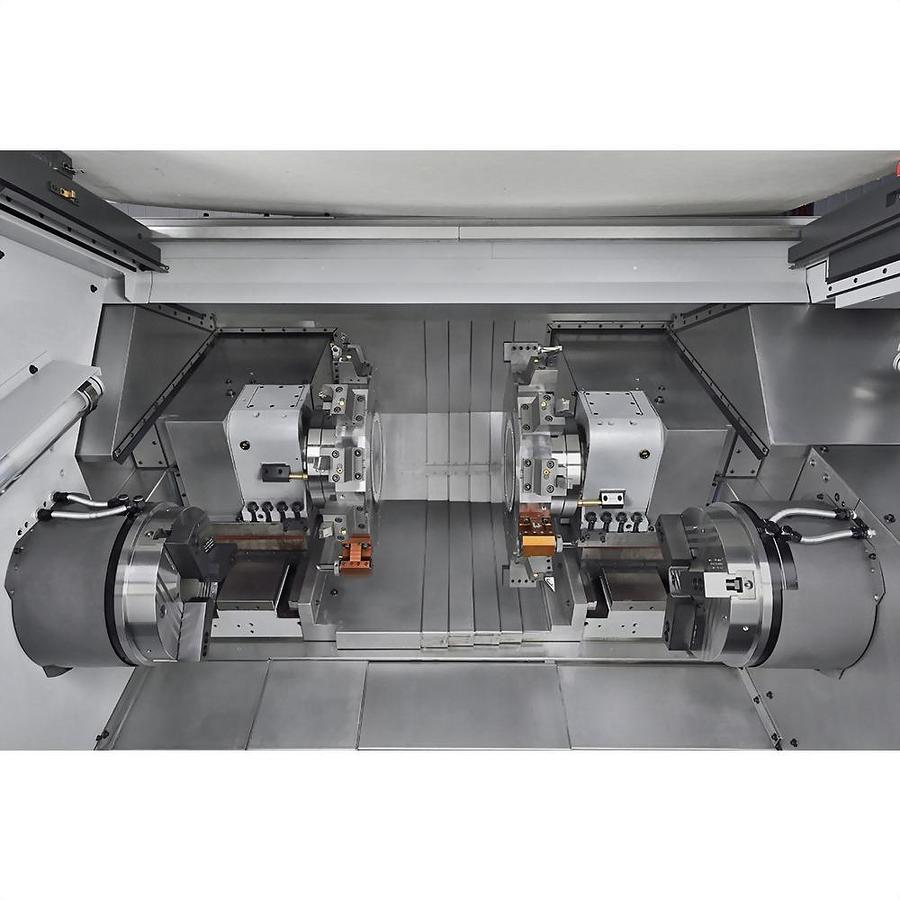

Multi-axis Complex Turning-milling Center
Specifications
| Model | UA-250 |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 700 |
| Swing over saddle | mm 600 |
| Max. Turning Diameter (SP1) | mm 360 |
| Max. Turning Diameter (SP2) | mm 360 |
| Max. turning length | mm 290 |
| Guide way type | Box |
| Spindle Nose | ASA A2-11 |

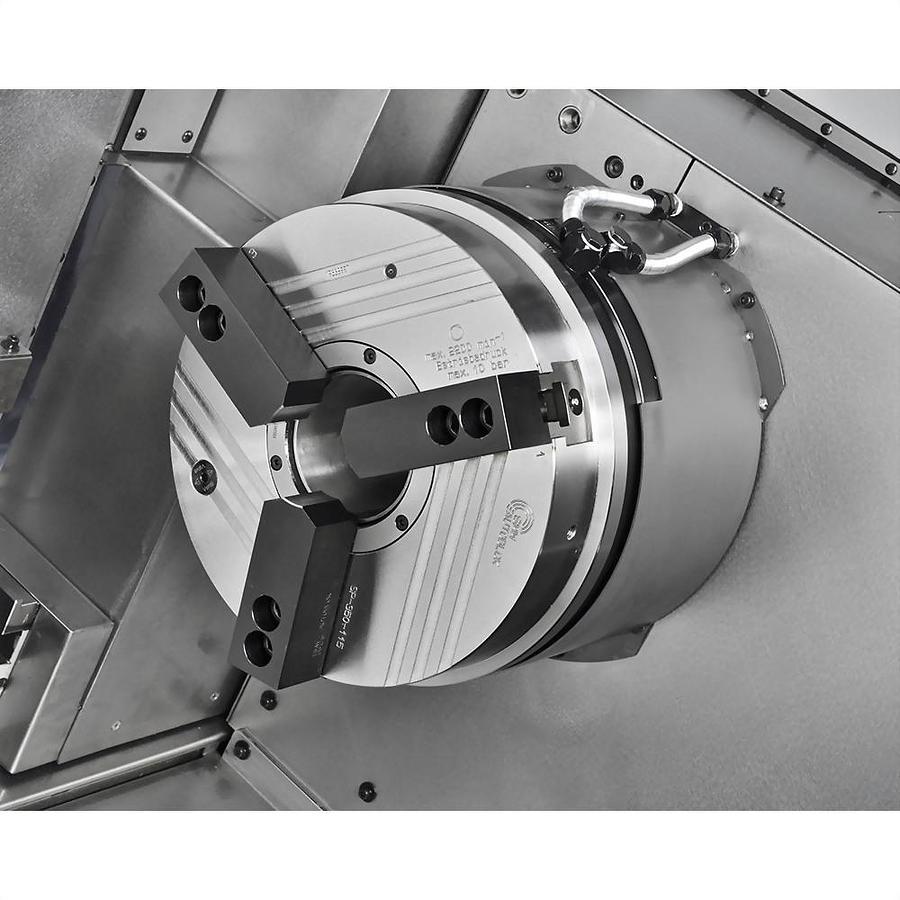

| Chuck Diameter | inch 15 |
| Bar Capacity | mm 105 |
| Spindle Speed | rpm 2500 |
| Spindle Motor Power(Cont. /30min) | kW 15/18.5 |
| X1/X2 axis Travel | mm 210 |
| Z1/Z2 axis Travel | mm 500 |
| B-axis Travel | mm 1200 |
| X1/X2 axis Rapid Traverse Rate | m/min 20 |
| Z1/Z2Â axis Rapid Traverse Rate | m/min 24 |
| B-axis Rapid Traverse Rate | m/min 24 |
| Tooling system | BMT-55N |

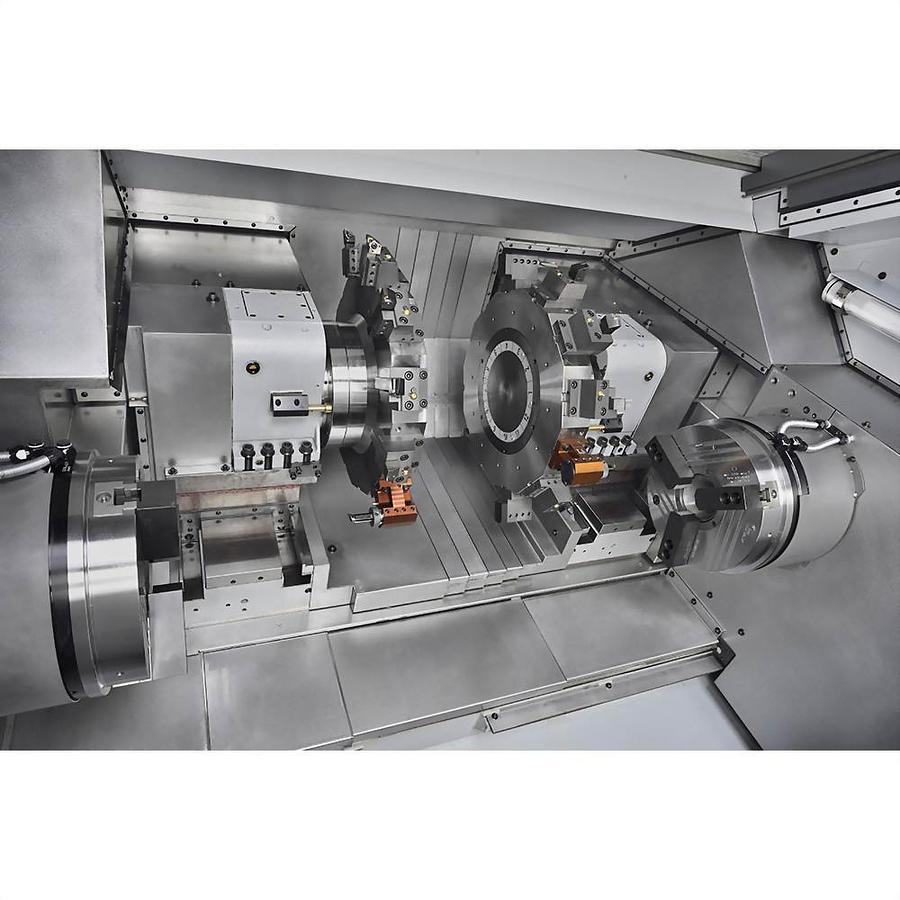

| Turret driven type | Servo mechanical |
| Number of tools | station 12+12 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 40 |
| Machine dimension L x W xH | m 5.6 x 2.6 x 2.4 |
| Net weight | kg 11000 |
