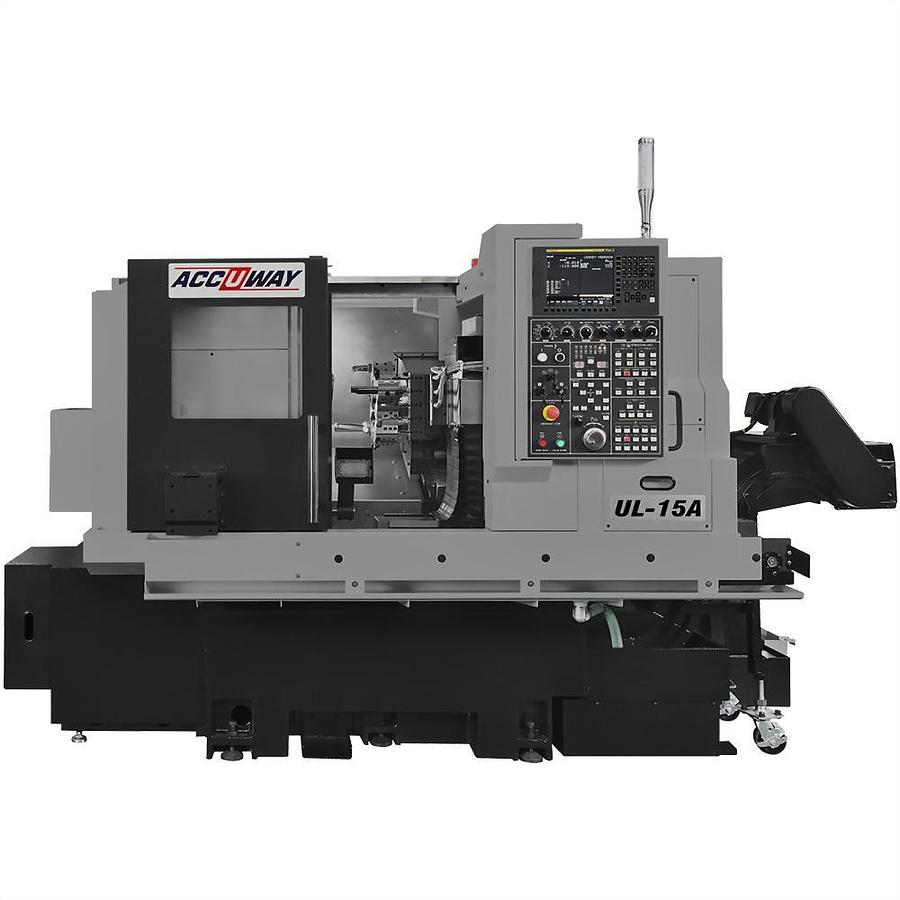

UL-15A
Contact us for price
Description
Two Turret Flat Bed CNC Turning Center
Specifications
| Model | UL-15A |
| Condition | New |
| Controller | FANUC 0i-TF |
| Swing over bed | mm 455 |
| Swing over saddle | mm 260 |
| Max. turning diameter | mm 260 |
| Max. turning length | mm 250 |
| Spindle nose taper | ASA A2-5 |
| Chuck | CK42 Collet Chuck |
| Bar capacity | mm 44 |
| Spindle speed | rpm 6000 |
| Spindle motor power(Cont. / 30min) | kW 11/15 |
| X1/X2-axis travel | mm 175/260 |
| Z1/Z2-axis travel | mm 350/260 |
| X1/X2-axis Rapid Traverse Rate | m/min 20/12 |
| Z1/Z2-axis Rapid Traverse Rate | m/min 20/12 |

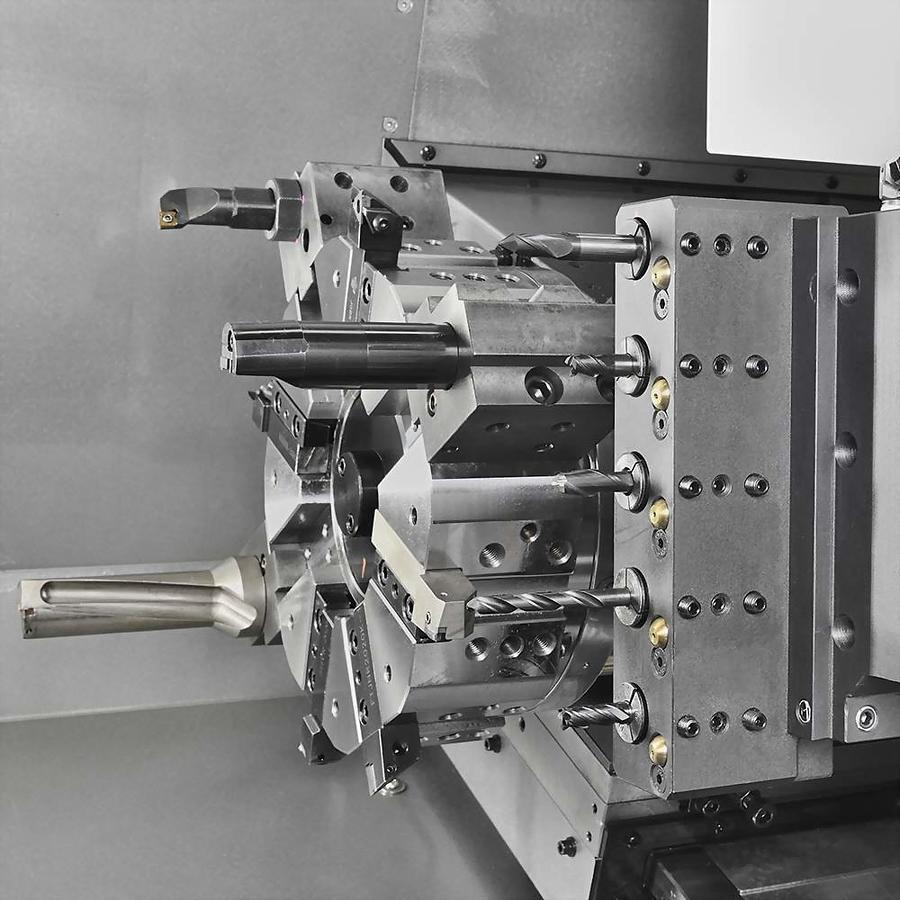

| Tooling system | BOT+ Gang type |
| Turret driven type | Hydraulic |
| Number of tools | station 8+5 |
| Square tool shank size(T1) | mm 25 |
| Round tool shank size(T1/T2) | mm 32/25 |
| Machine dimension L x W x H | m 3.1 x 1.75 x 1.85 |
| Net weight | kg 3000 |
