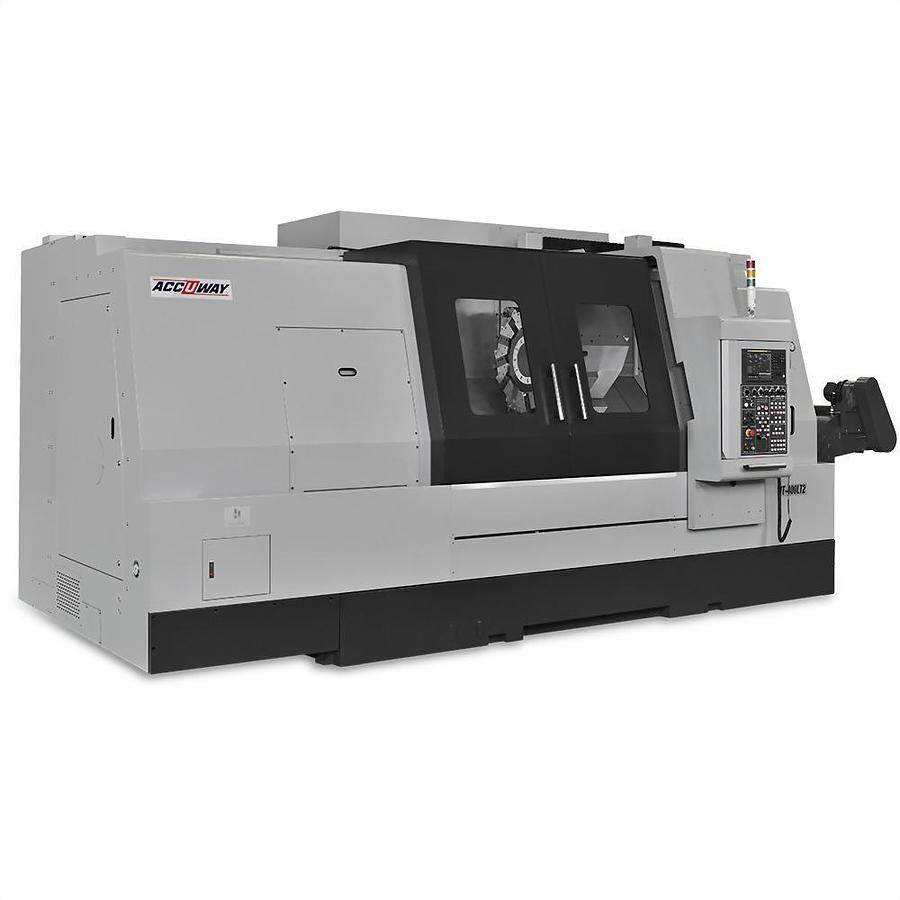

UT-400LT2
Contact us for price
Description
Multi-Axis Super Complex Turning Center
Specifications
| Model | UT-400LT2 |
| Condition | New |
| Controller | FANUC 0i-TF Plus |
| Swing over bed | mm 900 |
| Swing over saddle | mm 745 |
| Max. Turning Diameter (SP1) | mm 700 |
| Max. Turning Diameter (SP2) | mm 460 |
| Max. turning length | mm 1400 |
| Guide way type | Box |
| Spindle Nose | ASA A2-15 |
| Chuck Diameter | inch 24 |
| Bar Capacity | mm 180 |
| Spindle Speed | rpm 800(Belt) |
| Spindle Motor Power(Cont. /30min) | kW 30/37 + 2 speed gear box |
| X1/X2 axis Travel | mm 380 / 260 |
| Z1/Z2 axis Travel | mm 1500 |
| X1/X2 axis Rapid Traverse Rate | m/min 20 |
| Z1/Z2 axis Rapid Traverse Rate | m/min 24 |
| Tooling system | BOT |
| Turret driven type | Servo mechanical |

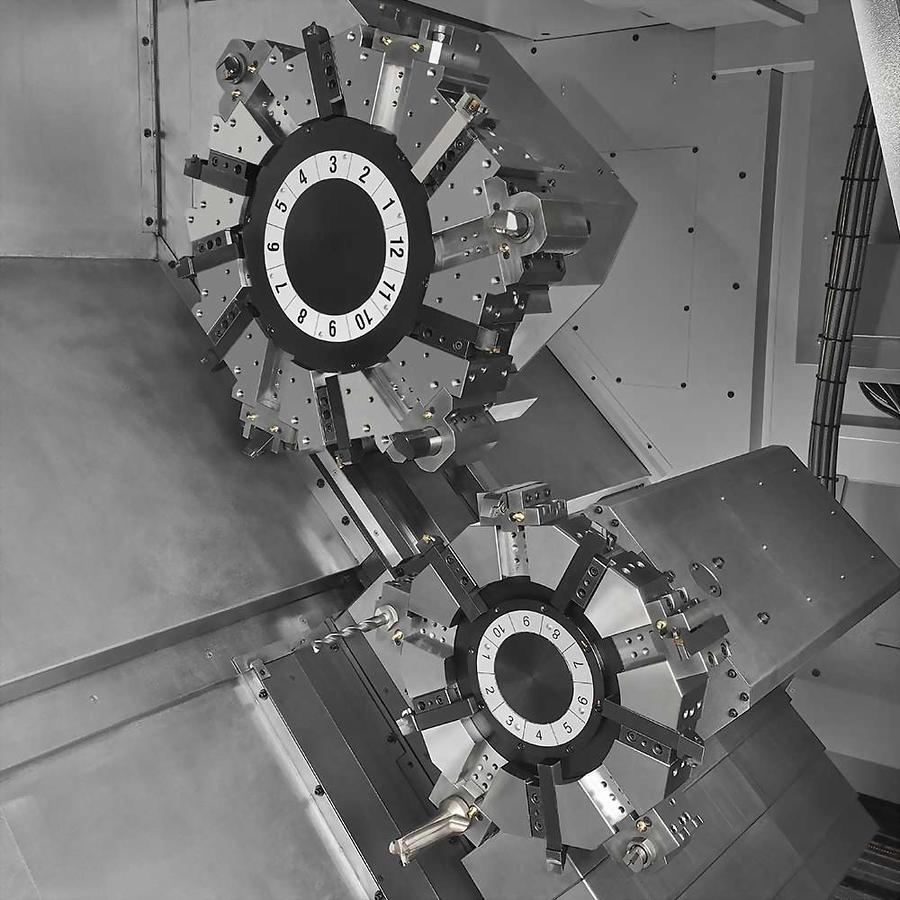

| Number of tools | station 12+10 |
| Square tool shank size T1/T2 | mm □32 / □25 |
| Round tool shank size T1/T2 | mm Ø50 / Ø32 |
| Machine dimension L x W xH | m 6.2 x 3.2 x 2.6 |
| Net weight | kg 14500 |
