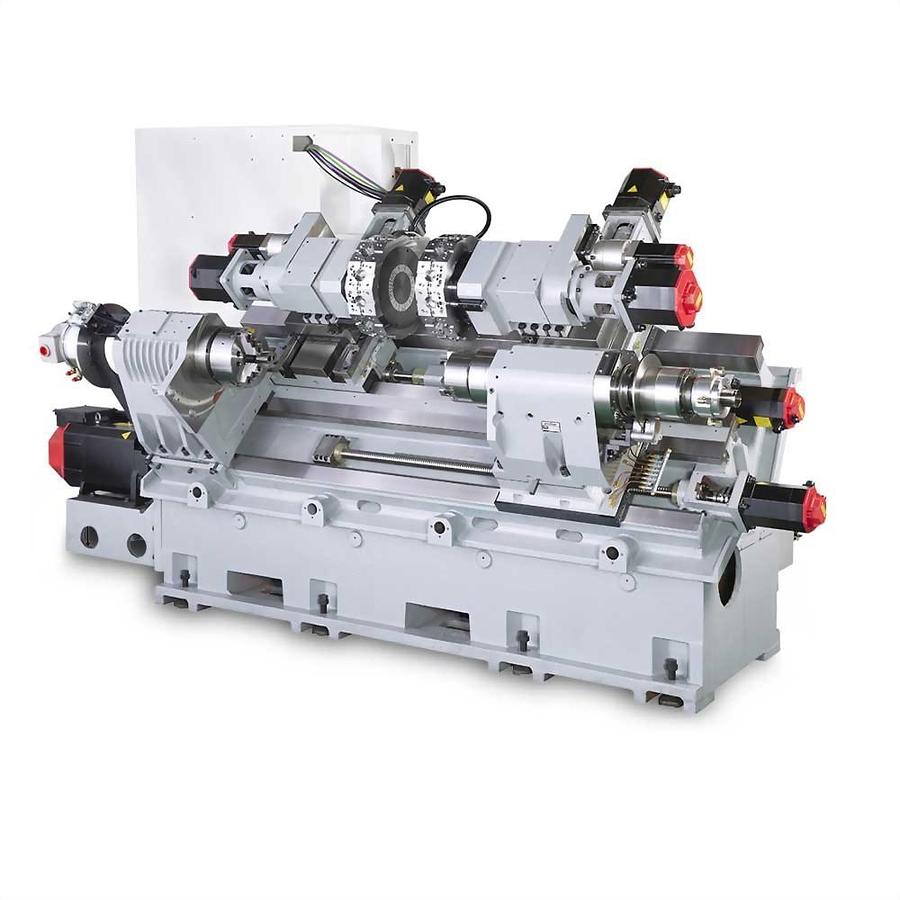

UT-2000T2M
Contact us for price
Description
Slant Bed Turning Center
Specifications
| Model | UT-2000T2M |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 600 |
| Swing over saddle | mm 260 |
| Max. Turning Diameter (SP1) | mm 220 |
| Max. Turning Diameter (SP2) | mm 220 |
| Max. turning length (SP1) | mm 240 |
| Max. turning length (SP2) | mm 350 |
| Guide way type | Box |
| Spindle Nose | ASA A2-5 |
| Chuck Diameter | inch 6 |
| Bar Capacity | mm 44 |
| Spindle Speed | rpm 6000 |
| Spindle Motor Power(Cont. /30min) | kW 5.5/7.5 |
| X-axis Travel | mm X1/X2 : 220 |
| Z-axis Travel | mm Z1/Z2 : 350 |
| B-axis Travel | mm 850 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 20 |
| B-axis Rapid Traverse Rate | m/min 20 |
| Tooling system | BMT-40 |
| Turret driven type | Servo mechanical |
| Number of tools | station 12+12 |
| Square tool shank size | mm 20 |
| Round tool shank size | mm 32 |
| Max. Rotary Tool Speed | rpm 6000 |
| Rotary Tool power | kW 3.7/5.5 |
| Machine dimension L x W x H | m 4.7 x 2.1 x 2 |
| Net weight | kg 7000 |
