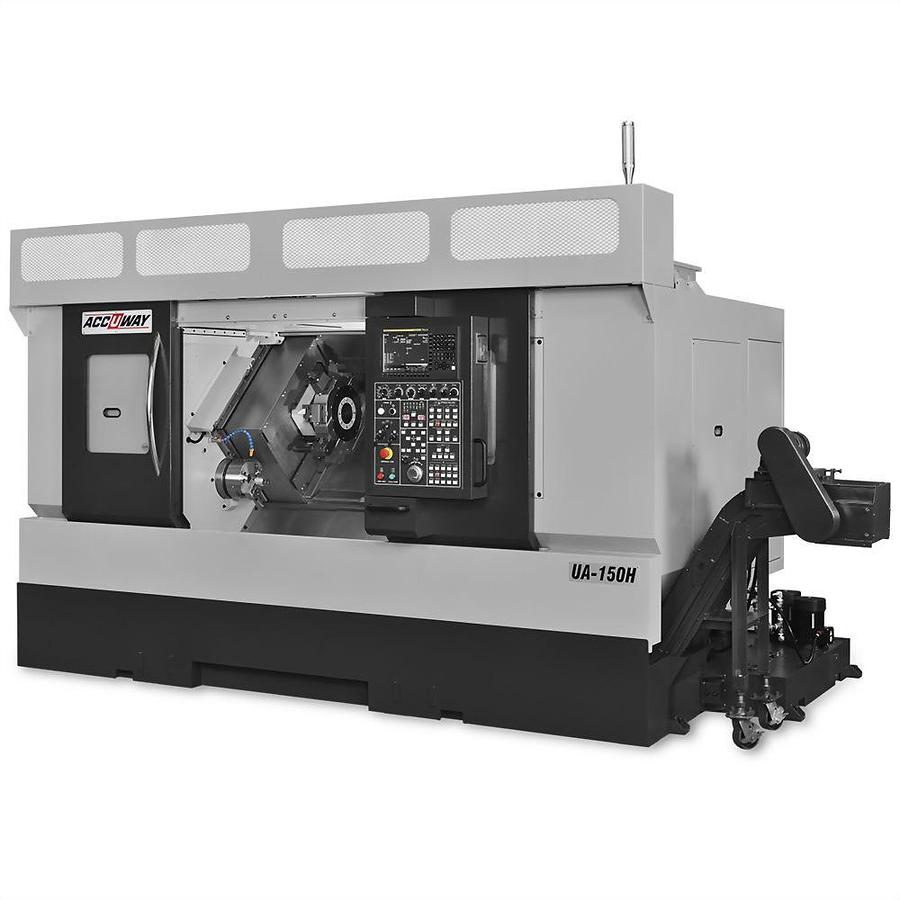

UA-150H
Contact us for price
Description
Multi-axis Slant Bed Turning Center
Specifications
| Model | UA-150H |
| Condition | New |
| Controller | FANUC 0i-TF |
| Swing over bed | mm 600 |
| Swing over saddle | mm 260 |
| Max. Turning Diameter (SP1) | mm 250 |
| Max. Turning Diameter (SP2) | mm 250 |
| Max. turning length | mm 240 |
| Guide way type | Box |
| Spindle Nose | ASA A2-6 |
| Chuck Diameter | inch 6 |
| Bar Capacity | mm 52 |
| Spindle Speed | rpm 4500 |
| Spindle Motor Power(Cont. /30min) | kW 7.5/11 |
| X1/X2 axis Travel | mm 220 |
| Z1/Z2 axis Travel | mm 350 |
| B-axis Travel | mm 900 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 24 |
| B-axis Rapid Traverse Rate | m/min 20 |
| Tooling system | BMT-55N Servo |
| Turret driven type | Servo mechanical |
| Number of tools | station 12+12 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 32 |
| Machine dimension L x W xH | m 3.9 x 2.1 x1.9 |
| Net weight | kg 8000 |
