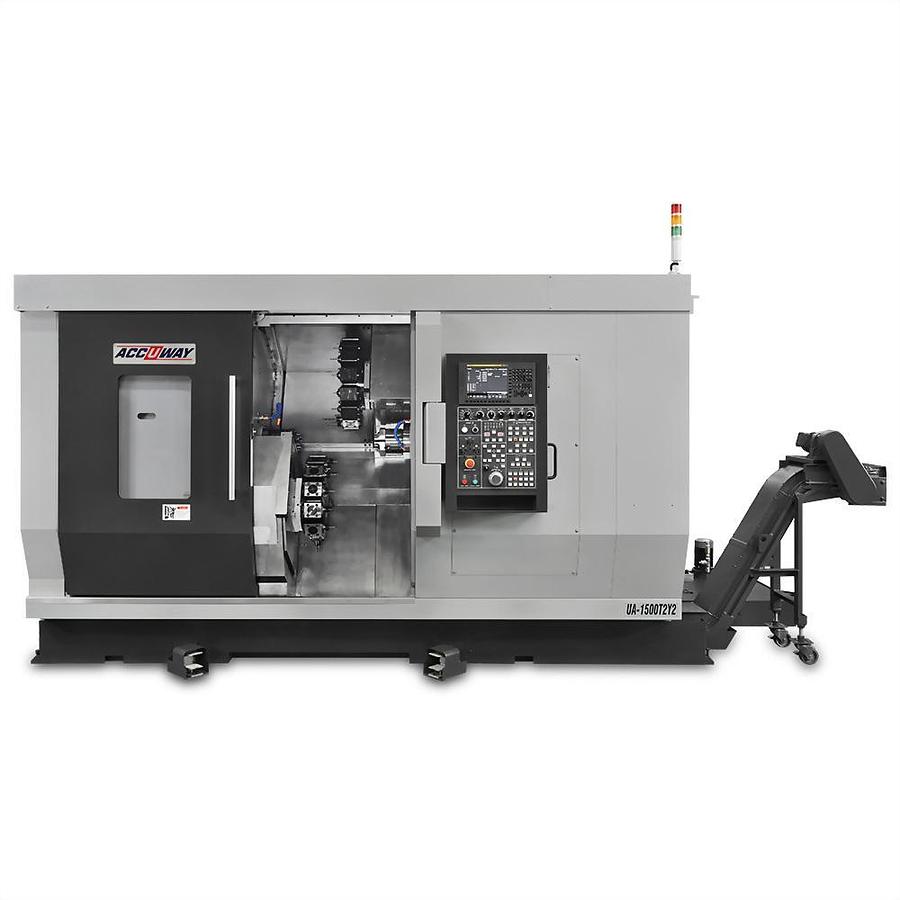

UA-1500T2Y2
Contact us for price
Description

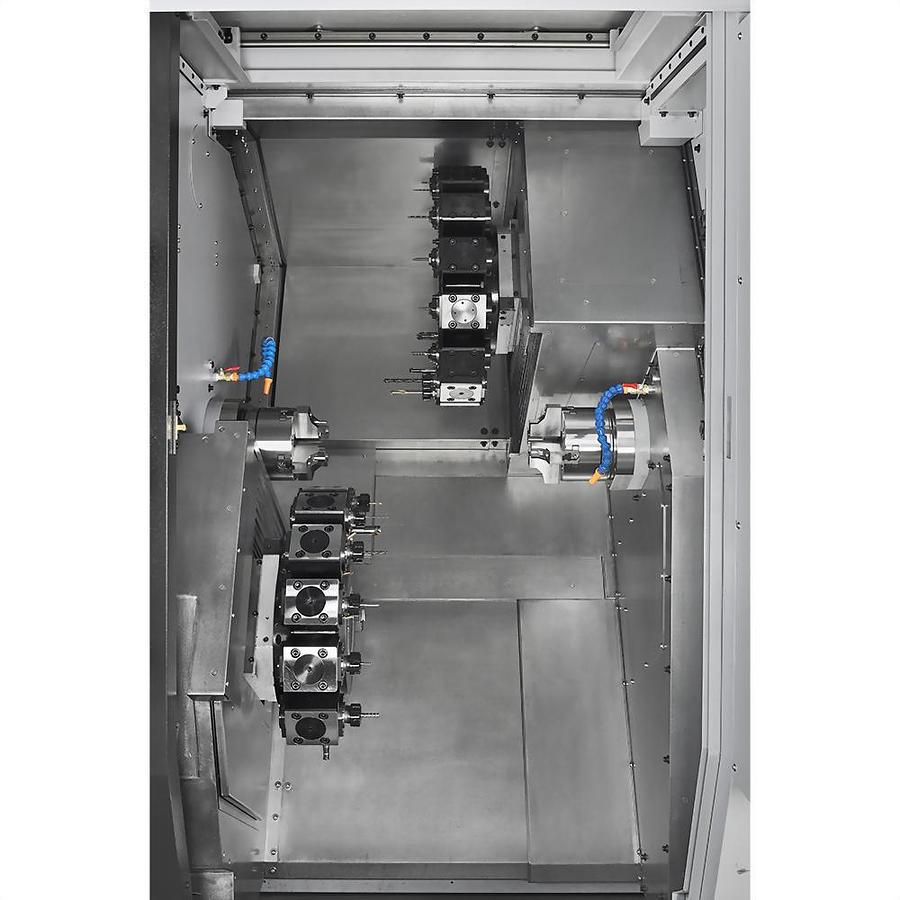

Multi-axis Complex Turning-milling Center
Specifications
| Model | UA-1500T2Y2 |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 460 |
| Swing over saddle | mm 400 |
| Max. Turning Diameter (SP1) | mm 200 |
| Max. Turning Diameter (SP2) | mm 200 |
| Max. turning length | mm 500 |
| Guide way type | Linear + Box |
| Spindle Nose | ASA A2-6 |
| Chuck Diameter | inch 6 8 |
| Bar Capacity | mm 52 |
| Spindle Speed | rpm 4500 |
| Spindle Motor Power(Cont. /30min) | kW 7.5/11 |
| X1/X2 axis Travel | mm 170 |
| Z1/Z2 axis Travel | mm 570 |
| Y1/Y2 axis Travel | mm ±50 |
| B-axis Travel | mm 650 |
| X1/X2 axis Rapid Traverse Rate | m/min 20 |
| Z1/Z2 axis Rapid Traverse Rate | m/min 36 |
| Y1/Y2 axis Rapid Traverse Rate | m/min 10 |
| B-axis Rapid Traverse Rate | m/min 40 |
| Tooling system | BMT-55N |
| Turret driven type | Servo mechanical |
| Number of tools | station 15+15 |
| Square tool shank size | mm 20(25) |
| Round tool shank size | mm 25(32) |
| Max. Rotary Tool Speed | rpm 6000 |
| Rotary Tool power | kW 3.7/5.5 |
| Machine dimension L x W x H | m 4 x 2.4 x 2.4 |
| Net weight | kg 10500 |
