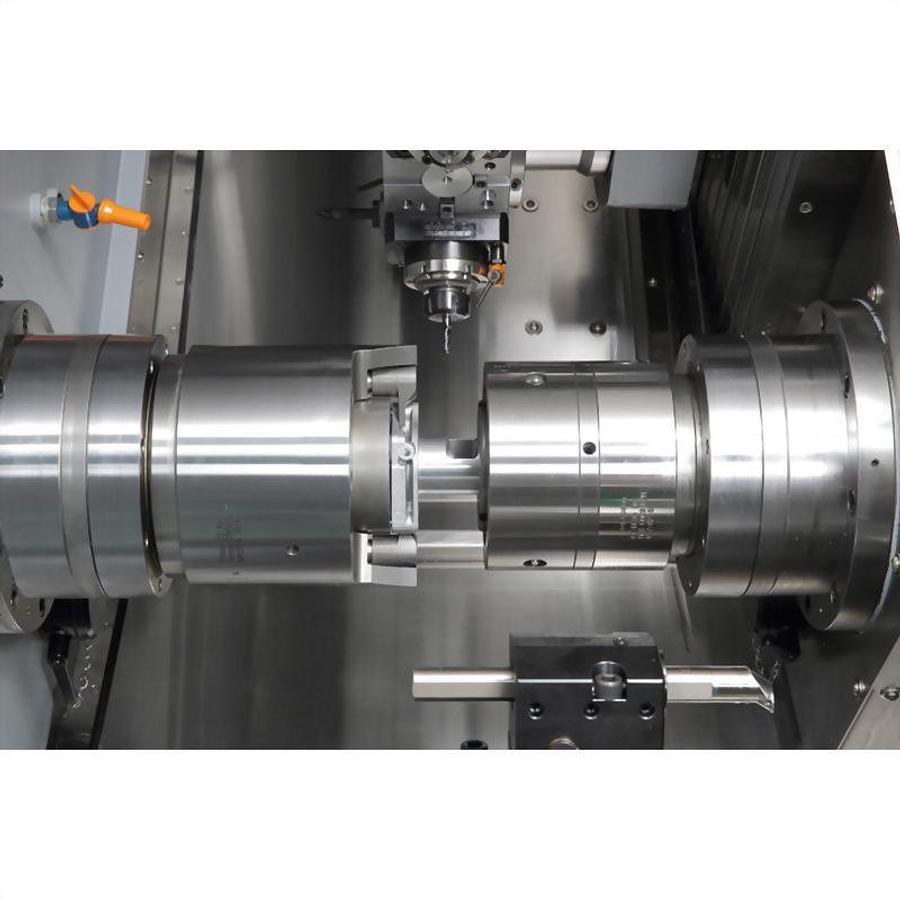

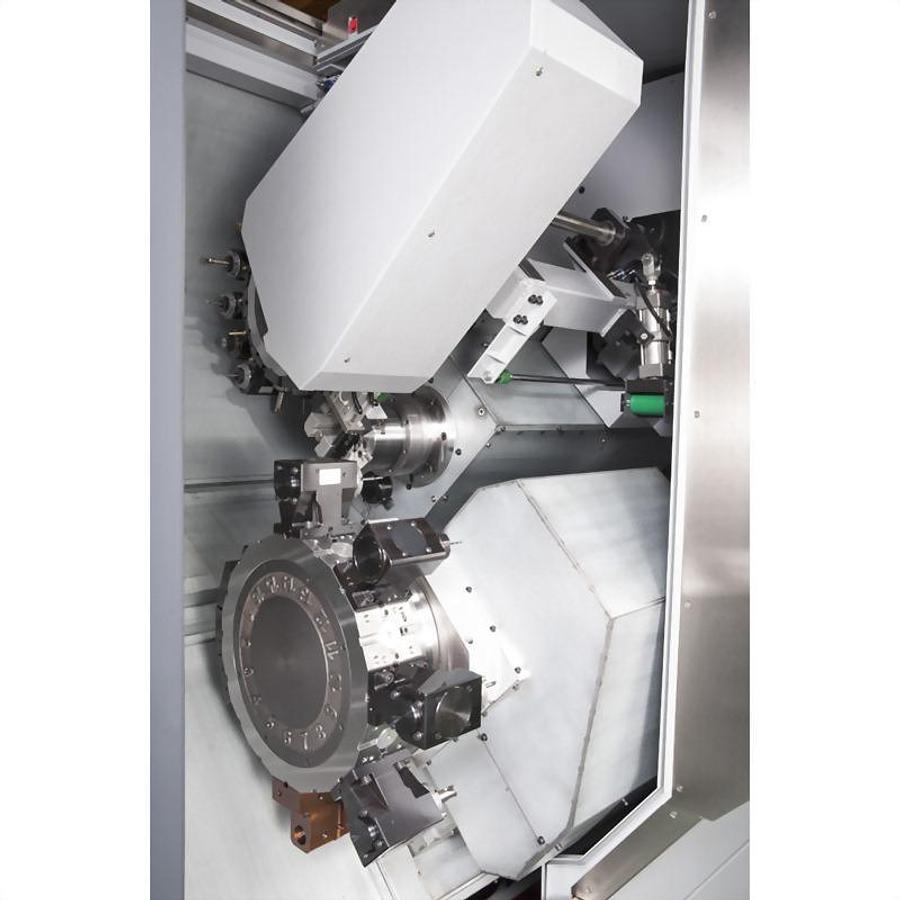

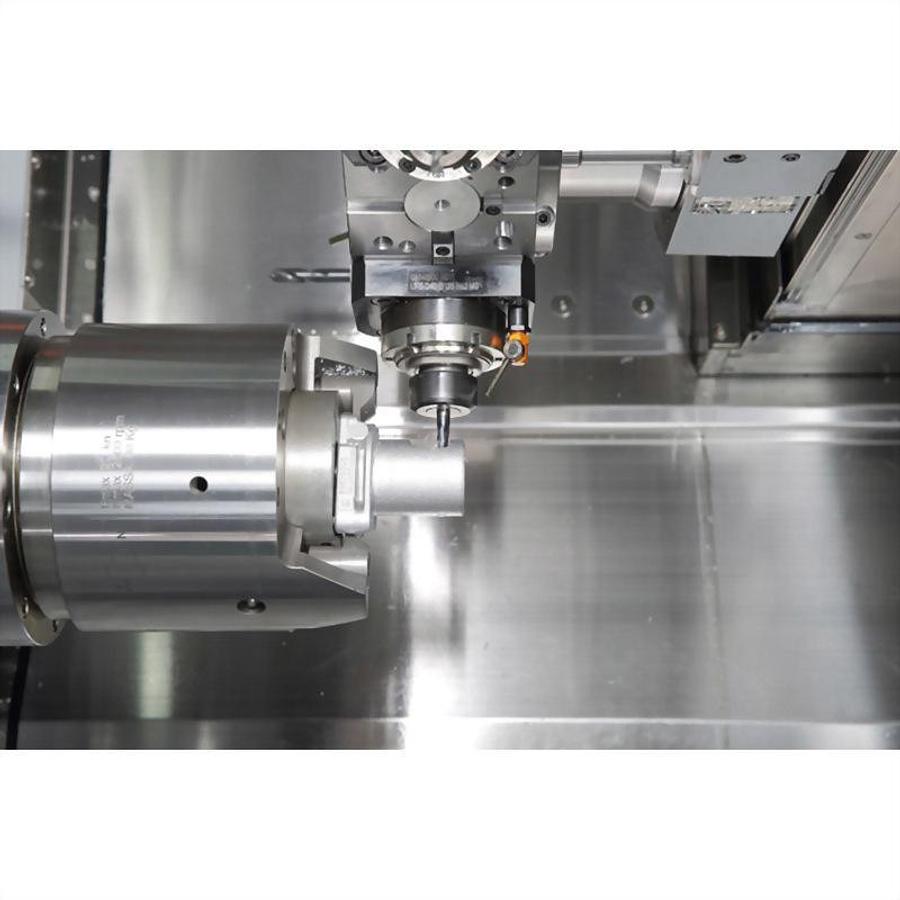

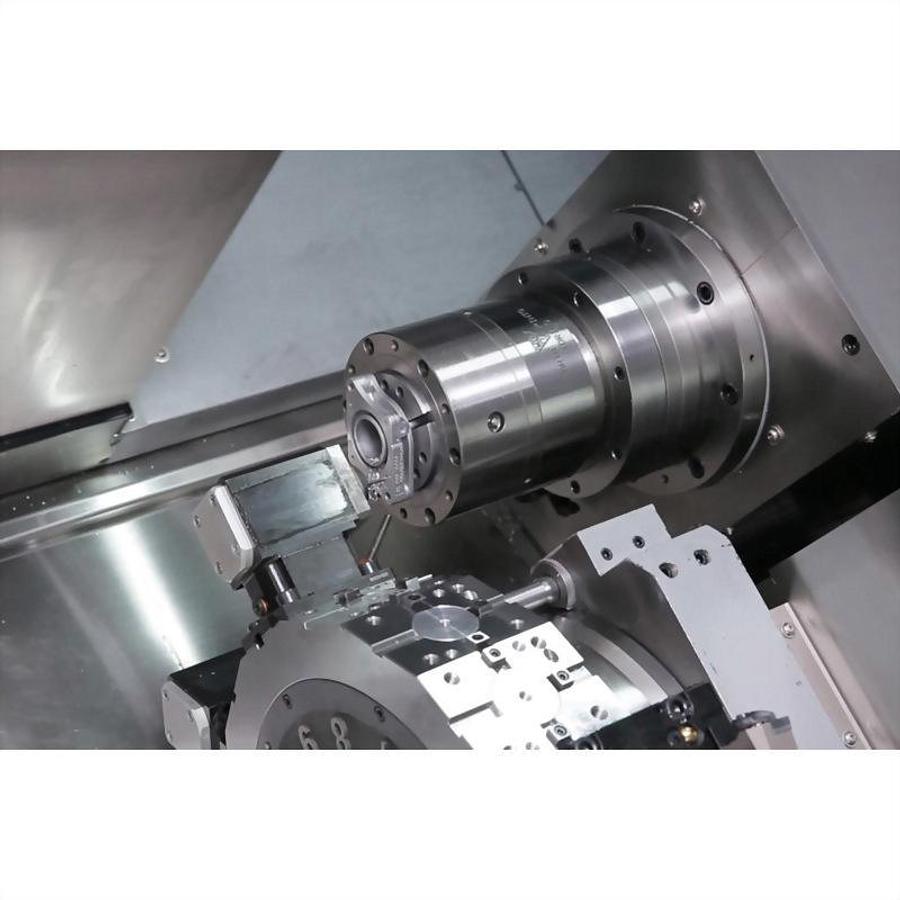

UZ-2000T2M
Contact us for price
Description
Multi-axis Complex Turning-milling Center
Specifications
| Model | UZ-2000T2M |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 660 |
| Swing over saddle | mm 620 |
| Max. Turning Diameter (SP1) | mm 320 |
| Max. Turning Diameter (SP2) | mm 320 |
| Max. turning length | mm 790 |
| Guide way type | Linear + Box |
| Spindle Nose | ASA A2-5 A2-6 |
| Chuck Diameter | inch 6 8 |
| Bar Capacity | mm 52 65 |
| Spindle Speed | rpm 5000(Built-in) 4500(Built-in) |
| Spindle Motor Power(Cont. /30min) | kW 11/15 |
| X1/X2 axis Travel | mm 210 |
| Z1/Z2 axis Travel | mm 840 |
| B-axis Travel | mm 920 |
| X1/X2 axis Rapid Traverse Rate | m/min 30 |
| Z1/Z2 axis Rapid Traverse Rate | m/min 40 |
| B-axis Rapid Traverse Rate | m/min 40 |
| Tooling system | BMT-40 |
| Turret driven type | Servo mechanical |
| Number of tools | station 16+16 |
| Square tool shank size | mm 20 |
| Round tool shank size | mm 32 |
| Max. Rotary Tool Speed | rpm 6000 |
| Rotary Tool power | kW 3.7/5.5 |
| Machine dimension L x W xH | m 4.7 x 2.4 x 2.4 |
| Net weight | kg 10500 |
