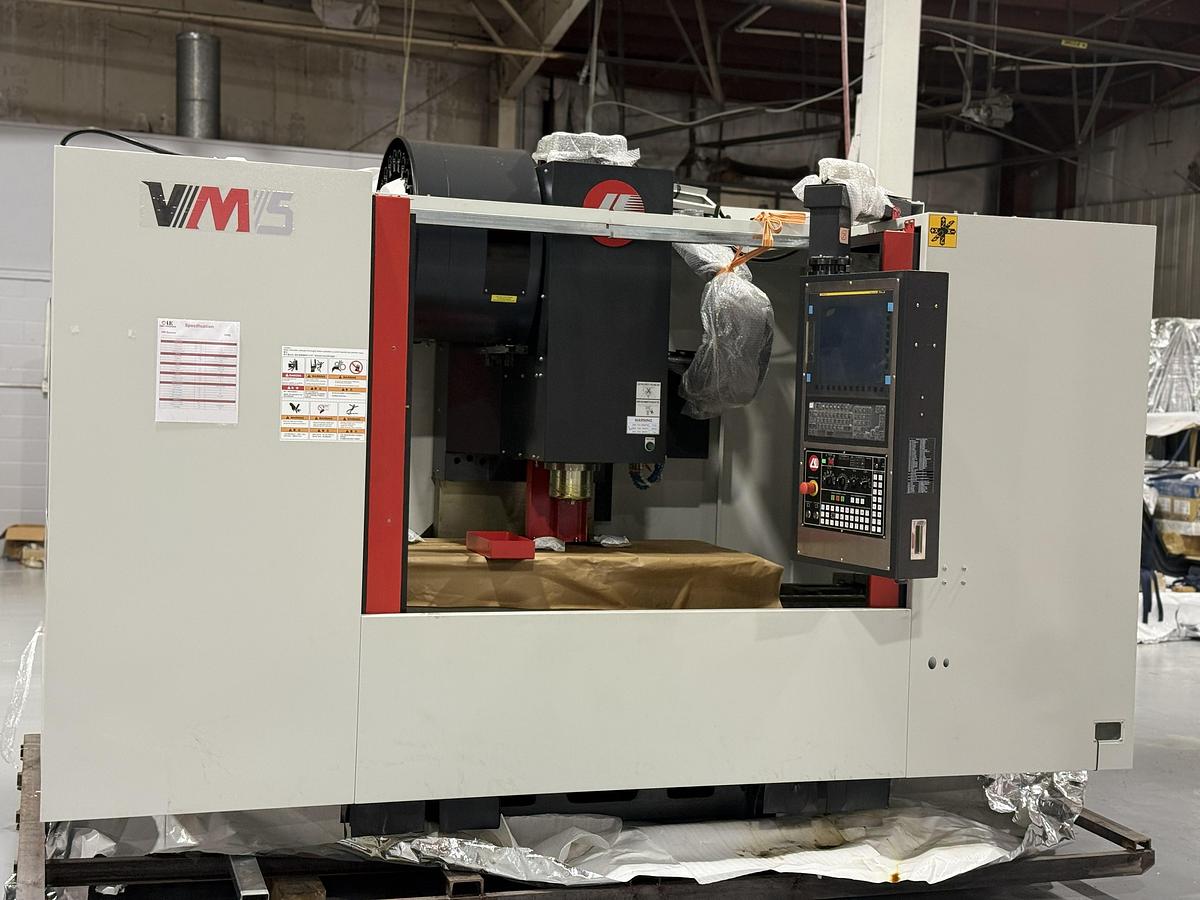

LK Machinery VM5

This stock USA machine features;

Fanuc 0i-MF 15”

DDS 12,000rpm CAT-40

Arm Type ATC with 24 tool capacity

Spindle Air Curtain

Travels of X-1350mm, Y- 650mm, Z-610mm,

Distance from Spindle Center to Table, 100mm-710mm

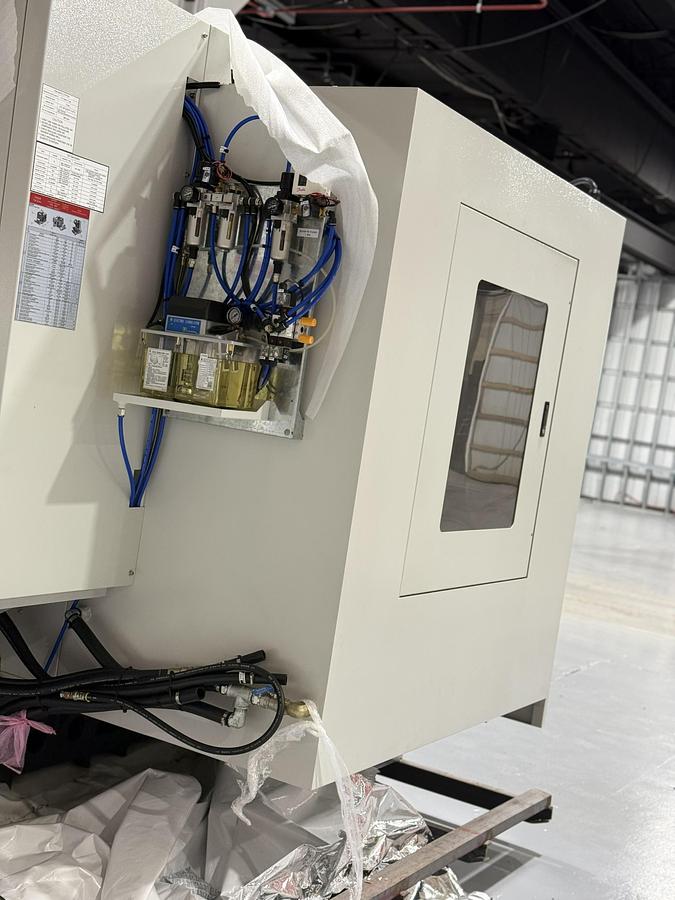

Automatic Lubrication System

Side Flush System

Spindle through coolant ready (pump not included)

Roller linear ways

Front Chip Lift Auger (Screw Type)

Spindle Motor(30min/Cont) 15 / 18.5 kw

Rapid Axis Travel(X/Y/Z) 48m / 48m / 36m

Machine Dimension (LxWxH) 4000mm x 2502mm x 2900mm

Net Weight 7600Kg

The LK Machinery VM5 is a vertical machining center designed for precision and efficiency in various production environments. Known for its robust build, the VM5 offers high reliability and consistent performance, making it a suitable choice for manufacturers aiming for precise machining operations. This model emphasizes quick delivery, minimizing downtime and ensuring a rapid deployment in your workshop

With cutting-edge technology, the VM5 provides superior control and accuracy for intricate machining tasks. It features user-friendly controls, which enhance operational efficiency and are conducive for both seasoned operators and those new to machine operation. This advanced system is tailored to support high-speed processes while maintaining excellent accuracy, making it highly effective for complex production tasks. The LK Machinery VM5 also boasts of a sturdy structure that reduces vibration and ensures stability during operation, resulting in high-quality surface finishes on your machined parts. Its compact size doesn't compromise its capability, providing ample versatility to meet various fabrication needs. Whether for small-scale batch production or more complex industrial applications, the VM5 is engineered to deliver optimal performance with minimal setup time.
