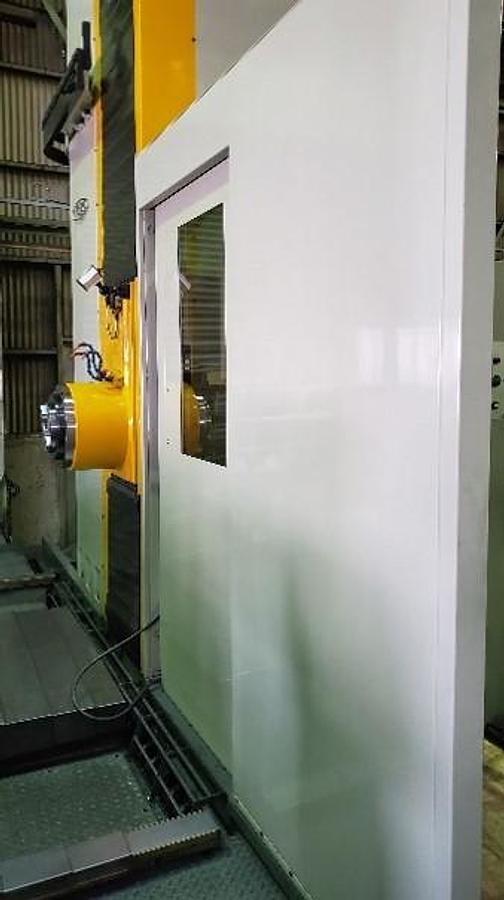

Nomura HBA-110T-R3

Stock USA

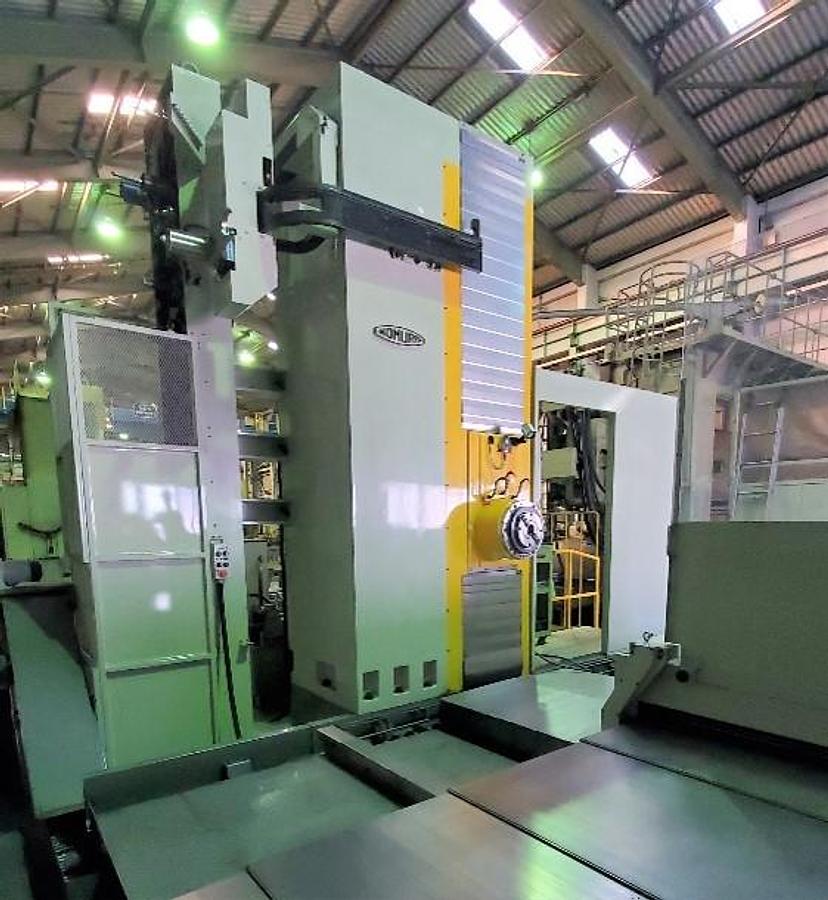

HBA-110 Series CNC Table Type Horizontal Boring and Milling Machine

4.33" spindle diameter

Oversized large diameter ball screws and feed motors

Nitrided hardened, ground and hand-lapped spindle (HRC 67+)

Extra-large spindle bearings with oil-mist cooling device

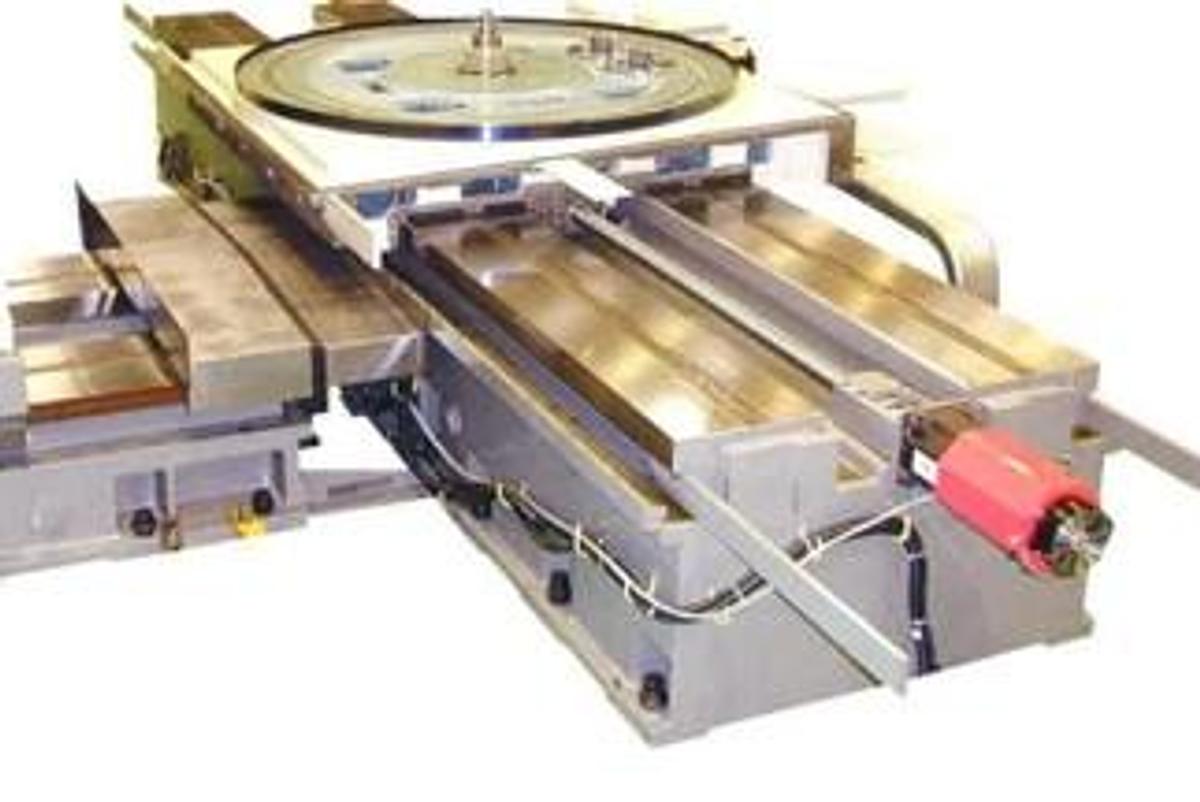

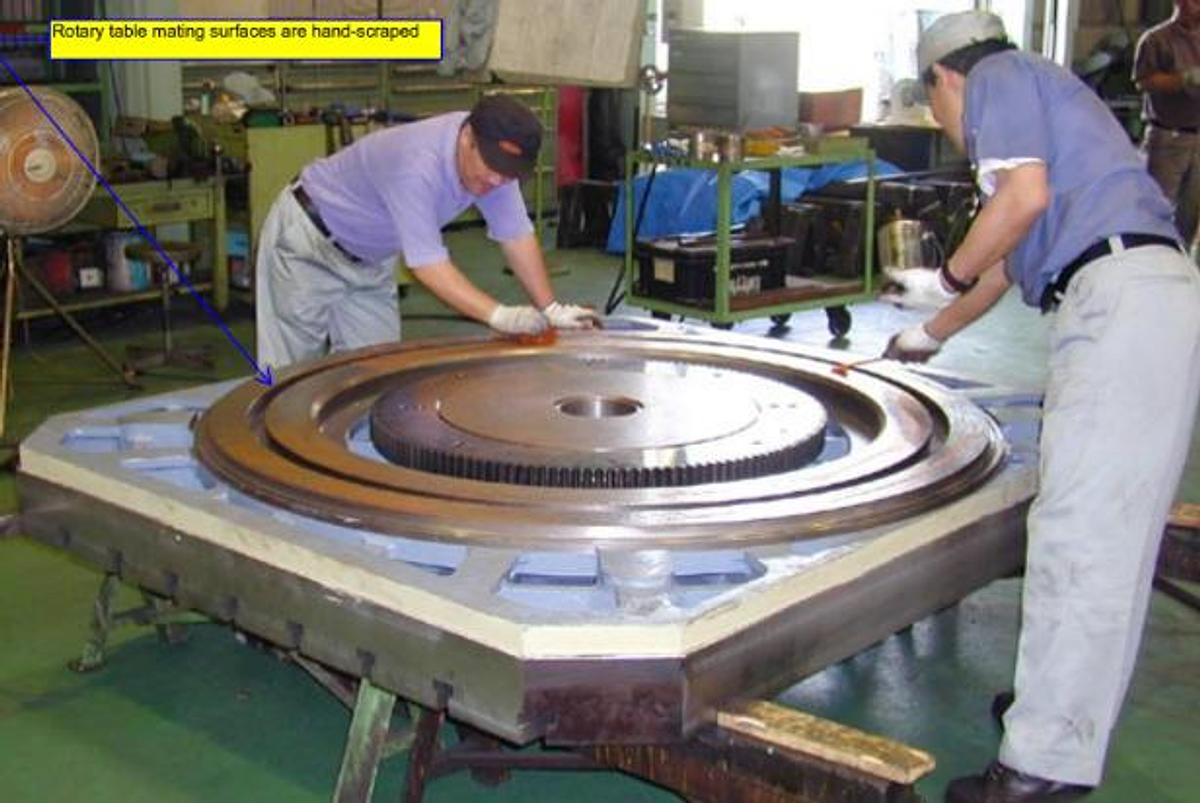

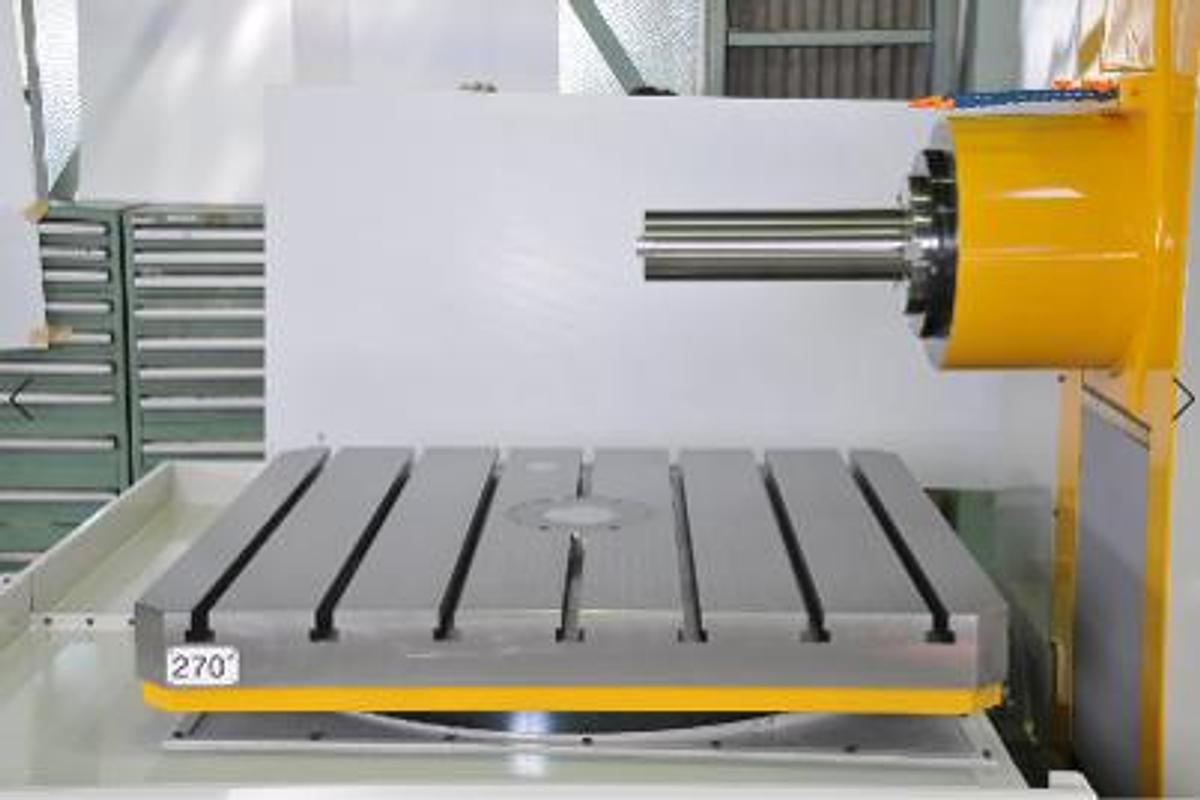

Full CNC controlled B axis rotary table with double warm

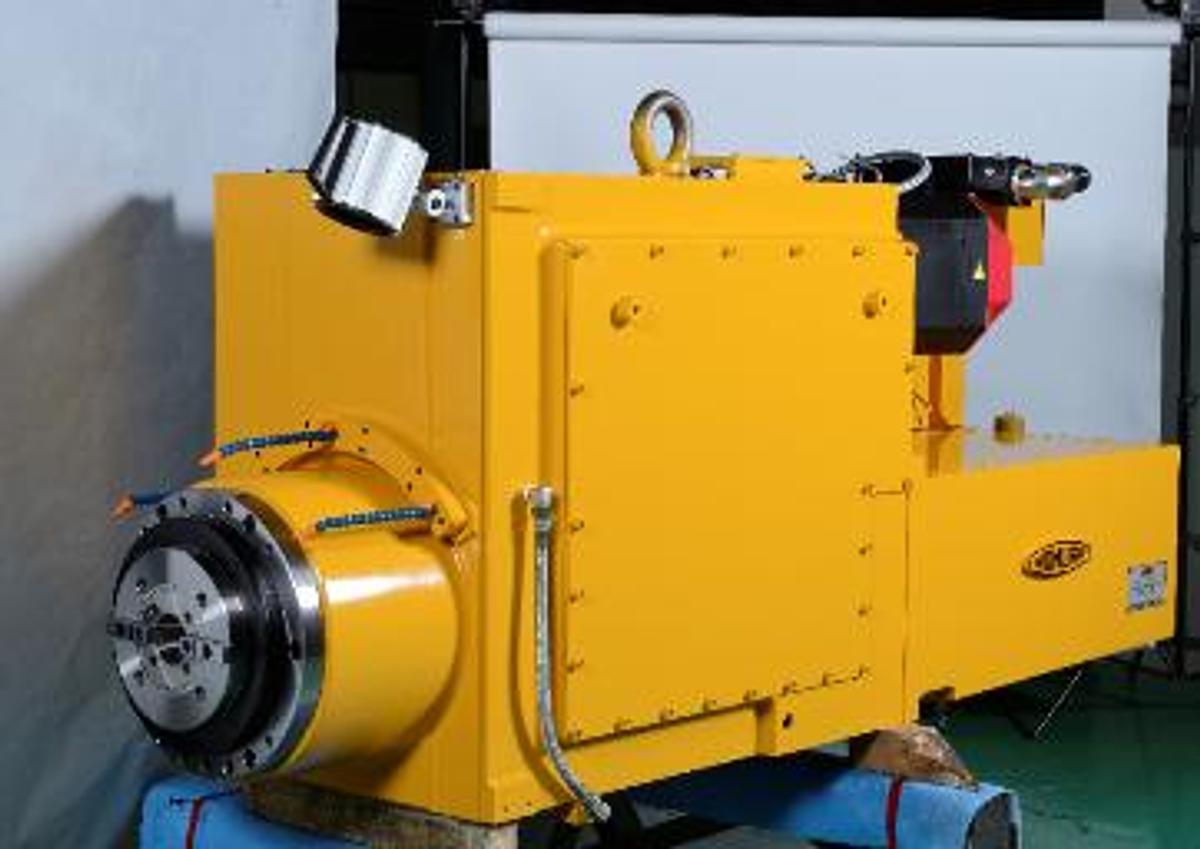

Three ranges of geared-headstock with 60HP spindle motor (2,530 Ft. Lbs)

The bed, the saddle, the column and the table are of high grade FC 300 iron

All the slideways are hardened and ground

The mating surfaces are coated with a fluorine-resin and forced lubricated

Standard Accessories*

NC devise (FANUC)

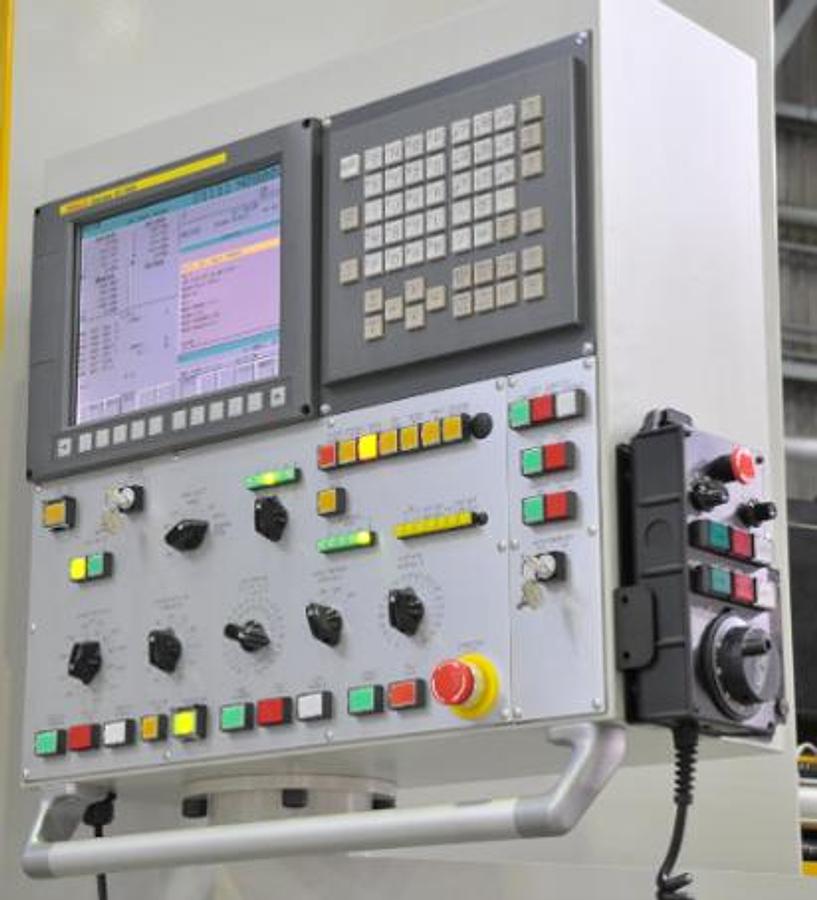

Operation panel and control panel

Built-in type chip conveyor (auger type)

Cutting fluid supply with 3 nozzles and collection device

Through spindle type coolant (100 psi)

Telescopic steel covers for bed, saddle and rail slide ways

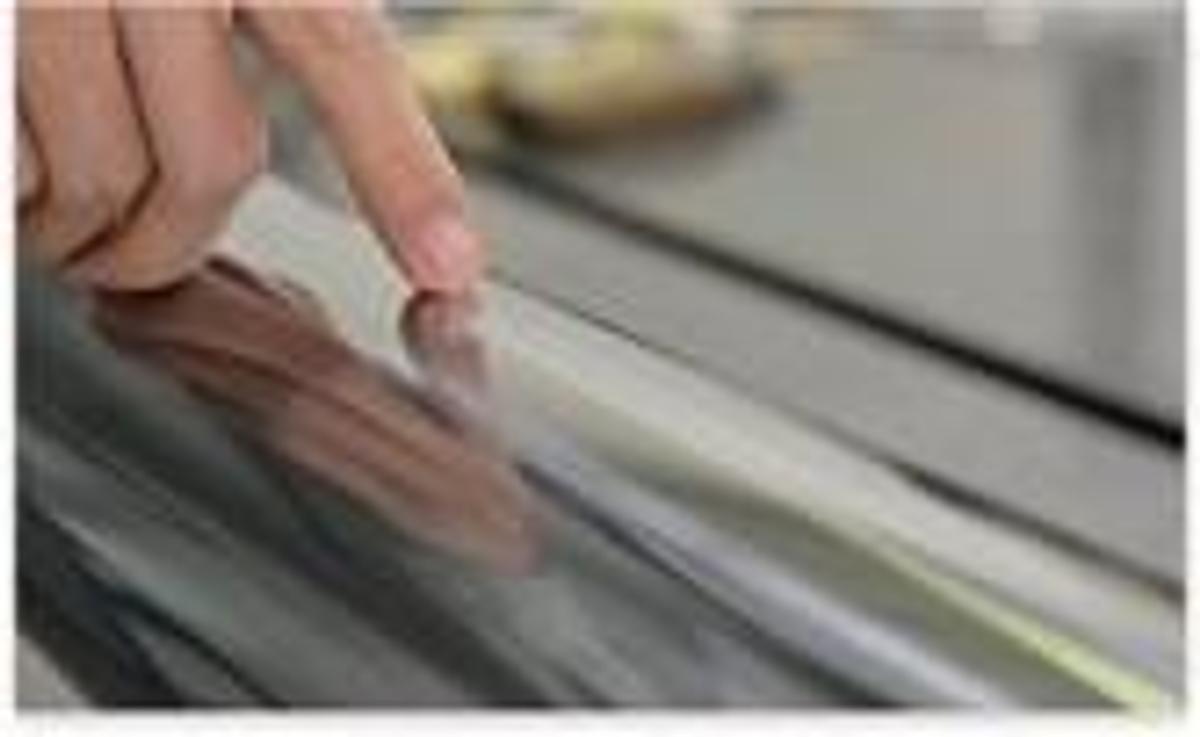

Silicon rubber roll sheet cover for column

Headstock inside lubricant oil cooler

Oil hydraulic power unit

Working light (spot light type)

Disassembly and assembly tool kit

Installation parts

Scale feedback system for B axis

Signal light

Automatic power shut-off device

ATC

Tool storage capacity 40 tools

Tool Shank CAT-50 (MAS-50)

Retention knob MAS P-50T-1(45deg)

Max. tool weight 66#

Max. tool length 16”

Max. tool diameter (full chain/adjacent pot empty) Ø5”/ Ø9”

Tool selection Pot address random

Tool moment Max. 18.1 lb-inch

*Following Special Accessories are included as North American Package.

Lift-up chip conveyor (hinge type)

Automatic power shut-off device

Spindle Through Coolant Preparation Max. 300psi
