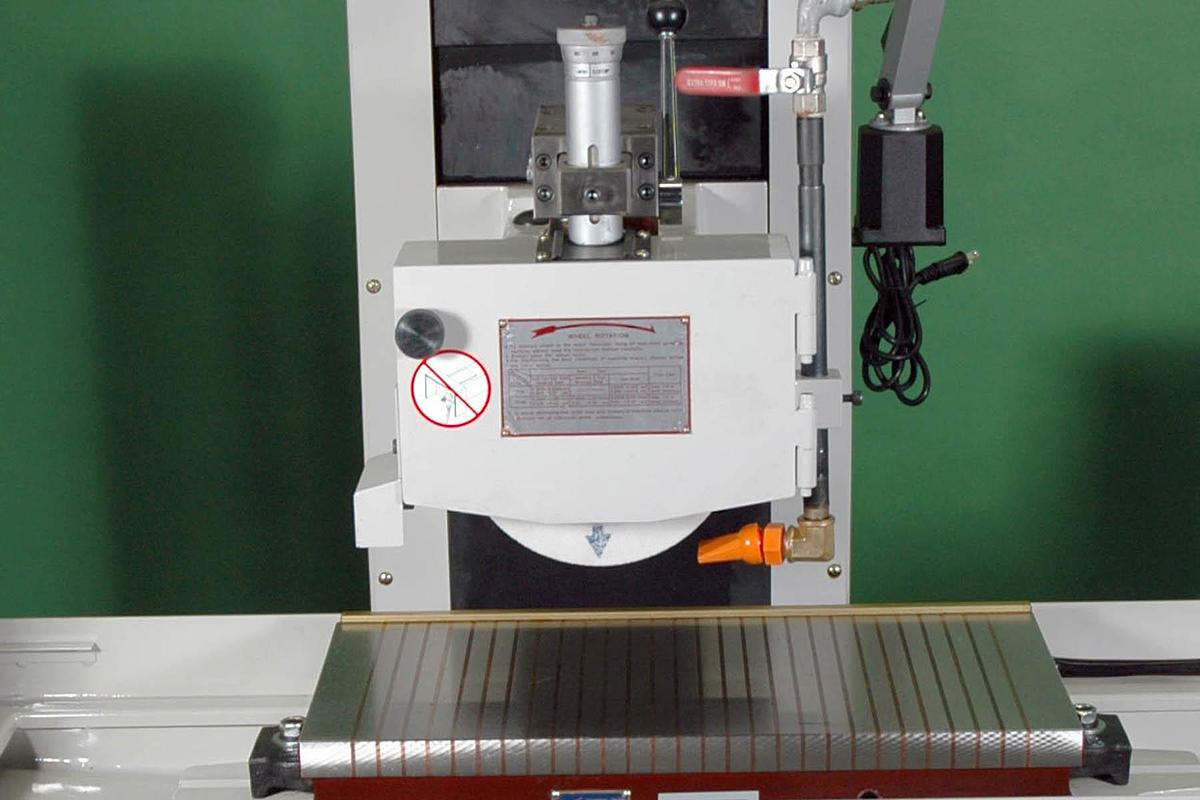

PFG-1020AH (7" Grinding Wheel)

Contact us for price
or
Call (519) 212-1782

Description

Saddle type surface grinder with longitudinal by hydraulic, cross feed by solid state relay, and vertical feed by manual. Optional auto downfeed system with elevating micro-feed motor is available.

FEATURES:

  • Meehanite casting of base, column, saddle, and table with outstanding structure designed and through internal stress elimination to ensure greater rigidity, accuracy, and stability
  • Precision spindle with P4 precision angular contact bearings and cartridge design that is completely sealed and lubricated to ensure high accuracy, durability, and superior surface finish
  • Hydraulic driven longitudinal table movement
  • Longitudinal and cross slideways are coated with Turcite-B to provide stable movement and superior accuracy. It's specially designed to maintain long life span
  • Cross feed control unit consists of a solid state relay which is designed to ensure a long service life
  • Automatic lubrication to all slide ways when hydraulic switch is "On"
  • Optional automatic down feed with elevating micro-feed motor and intuitive control panel to add more convenience to grinding operations

    • STANDARD ACCESSORIES:

  • Grinding wheel
  • Wheel flange
  • Flange extractor
  • Wheel balancing arbor and base
  • Wheel dresser withdiamond
  • Leveling screws and pads
  • Halogen work light


    • MACHINE INCLUDES:

  • Electromagnetic chuck
  • Auto demagnetizer for chuck
  • Parallel dresser (manual)

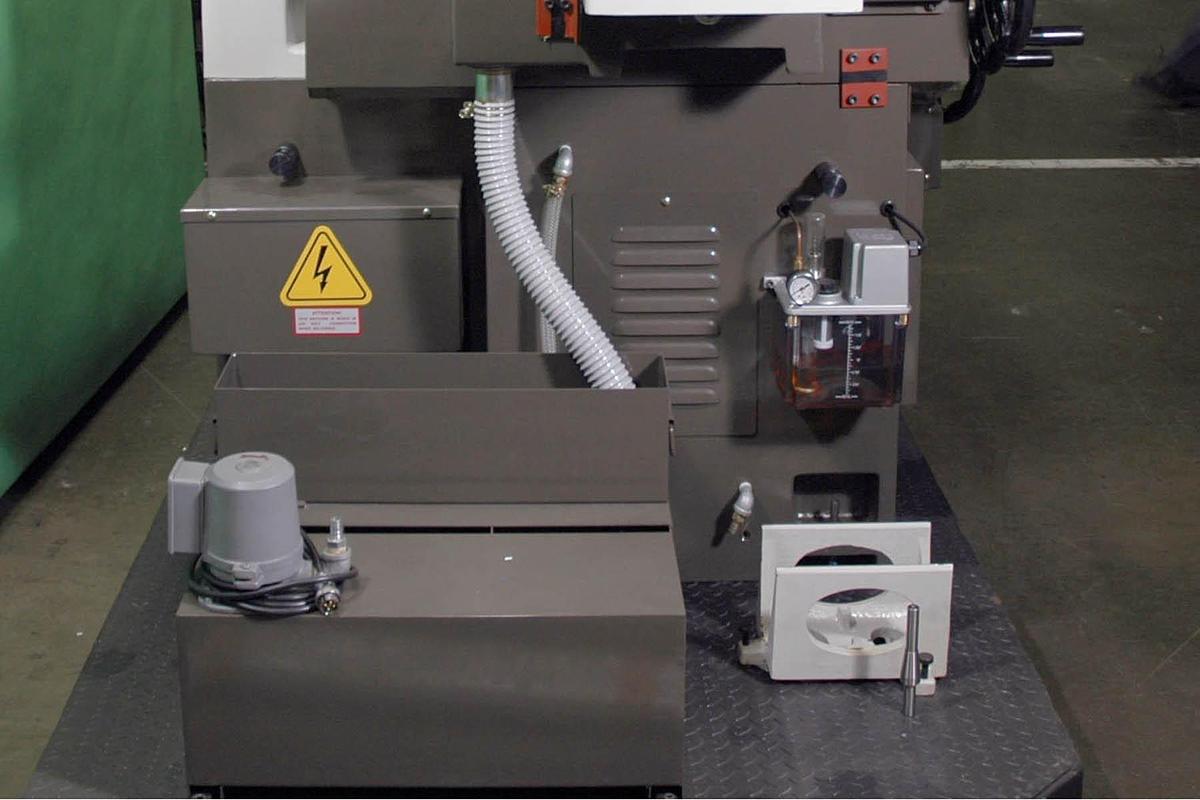

  • Coolant system

    • Show All

    Specifications

    ModelPFG-1020AH
    ConditionNew
    TypeHydraulic Surface Grinder (7" Grinding Wheel)
    Table size10" x 20"
    Max. table travel10.75" x 22"
    Max. surface ground10" x 20"
    Max. distance from spindle center to table20"
    Chuck size10" x 20" (Electromagnetic chuck)
    Table speed200" ~ 1,000" / min
    Table slidewayV & Flat Turcite Way
    Auto cross feed increment0.004" ~ 0.47"
    Power cross feed44" / min

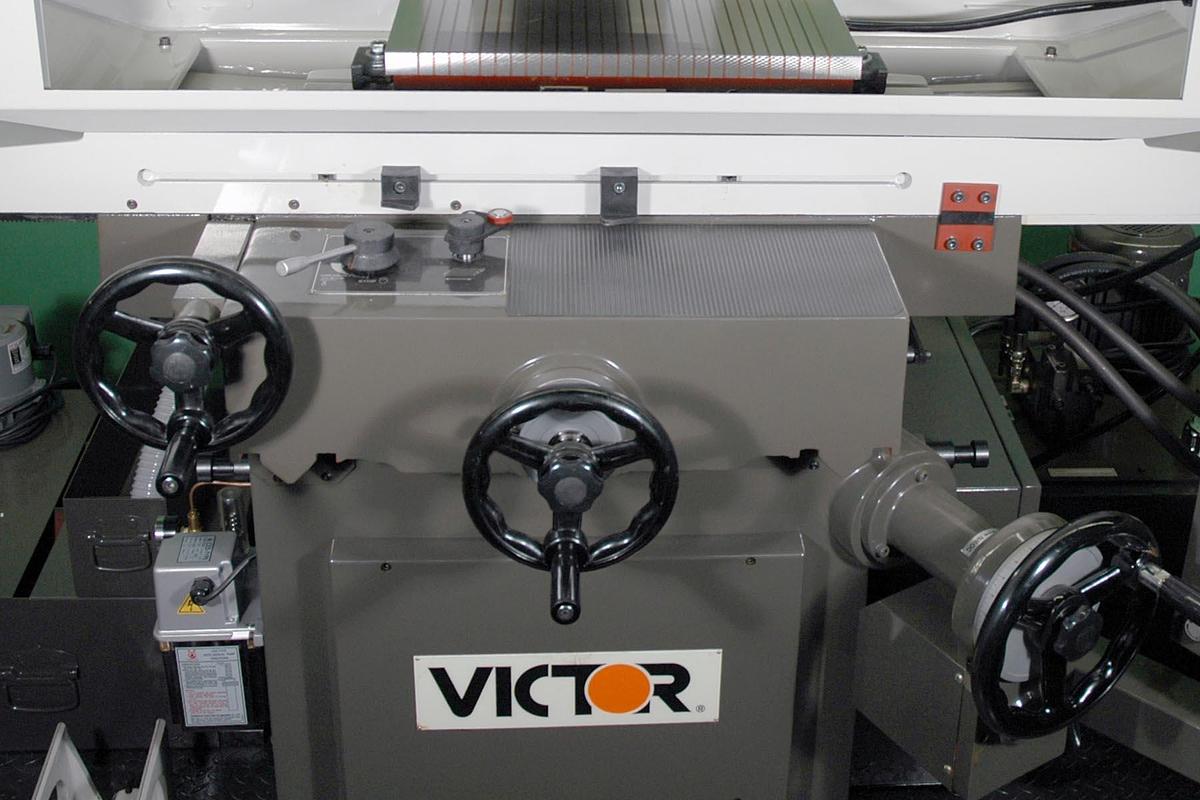

    Cross handwheel feed per graduation0.001"
    Cross handwheel feed per revolution0.2"
    Rapid power head elevation13" / min (Auto down feed model)
    Auto down feed (including rapid)0.0001" ~ 0.0999" / Time (Auto down feed model)
    Vertical handwheel feed per graduation0.0001"
    Vertical handwheel feed per revolution0.05"
    Max. wheel size (O.D. x T x I.D.)7" x 0.5" x 1.25"
    Spindle wheel speed3,500 rpm
    Spindle drive motor3 HP
    Hydraulic pump motor1 HP
    Auto cross feed motor1/5 HP
    Rapid head elevation motor1/5 HP (Auto down feed model)
    Coolant pump motor1/8 HP
    Shipping dimensions (LxWxH)84" x 59" x 79"
    Net weight (Approx.)2,970 lb.
    Gross weight (Approx.)3,410 lb.
