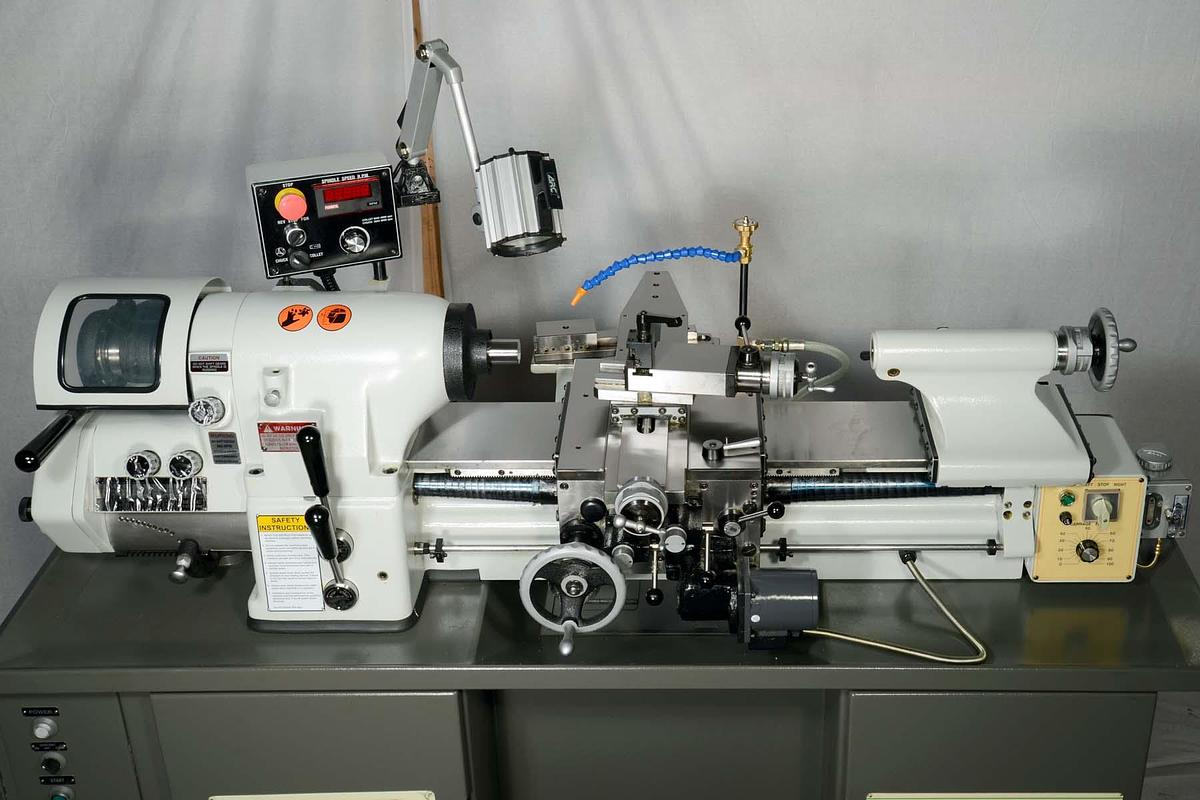

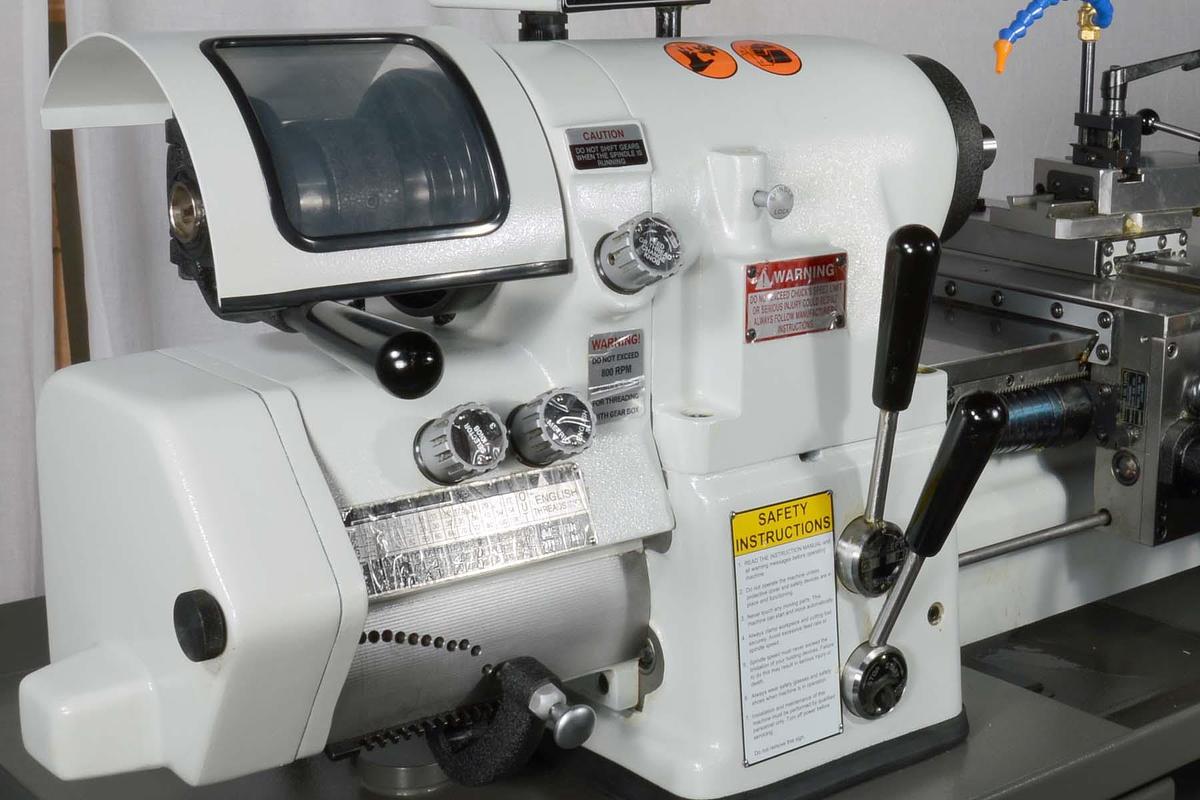

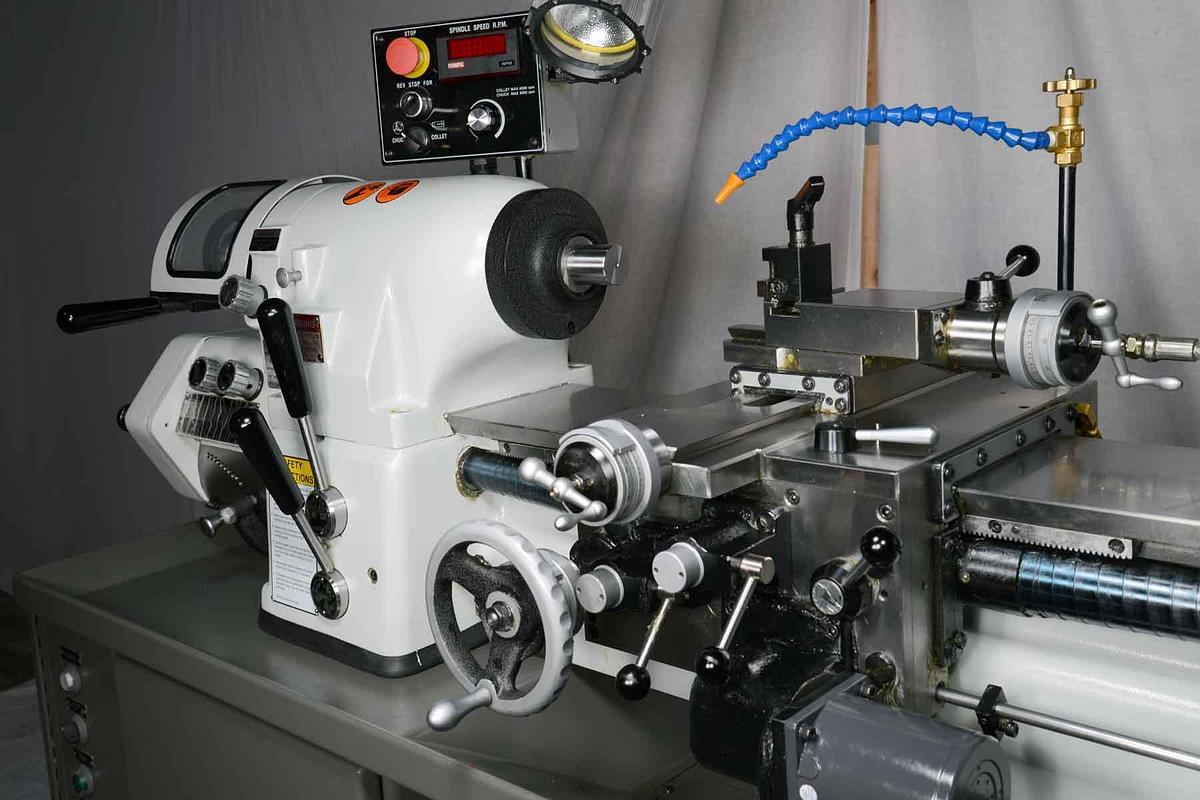

618EVS Toolroom Lathe
Description
Super-precision toolroom lathe equipped with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quiet. With fewer mechanical parts and exceptional built quality, Victor 618EVS toolroom lathe is easy to maintain, yet provides superior accuracy and performance.
FEATURES:
OPTIONAL SPECIAL PACKAGE INCLUDES:
OPTIONAL ACCESSORIES:
Tool setting gage
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
Digital readout
STANDARD ACCESSORIES:
OPTIONAL SPECIAL PACKAGE INCLUDES:
OPTIONAL ACCESSORIES:
Tool setting gage
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
Digital readout
STANDARD ACCESSORIES:
OPTIONAL SPECIAL PACKAGE INCLUDES:
OPTIONAL ACCESSORIES:
Tool setting gage
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
Digital readout
Specifications
| Model | 618EVS |
| Condition | New |
| Type | Super-Precision Electronic Variable High-Speed Toolroom Lathe |
| With jaw chucks | 6" |
| With expanding collets | 3" |
| With round 5C collets | 1-1/16" |
| With hexagon 5C collets | 7/8" |
| With square 5C collets | 3/4" |
| With step chucks | 1-1/16" to 6" |
| Spindle nose diameter | 2.189" |
| Spindle nose I.D. / O.D. | 5C / 4° taper |
| Hole through spindle | 1-1/4" |
| Variable spindle speeds | 0 ~ 4,000 rpm (5C Collet) 0 ~ 3,000 rpm (6" 3-Jaw Chuck) |
| Swing over carriage | 9" |
| Distance between center | 18" |
| Swing over cross slide | 6" |
| Swing over bed | 11" |
| Lead screw diameter | 1" - 8 TPI |
| Carriage power feed range | 5/16" ~ 7" |
| Cross slide power feed range | 3/16" ~ 4" |
| Cross slide travel | 6" |
| Quick-action compound slide travel | 0.1" |
| Compound slide travel | 3" |
| Inch threads | 11 ~ 108 TPI (36 thread changes) |
| Metric threads | 0.275 ~ 2.7 mm (36 thread changes) |
| Tailstock spindle diameter | 1.358" |
| Tailstock spindle taper | M.T. 2 |
| Tailstock spindle travel | 3-3/4" |
| Inverter spindle motor | 3 HP 220V 3PH |
| Coolant pump | 1/8 HP |
| D.C. feed motor | 110V, 70W |
| Machine dimensions (LxWxH) | 73"x30"x67" |
| Gross weight | 2,530 lb. |
