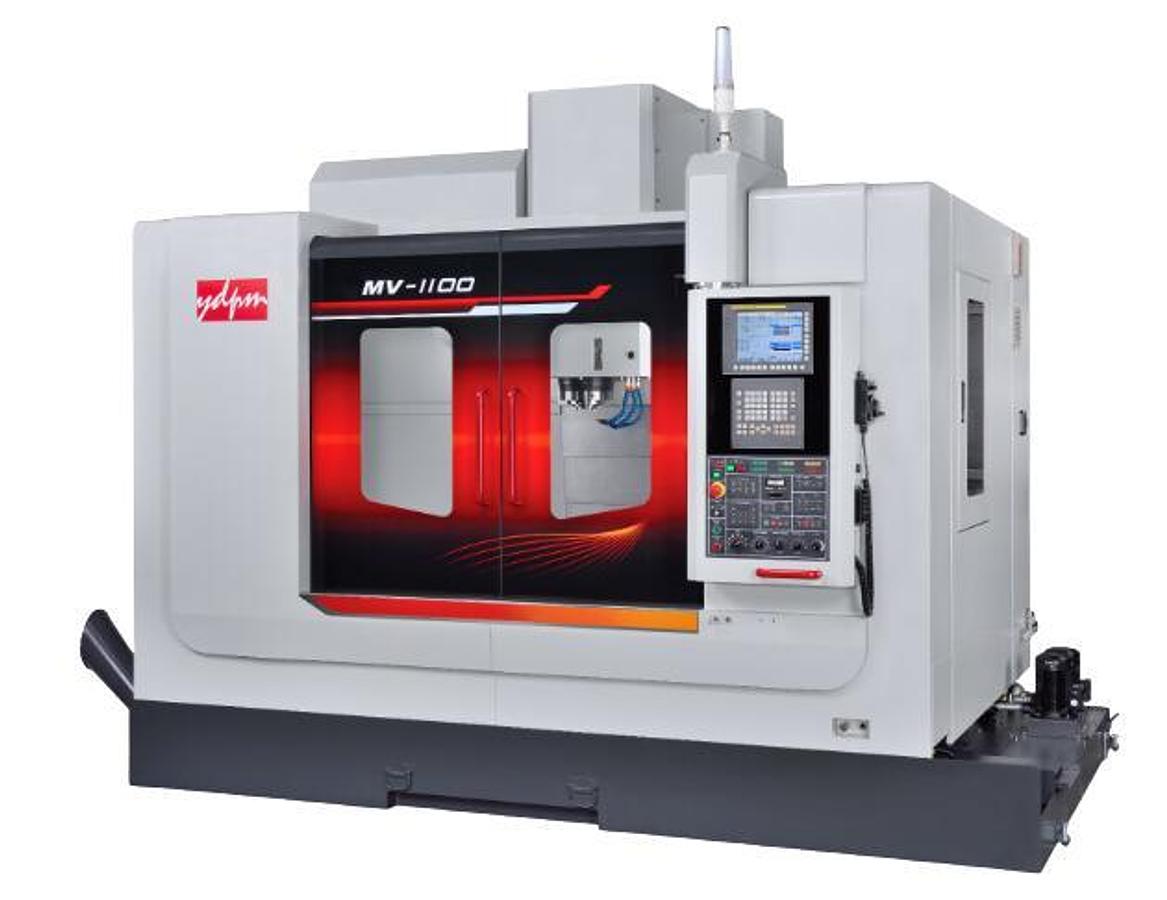

MV-1100
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Condition | New |
| Stock Number | 00075 |
| ITEM | UNIT MV-1100 BMV-1100 |
| Table dimension | mm 1,180 x 560 |
| Woking area | mm 1,100 x 650 |
| T-slot | mm CD100 x 18 x 5 |
| Number of work table | pcs 1 |
| Max. Loading capacity | kgs 1,000 |
| Max. travel range of X/Y/Z-axis | mm 1,100 / 650 / 620 |
| Distance from spindle nose to table surface | mm 150~770 |
| Distance from spindle center to column | mm 743 680 |
| Spindle taper | ISO No. 40 |
| Spindle bearing inner dia. | mm Φ70 |
| Spindle speed | rpm STD: 10,000 belt-drive OPT: 8,000, 12,000, 15,000 |
| Feedrate of X / Y / Z-axis | mm/min 1~10,000 |
| Slideways of X / Y/ Z-axis | Linear guideway Box way |
| Rapid traverse of X / Y / Z-axis | m/min 30 18 |
| Tool capacity | pcs STD: 24; OPT: 30 |
| Tool selection | Bi-direction |
| Max. tool dia. x length | mm Φ80 x 300 |
| Max. tool weight | kgs 7 |
| Tool shank | STD: BT40; OPT: CAT40, SK40, HSK63A |
| Spindle drive motor | kw STD: α12 (11/15); OPT: α15 (15/18.5) |
| Servo motors of X / Y / Z-axis | kw α12 (2.7) |
| Coolant motor | kw 1.08 (50Hz) / 1.62 (60 Hz) |
| Chip conveyor motor | kw 0.2 |
| APC motor | kw – |
| Positioning | mm ±0.004 ±0.005 |
| Repeatability | mm ±0.003 ±0.004 |
| Power requirement | kVA 380-415 / 220V 21 KVA |
| Floor area (L x W x H) | mm 4,299 x 2,453 x 2,814 |
| Packing dimension | mm 3,730 x 2,280 x 2,530 + 1,050 x 800 x 920 |
| Net weight | kgs Machine: 7,000; Accessory: 270 |
| Gross weight | kgs Machine: 7,670; Accessory: 390 |
