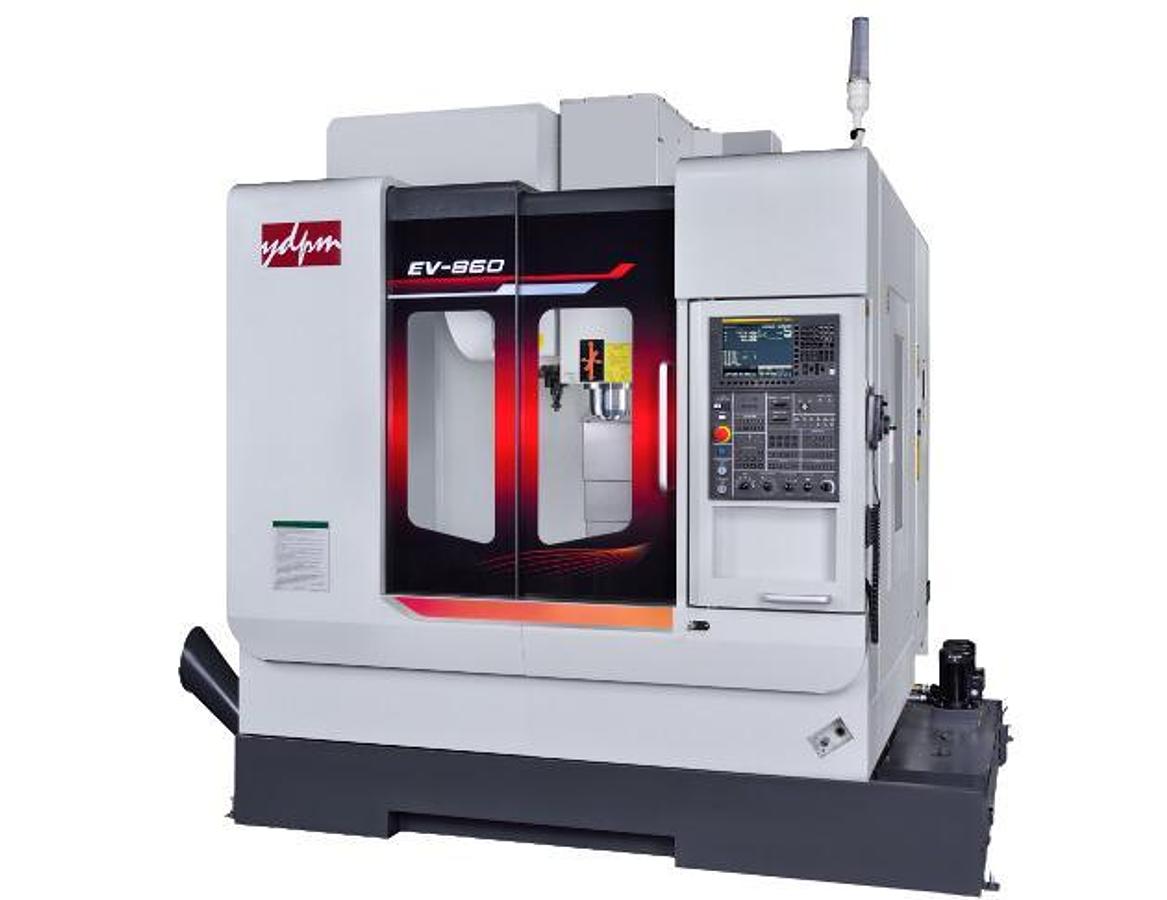

EV-860
Contact us for price
Specifications
| Manufacturer | Yida |
| Condition | New |
| Stock Number | 00080 |
| ITEM | UNIT EV-860 |
| Table dimension | mm 1,000 x 600 |
| Woking area | mm 860 x 600 |
| T-slot | mm CD100 x 18 x 5 |
| Number of work table | pcs 1 |
| Max. Loading capacity | kgs 600 |
| Max. travel range of X / Y / Z-axis | mm 860 / 600 / 610 |
| Distance from spindle nose to table surface | mm 120 ~ 730 |
| Distance from spindle center to column | mm 700 |
| Spindle taper | ISO No. 40 |
| Spindle bearing inner dia. | mm Φ70 |
| Spindle speed | rpm STD: 8,000 belt-drive OPT: 10,000 / 12,000 / 15,0000 |
| Feedrate of X / Y / Z-axis | mm/min 1~10,000 |

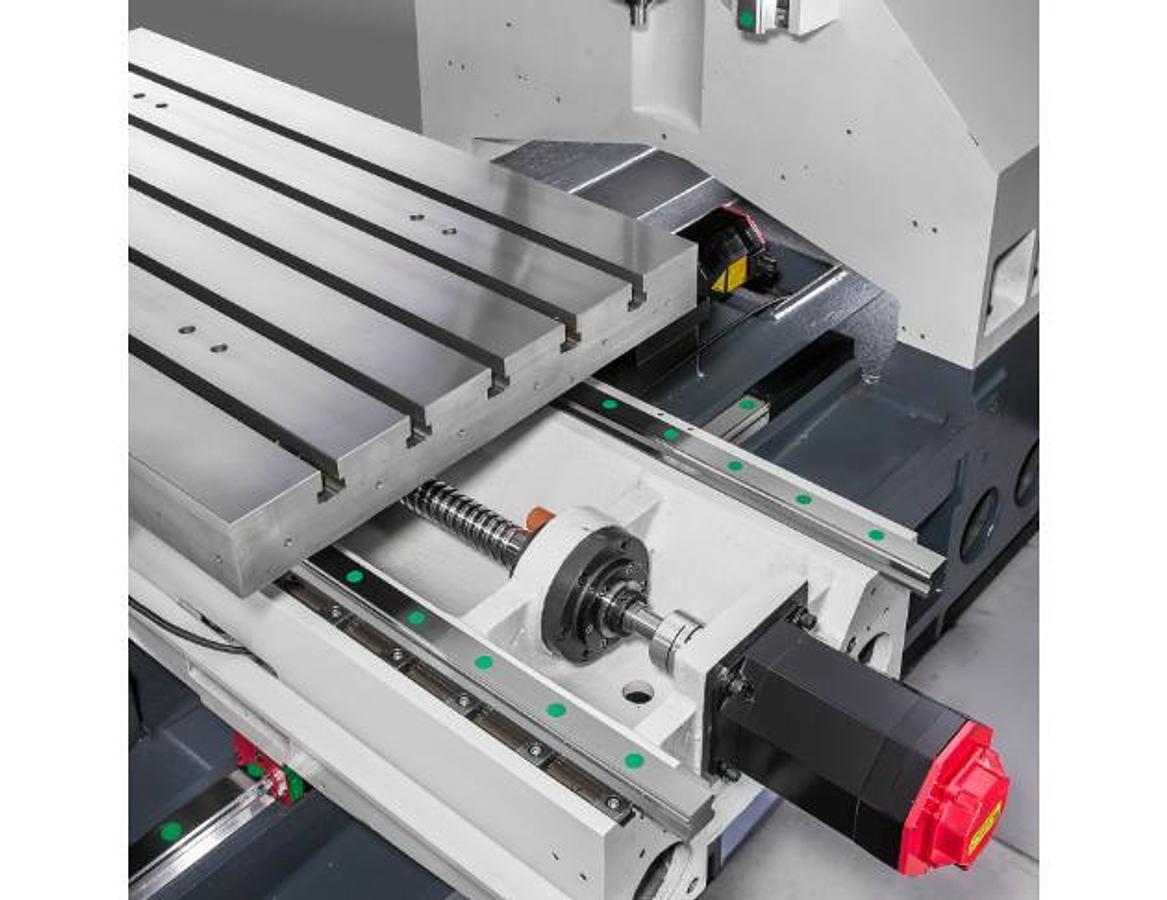

| Slideways of X / Y / Z-axis | Linear guideway |
| Rapid traverse of X / Y / Z-axis | m/min 36 / 36 / 30 |
| Tool capacity | pcs STD: 24; OPT: 30 |
| Tool selection | Bi-direction |
| Max. tool dia. x length | mm Φ80 x 300 |
| Max. tool weight | kgs 7 |
| Tool shank | STD: BT40; OPT: CAT40, SK40, BBT 40, HSK63A |
| Spindle drive motor | kw STD: ß12 (11/15); OPT: α8 (7.5/11); α12 (11/15) |
| Servo motors of X / Y / Z-axis | kw STD: ß12/ß12/ß22 (1.8/1.8/3) OPT: α12/α12/α22 (3/3/4) |
| Coolant motor | kw 1.08 (50 Hz) / 1.62 (60 Hz) |
| Chip conveyor motor | kw 0.2 |
| APC motor | kw – |
| Positioning | mm ±0.004 |
| Repeatability | mm ±0.003 |
| Power requirement | kVA 380-415 / 220V 21 KVA |
| Floor area (L x W x H) | mm 3,105 x 2,611 x 2,838 |
| Packing dimension | mm 3,670 x 2,280 x 2,510 |
| Net weight | kgs 5,980 |
| Gross weight | kgs 6,270 |
