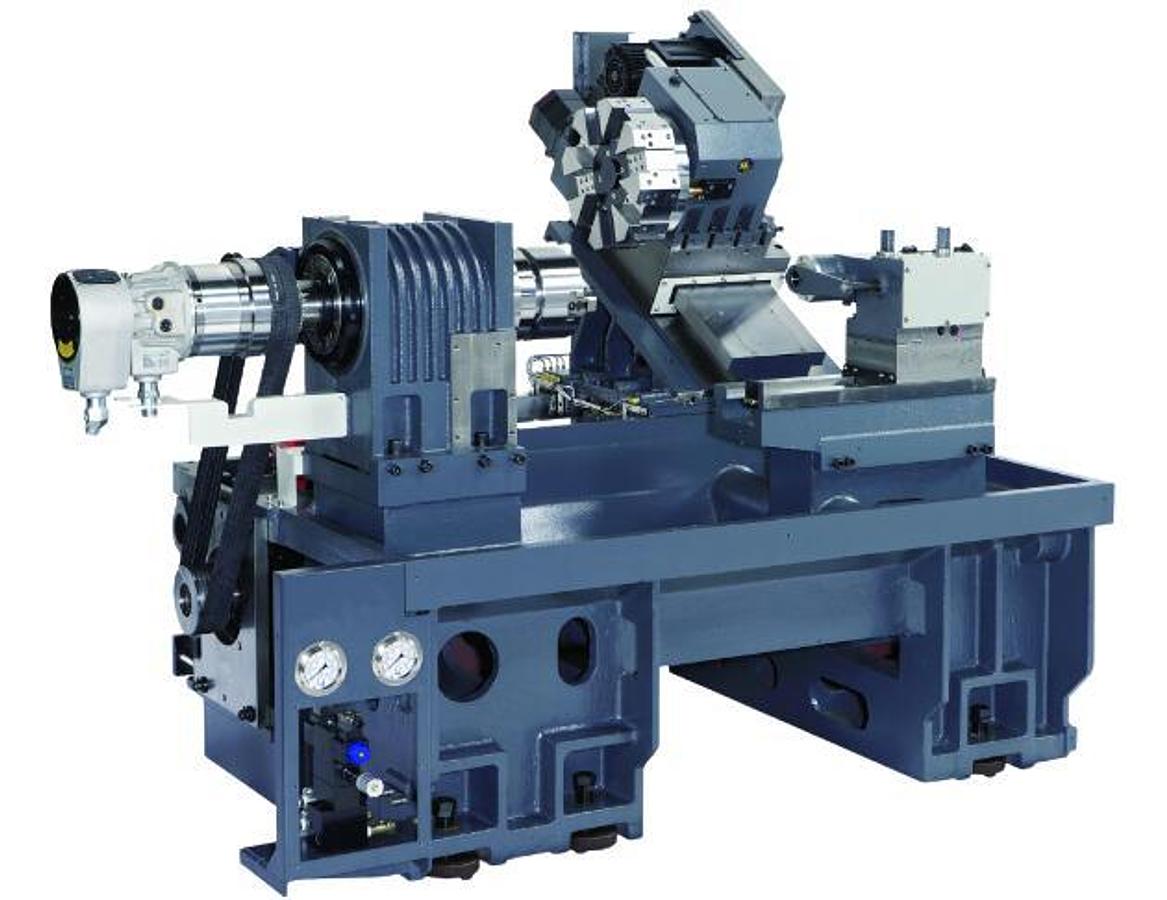

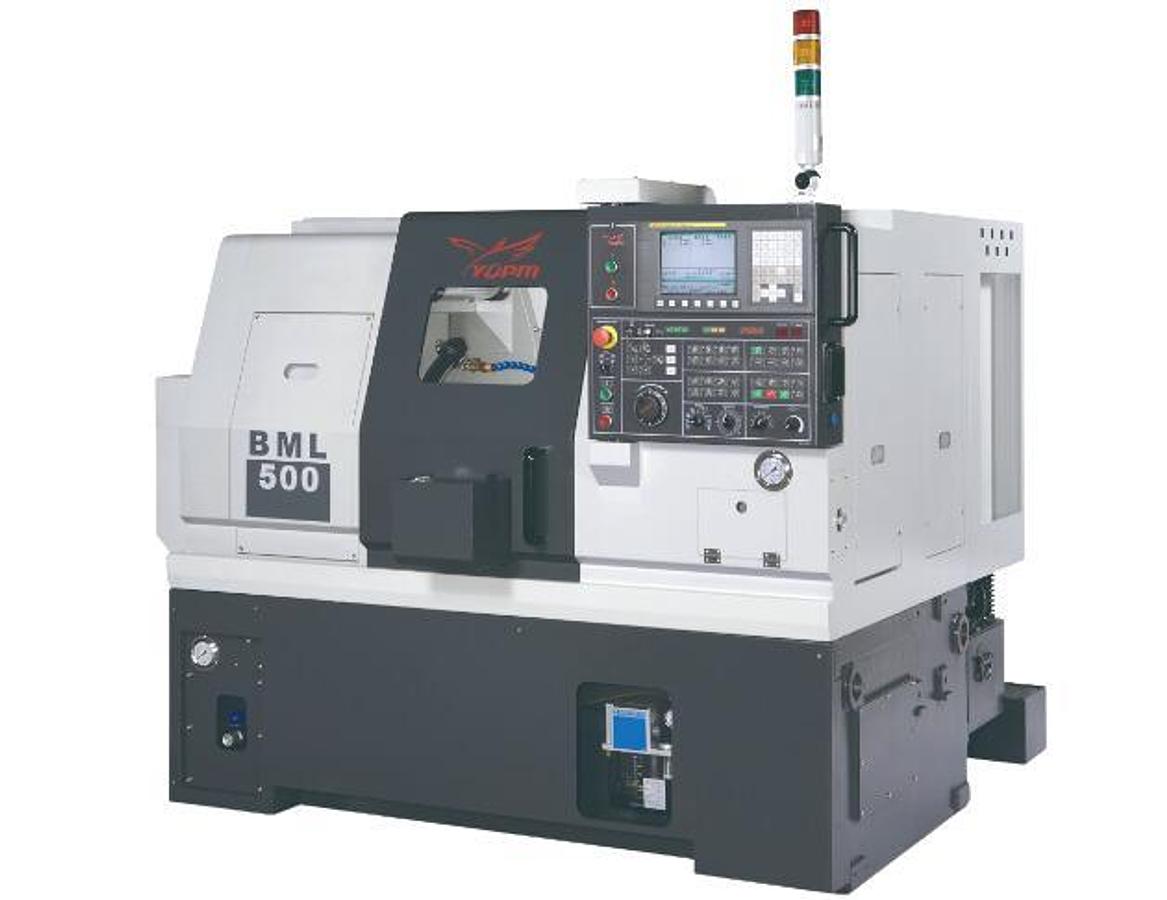

BML-500
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Model | STD: LS-160; OPT: LS-160SV |
| Condition | New |
| ITEM | UNIT BML-500 |
| Swing over bed | mm Φ500 |
| Swing over saddle | mm Φ390 |
| Maximum machining diameter | mm Φ360 |
| Maximum machining length | mm 300 |
| Slant angle of bed | ° 30° |
| X-axis | mm 195 (180+15) |
| Y-axis | mm – |
| Z-axis | mm 330 |
| C-axis | mm – |
| W-axis | mm – |
| Spindle speeds | rpm STD: 50~6,000 (6″) |

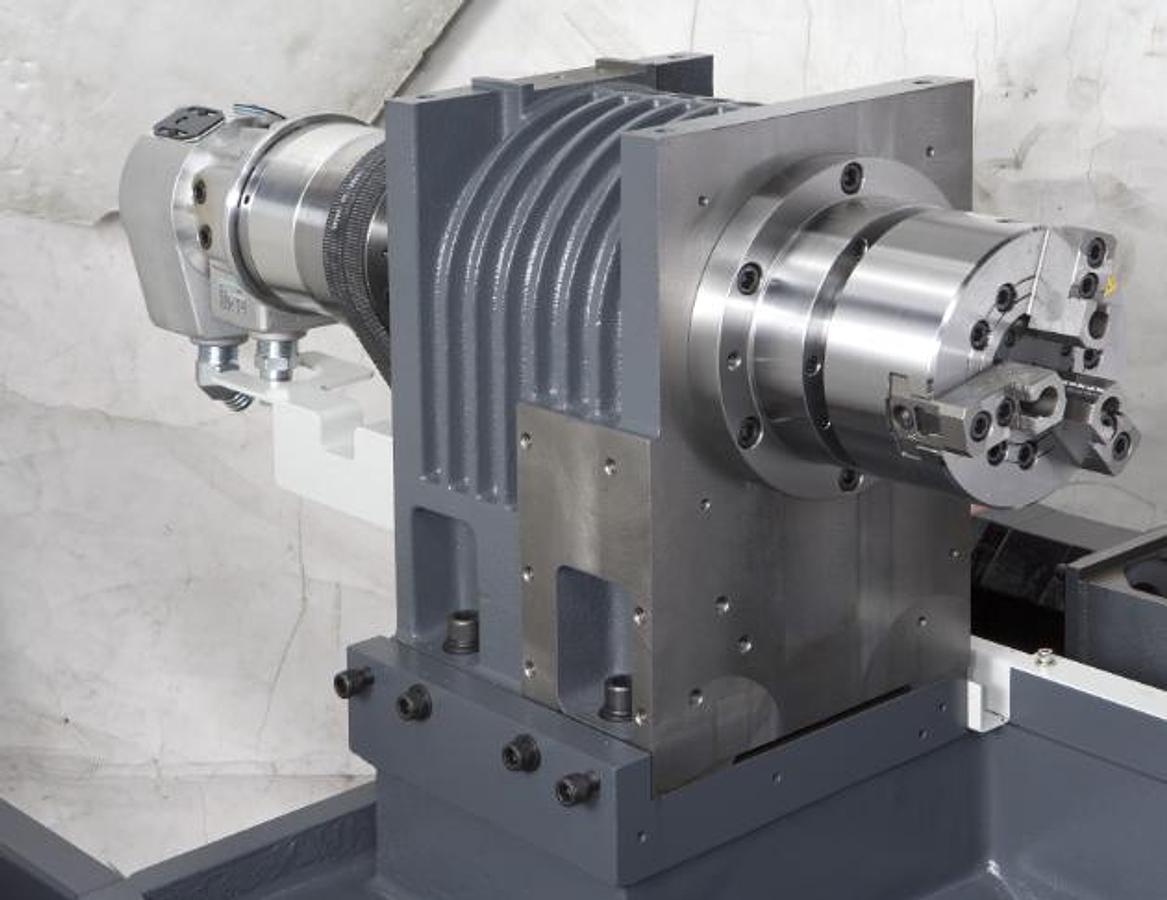

| Spindle nose | A2-5 |
| Spindle bore diameter | mm Φ56 |
| Front bearing inner diameter | mm Φ80 |
| Draw bar diameter | mm Φ45 |
| Chuck diameter | inch 6″ |
| Type | Manual |
| Stations | pcs STD: 10; OPT: 8 |
| Square tool shank | mm STD: 20 x 20; OPT: 25 x 25 |
| Boring bar shank diameter | mm STD: Φ32; OPT: Φ40 |
| Indexing time (0~180°) | sec LS-160: 1.8 (8T), 2.0 (10T) LS-160SV: 2.3 (12T) |
| Spindle Speeds | rpm – |
| Rapid Traverse | m/min X: 20, Z: 24 |
| Quill diameter | mm Φ55 |
| Quill bore taper | MT4 |
| Quill travel | mm 80 |

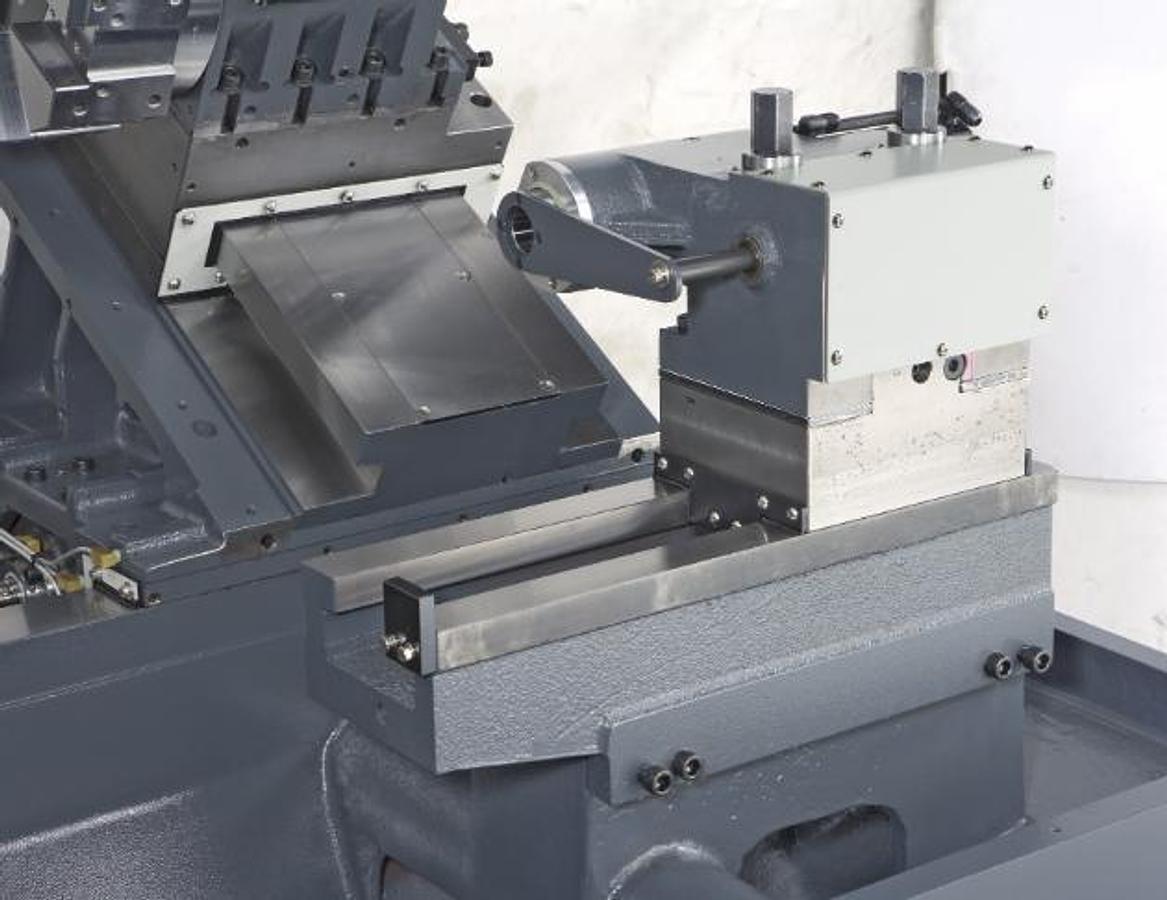

| Tailstock travel | mm 300 |
| Main-spindle | kw ß8 (7.5/11) |
| Sub-spindle | kw – |
| Live-tool | kw – |
| Axis servo motor | kw X/Z – ß8/3000 (1.2) |
| Hydraulic oil pump | kw 0.745 |
| Chip conveyor | kw 0.2 |
| Coolant pump | kw 0.8 |
| Positioning | mm ±0.003 |
| Repeatability | mm ±0.002 |
| Requirements | KVA 380-415 / 220V 15 KVA |
| Height | cm 150 |
| Floor space (L x W) | cm 200 x 200 |
| Packing (w/conveyor) | cm 265 x 227 x 191 |
| Net weight (w/conveyor) | kg 3,050 |
| Gross weight (w/conveyor) | kg 3,275 |
