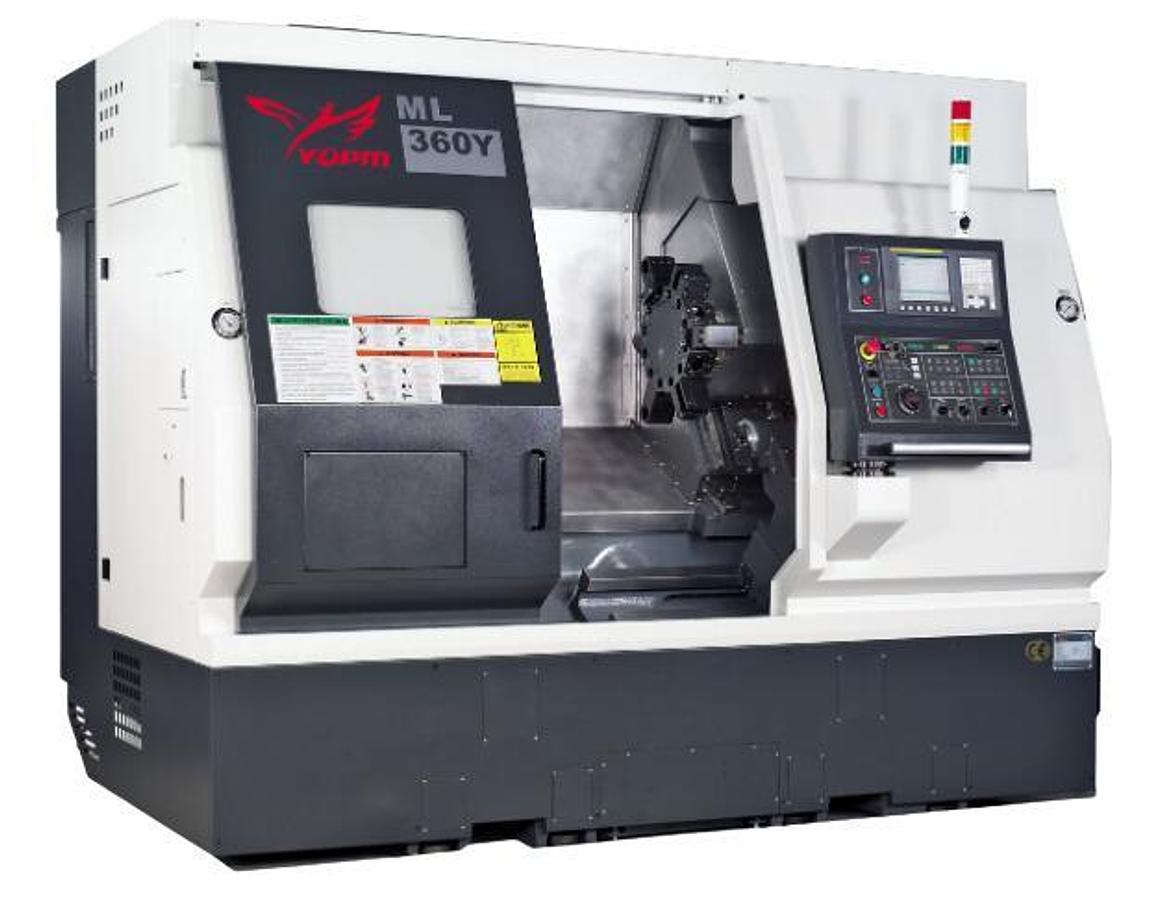

ML-360

Specifications

Manufacturer	Ingenious Machinery
Model	STD: LS-200 OPT: LS-200SV LS-200SP LS-200DTR
Condition	New
ITEM	UNIT ML-360 ML-360Y
Standard	C axis
Swing over bed	mm Φ600 Φ600
Swing over saddle	mm Φ400 Φ420
Maximum machining diameter	mm Φ360 Φ350 Φ130
Maximum machining length	mm STD: 470 (8″); OPT: 460 (10″) STD: 460 (8″); OPT: 450 (10″) STD: 470 (8″); OPT: 460 (10″)
Slant angle of bed	30° 60° (30° + 30°)
X-axis	mm 215 (180+35) 215 (175+40) 125 (65+60)
Y-axis	mm – ±40
Z-axis	mm 8″: 500 / 10″: 500 8″: 500 / 10″: 490
C-axis	° – 360° (0.001°) 360° (0.001°)
Spindle speeds	rpm STD: 50~4,500 (8″); OPT: 50~3,500 (10″) STD: 50~4,500 (8″) OPT: 50~3,500 (10″)

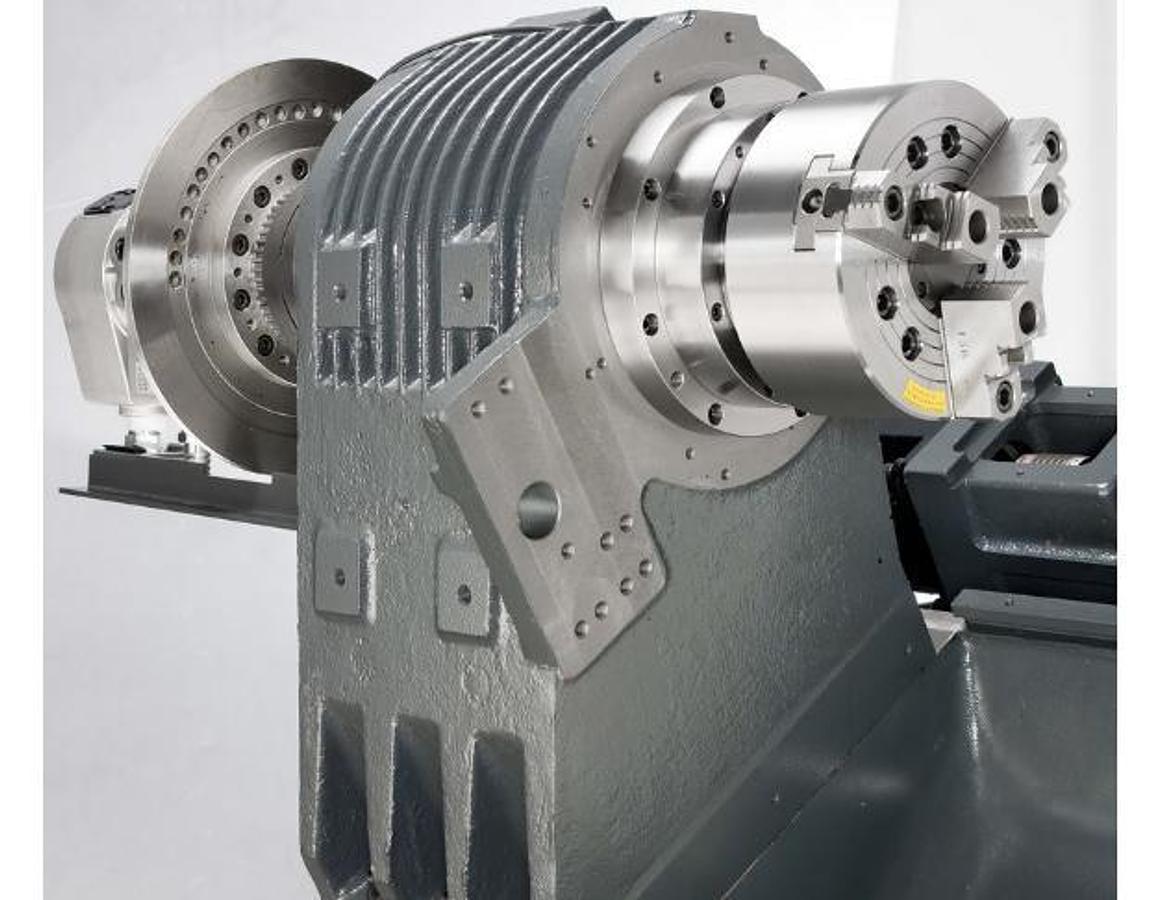

Spindle nose	STD: A2-6; OPT: A2-8 STD: A2-6; OPT: A2-8
Spindle bore diameter	mm STD: Φ62 (A2-6); OPT: Φ86 (A2-8) STD: Φ62 (A2-6); OPT: Φ86 (A2-8)
Front bearing inner diameter	mm STD: Φ100 (A2-6); OPT: Φ120 (A2-8) STD: Φ100 (A2-6); OPT: Φ120 (A2-8)
Draw bar diameter	mm STD: Φ52; OPT:Φ75 STD: Φ52; OPT: 75
Chuck diameter	inch STD: 8″; OPT: 10″ STD: 8″; OPT: 10″
Type	Automatic Automatic

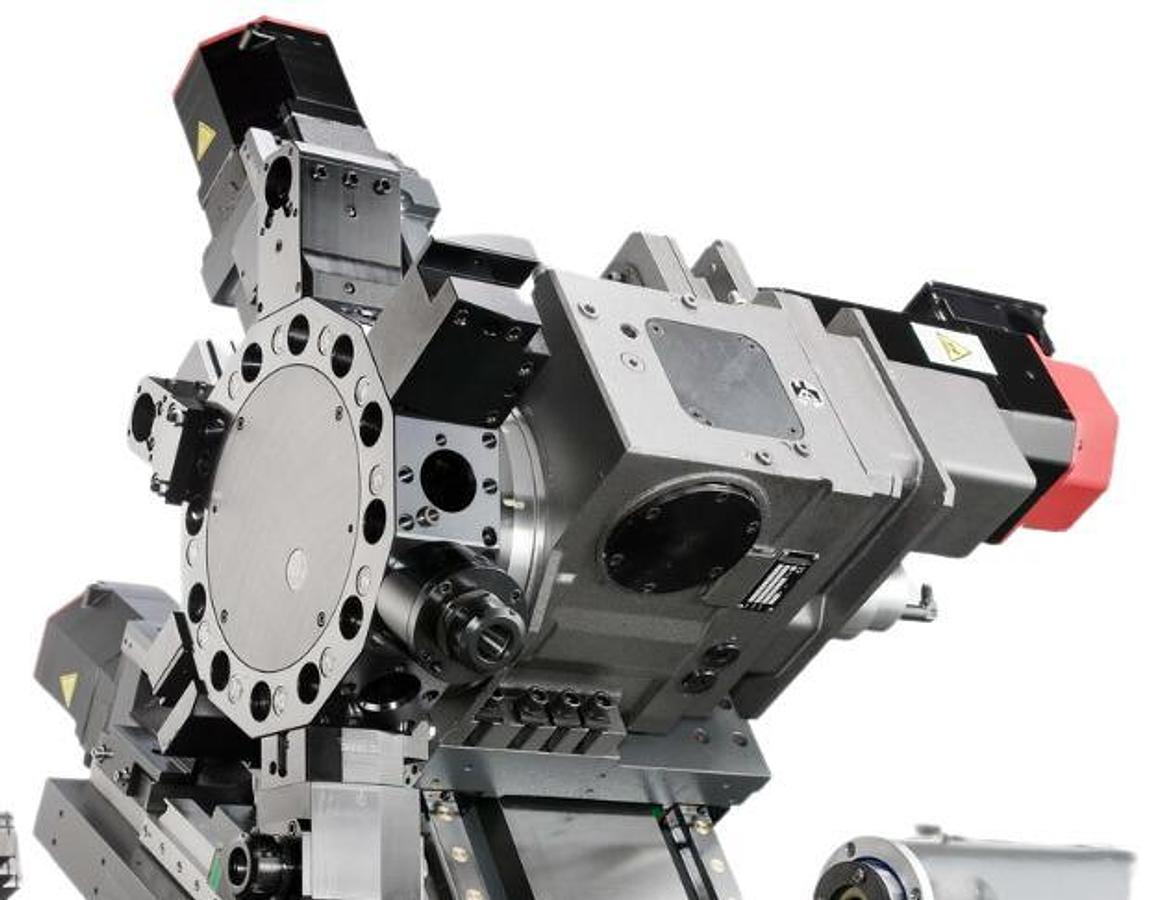

Stations	pcs STD: 10; OPT: 12 STD:12 STD: 12
Square tool shank	mm 25 x 25 25 x 25
Boring bar shank diameter	mm Φ40 Φ40
Indexing time (0~180°)	sec LS-200: 1.7(10T), 2.0(12T); LS-200SV: 0.85(12T) 1.2 1.4
Spindle Speeds	rpm – 50~4,000 50~4,000
Rapid Traverse	m/min X: 36, Z: 36 X: 36, Z: 36, Y: 36, C: 200 rpm
Quill diameter	mm Φ65 Φ65
Quill bore taper	MT4 MT4
Quill travel	mm 80 80
Tailstock travel	mm 490 490
Main-spindle	kw β12 (11/15) α12 (11/15) STD: α12 (11/15); OPT: α15 (15/18.5)
Live-tool	kw – α3/10000 (3.7/5.5) α3/10000 (3.7/5.5)
Axis servo motor	kw X/Z – α12 (3.0) X/Y/Z – α12 (3.0)
Hydraulic oil pump	kw 1.5 1.5
Chip conveyor	kw 0.2 0.2
Coolant pump	kw 0.8 0.8
Positioning	mm ±0.004 ±0.004
Repeatability	mm ±0.003 ±0.003
Requirements	KVA 380-415 / 220V 26KVA 380-415 / 220V 30KVA
Height	cm 186 226
Floor space (WxD)	cm 369 x 224 402 x 228
Packing (w/conveyor)	cm 370 x 227 x 214 387 x 228 x 255
Net weight (w/conveyor)	kg 4,870 5,790
Gross weight (w/conveyor)	kg 5,120 6,060
