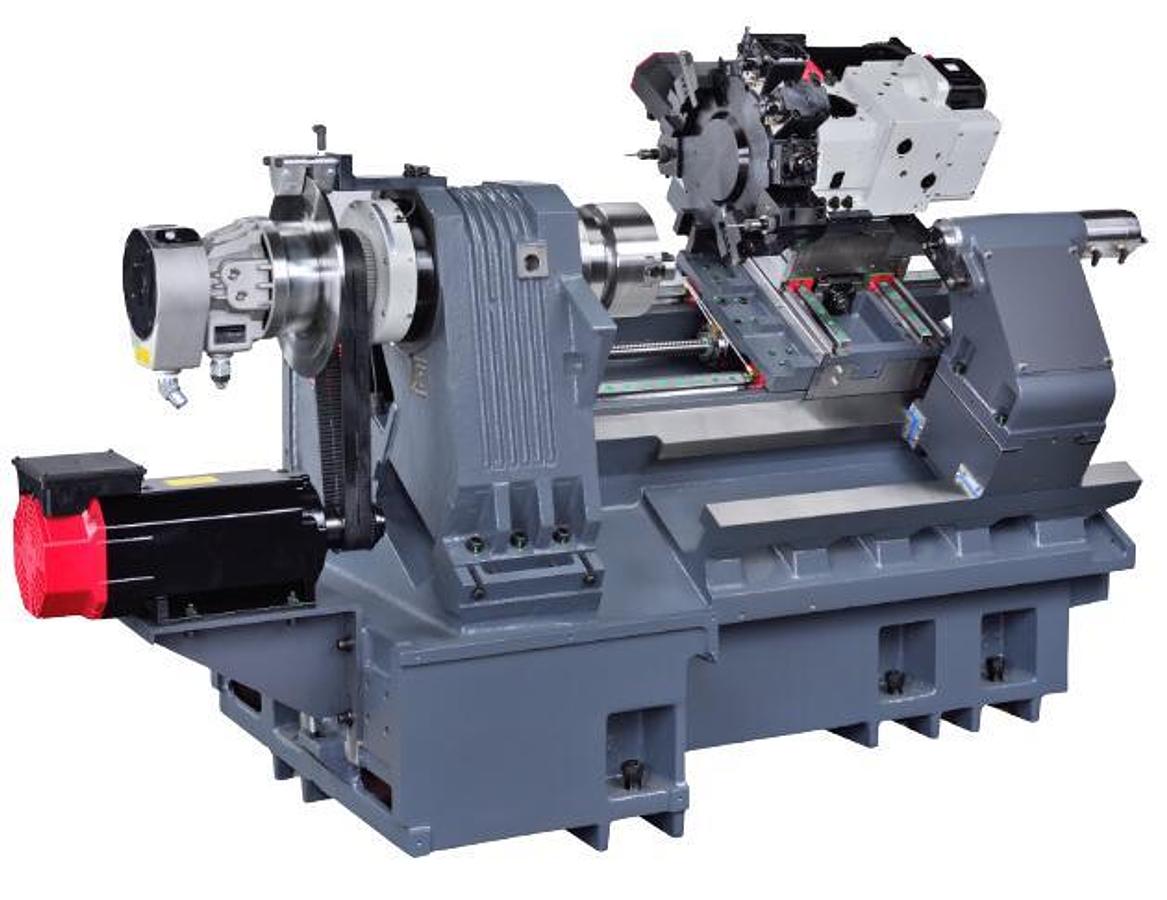

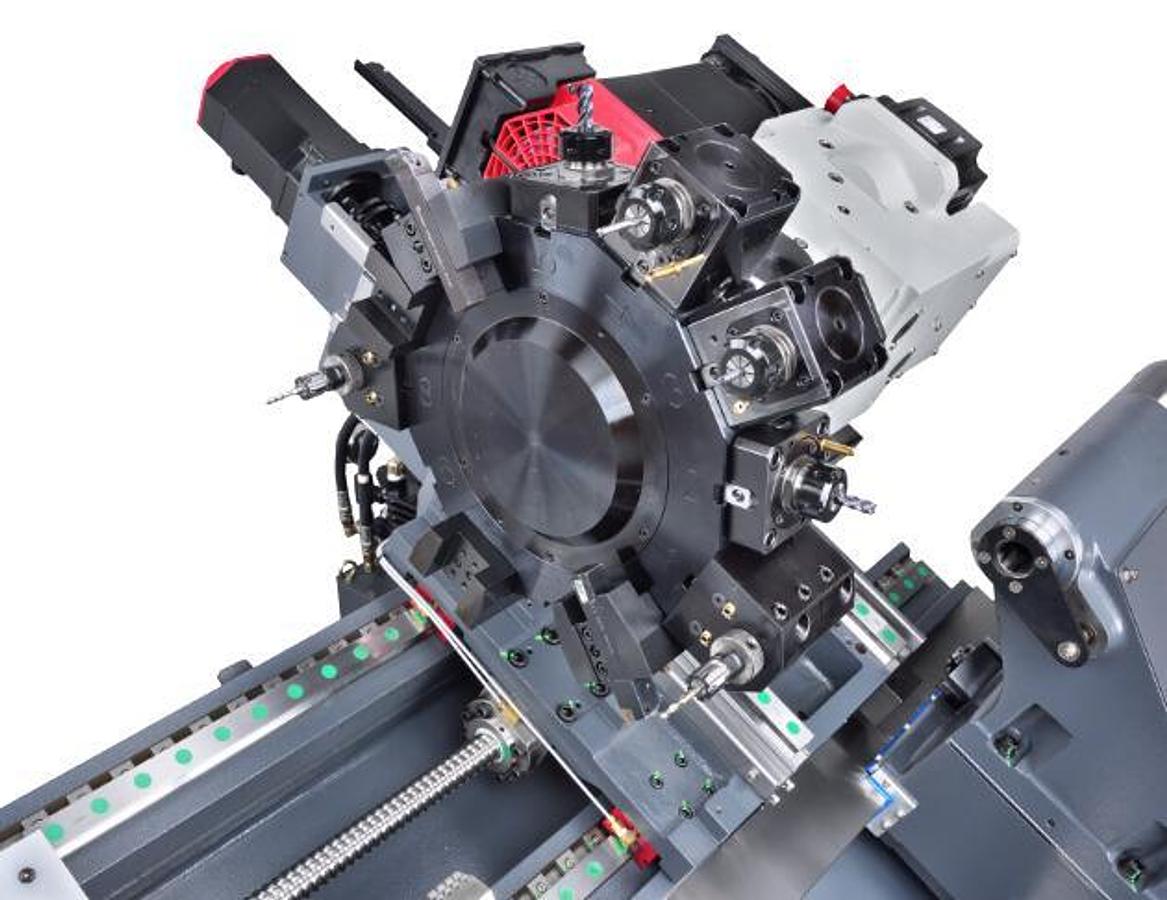

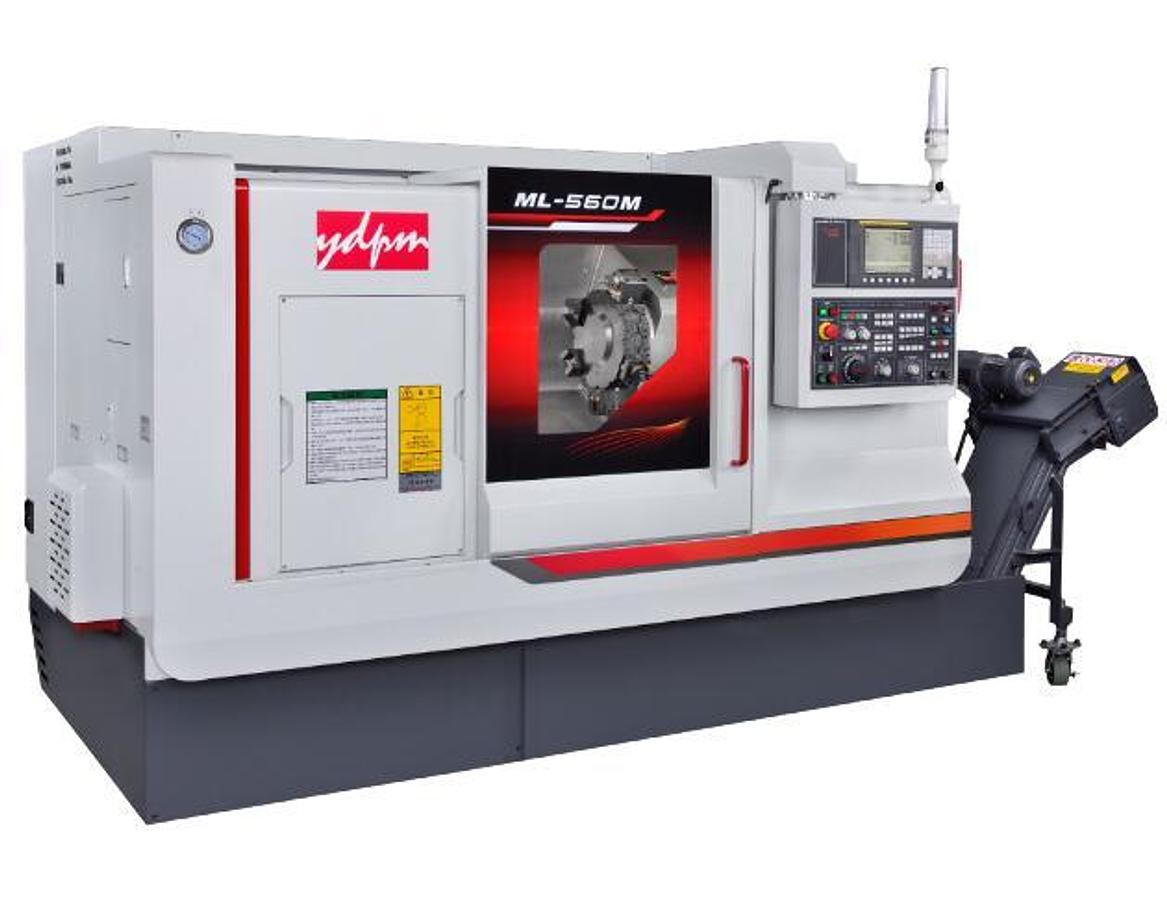

ML-560
Contact us for price
Specifications
| Model | STD: LS-160A OPT: LS-160SV LS-160SP 434.016 STD: LS-160A OPT: LS-160SV LS-160SP 434.016 |
| Condition | New |
| ITEM | UNIT ML-560S ML-560SY ML-560M ML-560MY |
| Standard | C axis Standard C axis |
| Swing over bed | mm Φ560 Φ700 Φ560 Φ700 |
| Swing over saddle | mm Φ420 Φ560 Φ420 Φ560 |
| Maximum machining diameter | mm Φ320 Φ300 Φ320 Φ320 Φ300 STD: 320; OPT: 350 |
| Maximum machining length | mm 320 280 570 STD: 560; OPT: 500 |
| Slant angle of bed | 30° 30° 30° 30° |
| X-axis | mm 190 (160+30) 190 (150+40) 190 (160+30) 190 (160+30) 190 (150+40) STD: 190 (160+30); OPT: 190 (175+15) |
| Y-axis | mm – ±50 – ±50 |
| Z-axis | mm 360 350 610 STD: 600; OPT: 540 |
| C-axis | ° – 360° (0.001°) 360° (0.001°) – 360° (0.001°) 360° (0.001°) |
| Spindle speeds | rpm STD: 50~4,500 (8″); OPT: 6,000 (10″) STD: 50~4,500 STD: 50~4,500 (8″); OPT: 6,000 (10″) STD: 50~4,500 |
| Spindle nose | STD: A2-6; OPT: A2-5 A2-6 STD: A2-6; OPT: A2-5 A2-6 |
| Spindle bore diameter | mm STD: Φ62; OPT: Φ79 (A2-6), Φ56 (A2-5) Φ62 STD: Φ62; OPT: Φ79 (A2-6), Φ56 (A2-5) Φ62 |
| Front bearing inner diameter | mm Φ100 (A2-6); Φ80 (A2-5) Φ100 Φ100 (A2-6); Φ80 (A2-5) Φ100 |
| Draw bar diameter | mm STD: Φ52; OPT: Φ66, Φ45 Φ52 STD: Φ52; OPT: Φ66, Φ45 Φ52 |
| Chuck diameter | inch STD: 8″; OPT: 6″ STD: 8″ STD: 8″; OPT: 6″ STD: 8″ |
| Type | Automatic Automatic Automatic Automatic |
| Stations | pcs STD: 10; OPT: 12 STD: 12 STD: 12 STD: 10; OPT: 8, 12 STD: 12 STD: 12 |
| Square tool shank | mm STD: 25 x 25 OPT: 20 x 20 (12T) 20 x 20 20 x 20 STD: 25 x 25; OPT: 20 x 20 (12T) 20 x 20 20 x 20 |
| Boring bar shank diameter | mm Φ40, OPT: Φ32 (12T) Φ32 Φ40, OPT: Φ32 (12T) Φ32 |
| Indexing time (0~180°) | sec LS-160A: 2.0 (10T), 2.3(12T) LS-160SV:0.85 (12T) 0.85 0.5 LS-160A: 2.0 (10T), 2.3(12T) LS-160SV:0.85 (12T) 0.85 0.5 |
| Spindle Speeds | rpm – 4,000 4,000 – 4,000 4,000 |
| Rapid Traverse | m/min X: 30 ; Z: 30 X: 30 ; Y:24 ; Z: 30; C: 200rpm X: 30 ; Z: 30 X: 30 ; Y:24 ; Z: 30; C: 200rpm |
| Quill diameter | mm Φ65 Φ65 Φ65 Φ65 |
| Quill bore taper | MT4 MT4 MT4 MT4 |
| Quill travel | mm 100 100 100 100 |
| Tailstock travel | mm 360 350 610 600 |
| Main-spindle | kw STD: ß12 (11/15); OPT: α8 (7.5/11) STD: ß12 (11/15); OPT: α8 (7.5/11), α12 (11/15kW) STD: ß12 (11/15); OPT: α8 (7.5/11) STD: ß12 (11/15); OPT: α8 (7.5/11), α12 (11/15kW) |
| Live-tool | kw – α2/10000(2.2/3.7) STD: ß3/12000 (3.7/5.5); OPT: α2/10000 (2/3.7) – α2/10000(2.2/3.7) STD: ß3/12000 (3.7/5.5); OPT: α2/10000 (2/3.7) |
| Hydraulic oil pump | kw 0.75 0.75 0.75 0.75 |
| Chip conveyor | kw 0.2 0.2 0.2 0.2 |
| Coolant pump | kw 0.8 0.8 0.8 0.8 |
| Positioning | mm ±0.003 ±0.003 ±0.004 ±0.004 |
| Repeatability | mm ±0.002 ±0.002 ±0.003 ±0.003 |
| Requirements | KVA 380-415 / 220V 15KVA 380-415/220V 26KVA 380-415 / 220V 15KVA 380-415/220V 26KVA |
| Height | cm 181 199 181 199 |
| Floor space (WxD) | cm 354 x 191 338 x 191 385 x 191 369 x 191 |
| Packing (w/conveyor) | cm 387 x 228 x 218 387 x 228 x 218 404 x 228 x 218 404 x 228 x 218 |
| Net weight (w/conveyor) | kg 3,380 3,860 3,720 4,200 |
| Gross weight (w/conveyor) | kg 3,670 4,150 4,070 4,550 |
