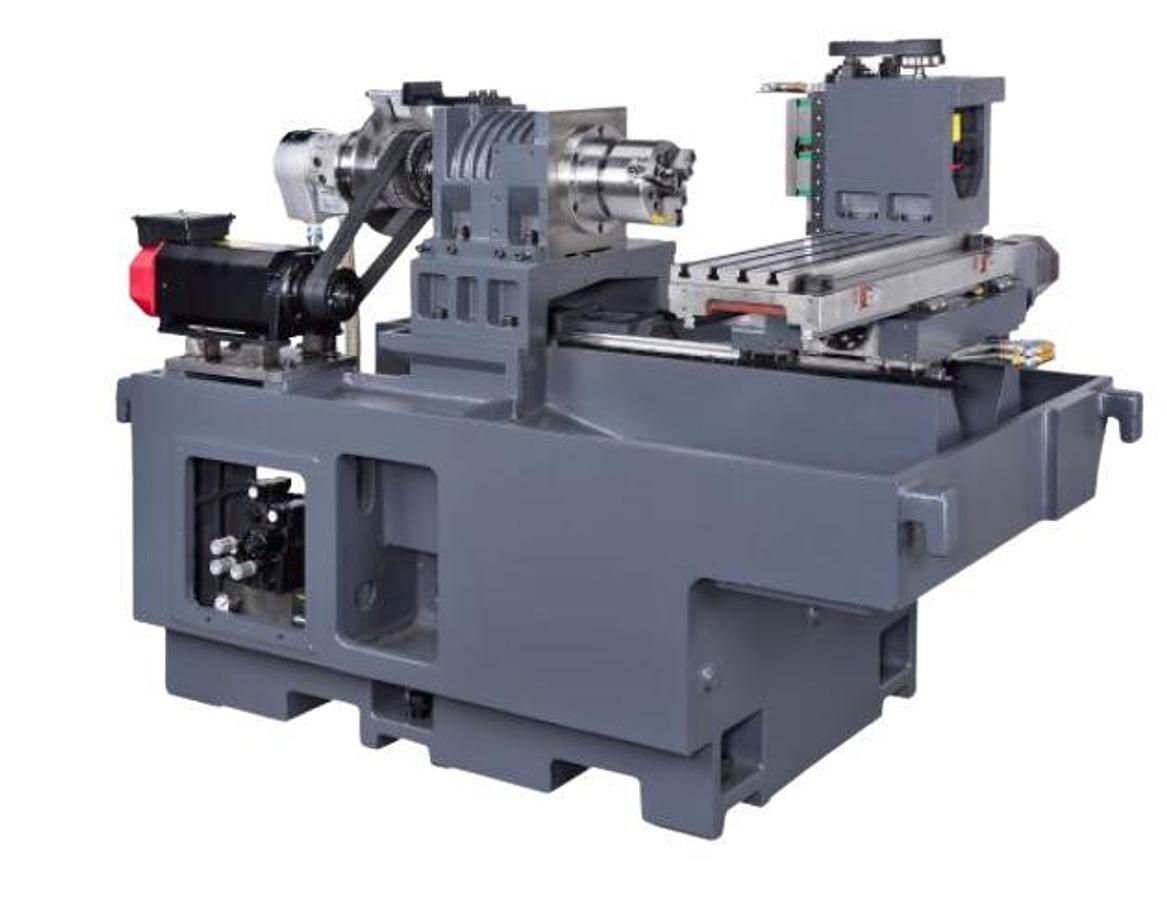

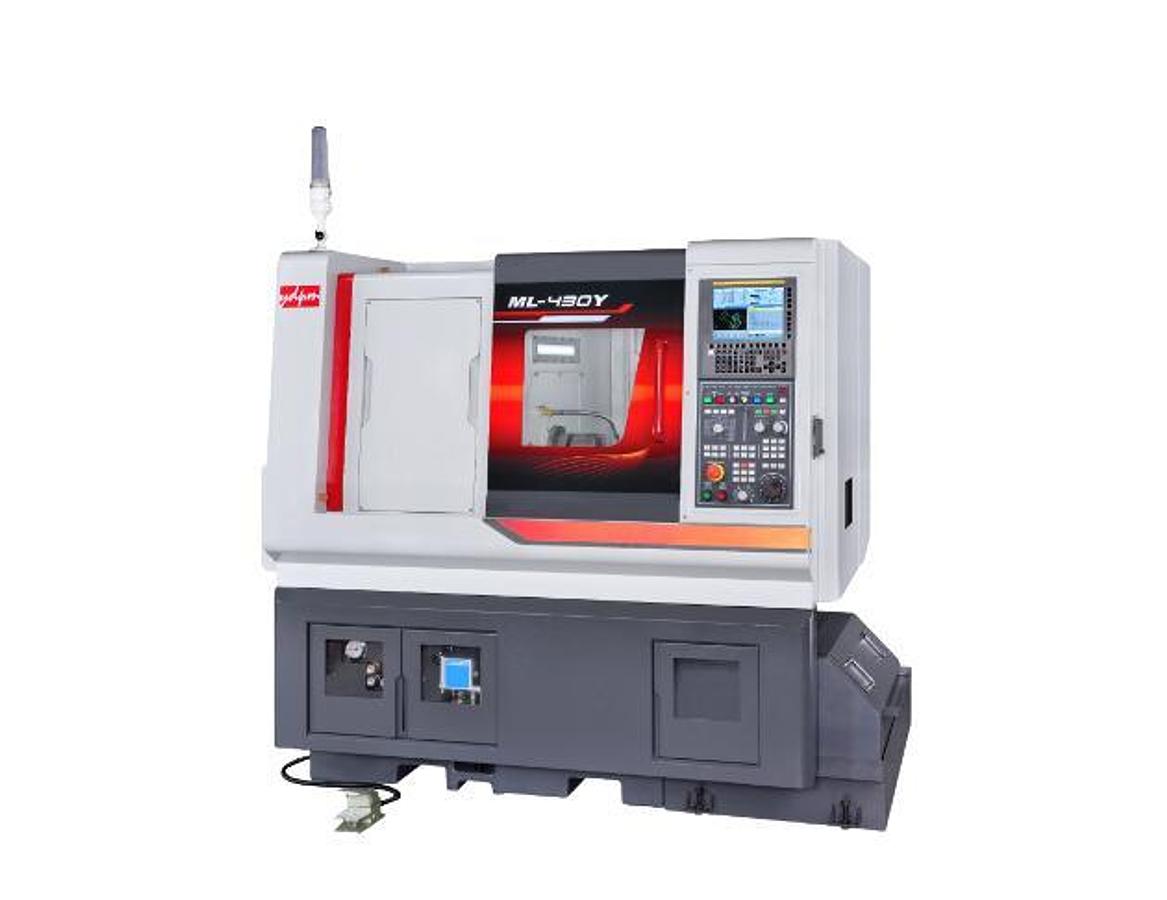

ML-430
Contact us for price
Specifications
| Manufacturer | Ingenious Machinery |
| Model | OPT: LS-120, LS-120SV LS-120SP OPT: LS-120 (8T) |
| Condition | New |
| ITEM | UNIT ML-430 ML-430Y |
| Standard | C axis |
| Swing over bed | mm Φ430 Φ430 |
| Swing over saddle | mm Φ160 Φ160 |
| Maximum machining diameter | mm Φ430 Φ430 |
| Maximum machining length | mm 240 Gang tool: 240 Axial live tooling: 110 Radial live tooling: 130 |
| Slant angle of bed | ° 0° 0° |
| X-axis | mm 350 350 |
| Z-axis | mm 320 320 |
| Y-axis | mm – 165 |
| C-axis | mm – 360° (0.001°) 360° (0.001°) |
| Spindle speeds | rpm 6,000 6,000 |
| Spindle nose | A2-5 A2-5 |
| Spindle bore diameter | mm Φ56 Φ56 |
| Front bearing inner diameter | mm Φ80 Φ80 |
| Draw bar diameter | mm Φ45 Φ45 |
| Chuck diameter | inch STD: 6″ STD: 6″ |
| Type | Gang type Live-tooling (VDI20) STD: Power tool; OPT: Hydraulic/Servo turret |
| Stations | pcs STD: 6(gang tool); OPT: 8 12 5 (Power tool) |
| Tool specification for Y axis | – – ER16M |
| Square tool shank | mm 20 x 20 16 x 16 20 x 20 |
| Boring bar shank diameter | mm Φ25 Φ20 OPT: Φ25 |
| Indexing time (0~180°) | sec LS-120: 1.8; LS-120SV: 0.9 0.83 LS-120: 1.8; LS-120SV: 0.9 |
| Spindle Speeds | rpm – 50~5,000 50~5,000 |
| Rapid Traverse | m/min X:30, Z:30 X:30, Y:18, Z:30 |
| Main-spindle | kw STD: ß6 (5.5/7.5) ; OPT: α6 (5.5/7.5) STD: ß6 (5.5/7.5) |
| Live-tool | kw – α1.5/10000 (2.2/3.7) ß4 (0.75) (for Y axis power tool) |
| Axis servo motor | kw STD: X/Z- ß8 (1.2); OPT: X/Z – α8 (1.6) X/Y/Z – ß8 (1.2) |
| Hydraulic oil pump | kw 0.75 0.75 |
| Coolant pump | kw 0.53 0.53 |
| Positioning | mm ±0.003 ±0.003 |
| Repeatability | mm ±0.003 ±0.003 |
| Requirements | KVA 380-415/220V 12KVA 380-415/220V 15KVA |
| Height | cm 212 212 |
| Floor space (WxD) | cm 210 x 203 210 x 203 |
| Packing | cm 242 x 230 x 212 242 x 230 x 212 |
| Net weight | kg 3,000 3,000 |
| Gross weight | kg 3,150 3,150 |
