FM-305MH, FM-305ATC, FM-305MH-L, FM-305ATC-L
Contact us for price

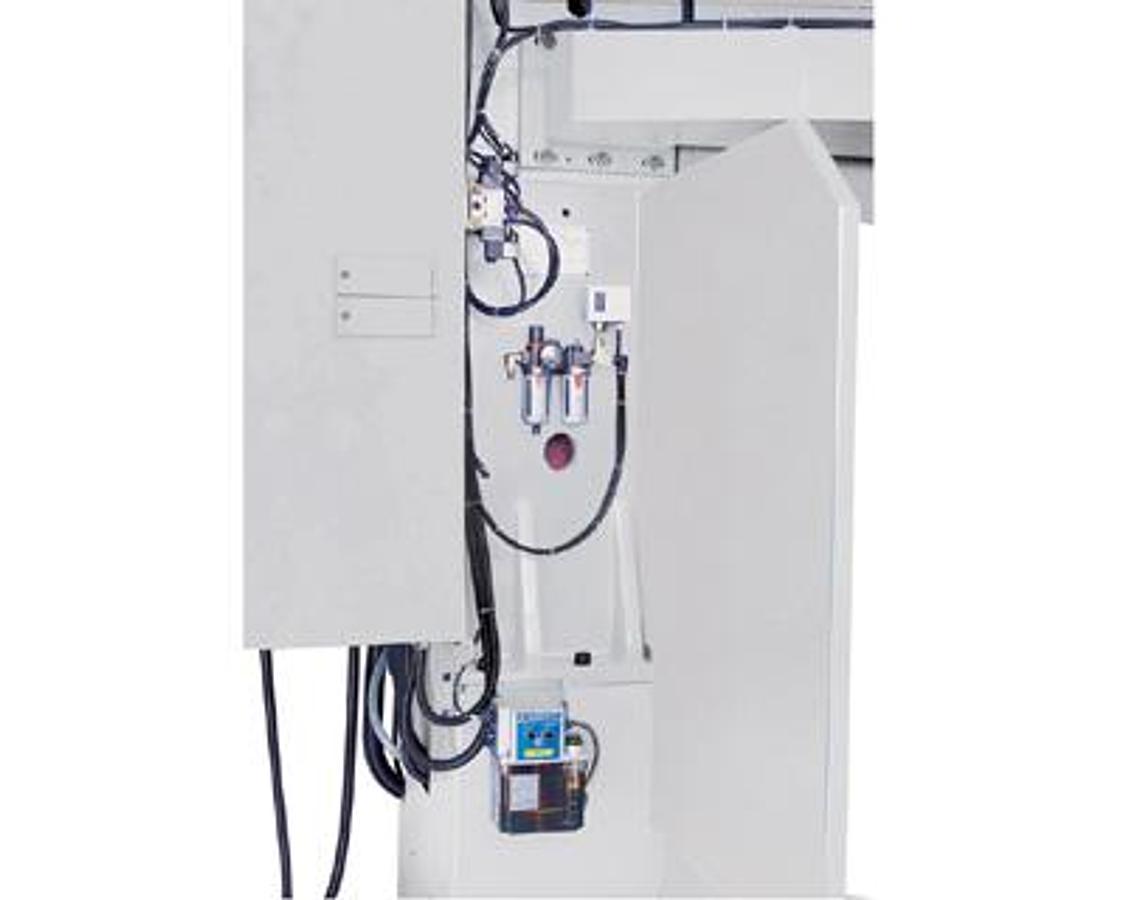

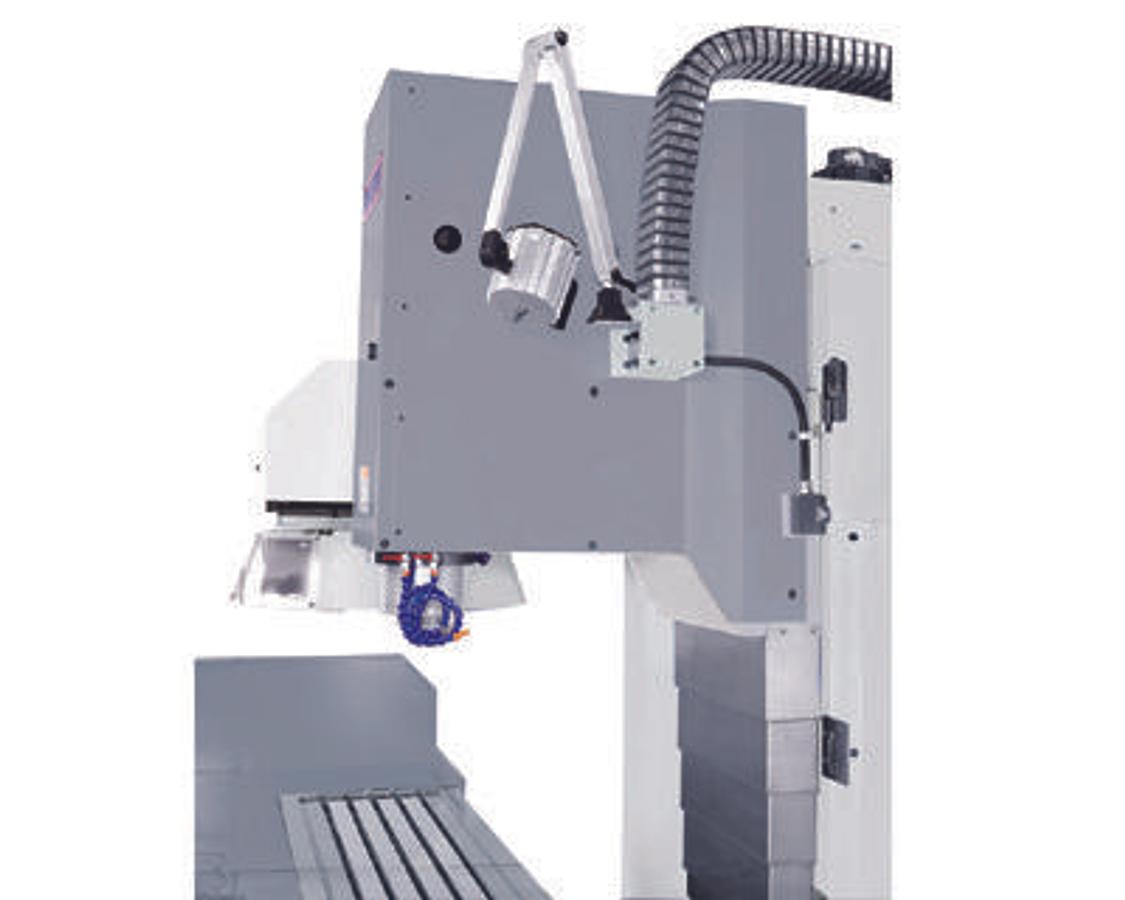

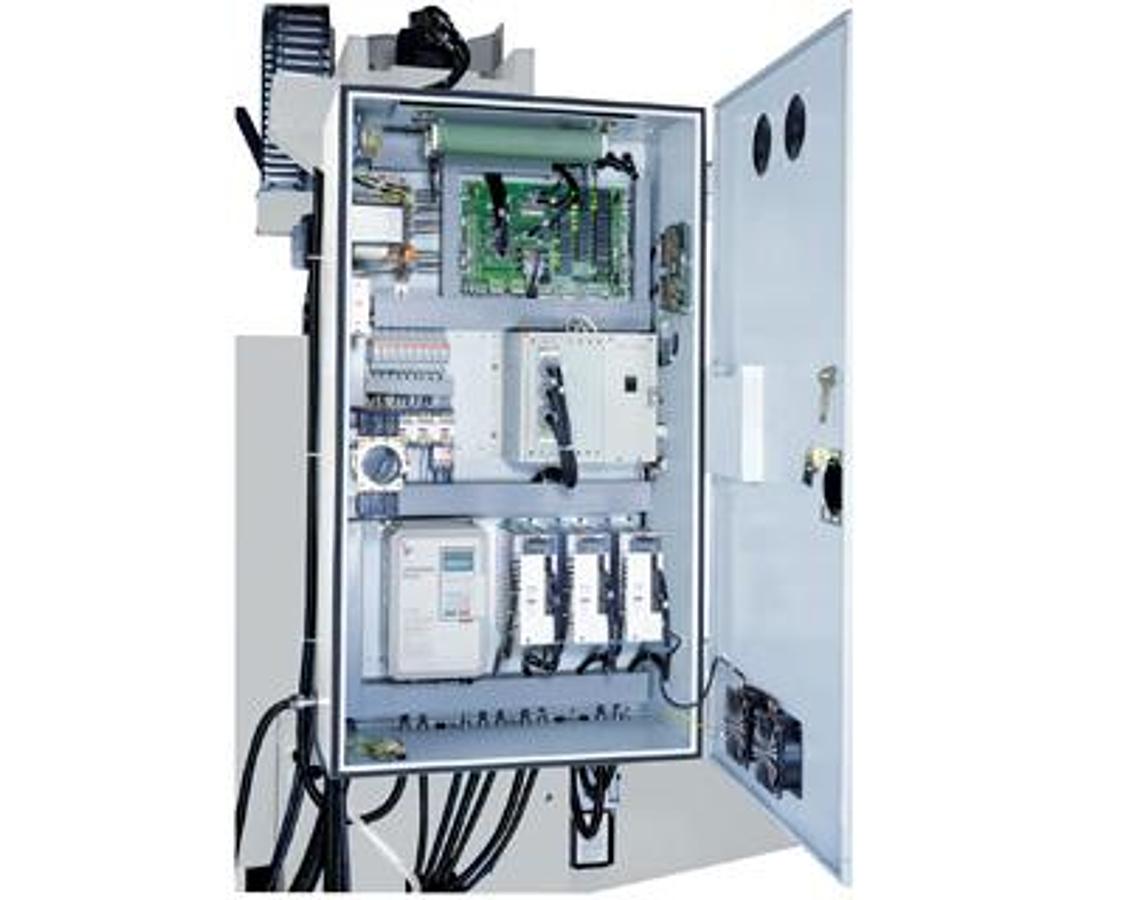

Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
| Manufacturer | Top Phoenix |
| Model | FM-305MH FM-305ATC FM-305MH-L FM-305ATC-L |
| Condition | New |
| Stock Number | 00069 |

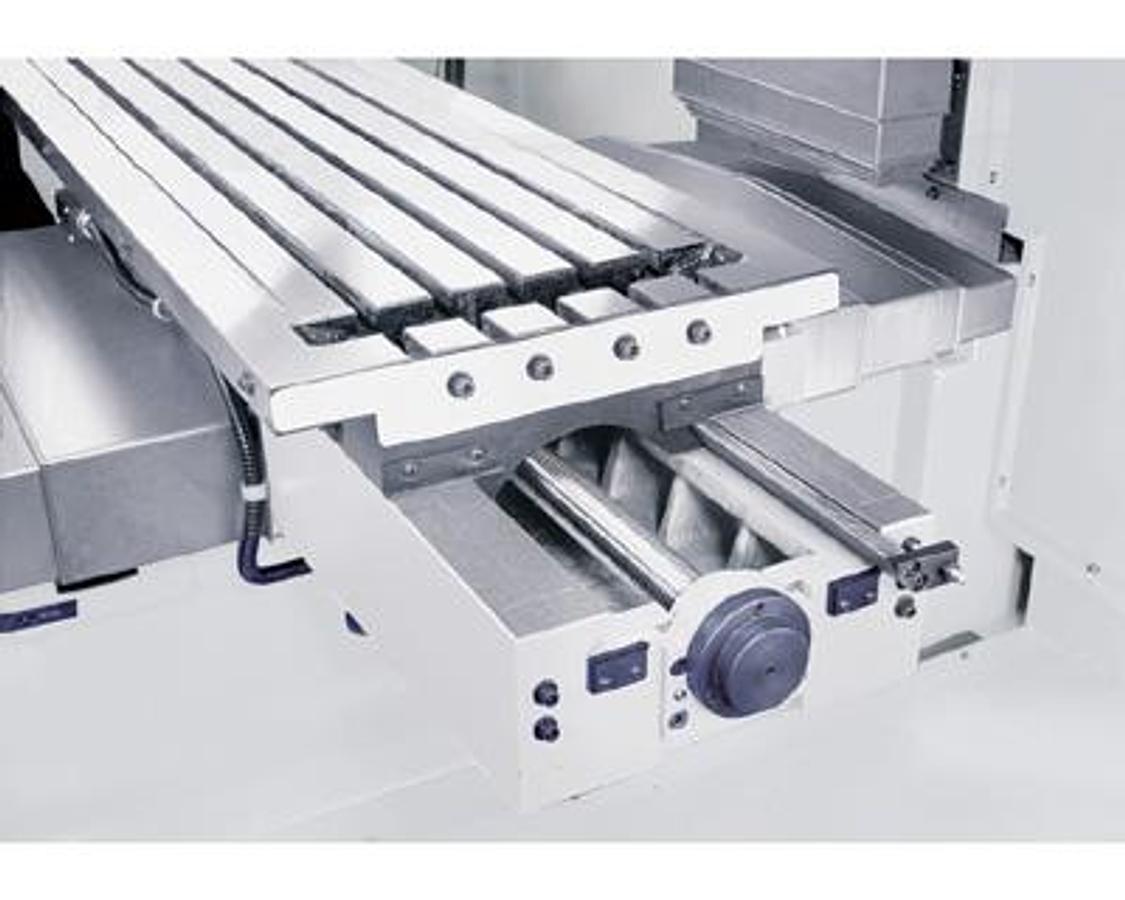

| Working surface | 610x1854mm(24"x73") 800x1854mm (31-1/2"x73") |
| T-slots (size x number x pitch) | 18mmx5x70mm (0.709"x5x2.756") 18mmx5x70mm(0.709"x5x2.756") |
| Max. table load | 1500kgs (3300 lbs) 1500kgs (3300 lbs) |
| Longitudinal travel (X axis) | 1500mm (59") 1500mm (59") |
| Cross travel (Y axis) | 850mm (33-7/16") 1020mm (40-1/8") |
| Vertical travel (Z axis) | 710mm (28") 710mm (28") |
| Distance from spindle end to table | 95~805mm (3-3/4"~31-11/16") 95~805mm (3-3/4"~31-11/16") |
| Distance from spindle center to column | 869mm (34-3/16") 1050mm (41-5/16") |
| Distance from floor to table surface | 895mm (35-1/4") 785mm (30-7/8") |
| Spindle nose taper | BT40 (or BT50, opt.) BT40 (or BT50, opt.) |
| Spindle speeds | vari 6000 r.p.m. (BT40) (or 8000/10000 r.p.m., opt.)(BT40) vari 6000 r.p.m. (BT40) (or 8000/10000 r.p.m., opt.)(BT40) |
| Cutting feed rate (X, Y, Z axes) | 1~3000 mm/min. (max.) 【or 1~5000 mm/min. (max.) (F-F), opt.】 1~5000 mm/min. (max.) |
| Rapid traverse (X, Y axes) | 5.0 m/min. (max.) 【or 10 m/min. (max.) (F-F), opt.】 10.0 m/min. (max.) |
| Rapid traverse (Z axis) | 5.0 m/min. (max.) 【or 10 m/min. (max.) (F-F), opt.】 10.0 m/min. (max.) |
| Gear ratio of motor pulley to ballscrew pulley on X, Y, Z axes | 1:2/1:1.33【or direct coupled (F-F), opt.】 Direct coupled |
| Tool storage capacity | — 16pcs (or 20pcs, opt.) (BT40) (carrousel) — 16pcs (or 20pcs, opt.) (BT40) (carrousel) |
| Max. tool weight | — 7kgs (15.4 lbs)/ 15kgs (33.1 lbs)(BT50) — 7kgs (15.4 lbs)/ 15kgs (33.1 lbs)(BT50) |
| Max. tool size (dia. x length) | — 89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50) — 89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50) |
| Tool selection | — Random — Random |
| Tool shank | — BT40 (or BT50, opt.) — BT40 (or BT50, opt.) |
| Pull stud bolt | — MAS-P40T-1/ MAS-P50T-1 (BT50) — MAS-P40T-1/ MAS-P50T-1 (BT50) |
| Distance from gauge line of tool holder to table | — 645mm (25-3/8") — 645mm (25-3/8") |
| Spindle motor (AC servo) | 7.5/11KW (or 11/15 KW, opt.) 7.5/11KW (or 11/15 KW, opt.) |
| X, Y, Z axes motor | AC servo, 1KW, 2000 r.p.m. 【or 2KW, 2000 r.p.m. (F-F), opt.】 AC servo, 3.5KW, 2000 r.p.m. |
| Coolant pump motor | AC 1/6HP / 1/4HP(F.E.G.) AC 1/4HP |
| Gross weight (Approx.) | 6000kgs (13200 lbs) 6200kgs (13640 lbs) 6300kgs (13860 lbs) 6500kgs(14300lbs) |
| Packing size (L x W x H) | 3200x2260x2550mm (126"x89"x100-3/8") 3600x2260x2550mm(142"x89"x100-3/8") |
