FM-205CNC, FM-205MH, FM-205ATC

Contact us for price
or
Call (519) 212-1782

Description

The manufacturer reserves the right to modify the design, specifications, mechanisms etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Show All

Specifications

ManufacturerTop Phoenix
ModelFM-205CNC FM-205MH FM-205ATC
ConditionNew
Stock Number00071

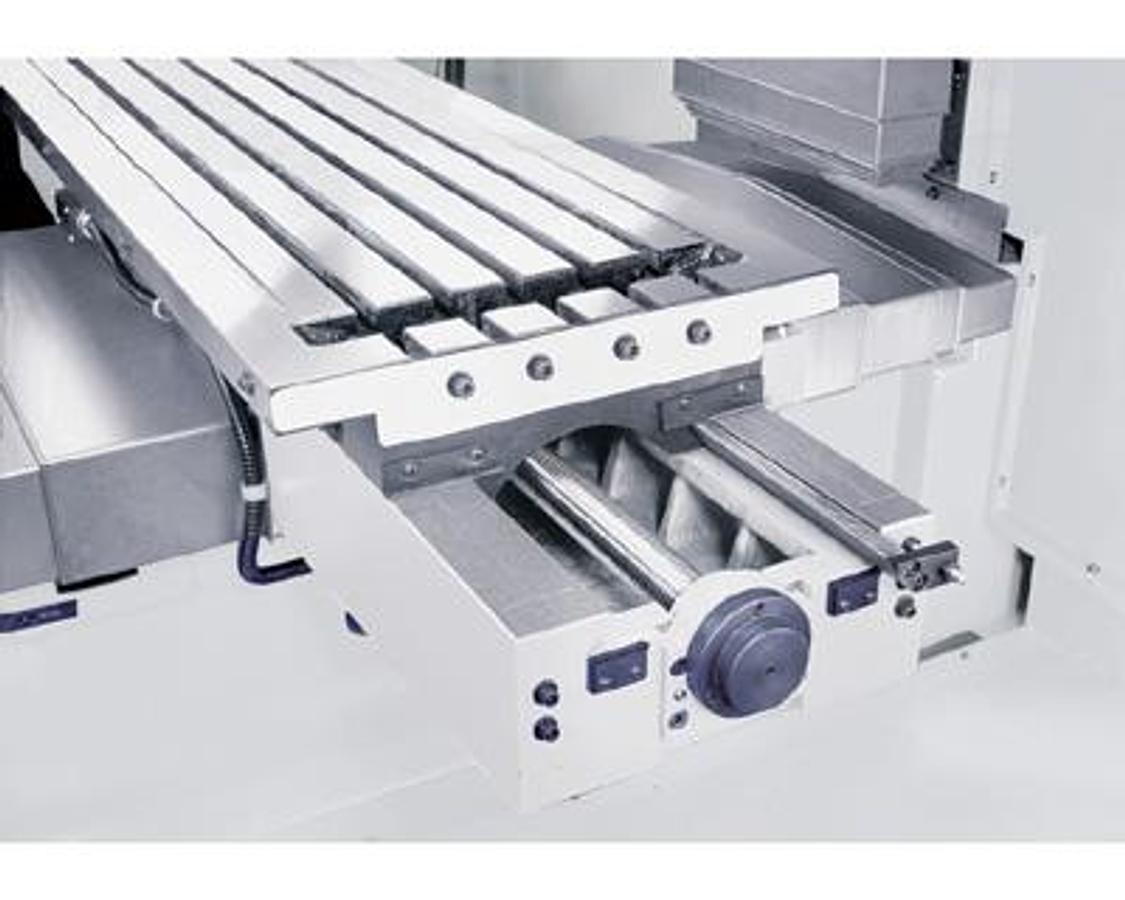

Working surface406x1372mm(16"x54")
T-slots (size x number x pitch)16mmx3x64mm (0.630"x3x2.520")
Max. table load800kgs (1760 lbs)
Longitudinal travel (X axis)1000mm (39-3/8")
Cross travel (Y axis)500mm (19-11/16")
Vertical travel (Z axis)600mm (24-3/8")
Distance from spindle end to table155~775mm (6-1/8"~30-1/2") 105~725mm (4-1/8"~28-9/16")
Distance from spindle center to column500mm (19-11/16")
Distance from floor to table surface840mm (33-1/16")

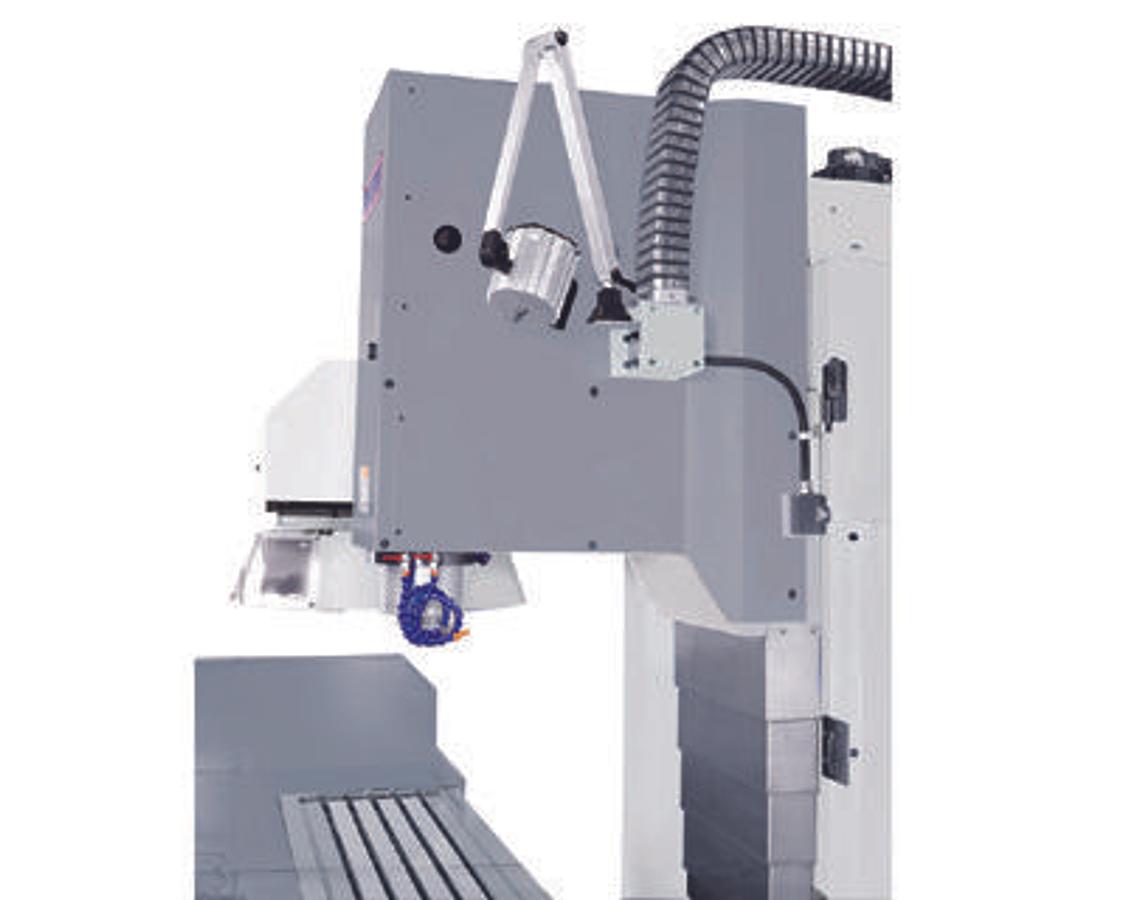

Spindle nose taperNT40 BT40
Spindle speedsvari 4200 r.p.m., 2 ranges vari 6000 r.p.m. (or 8000 /10000 r.p.m., opt.)
Cutting feed rate (X, Y, Z axes)1~3000mm/min. (max.) 【or 1~5000mm/min. (max.) (F-F),opt.】
Rapid traverse (X, Y axes)5.0m/min. (max.) 【or 10.0m/min. (max.) (F-F), opt.】
Rapid traverse (Z axis)5.0m/min. (max.) 【or 10.0m/min. (max.) (F-F), opt.】
Gear ratio of motor pulley to ballscrew pulley on X, Y, Z axes1:2 / 1:1.33 【or direct coupled (F-F), opt.】
Tool storage capacity— — 16pcs (carrousel)
Max. tool weight— — 7kgs (15.4 lbs)
Max. tool size (dia. x length)— — 89x250mm (3-1/2"x9-7/8")
Tool selection— — Random
Tool shank— — BT40
Pull stud bolt— — MAS-P40T-1
Distance from gauge line of tool holder to table— — 555mm(21-3/4")

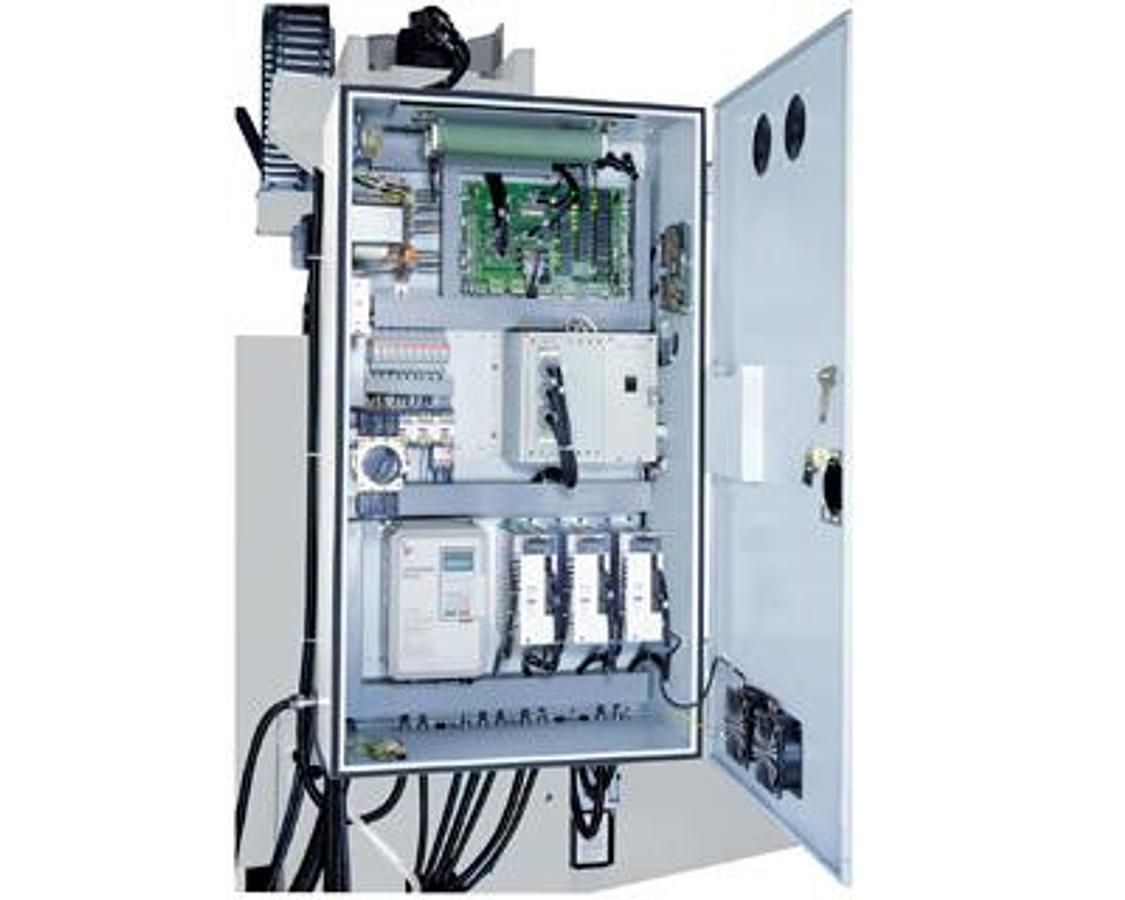

Spindle motor (AC servo)5.5/7.5KW(or 7.5/11KW, opt.)
X, Y, Z axes motorAC servo, 1KW, 2000 r.p.m.【or 2KW, 2000 r.p.m. (F-F), opt.】

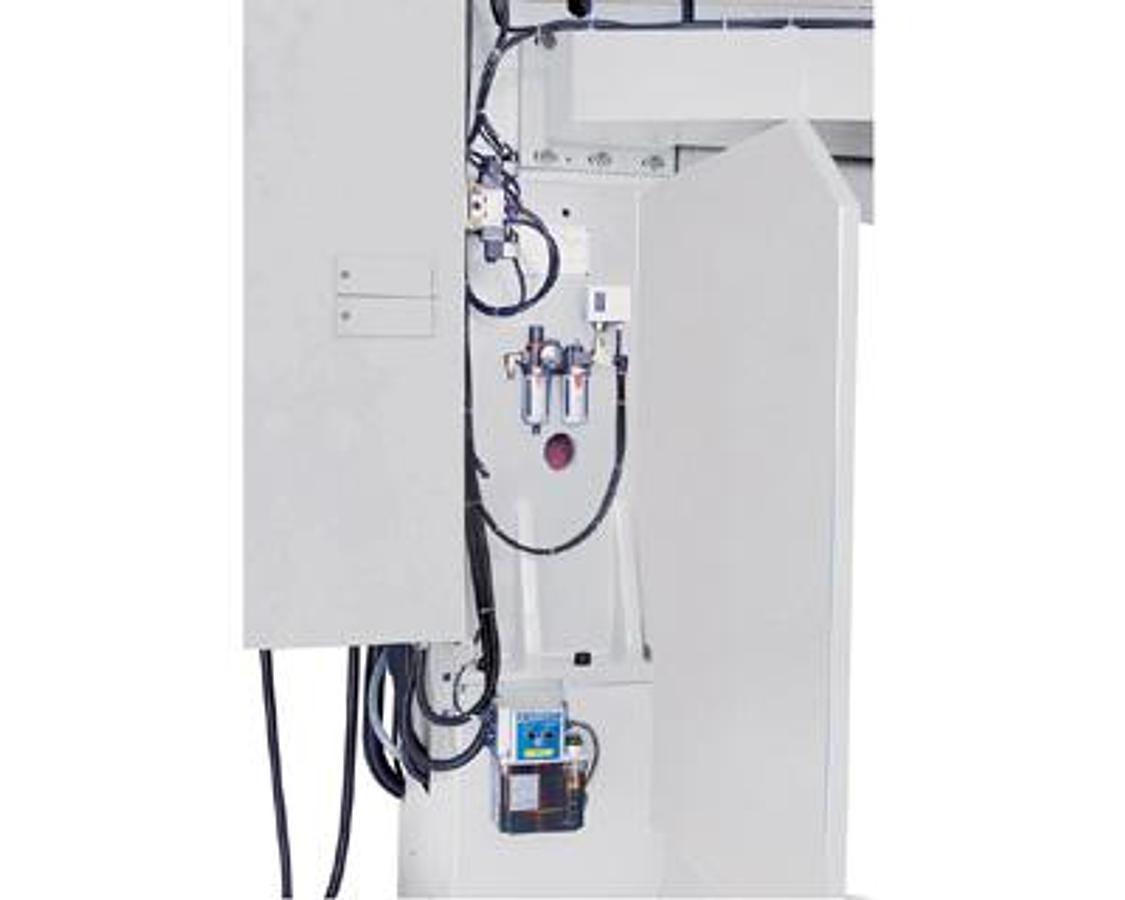

Coolant pump motorAC1/6HP/1/4HP (F.E.G.)
Gross weight (Approx.)3200kgs (7040 lbs) 3400kgs (7480 lbs)
Packing size (L x W x H)2670x2020x2530mm (105-1/8"x79-1/2"x99-5/8")
