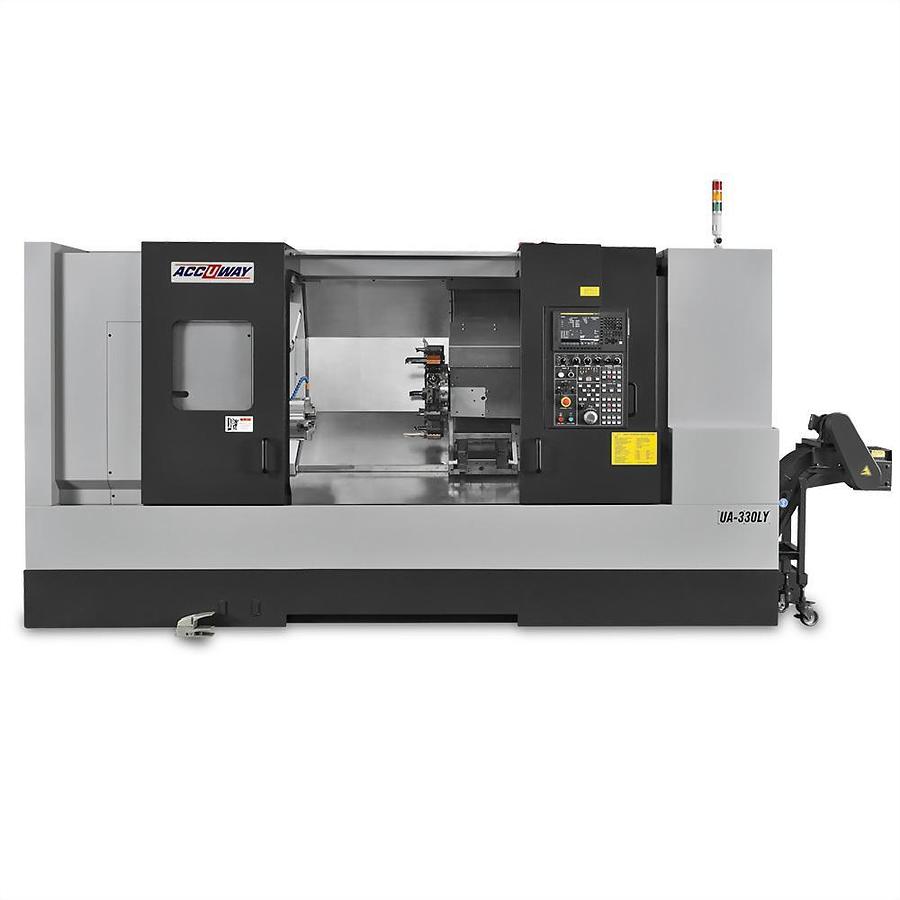

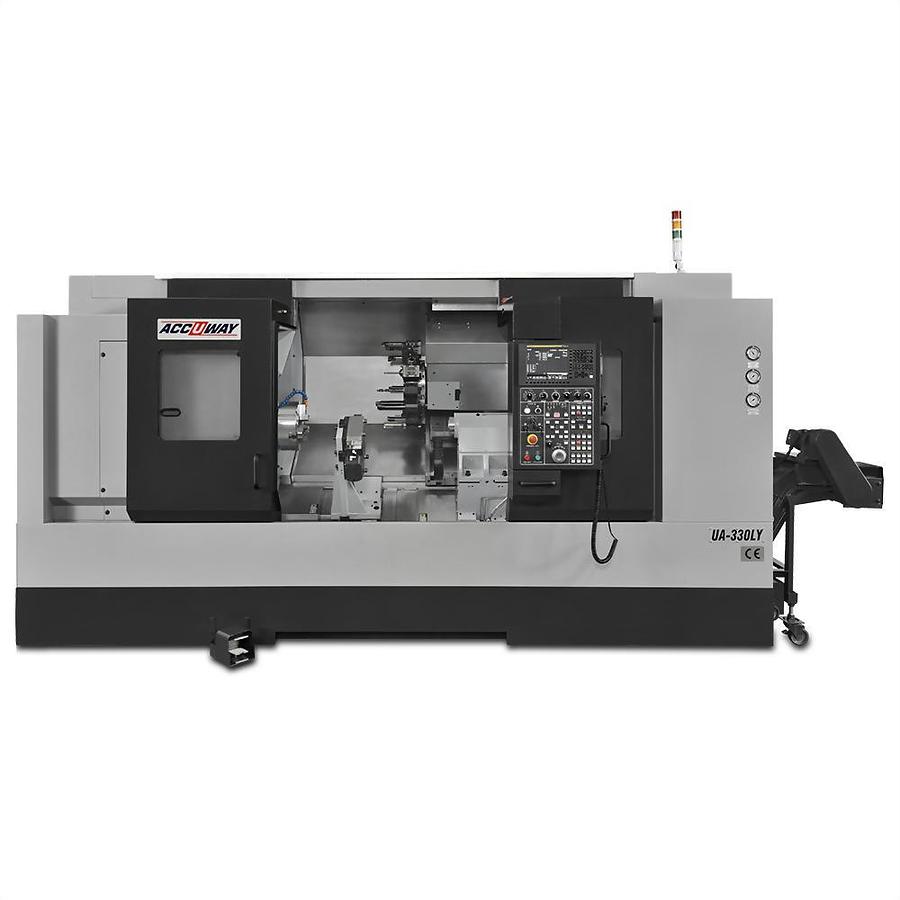

UA-330LY

Contact us for price
or
Call (519) 212-1782

Description

Slant Bed Turning Center STANDARD ACCESSORIES FANUC 0i-T controller RJ-45 interface Rigid tapping Heat exchanger for electric cabinet 10.4" Colored LCD monitor Lubrication system 4-bar coolant system Three-color warning light OPTIONAL ACCESSORIES Upgrade to 15" Colored LCD monitor Collect chuck Tool setter Parts catcher and parts conveyor Bar feeder interface (7 or 24 pins) Bar feeder Oil mist collector Oil-coolant skimmer Air cooler for electric cabinet Gear box Transformer CE version Linear scale 0 degree rotary tool holder 90 degree rotary tool holder
Show All

Specifications

ModelUA-330LY
ConditionNew
ControllerFANUC 0i-T
Swing over bedmm 800
Swing over saddlemm 600
Max. turning diametermm 350
Max. turning lengthmm 1140
Guide way typeBox Way
Spindle nose taperASA A2-8
Chuck diameterinch 12 10
Bar capacitymm 75
Spindle speedrpm 2500 3500
Spindle motor power(Cont. / 30min)kW 15/18.5
X-axis Travelmm 290
Z-axis Travelmm 1250
Y-axis Travelmm ±50
X-axis Rapid Traverse Ratem/min 20
Z-axis Rapid Traverse Ratem/min 24
Y-axis Rapid Traverse Ratem/min 10
Tailstock body travelmm 1040
Quill travelmm 120
Quill diametermm 110
Quill taperMT 5
Tooling systemBMT-55N
Turret driven typeServo mechanical
Number of toolsstation 15
Square tool shank sizemm 25
Round tool shank sizemm 40
Max. Rotary Tool Speedrpm 6000
Rotary Tool powerkW 3.7/5.5
Machine dimension L x W x Hm 4.9x 2.4 x 2.2
Net weightkg 7500
