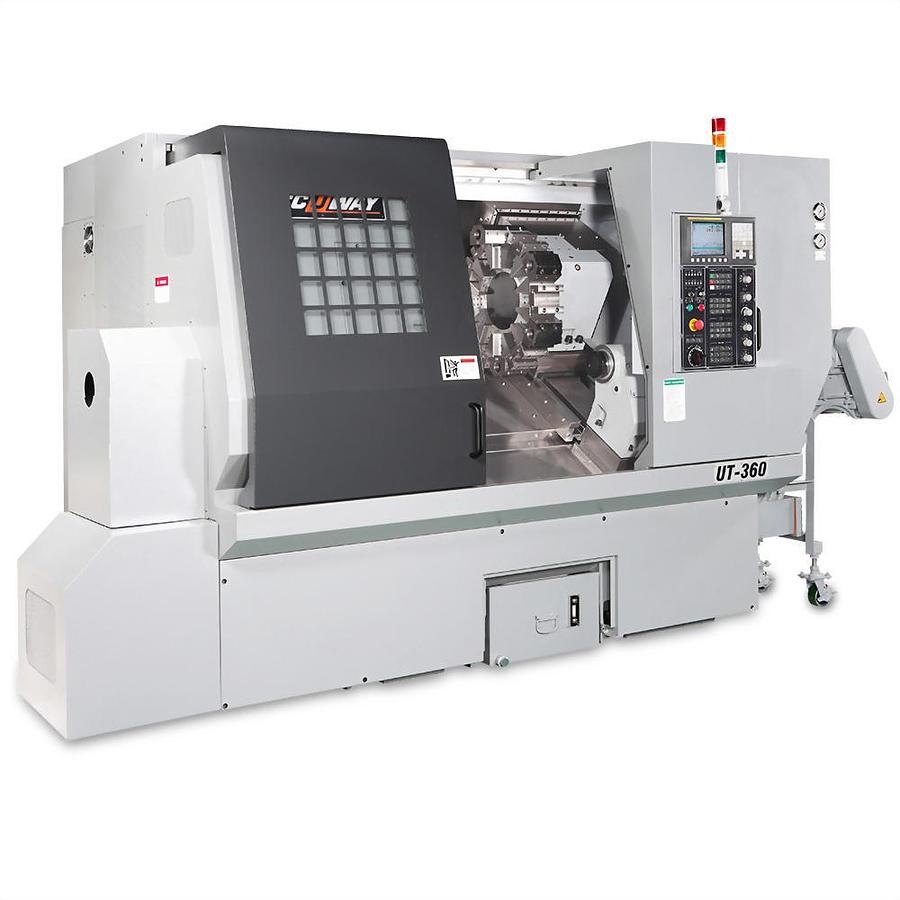

UT-360
Contact us for price
Description
High Performance Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
A2-11 spindle headstock and 105 mm bar capacity
A2-11 spindle headstock and 116 mm bar capacity
A2-15 spindle headstock and 166 mm bar capacity
12-station servo turret
APT 50 power turret + CS contouring control
APT 50 power turret + CF Axis Control
Steady rest
Gear box
Transformer
CE version
Linear scale
Auto door
Specifications
| Model | UT-360 |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 750 |
| Swing over saddle | mm 600 |
| Max. turning diameter | mm 540 |
| Max. turning length | mm 630 550 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-8 A2-11 |
| Chuck diameter | inch 12 15 |
| Bar capacity | mm 90 105 116.5 |
| Spindle speed | rpm 2700 2500 2000 |
| Spindle motor power(Cont. / 30min) | kW 18.5/22 (30/37) |
| X-axis Travel | mm 305 |
| Z-axis Travel | mm 750 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 20 |
| Tooling system | BOT |
| Turret driven type | Hydraulic/Servo |
| Number of tools | station 12 |
| Square tool shank size | mm 32 |
| Round tool shank size | mm 50 |
| Tailstock body travel | mm 540 |
| Quill travel | mm 120 |
| Quill diameter | mm 120 |
| Quill taper | MT 6 |
| Machine dimension L x W x H | m 3.6 x 2.2 x 2.2 |
| Net weight | kg 6200 |
