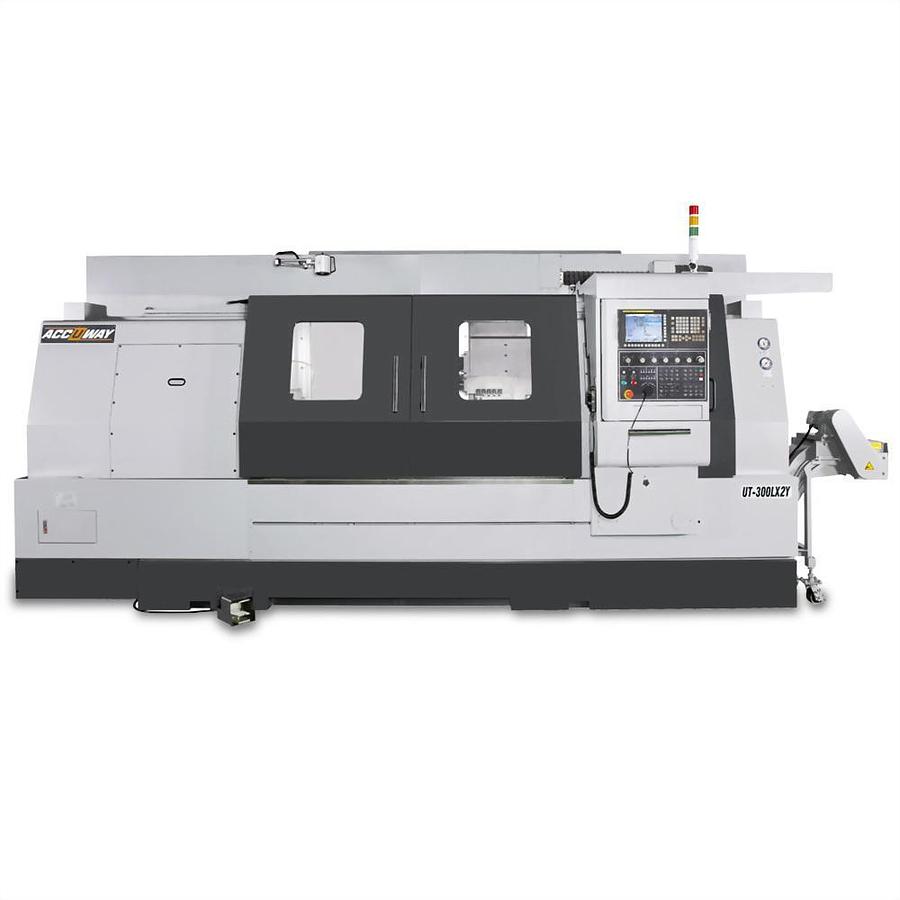

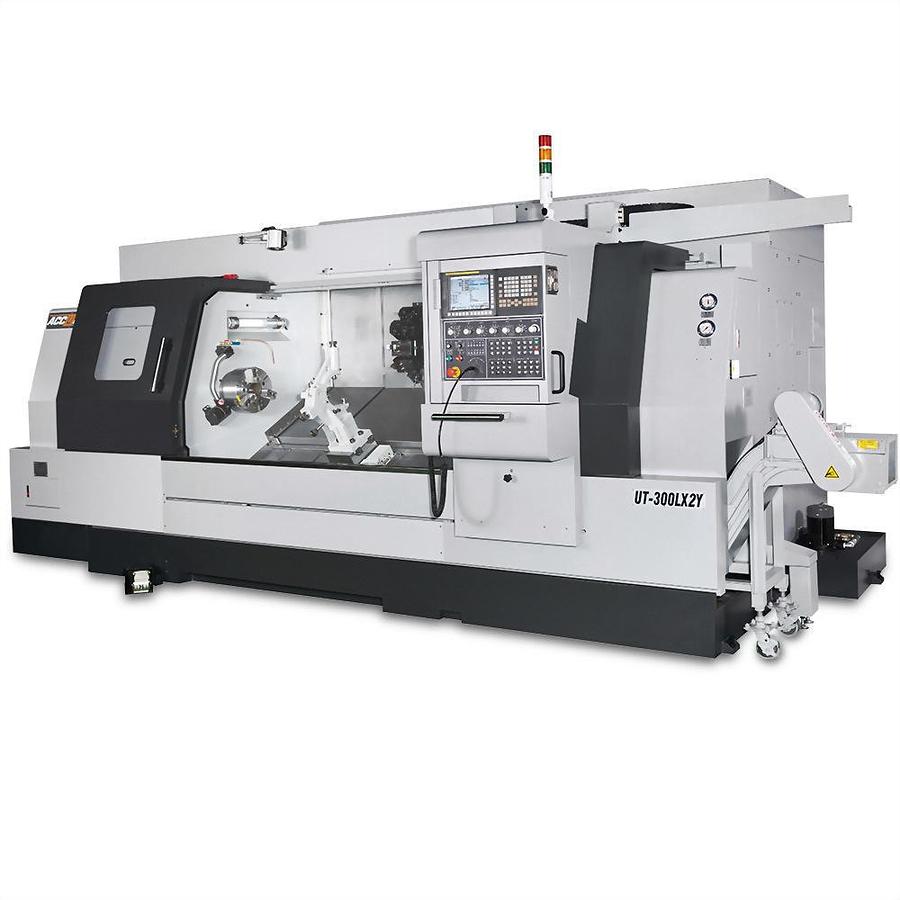

UT-300LX2Y
Contact us for price
Description
Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet

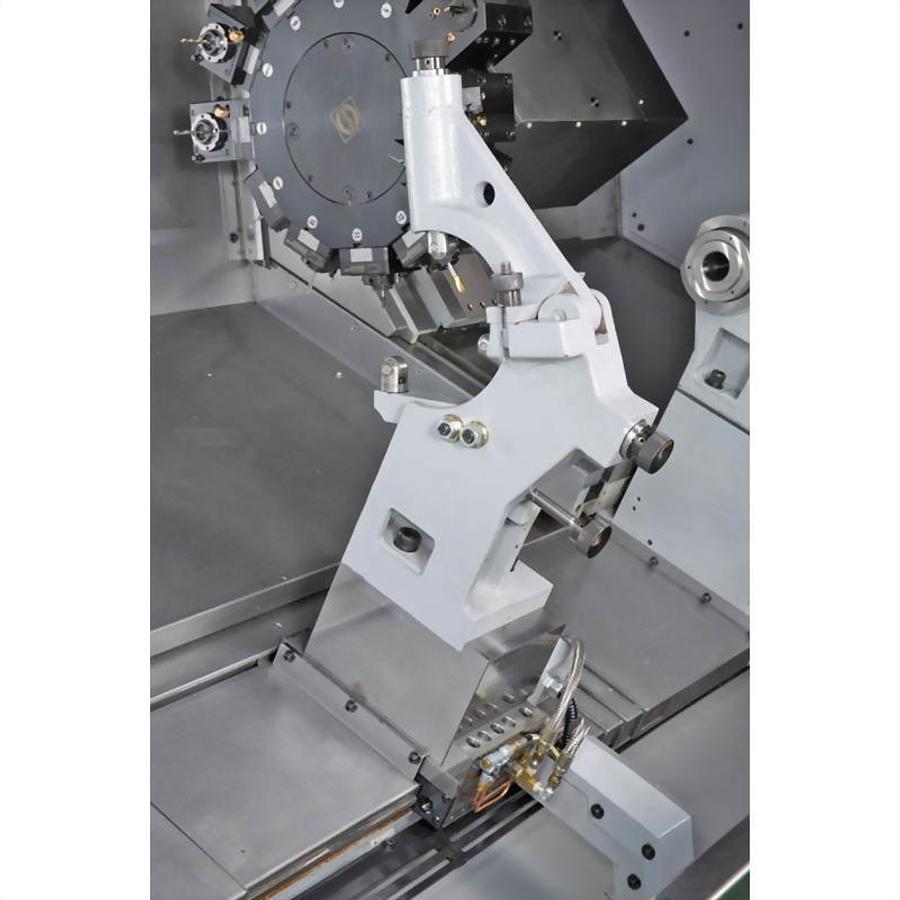

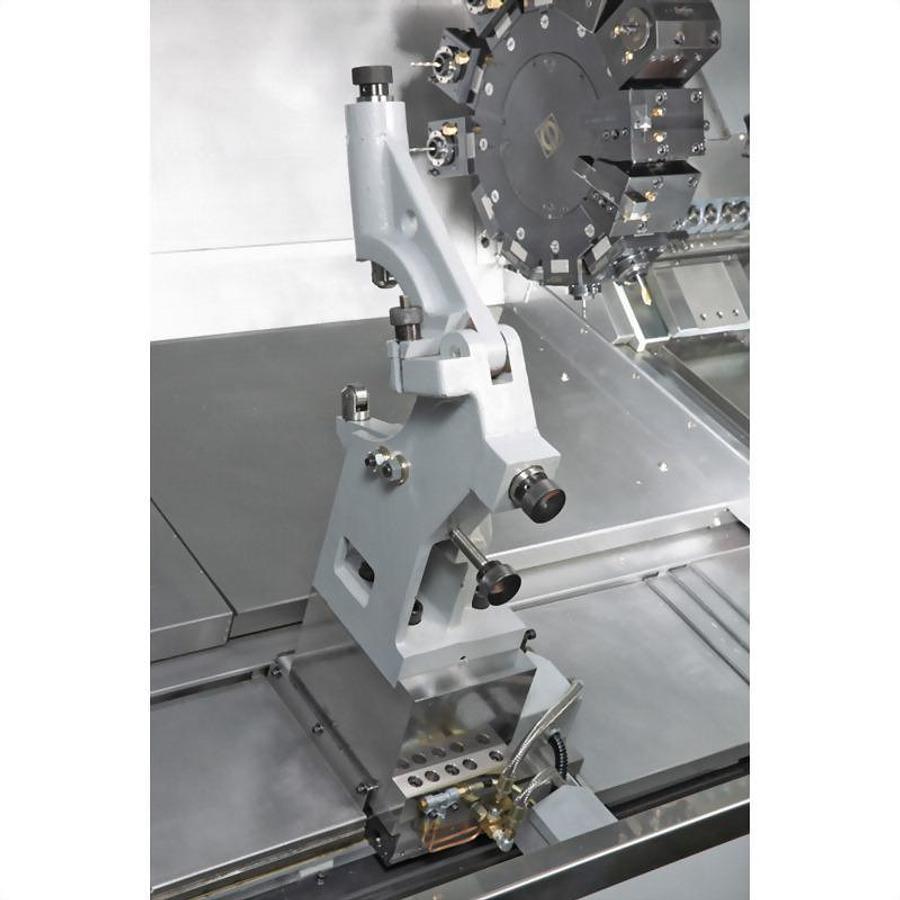

Steady rest
Gear box
Transformer
CE version
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale
Specifications
| Model | UT-300LX2Y |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 910 |
| Swing over saddle | mm 720 |
| Max. turning diameter | mm 470 |
| Max. turning length | mm 2040 1970 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-8 A2-11 |
| Chuck diameter | inch 10 12 15 |
| Bar capacity | mm 75 90 105 116.5 |
| Spindle speed | rpm 3500 2700 2500 2000 |
| Spindle motor power(Cont. / 30min) | kW 15/18.5 (18.5/22) |
| X-axis Travel | mm 275 |
| Z-axis Travel | mm 2150 |
| Y-axis Travel | mm ±50 |
| X-axis Rapid Traverse Rate | m/min 20 |
| Z-axis Rapid Traverse Rate | m/min 24 |
| Y-axis Rapid Traverse Rate | m/min 10 |
| Tooling system | BMT/VDI |
| Turret driven type | Servo mechanical |

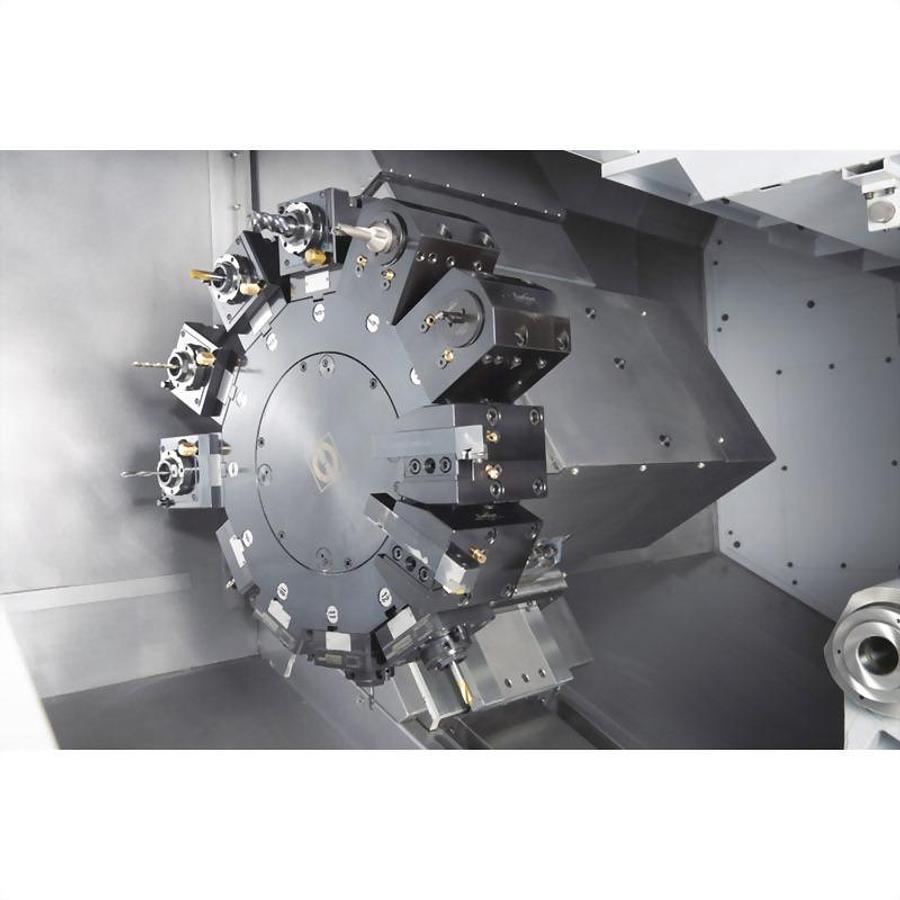

| Number of tools | station 12 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 40 |
| Max. Rotary Tool Speed | rpm 4000 |
| Rotary Tool power | kW 3.7/5.5 |
| Tailstock body travel | mm 1540 |
| Quill travel | mm 120 |
| Quill diameter | mm 85 |
| Quill taper | MT 5 |
| Machine dimension L x W x H | m 5.8 x 2.1 x 2.4 |
| Net weight | kg 9900 |
