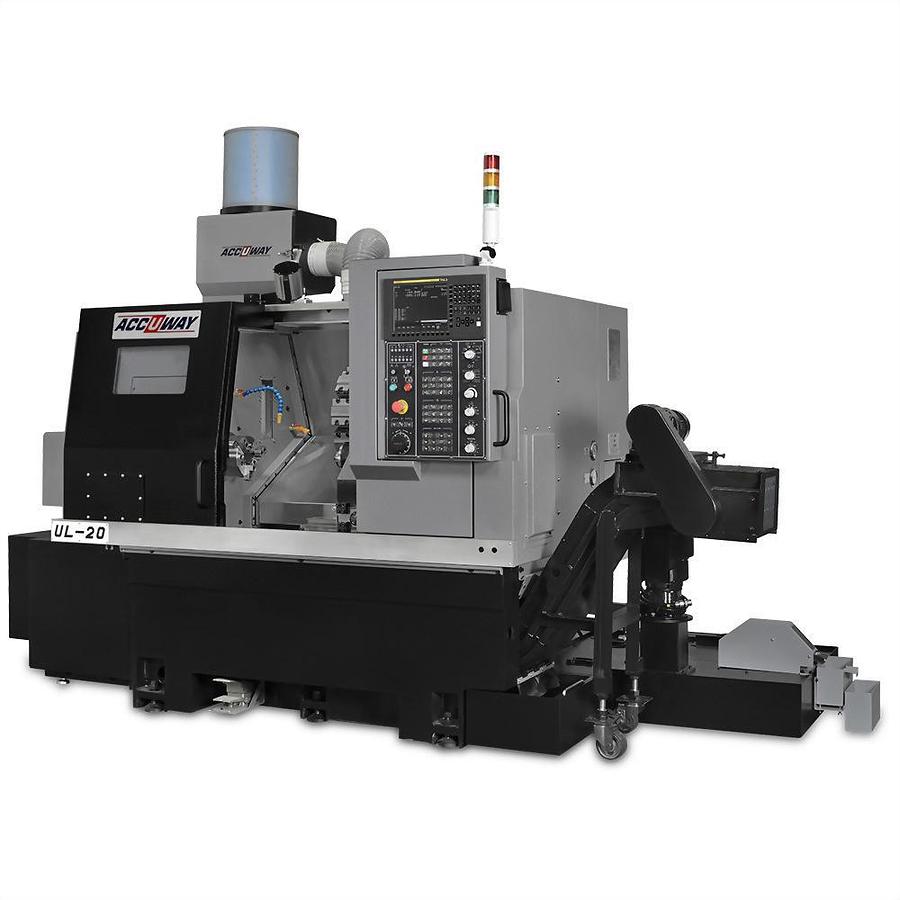

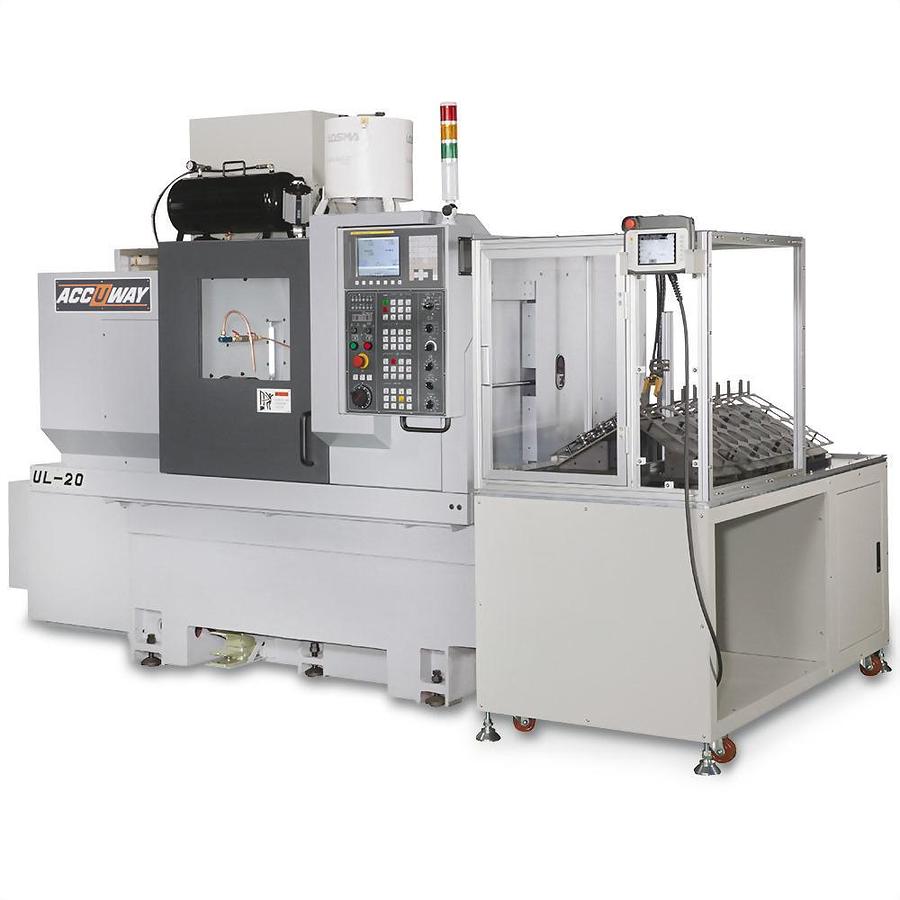

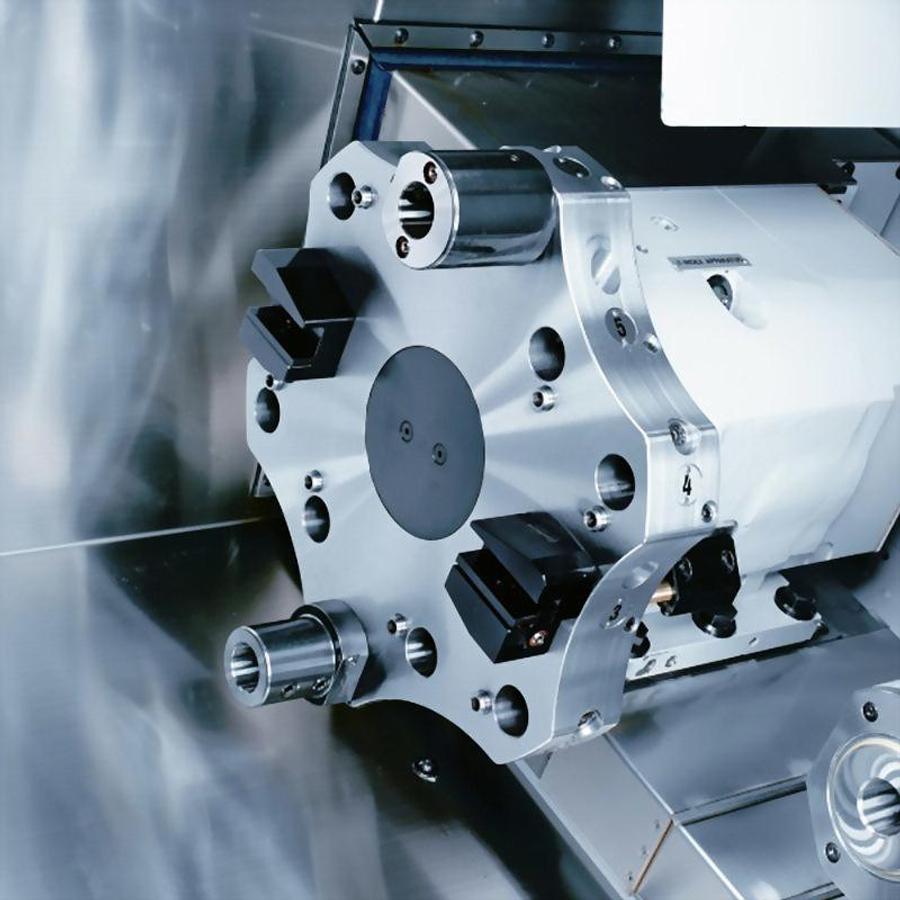

UL-20/UL-20M
Contact us for price
Description
Flat Bed CNC Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
Rigid tapping
RJ-45 interface
10.4" Colored LCD monitor
Heat exchanger for electric cabinet
4-bar coolant system
Lubrication system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor

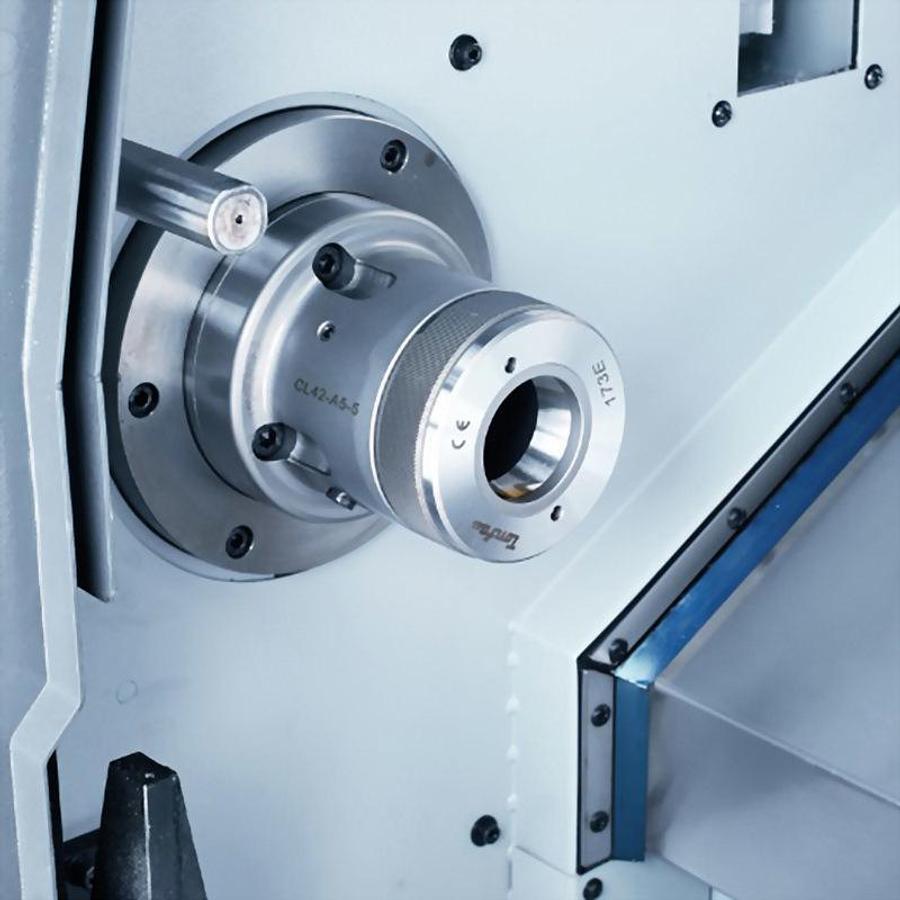

Collet chuck
Tool setter

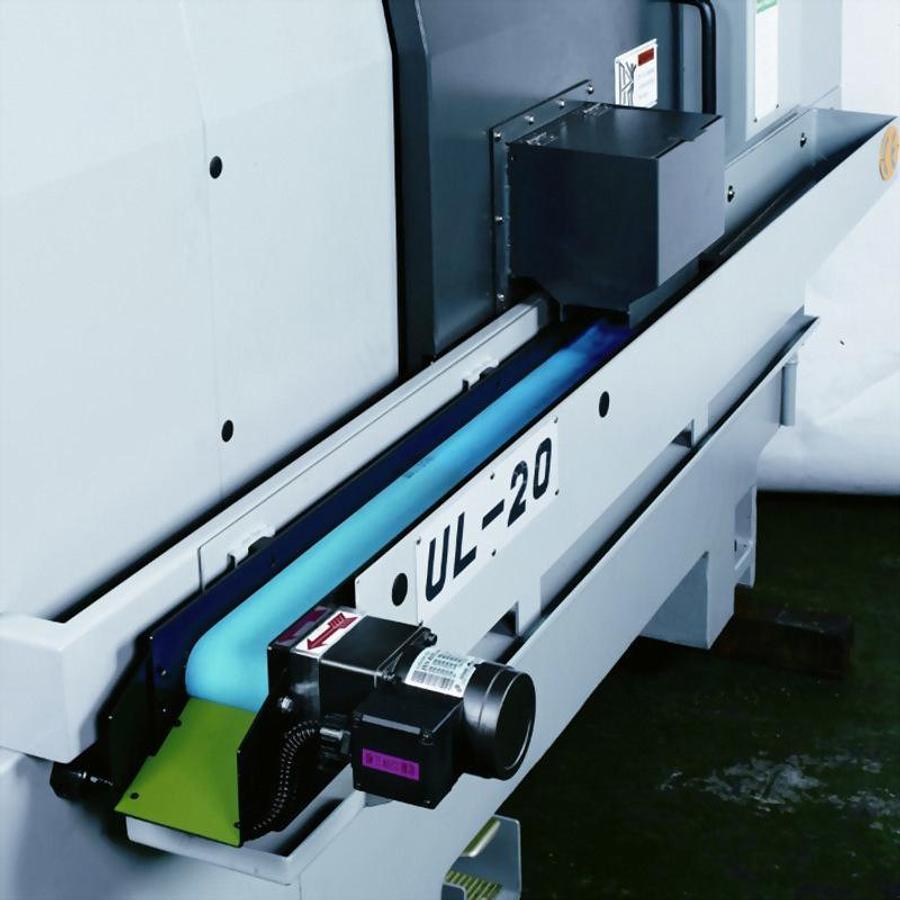

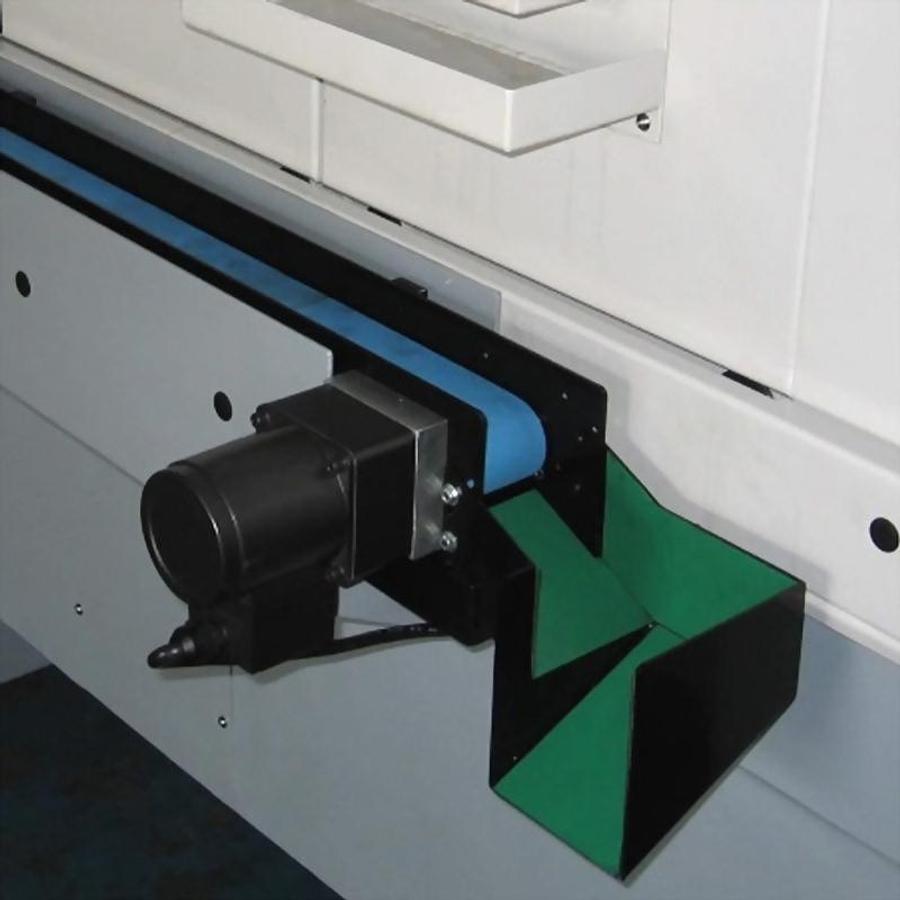

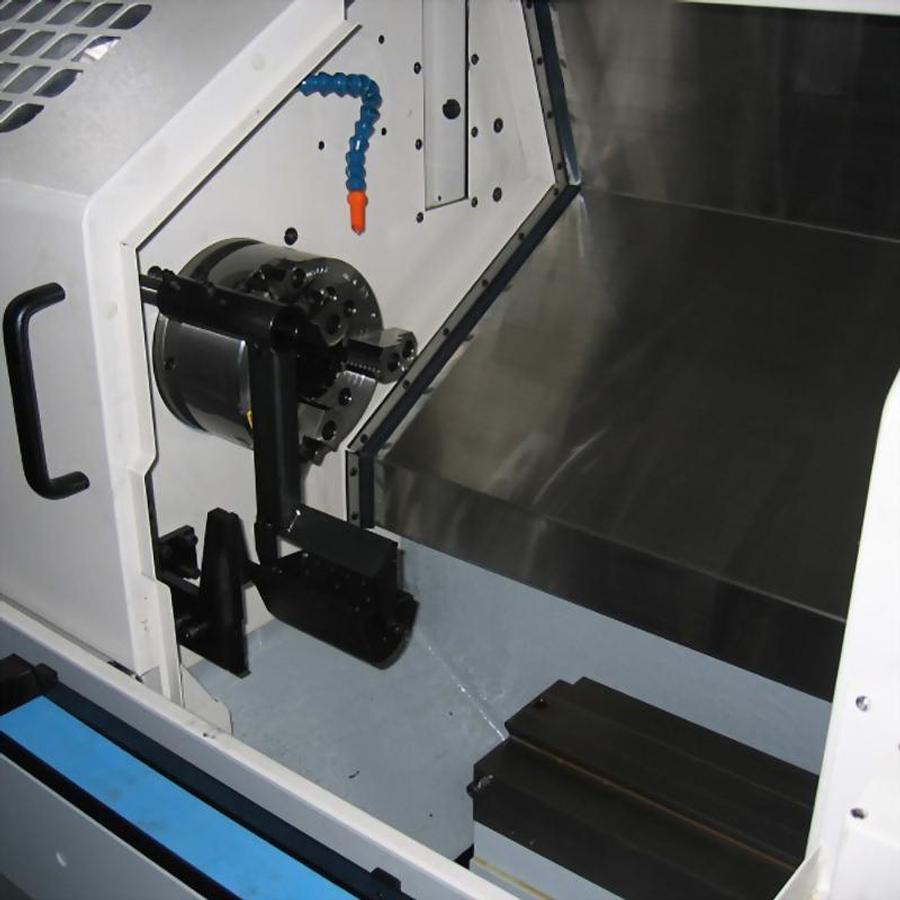

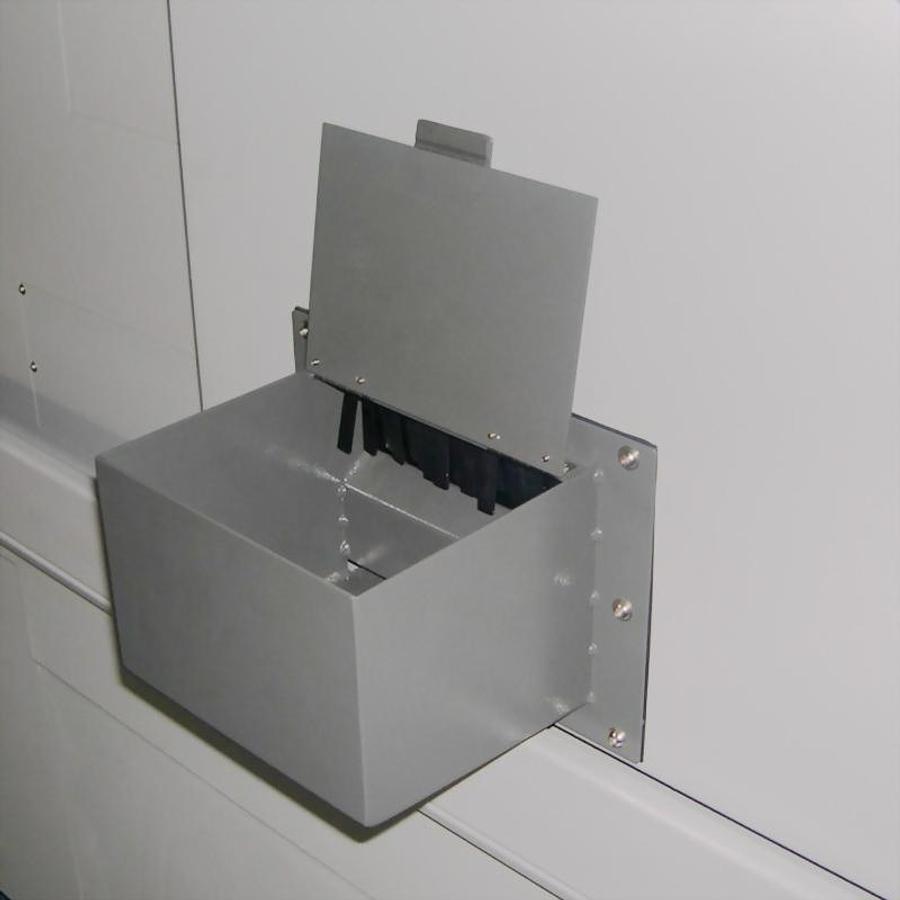

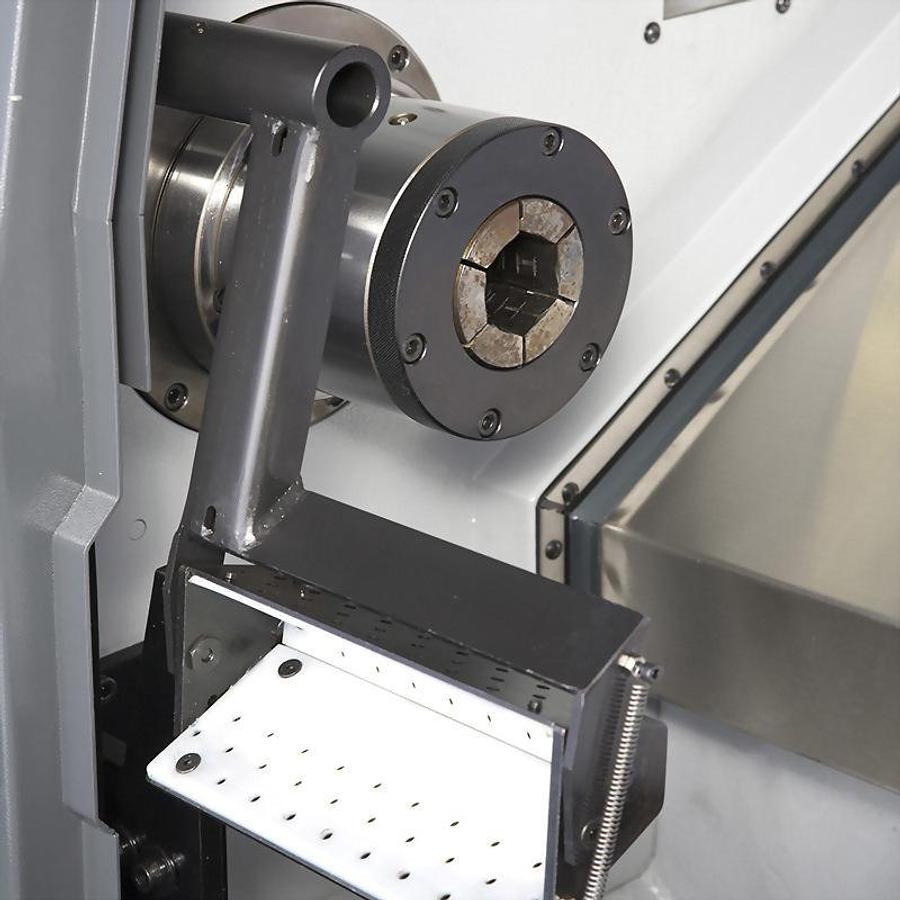

Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)

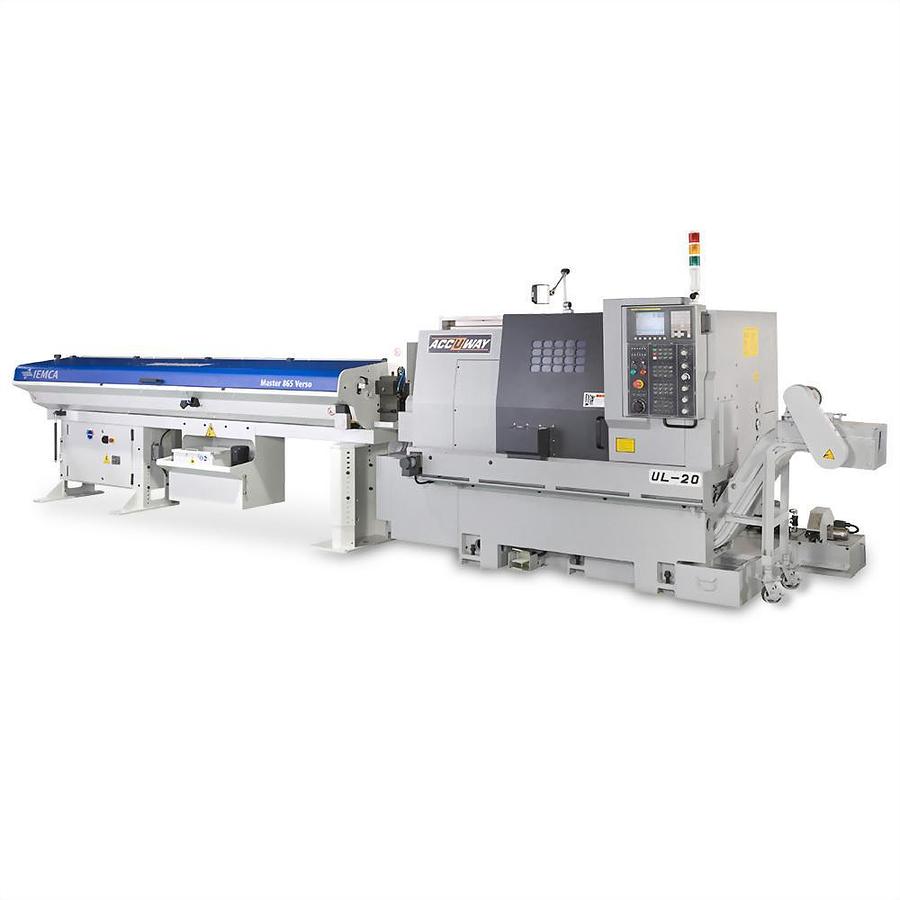

Bar feeder

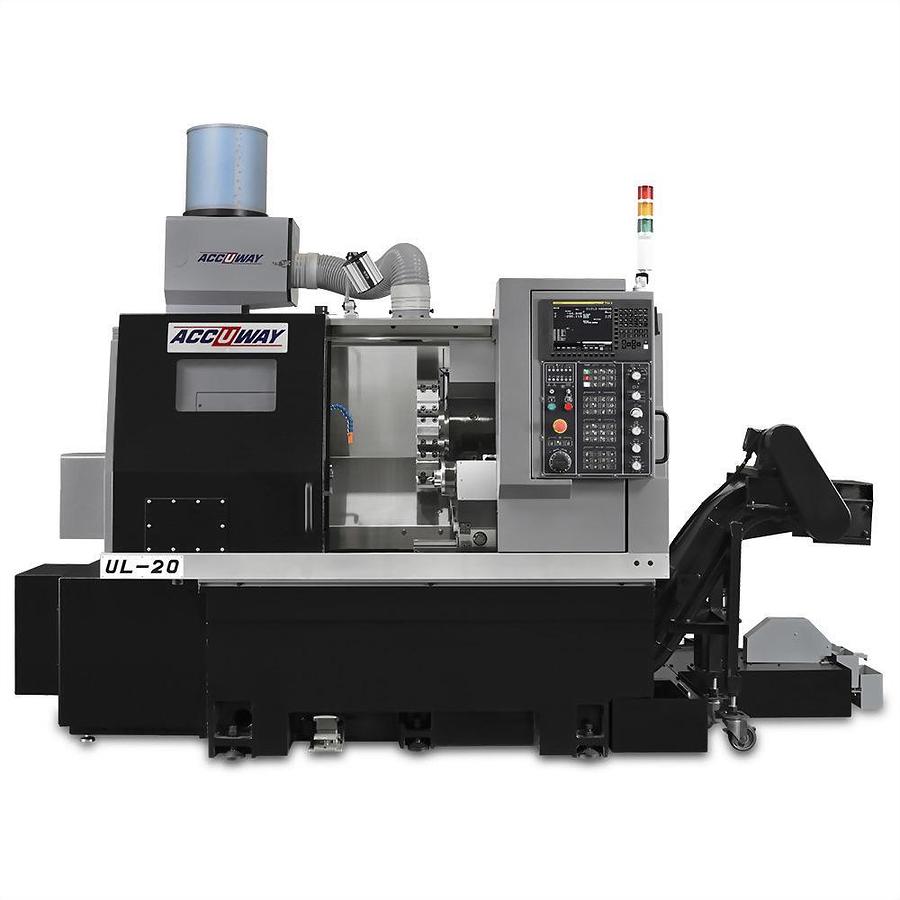

Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface

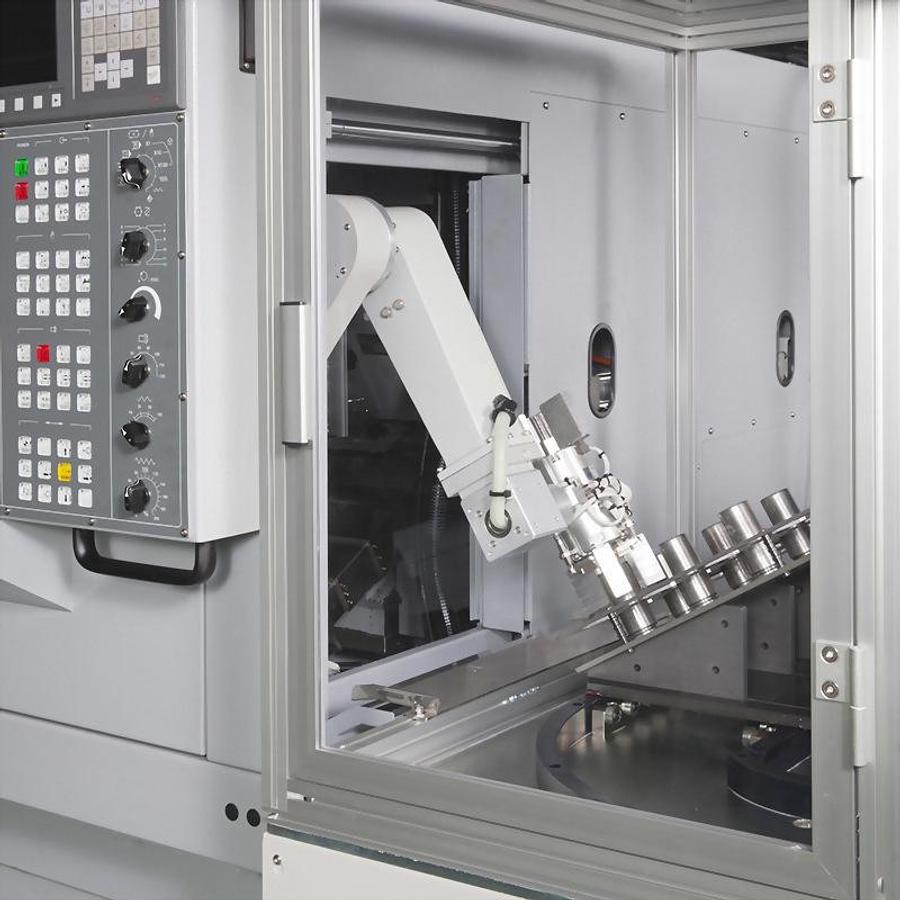

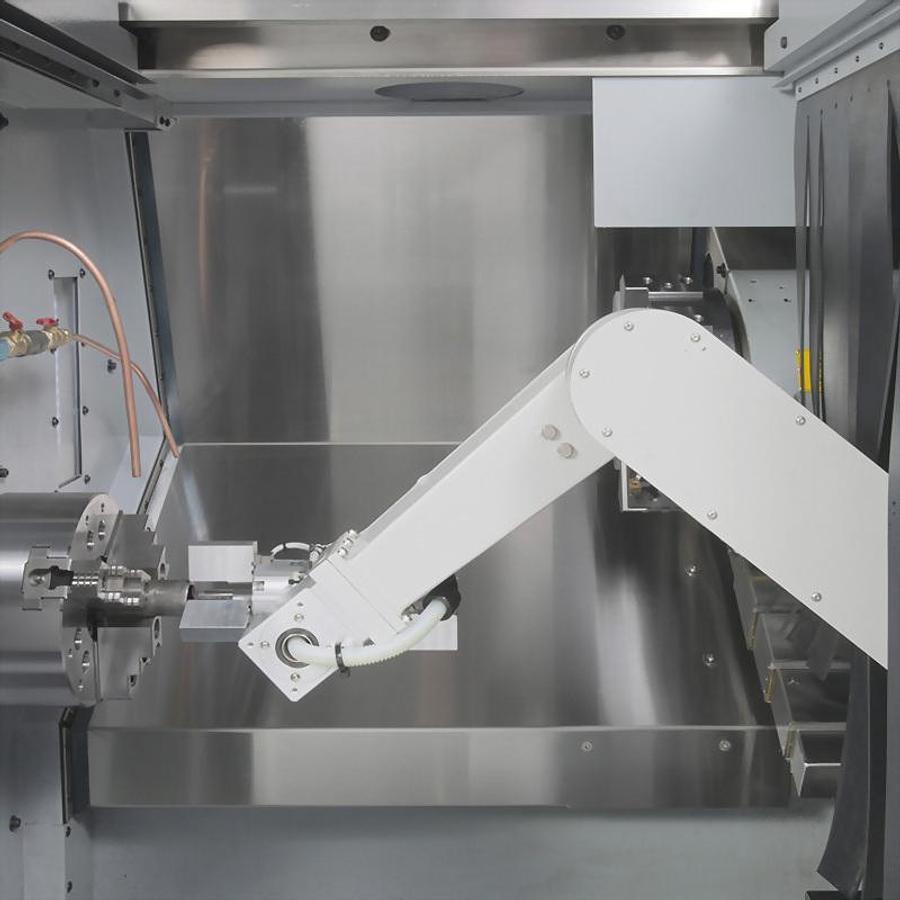

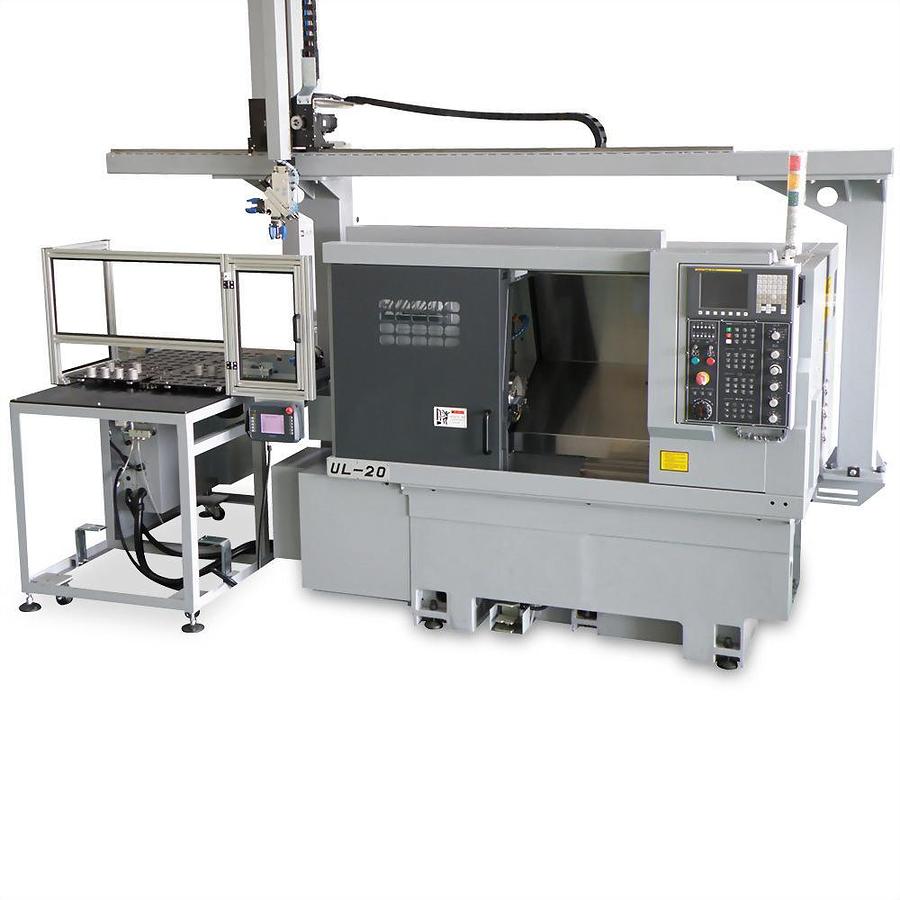

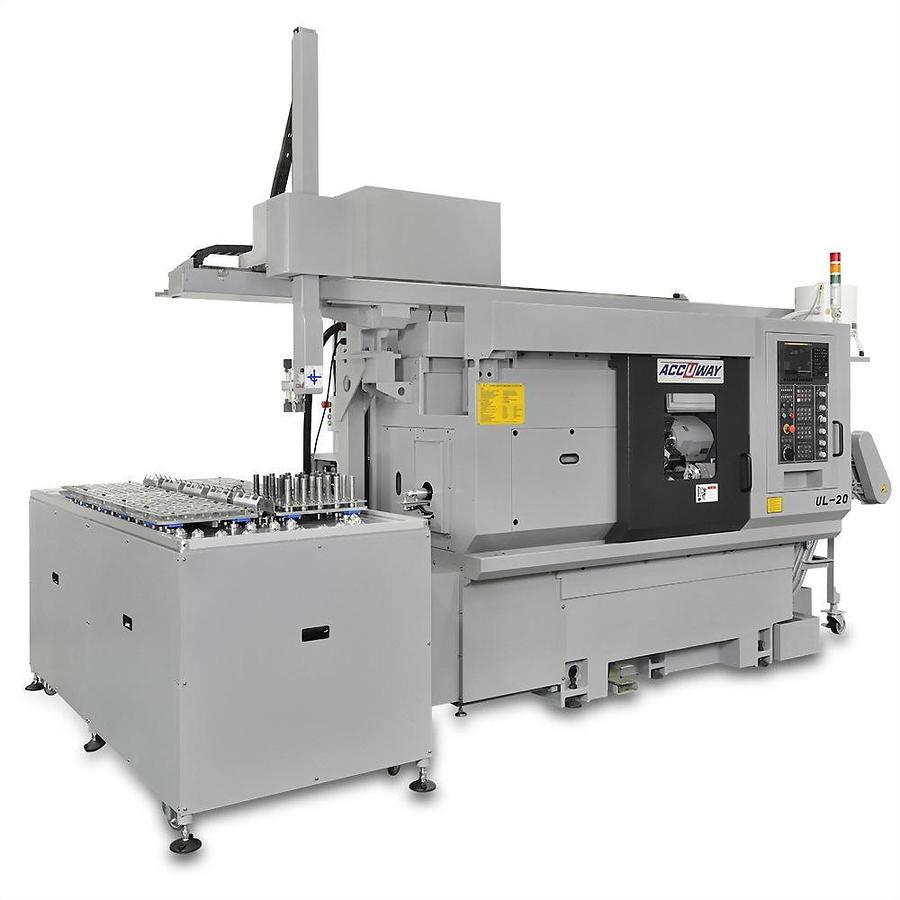

Gantry loader system
Auto door
Linear scale
0 degree rotary tool holder(UL-20M)
90 degree rotary tool holder(UL-20M)
Specifications
| Model | UL-20 UL-20M |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 455 455 |
| Swing over saddle | mm 260 260 |
| Max. turning diameter | mm 280 180 |
| Max. turning length | mm 600 500 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 A2-6 A2-5 A2-6 |
| Chuck diameter | inch 6 8 6 8 |
| Bar capacity | mm 44 52 65 44 52 65 |
| Spindle speed | rpm 6000 4500 4000 6000 4500 4000 |
| Spindle motor power(Cont. / 30min) | kW 11/15 11/15 |
| X-axis travel | mm 175 175 |
| Z-axis travel | mm 625 625 |
| X-axis Rapid Traverse Rate | m/min 20 20 |
| Z-axis Rapid Traverse Rate | m/min 20 20 |
| Tooling system | BOT BMT/VDI |
| Turret driven type | Hydraulic/Servo Servo mechanical |
| Number of tools | station 8 10 12 12 |
| Square tool shank size | mm 25 25 20 20 |
| Round tool shank size | mm 32 32 |
| Tailstock body travel | mm 400 400 |
| Quill travel | mm 150 150 |
| Quill diameter | mm 70 70 |
| Quill taper | MT 4 4 |
| Machine dimension L x W x H | m 2.5 x 1.5 x 1.7 2.7 x 1.5 x 1.75 |
| Net weight | kg 3350 3500 |
