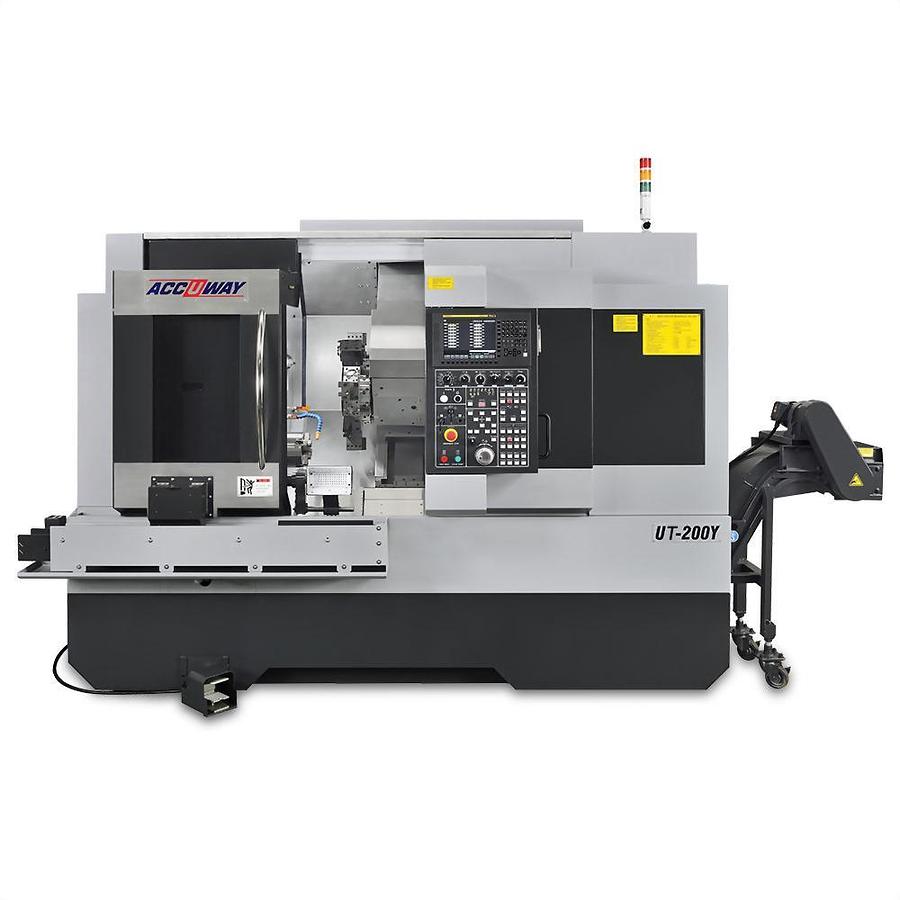

UT-200Y/UA-200Y
Contact us for price
Description
Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
0 degree rotary tool holder
90 degree rotary tool holder
Auto door
Linear scale
Specifications
| Model | UT-200Y UA-200Y |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 680 680 |
| Swing over saddle | mm 485 485 |
| Max. turning diameter | mm 240 155 |
| Max. turning length | mm 440 365 500 425 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 A2-6 A2-8 A2-5 A2-6 A2-8 |
| Chuck diameter | inch 6 8 10 6 8 10 |
| Bar capacity | mm 44 52 65 75 44 52 65 75 |
| Spindle speed | rpm 6000 4500 4000 3500 6000 4500 4000 3500 |
| Spindle motor power(Cont. / 30min) | kW 11/15(15/18.5) 11/15(15/18.5) |
| X-axis Travel | mm 220 220 |
| Z-axis Travel | mm 600 600 |
| Y-axis Travel | mm ±50 ±50 |
| X-axis Rapid Traverse Rate | m/min 20 20 |
| Z-axis Rapid Traverse Rate | m/min 20 20 |
| Y-axis Rapid Traverse Rate | m/min 10 10 |
| Tooling system | BMT/VDI BMT-55N |
| Turret driven type | Servo mechanical Servo mechanical |
| Number of tools | station 12 15 |
| Square tool shank size | mm 20 20 |
| Round tool shank size | mm 32 32 |
| Max. Rotary Tool Speed | rpm 6000 6000 |
| Rotary Tool power | kW 3.7/5.5 3.7/5.5 |
| Tailstock body travel | mm 545 545 |
| Quill travel | mm 80 80 |
| Quill diameter | mm 75 75 |
| Quill taper | MT 4 4 |
| Machine dimension L x W x H | m 3.0 x 1.9 x 2.2 3.3 x 1.9 x 2.2 |
| Net weight | kg 4500 5000 |
