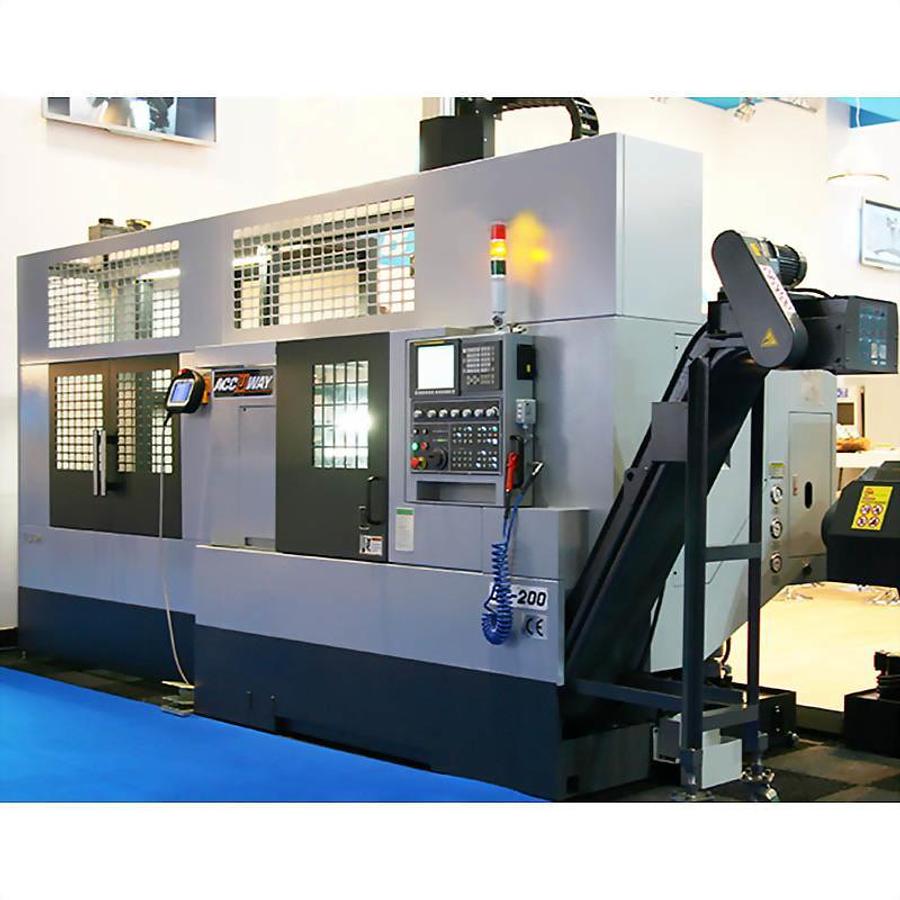

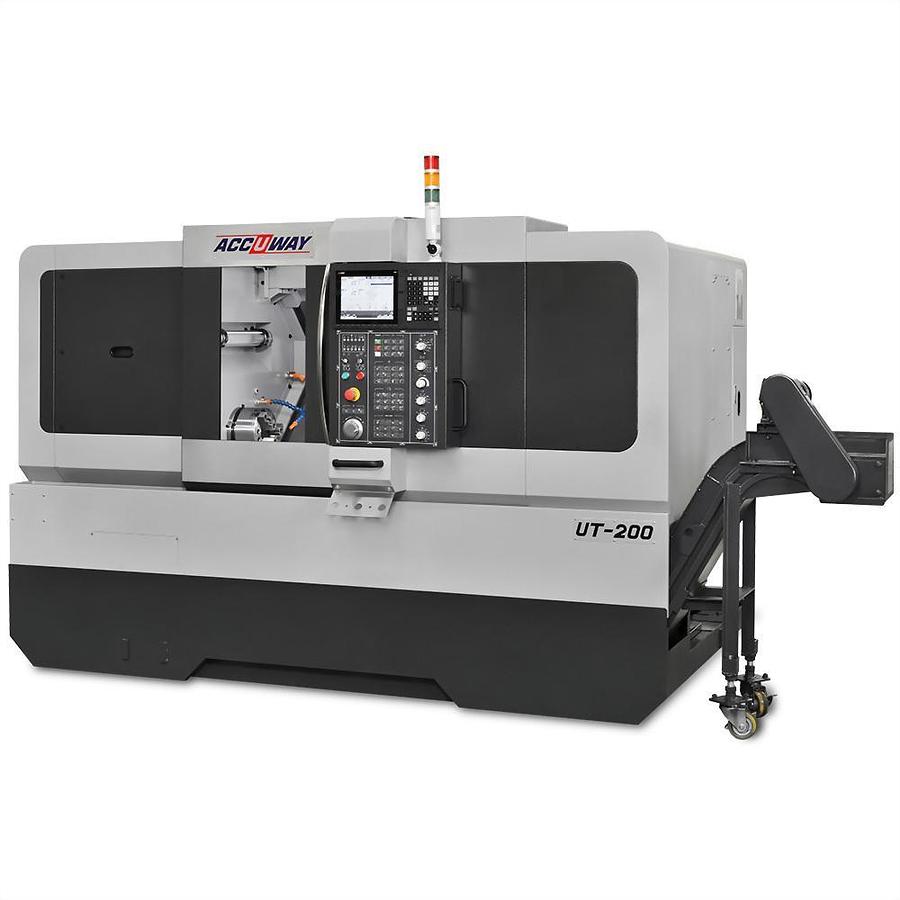

UT-200/UT-200M
Contact us for price
Description
Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
Auto door
Linear scale
0 degree rotary tool holder(UT-200M)
90 degree rotary tool holder(UT-200M)
Specifications
| Model | UT-200 UT-200M |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 505 505 |
| Swing over saddle | mm 318 318 |
| Max. turning diameter | mm 300 260 |
| Max. turning length | mm 550 470 450 370 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 A2-6 A2-8 A2-5 A2-6 A2-8 |
| Chuck diameter | inch 6 8 10 6 8 10 |
| Bar capacity | mm 44 52 65 75 44 52 65 75 |
| Spindle speed | rpm 6000 4500 4000 3500 6000 4500 4000 3500 |
| Spindle motor power(Cont. / 30min | kW 11/15(15/18.5) 11/15(15/18.5) |
| X-axis Travel | mm 220 220 |
| Z-axis Travel | mm 600 600 |
| X-axis Rapid Traverse Rate | m/min 20 20 |
| Z-axis Rapid Traverse Rate | m/min 20 20 |

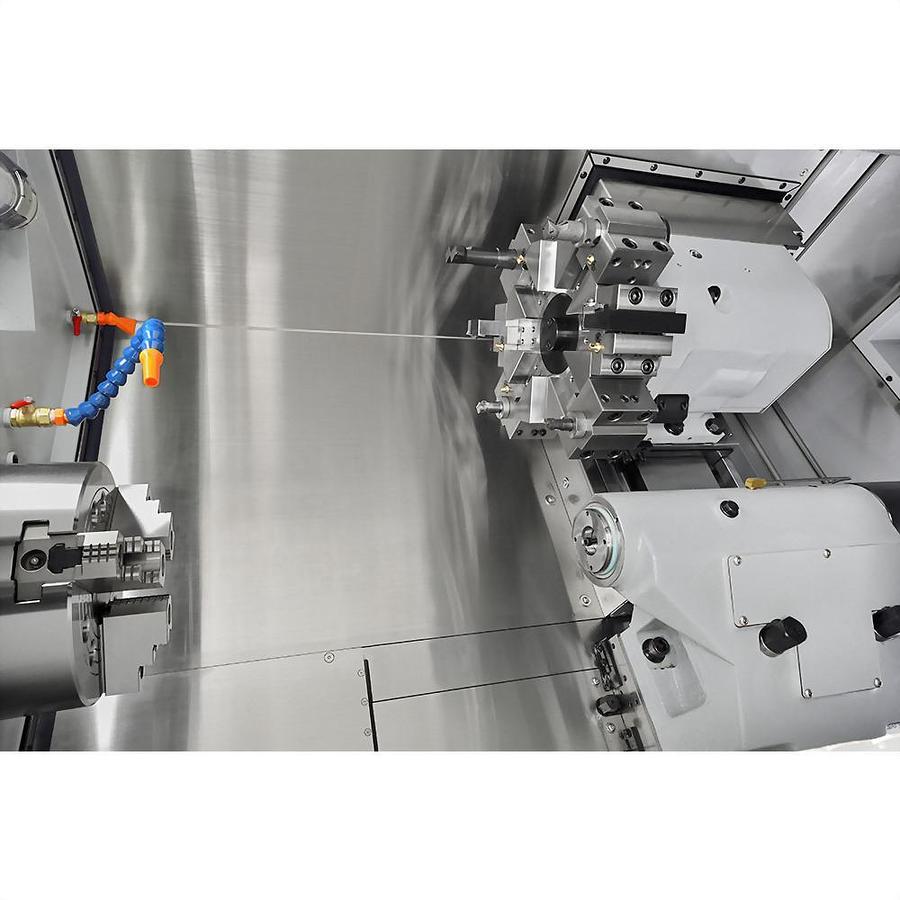

| Tooling system | BOT BMT/VDI |

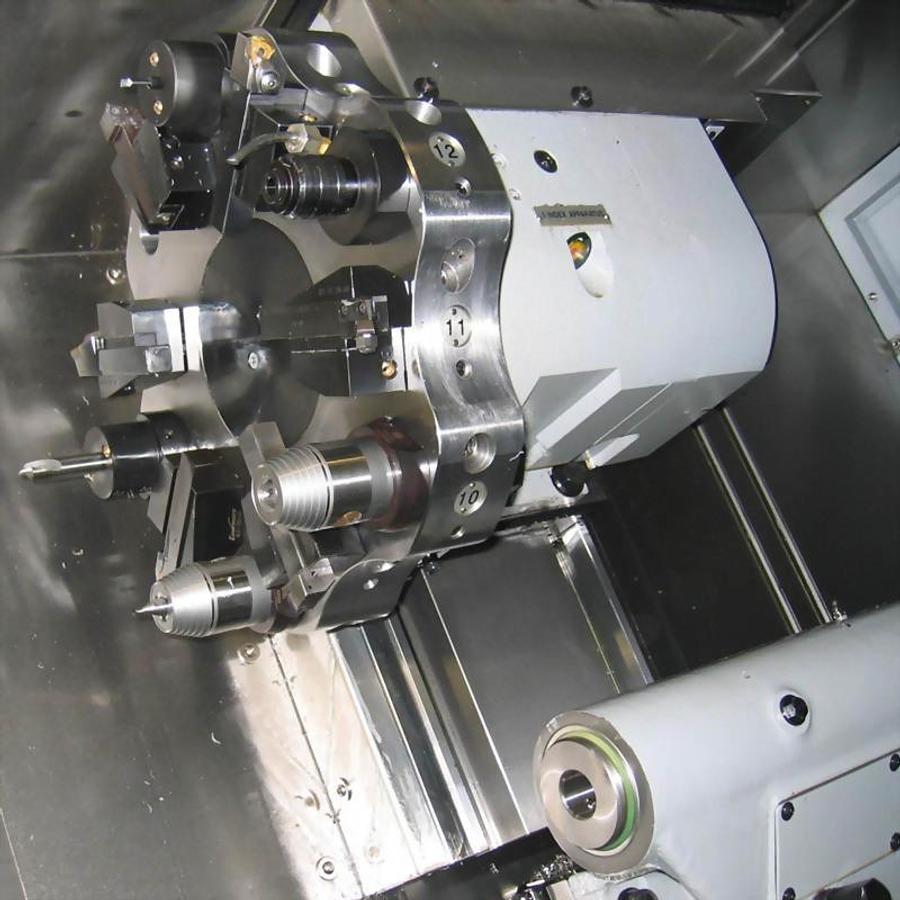

| Turret driven type | Hydraulic/Servo Servo mechanical |
| Number of tools | station 8 10 12 12 |
| Square tool shank size | mm 25 25 20 20 |
| Round tool shank size | mm 32 32 |

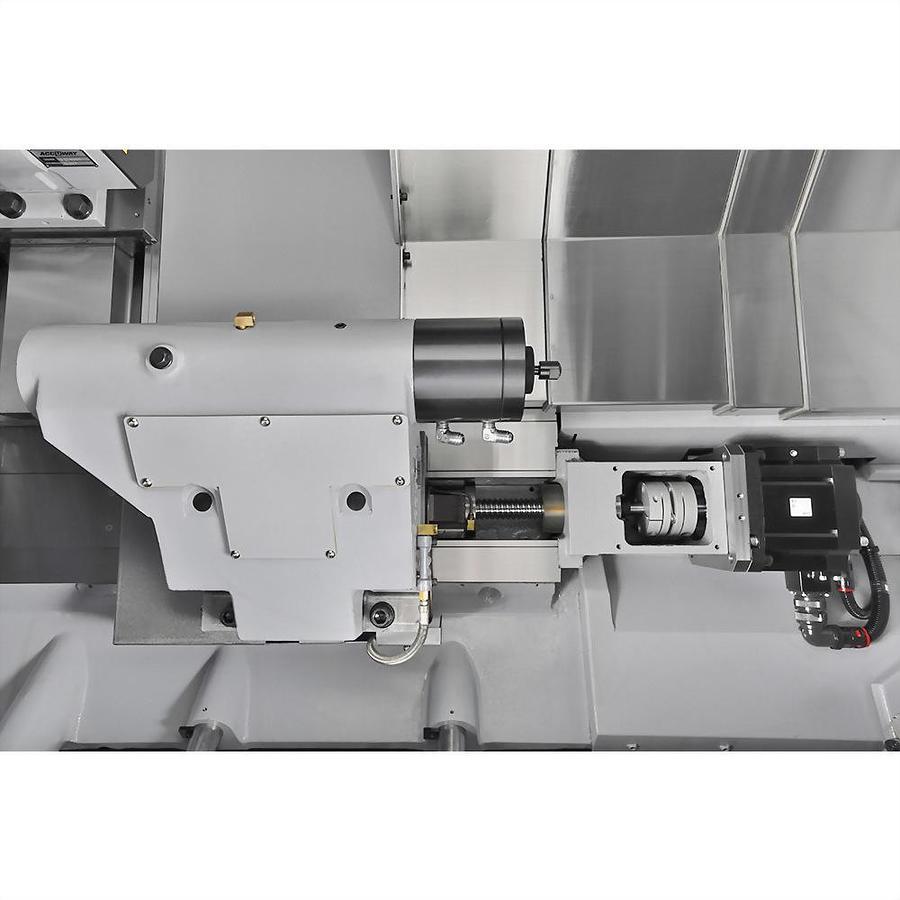

| Tailstock body travel | mm 545 545 |
| Quill travel | mm 80 80 |
| Quill diameter | mm 75 75 |
| Quill taper | MT 4 4 |
| Machine dimension L x W x H | m 2.9 x 1.6 x 1.8 2.9 x 1.6 x 1.9 |
| Net weight | kg 3600 3600 |
