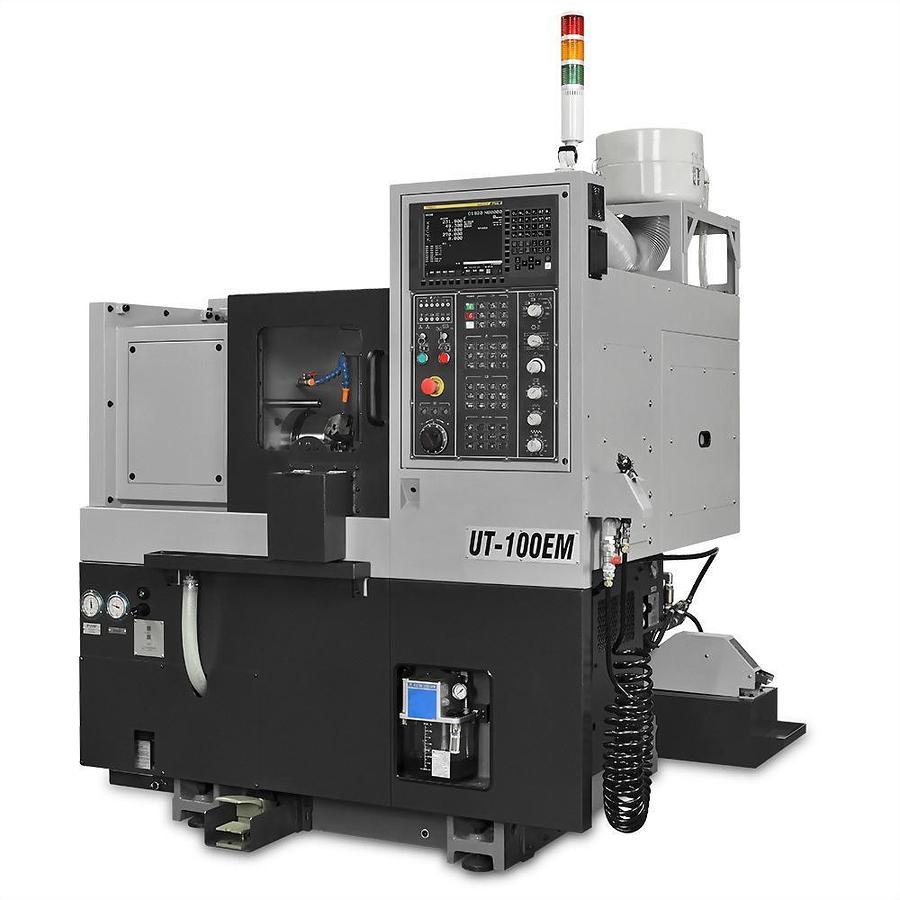

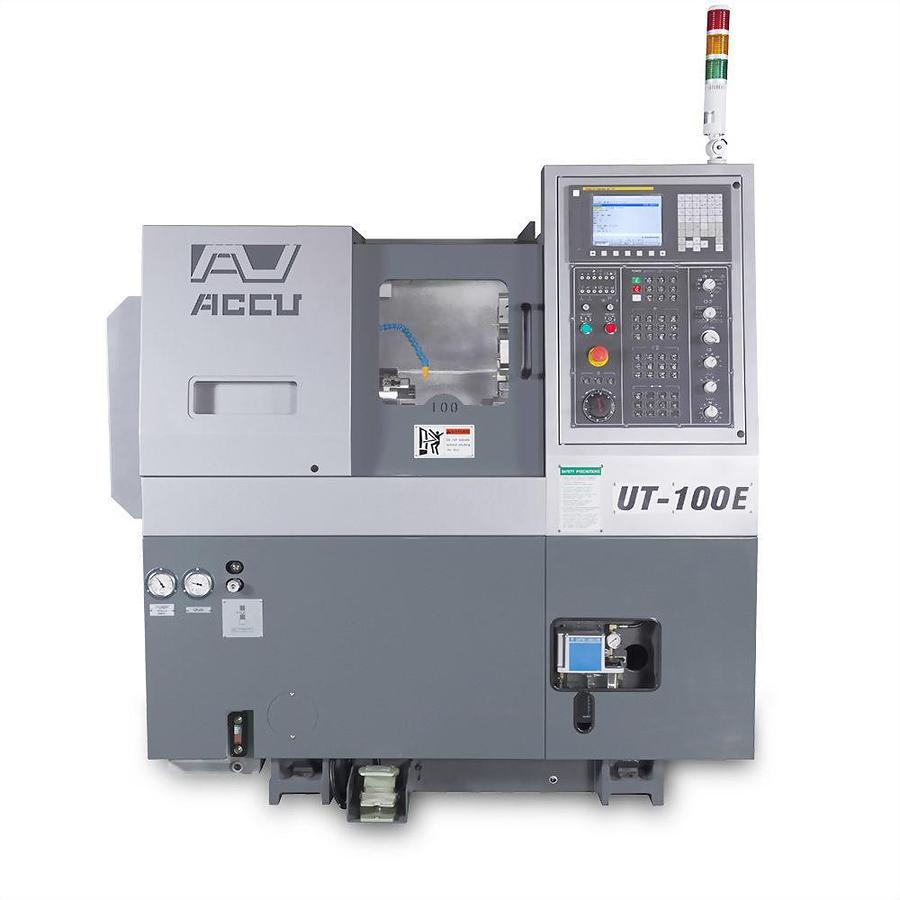

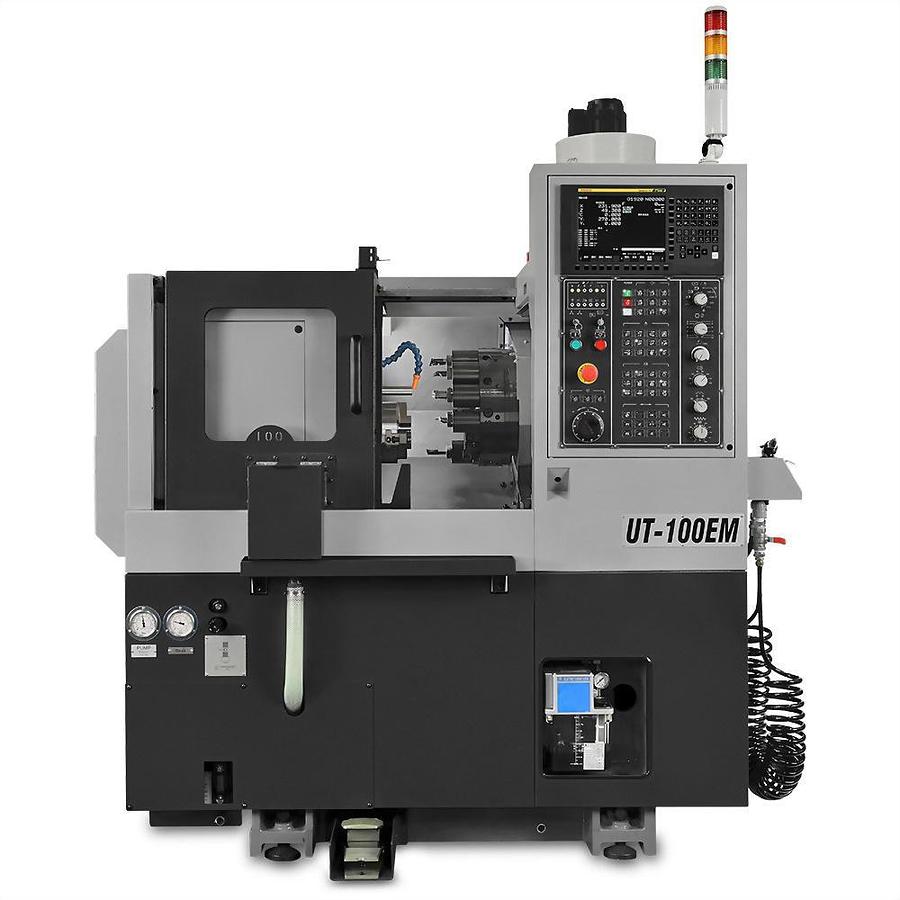

UT-100E/UT-100EM
Contact us for price
Description
Compact CNC Lathe for Automatic Machining
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Collet chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
15 bar high pressure coolant system
Linear scale
Specifications
| Model | UT-100E UT-100EM |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 380 380 |
| Swing over saddle | mm 320 320 |
| Max. turning diameter | mm 180 100 |
| Max. turning length | mm 175 140 |
| Guide way type | Box way |
| Spindle nose taper | ASA A2-5 A2-5 |
| Chuck diameter | inch 6 6 |
| Bar capacity | mm 30 30 |
| Spindle speed | rpm 6000 6000 |
| Spindle motor power(Cont. / 30min) | kW 5.5/7.5 5.5/7.5 |
| X-axis Travel | mm 120 120 |
| Z-axis Travel | mm 230 230 |
| X-axis Rapid Traverse Rate | m/min 12 12 |
| Z-axis Rapid Traverse Rate | m/min 18 18 |
| Tooling system | BOT BMT/VDI |
| Turret driven type | Hydraulic/Servo Servo |
| Number of tools | station 12 12 |
| Square tool shank size | mm 20 20 |
| Round tool shank size | mm 32 32 |
| Machine dimension L x W x H | m 1.7 x 1.8 x 1.8 1.7 x 1.8 x 1.8 |
| Net weight | kg 1800 1800 |
