UMS-2450

Contact us for price
or
Call (519) 212-1782

Description

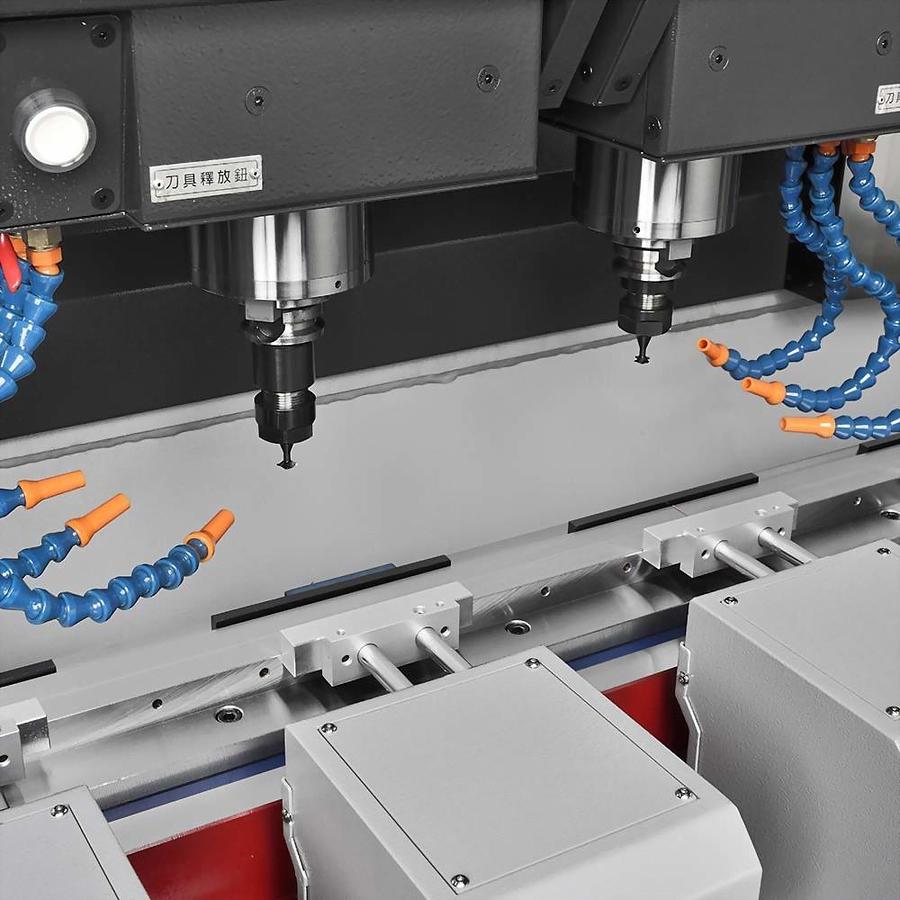

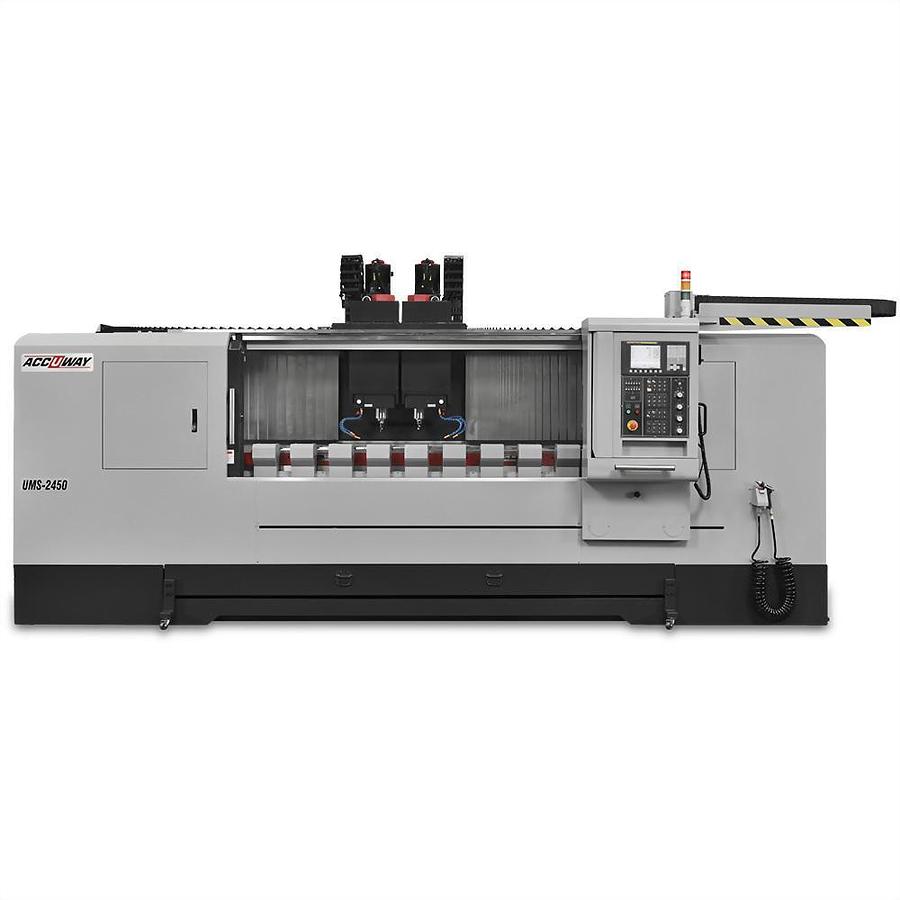

Two Spindle Vertical Machining Center STANDARD ACCESSORIES FANUC 0i-M controller Heat exchanger for electric cabinet 8.4" Colored LCD monitor Lubrication system 4-bar coolant system Cutter air blast Spray gun Three-color warning light Chain type chip conveyor + chip cart OPTIONAL ACCESSORIES Data server 2G Linear scale (Heidenhain) Contact tool setter Workpiece touch probe Roller type guide way Air cooler for electric cabinet Upgraded to 10,000 rpm spindle (direct drive) Upgraded to 12,000 rpm spindle & motor (direct drive) Upgraded to 15,000 rpm spindle & motor (direct drive) Upgrade to 15" Colored LCD monitor 20 bar coolant through spindle system Oil-coolant skimmer Oil mist collector Auto door Transformer CE version
Show All

Specifications

ModelUMS-2450
ConditionNew

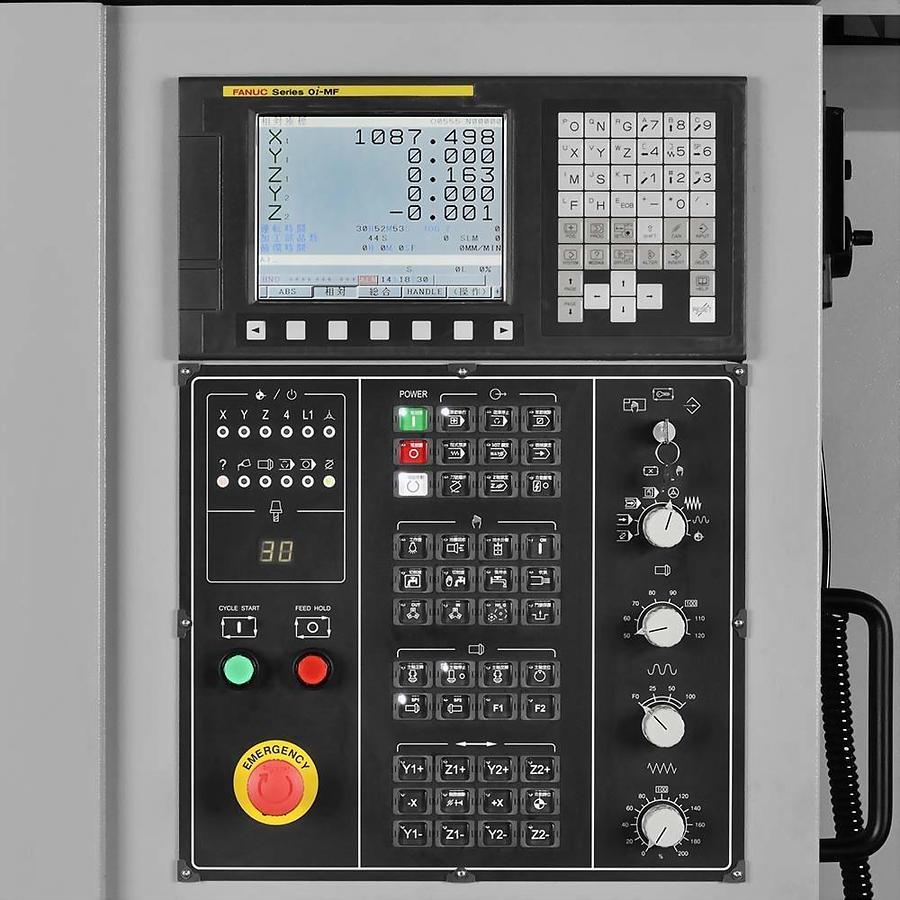

ControllerFANUC 0i-M
Spindle speedrpm 5000
Spindle nose taperBT30
Drive systemDirect
X1-axis travelmm 2510
Y1/Y2-axis travelmm 100/100
Z1/Z2-axis travelmm 100/100
Table dimensionmm 2300 x 180
Cutting feed ratem / min 12
Guideway bearing typeLinear Guideway
Tool magazine capacitypcs 2
Max. tool lengthmm 100
Spindle 1 motor power(Cont. / 30min)kW 3.7/5.5
Spindle 2 motor power(Cont. / 30min)kW 3.7/5.5
X1-axis feed motorkW 4
Y1/Y2-axis feed motorkW 3/3
Z1/Z2-axis feed motorkW 3/3
Machine dimension L x W x Hm 5.6 x 2.5 x 2.1
Net weightkg 8000
