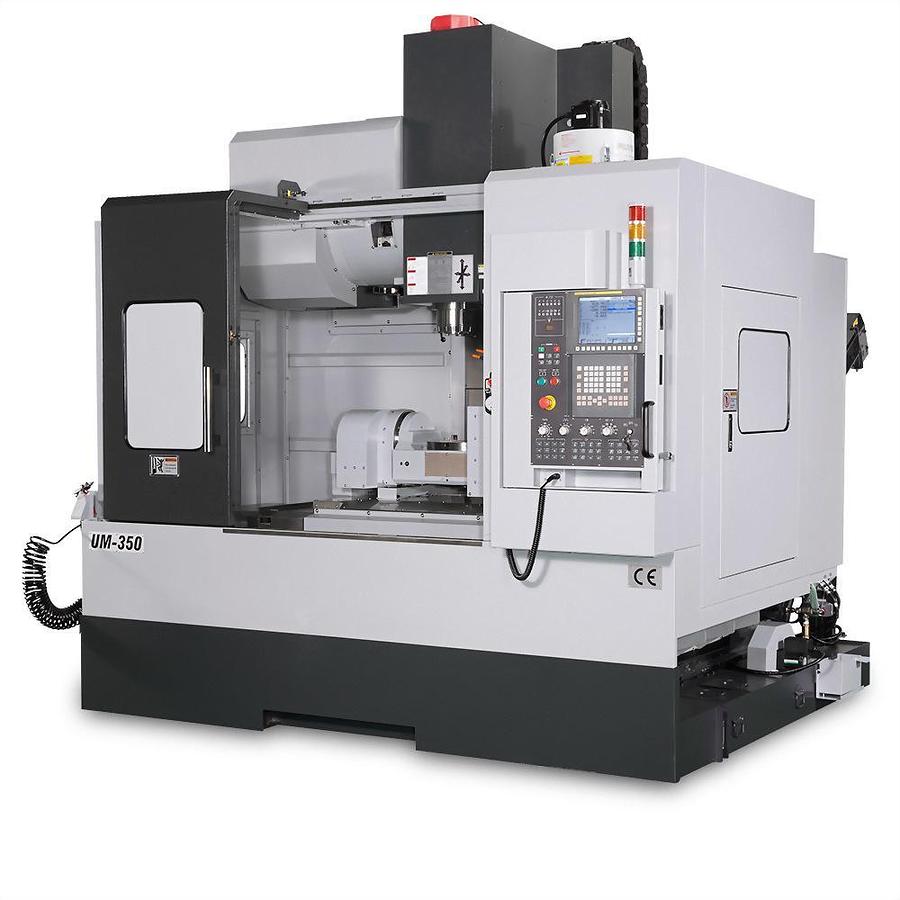

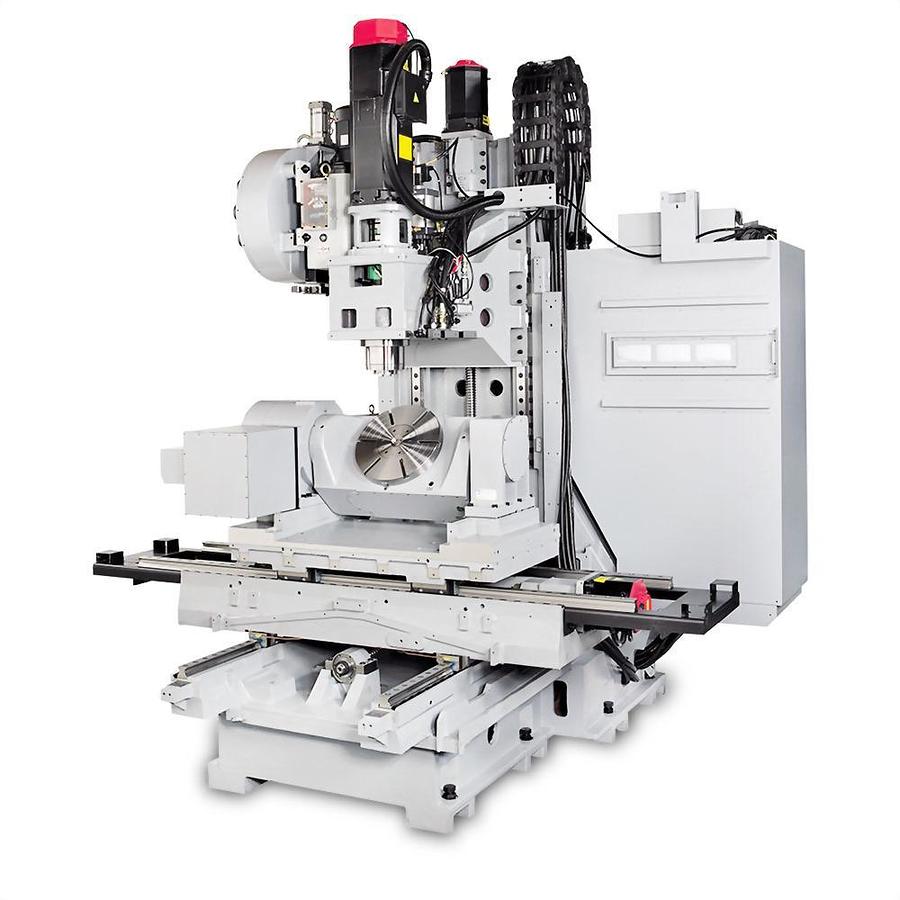

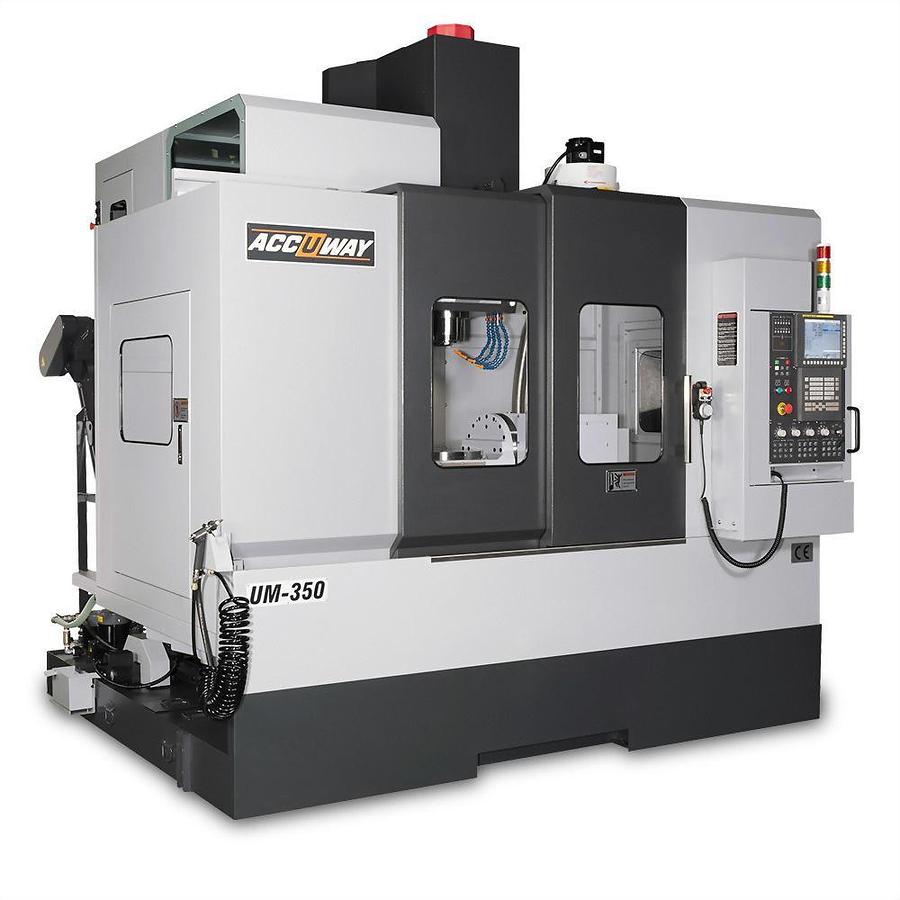

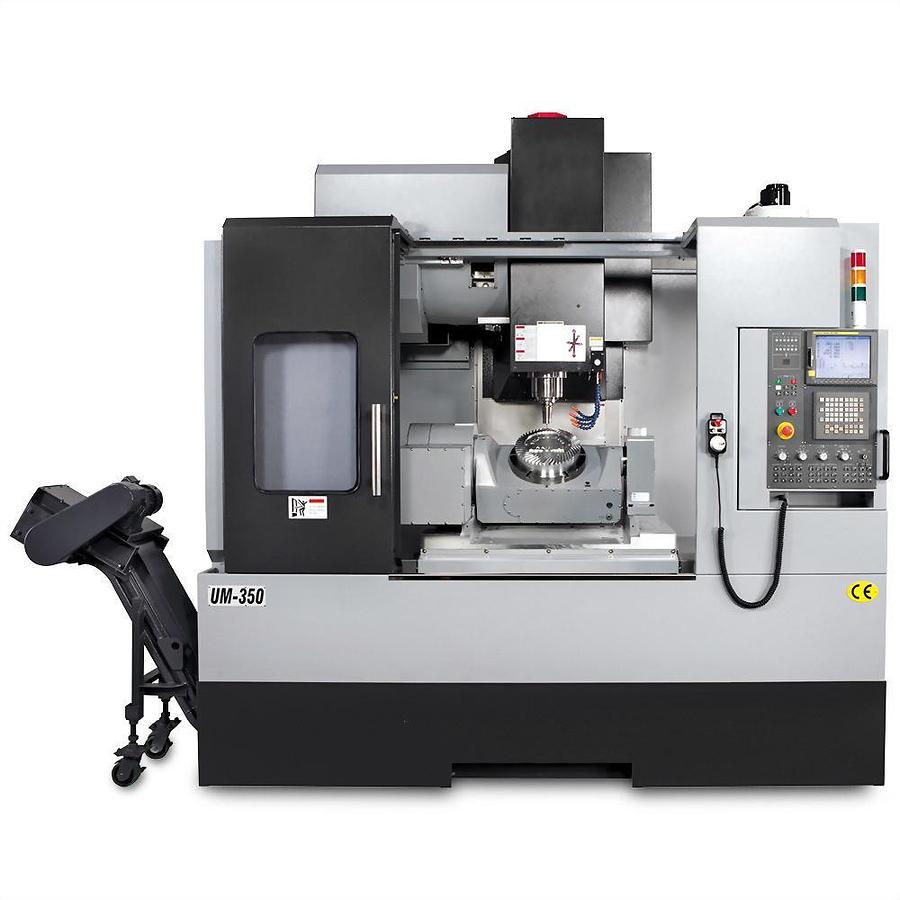

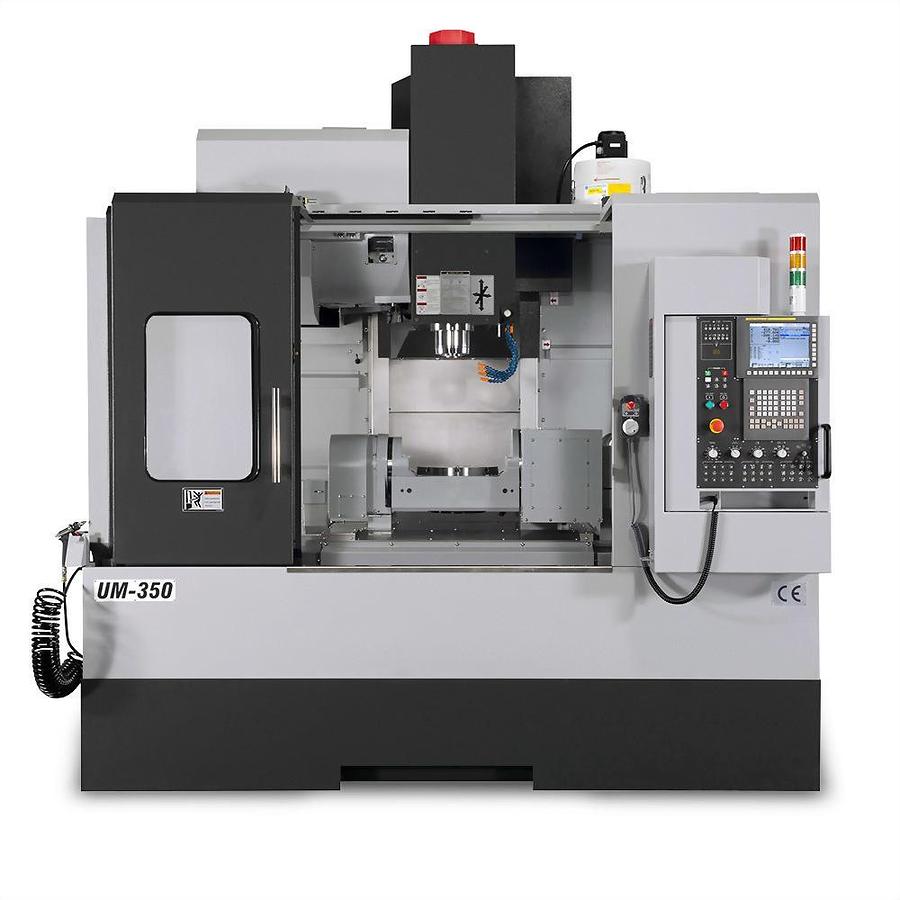

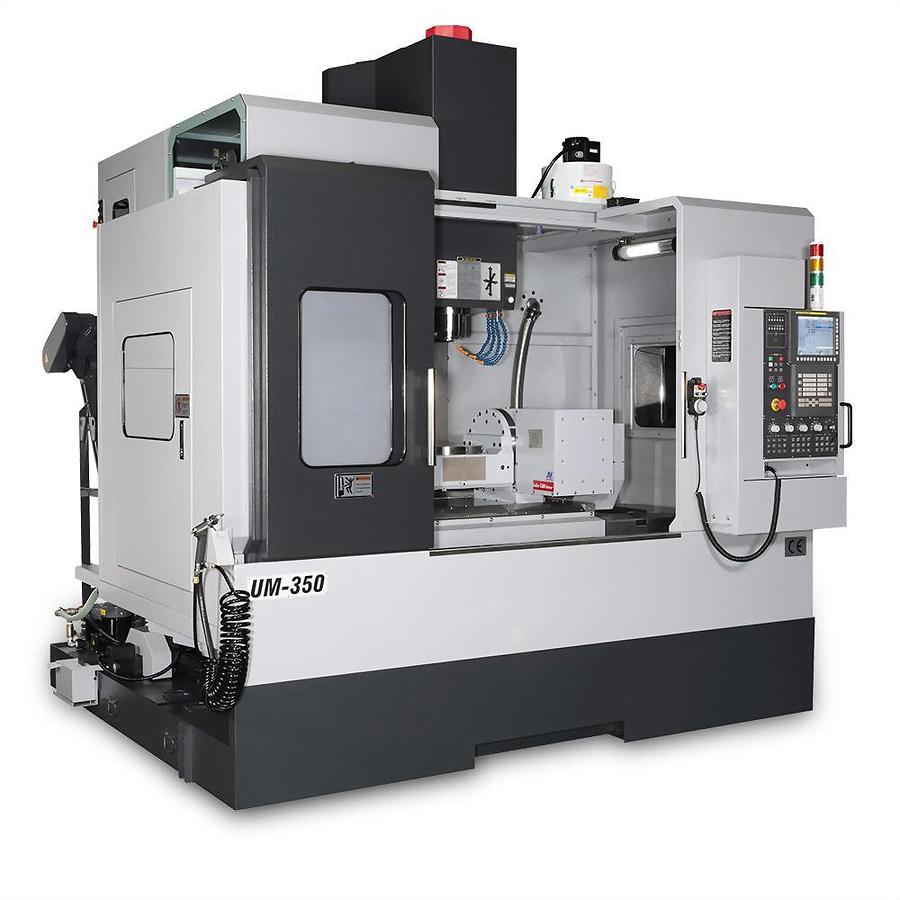

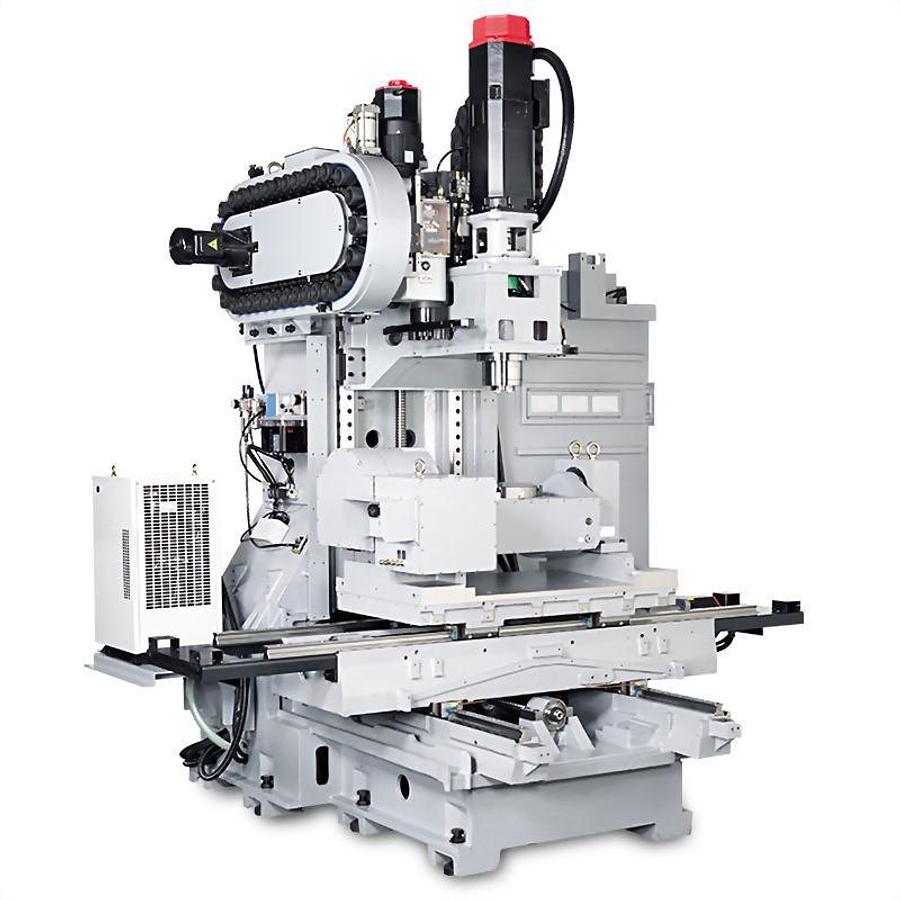

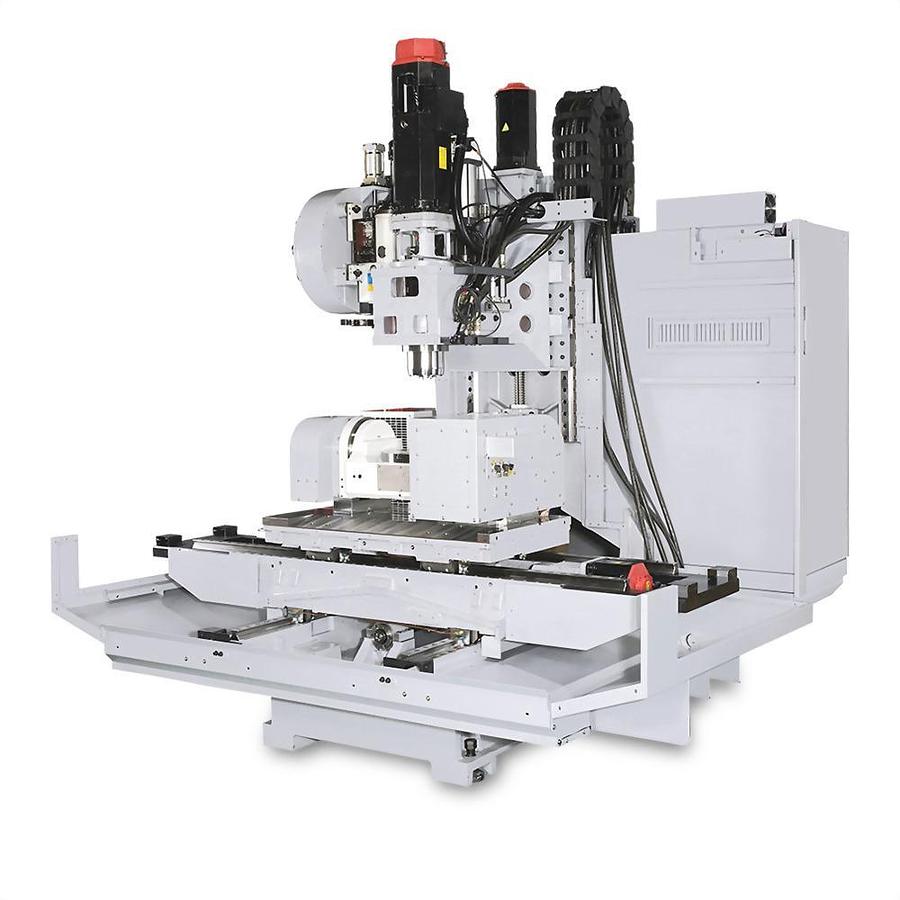

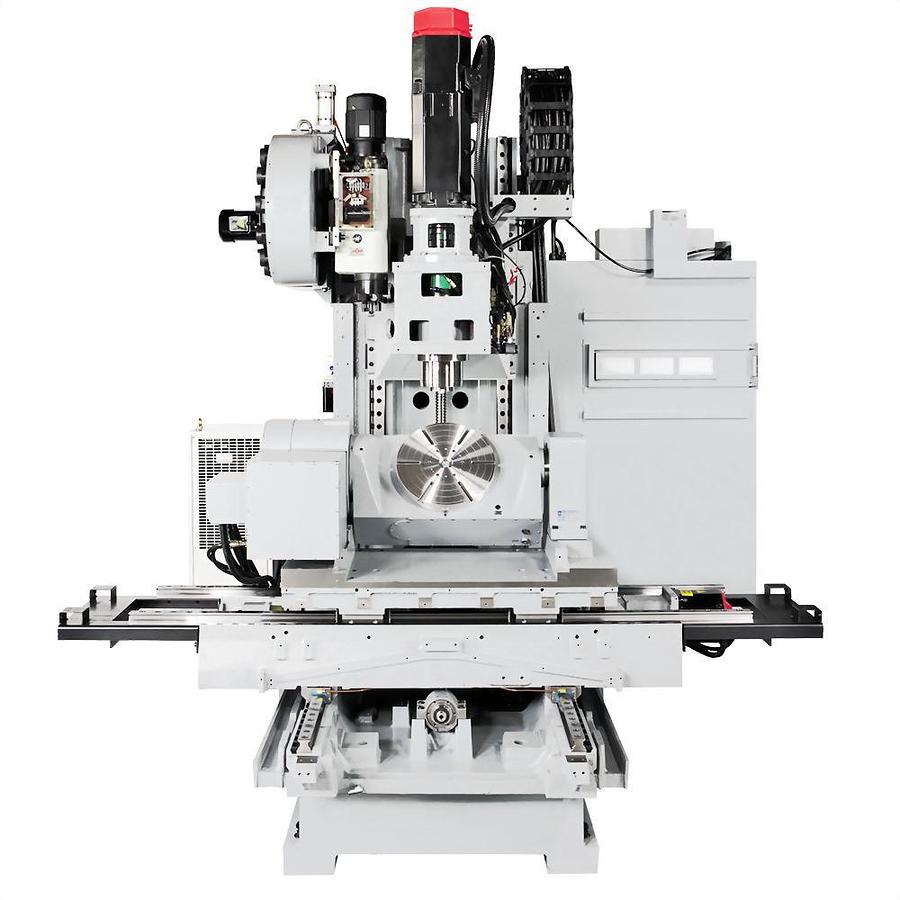

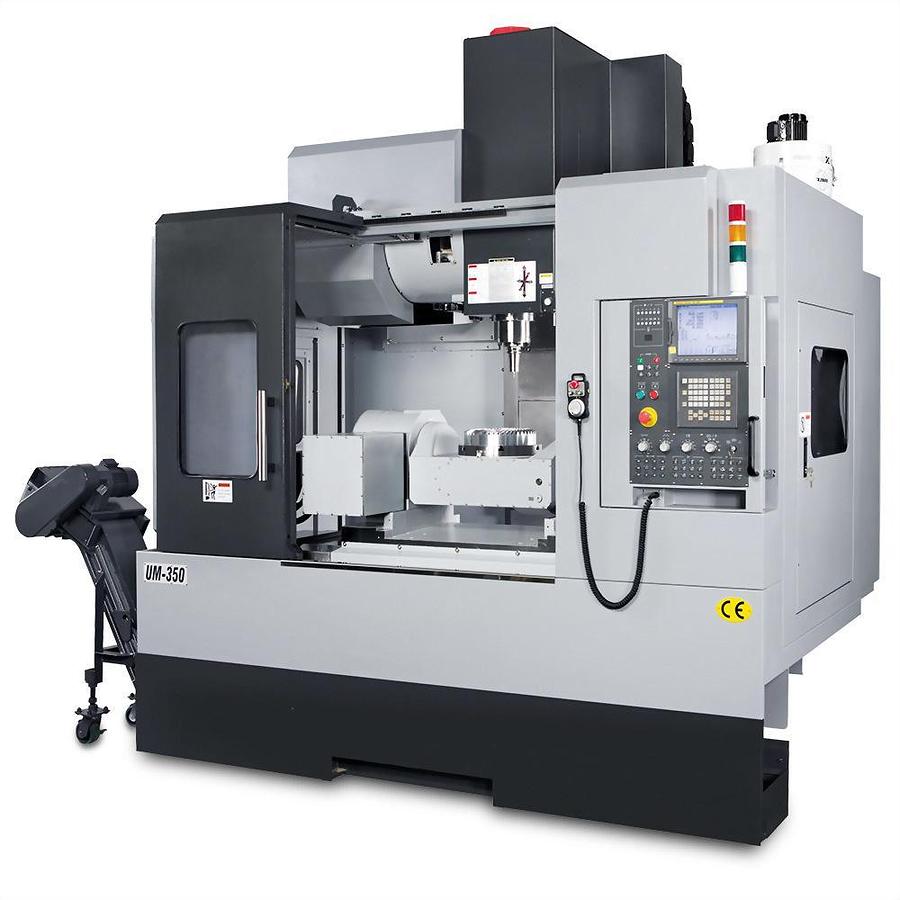

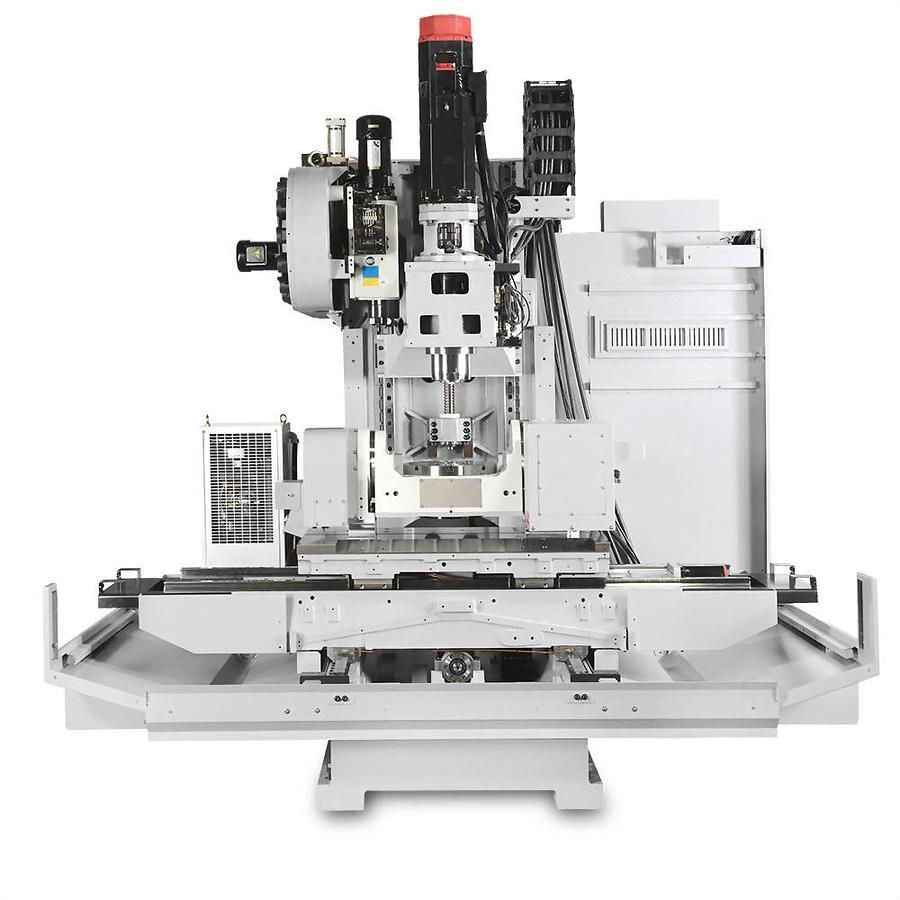

UM-350
Contact us for price
Description
5-Axis Vertical Machining Center
STANDARD ACCESSORIES
FANUC 0i-M controller + AICC II
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Cutter air blast
Spray gun
Three-color warning light
Spindle oil cooling system
OPTIONAL ACCESSORIES
Data server 2G
Linear scale (Heidenhain)

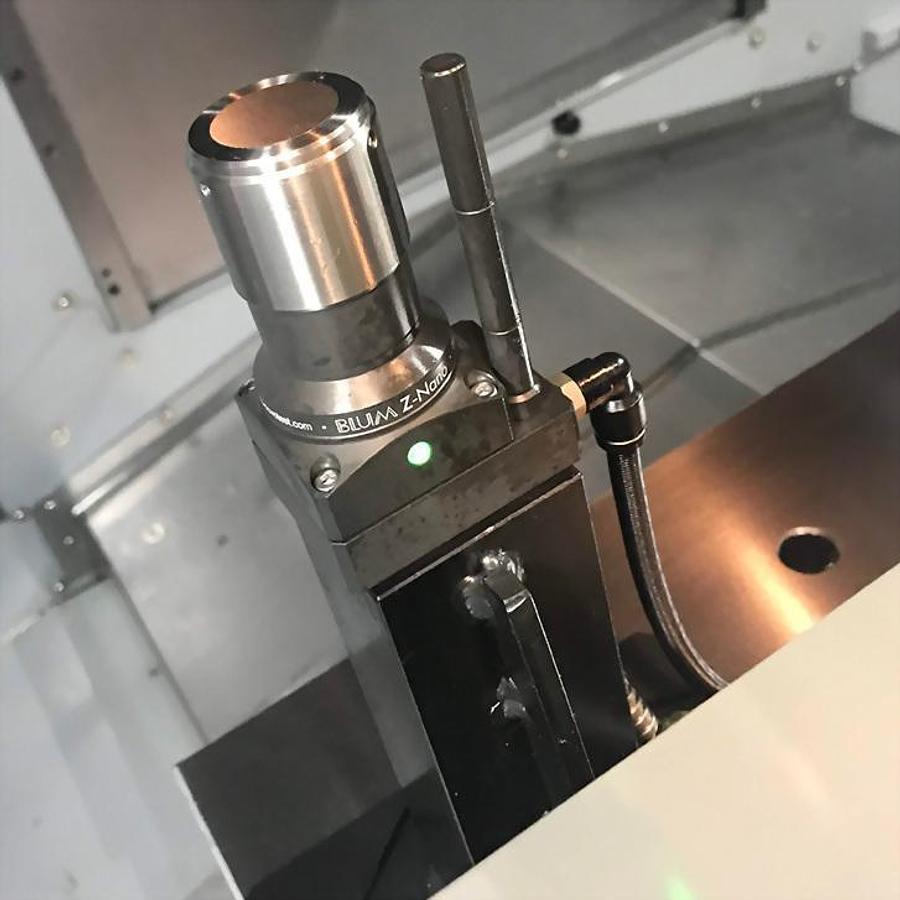

Contact tool setter
Workpiece touch probe
Spindle speed upgrading
Air cooler for electric cabinet
Upgrade to 15" Colored LCD monitor
20 bar Coolant through spindle system
Oil-coolant skimmer
Oil mist collector
Auto door
Chain type chip conveyor + chip cart
Transformer
CE version
Specifications
| Model | UM-350 |
| Condition | New |
| Controller | FANUC 0i-M |
| Spindle speed | rpm 12000 (15000) |
| Spindle nose taper | BT40 |
| Bearing inner diameter | mm 70 |
| Drive system | Direct |
| X-axis travel | mm 700 |
| Y-axis travel | mm 550 |
| Z-axis travel | mm 550 |
| C-axis travel | degree 360 |
| Max. speed of rotary axis (C-axis) | rpm 40 |
| Max. speed of tilting axis (A-axis) | rpm 33.3 |
| Max. table loading at 0° | kg 200 |
| Max. table loading at 90° | kg 200 |
| Spindle nose to table | mm 40~540 |
| Table dimension | mm Ø350 |
| Max. workpiece size | mm Ø350 x 280 |
| T-slot size | mm 12 |
| X-axis Rapid Traverse Rate | m / min 42 |
| Y-axis Rapid Traverse Rate | m / min 42 |
| Z-axis Rapid Traverse Rate | m / min 30 |
| Cutting feed rate | m / min 12 |
| Ball screw diameter (X/Y/Z) | mm 45/45/45 |
| Guideway bearing type | Roller |
| Tool magazine capacity | pcs 24(32/40) |
| Max. tool weight | kg 7 |
| Max. tool diameter | mm 75 |
| Max. tool diameter without adjacent tools | mm 150 |
| Method of tool exchange | Arm type |
| Max. tool length | mm 300 |
| Spindle motor power(Cont. / 30min) | kW 7.5 / 11 |
| X/Y/Z feed motor | kW 3/3/4 |
| Coolant pump motor(50Hz/60Hz) | kW 0.53+0.85/0.75+1.27 |
| Air supply | kg/cm² 5.5 |
| Machine dimension L x W x H | m 2.7 x 2.2 x 3.2 |
| Net weight | kg 7500 |
