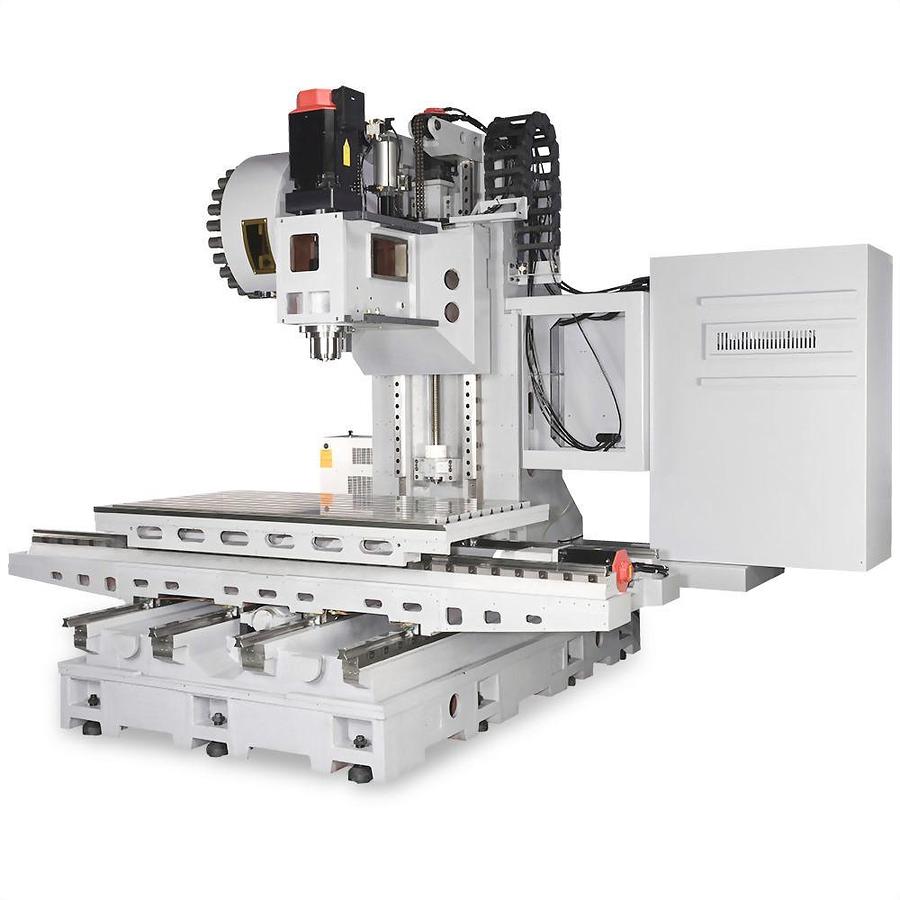

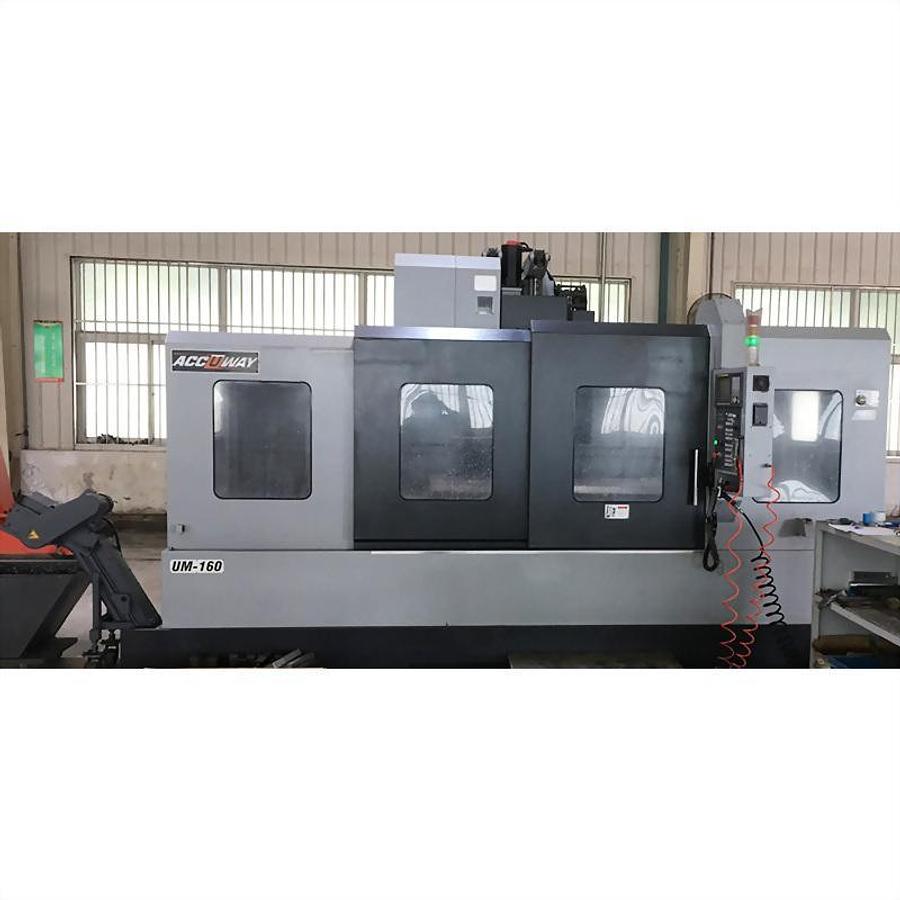

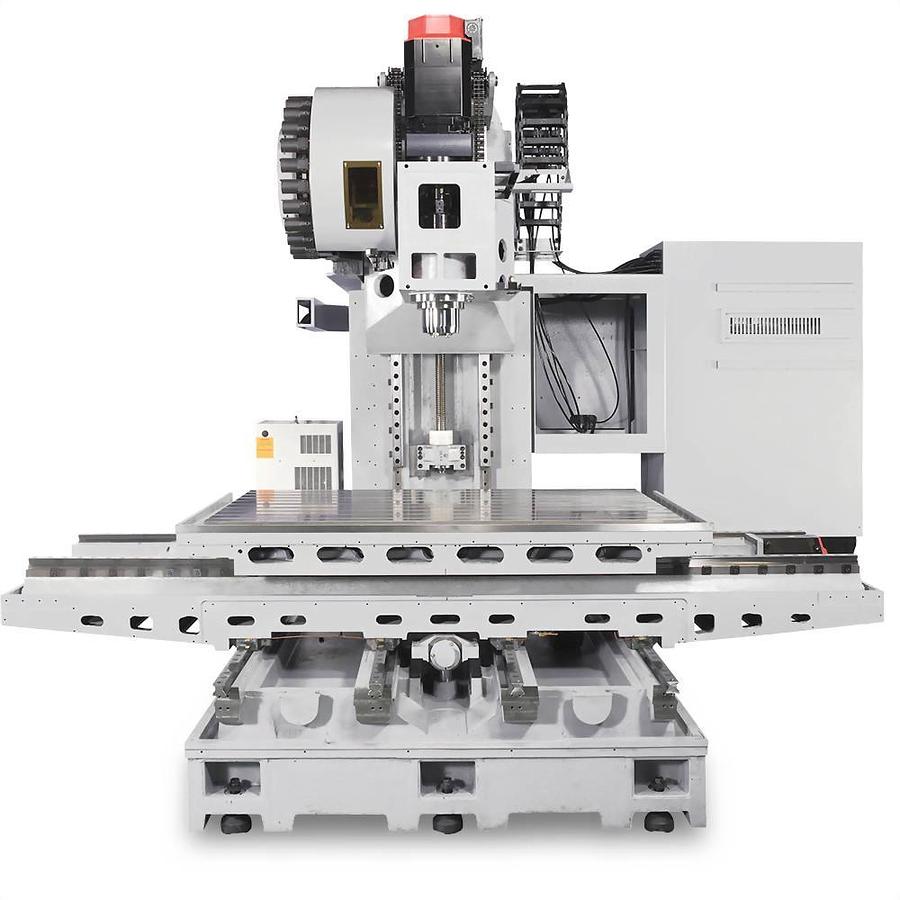

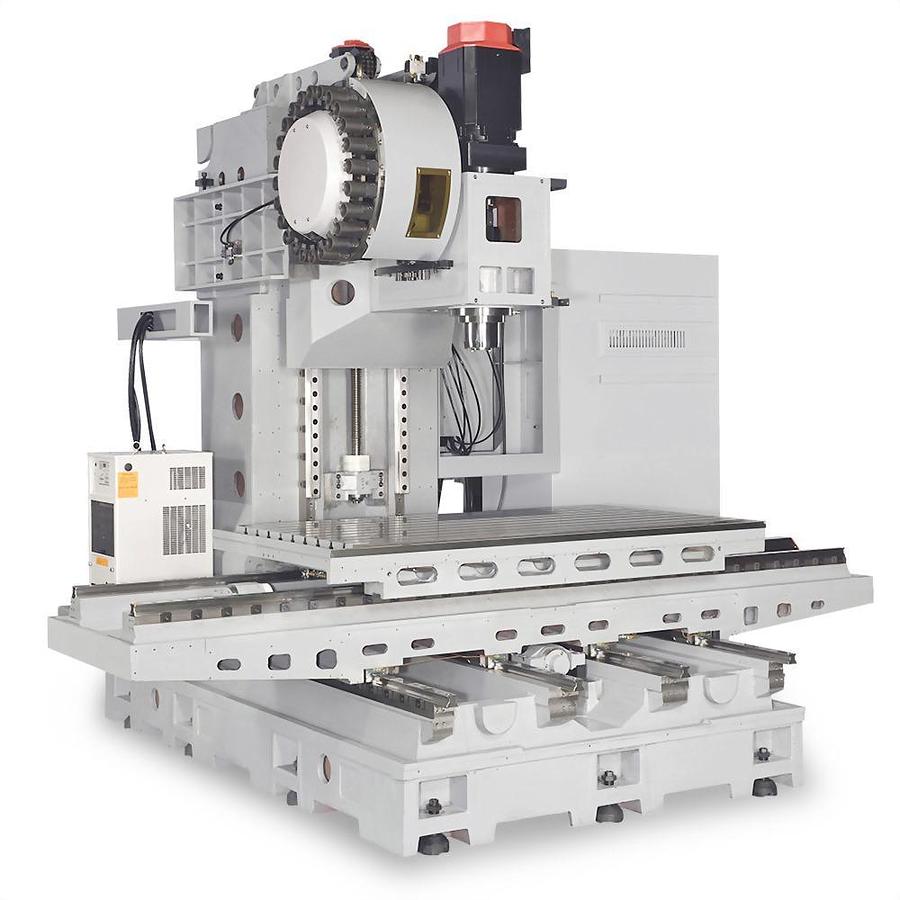

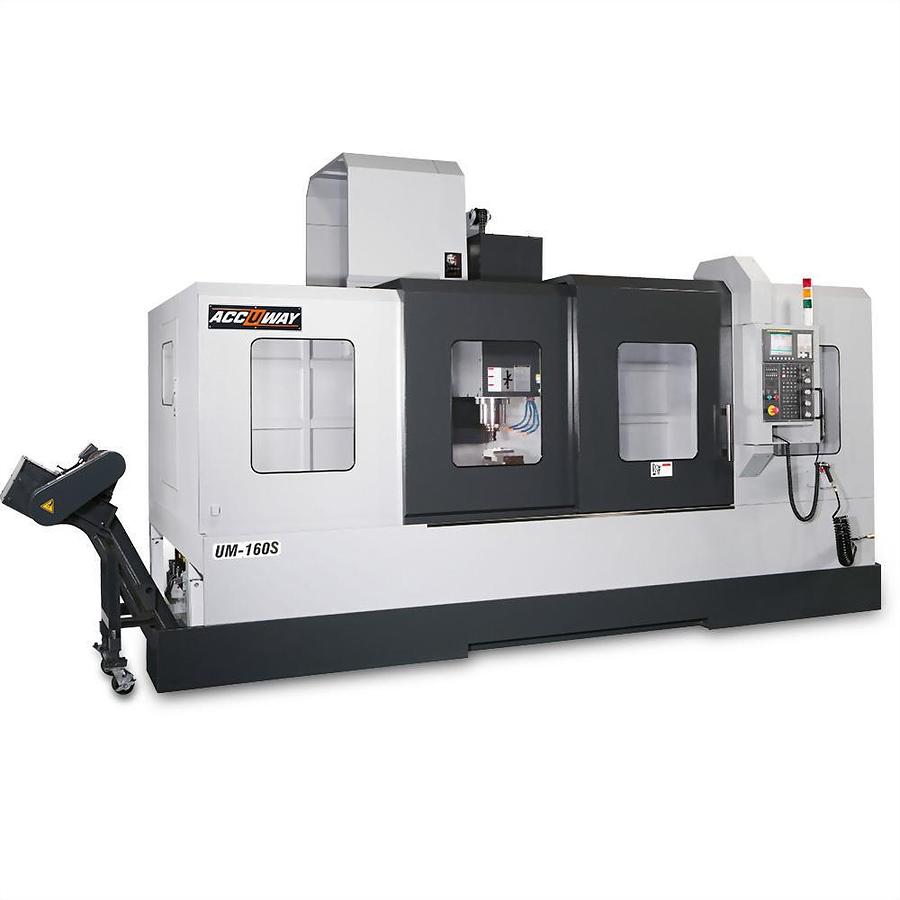

UM-160S
Contact us for price
Description
Vertical Machining Center
STANDARD ACCESSORIES
FANUC 0i-M controller + AICC II
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Cutter air blast
Spray gun
Three-color warning light
Spindle oil cooling system
OPTIONAL ACCESSORIES
Data server 2G
Linear scale (Heidenhain)
Contact tool setter
Workpiece touch probe
Roller type guide way
Air cooler for electric cabinet
Spindle speed upgrading
Upgrade to 15" Colored LCD monitor
20 bar coolant through spindle system
Oil-coolant skimmer
Oil mist collector
4th axis interface + FANUC motor & driver
4th axis rotary table
Auto door
Chain type chip conveyor + chip cart
Transformer
CE version
Specifications
| Model | UM-160S |
| Condition | New |
| Controller | FANUC 0i-M |
| Spindle speed | rpm 10000(12000) |
| Spindle nose taper | BT40 |
| Bearing inner diameter | mm 70 |
| Drive system | Belt (Direct) |
| X-axis travel | mm 1600 |
| Y-axis travel | mm 850 |
| Z-axis travel | mm 850 |
| Spindle nose to table | mm 150~1000 |
| Table dimension | mm 1700 x 950 |
| T-slot(No. of T-slot x width x pitch) | mm 9 x 18 x 100 |
| Max. weight on table | kg 2000 |
| X-axis Rapid Traverse Rate | m / min 30 |
| Y-axis Rapid Traverse Rate | m / min 30 |
| Z-axis Rapid Traverse Rate | m / min 30 |
| Cutting feed rate | m / min 12 |
| Ball screw diameter (X/Y/Z) | mm 50/50/50 |
| Guideway bearing type | Roller |
| Tool magazine capacity | pcs 24(30/32) |
| Max. tool weight | kg 7 |
| Max. tool diameter | mm 75 |
| Max. tool diameter without adjacent tools | mm 150 |
| Method of tool exchange | Arm type |
| Max. tool length | mm 300 |
| AI contour control | AICC I (AICC II) |
| Spindle motor power(Cont. / 30min) | kW 15/18.5 |
| X/Y/Z feed motor | kW 4/4/7 |
| Coolant pump motor(50Hz/60Hz) | kW 0.53+0.85/0.75+1.27 |
| Air supply | kg/cm² 5.5 |
| Machine dimension L x W x H | m 4.4 x 3.2 x 3.2 |
| Net weight | kg 14000 |
