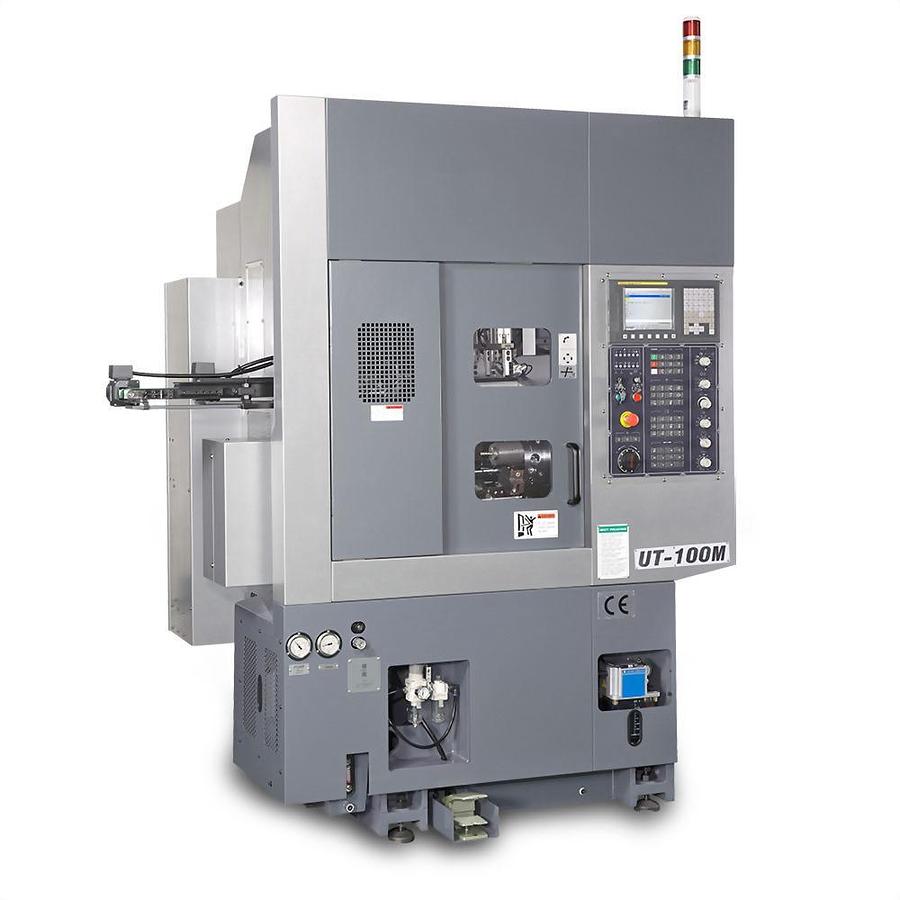

UT-100M
Contact us for price
Description
Compact CNC Lathe for Automatic Machining
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Collet chuck
Tool setter
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
15 bar high pressure coolant system
0 degree rotary tool holder
90 degree rotary tool holder
Linear scale
Specifications
| Manufacturer | Accuway |
| Model | UT-100M |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 380 |
| Swing over saddle | mm 320 |
| Max. turning diameter | mm 100 |
| Max. turning length | mm 130 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 |
| Chuck diameter | inch 6 |
| Bar capacity | mm 30 |
| Spindle speed | rpm 6000 |
| Spindle motor power(Cont. / 30min) | kW 5.5/7.5 |
| X-axis Travel | mm 120 |
| Z-axis Travel | mm 230 |
| X-axis Rapid Traverse Rate | m/min 12 |
| Z-axis Rapid Traverse Rate | m/min 18 |
| Turret driven type | VDI-30 |
| Tooling system | Servo mechanical |
| Number of tools | station 12 |
| Square tool shank size | mm 20 |
| Round tool shank size | mm 32 |
| Max. Rotary Tool Speed | rpm 6000 |
| Rotary Tool driver power | kW 3.7/5.5 |
| Machine dimension L x W x H | m 1.7 x 1.6 x 2.2 |
| Net weight | kg 1900 |
| Diameter | mm 10~60 |
| Length | mm 20~100 |
| Weight (One side) | kg 0.5/1 |
| Stroke | mm 360 |
| Rapid traverse rate | m/min 84 |
