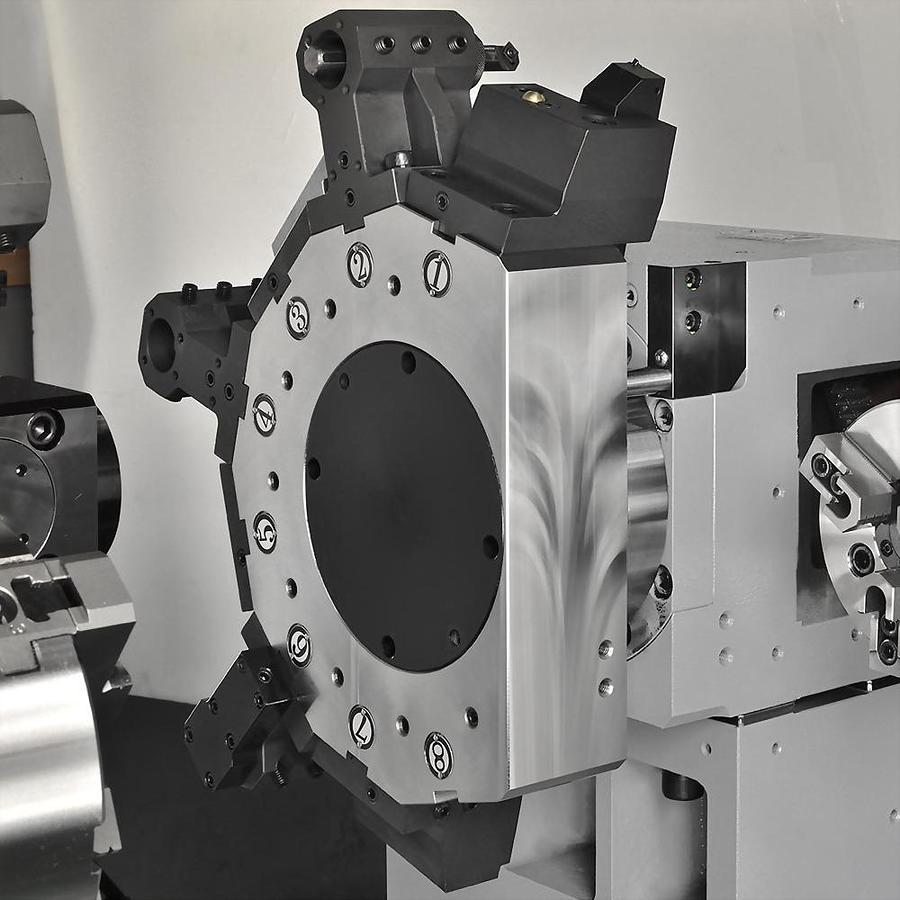

JL-51T2Y
Contact us for price
Description
Fixed Headstock Type CNC Automatic Lathe
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
4-bar coolant system
Lubrication system
Three-color warning light
OPTIONAL ACCESSORIES
Unloader & conveyor for finished parts
Upgrade to 15" Colored LCD monitor
Collet chuck
Tool setter
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Loader interface
Gantry loader system
Automatic door
Axial rotary tool holder
Radial rotary tool holder
Linear scale
Specifications
| Manufacturer | Accuway |
| Model | JL-51T2Y |
| Condition | New |
| Controller | FANUC 0i-T |
| Max. Turning Diameter(SP1) | mm 160 |
| Max. Turning Diameter(SP2) | mm 100 |
| Max. turning length | mm 170 |
| Guide way type | Linear + Box |
| Spindle Nose | ASA A2-5 |
| Chuck Diameter | inch 6 8 |
| Bar Capacity | mm 44 |
| Spindle Speed | rpm 6000 |
| Spindle Motor Power(Cont. /30min) | kW 7.5/11 |
| X1/X2 axis Travel | mm 165/85 |
| Z1/Z2 axis Travel | mm 220/590 |
| Y-axis Travel | mm ±40 |
| X1/X2 axis Rapid Traverse Rate | m/min 20 |
| Z1/Z2 axis Rapid Traverse Rate | m/min 30 |
| Y-axis Rapid Traverse Rate | m/min 12 |
| Tooling system | BMT-55N power+servo |
| Number of tools | station 12+8 |
| Square tool shank size | mm 25 |
| Round tool shank size | mm 32 |
| Max. Rotary Tool Speed | rpm 6000 |
| Rotary Tool power | kW 2.2/3.7 |
| Machine dimension L x W xH | m 2.9 x 1.8 x 1.7 |
| Net weight | kg 6500 |
