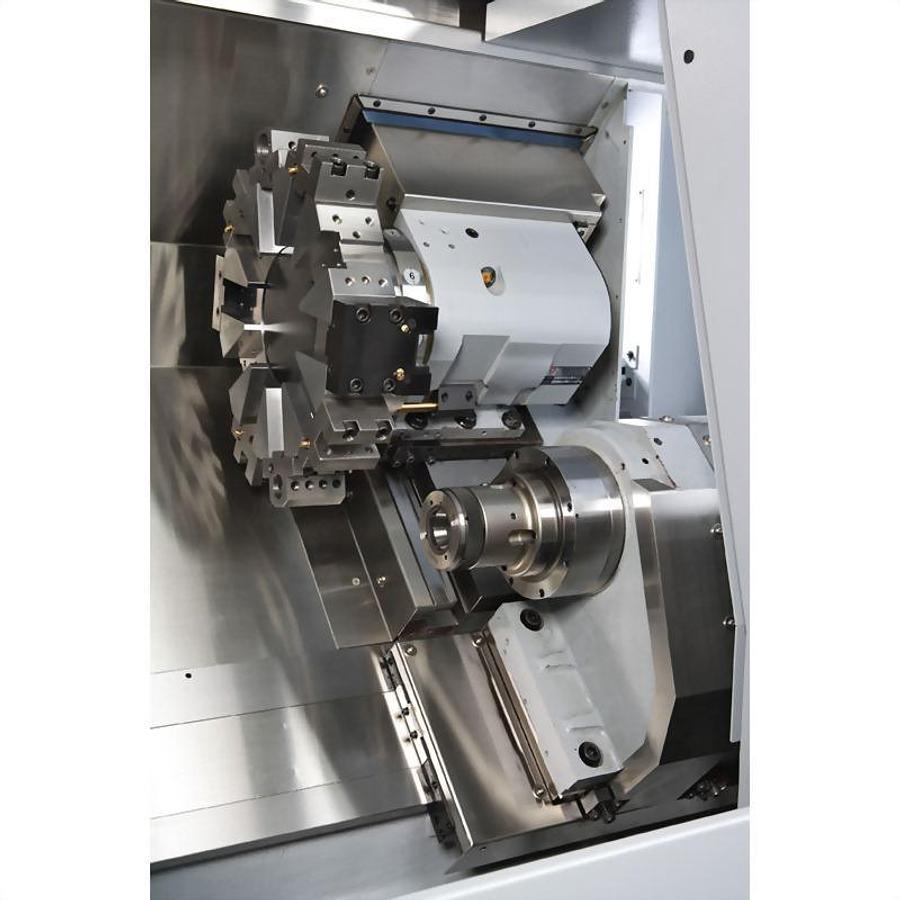

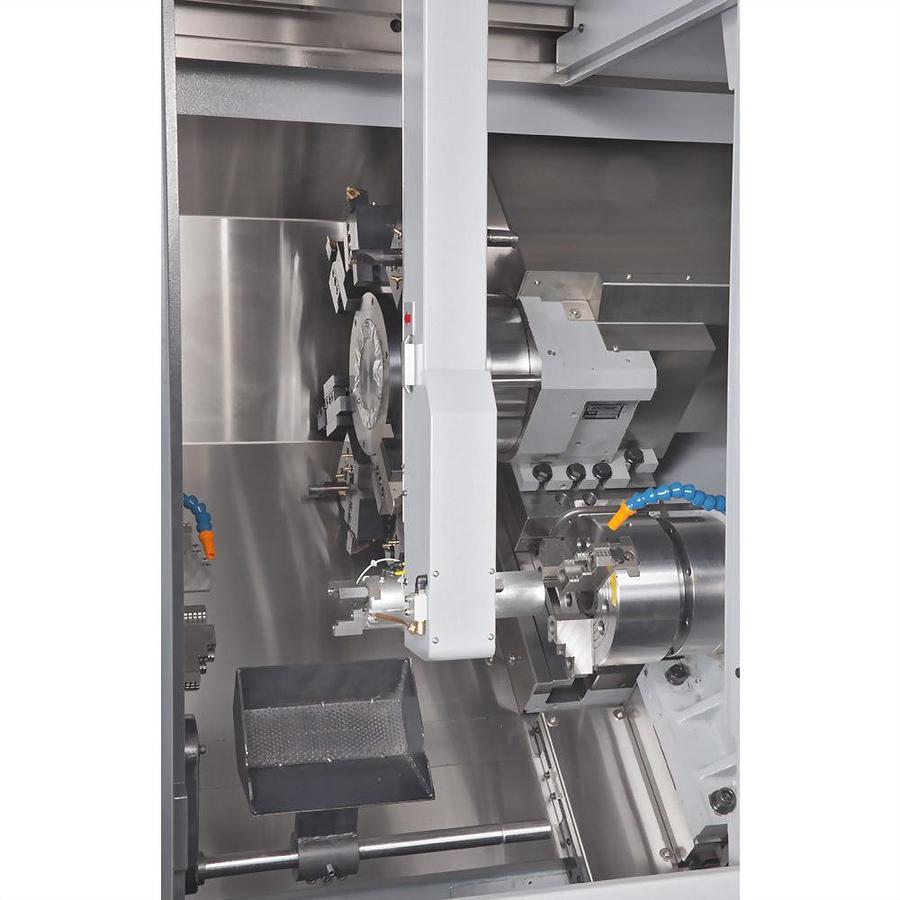

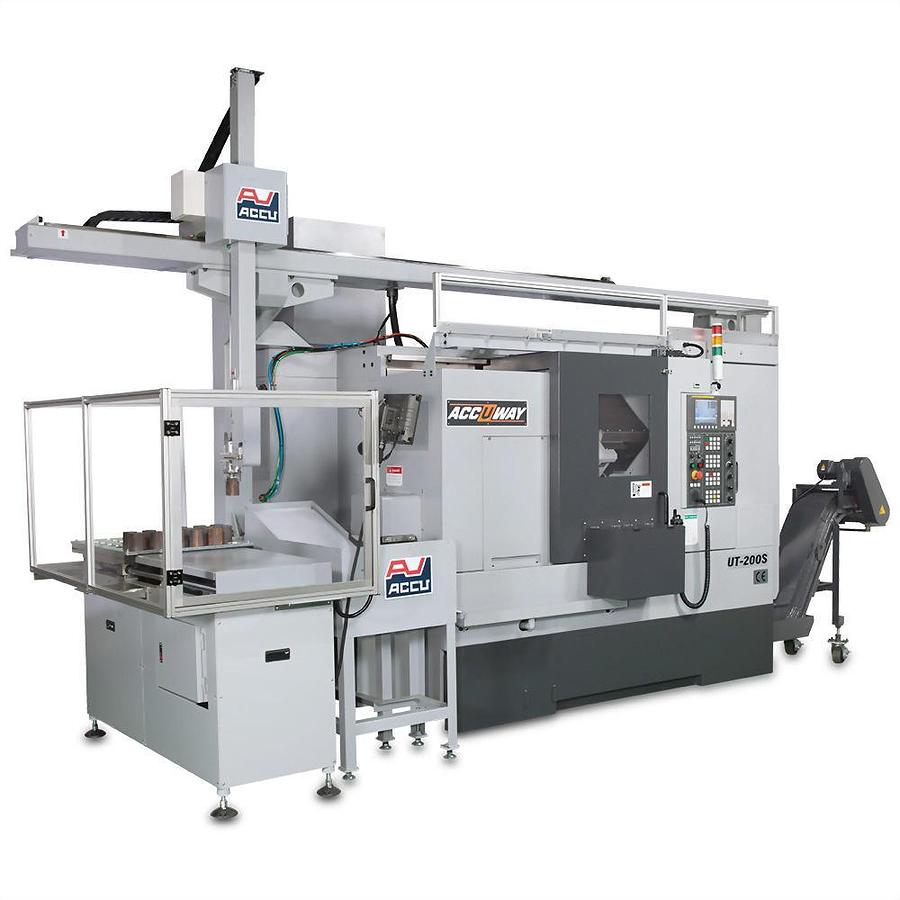

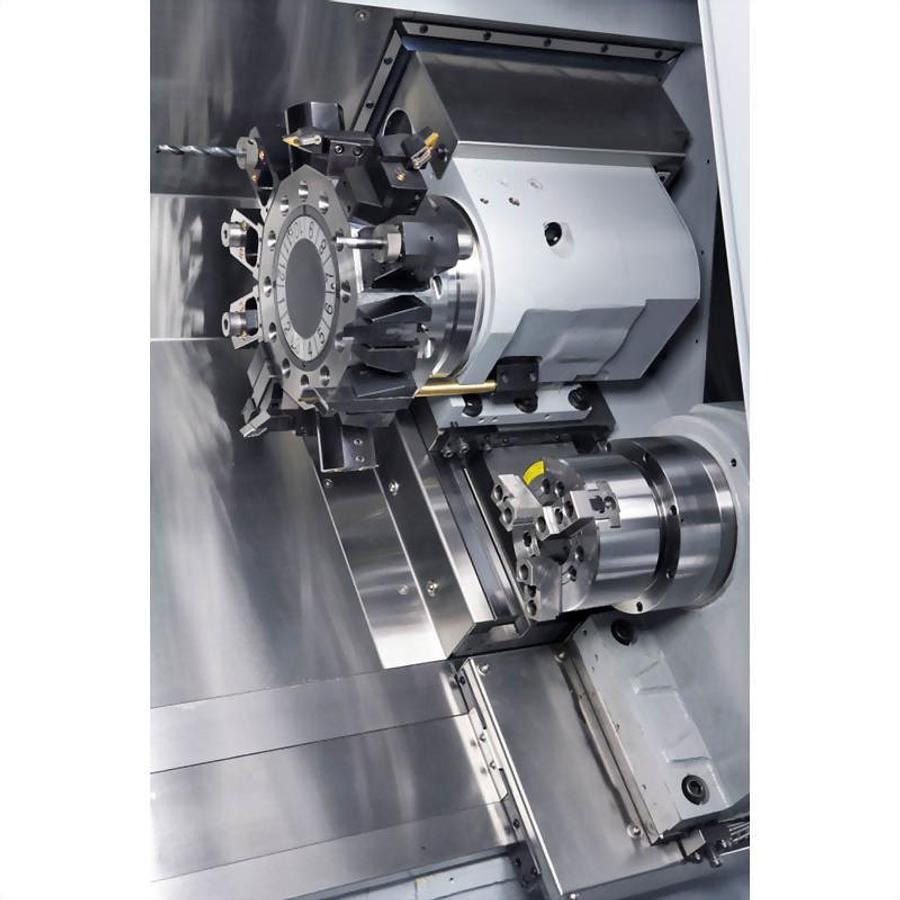

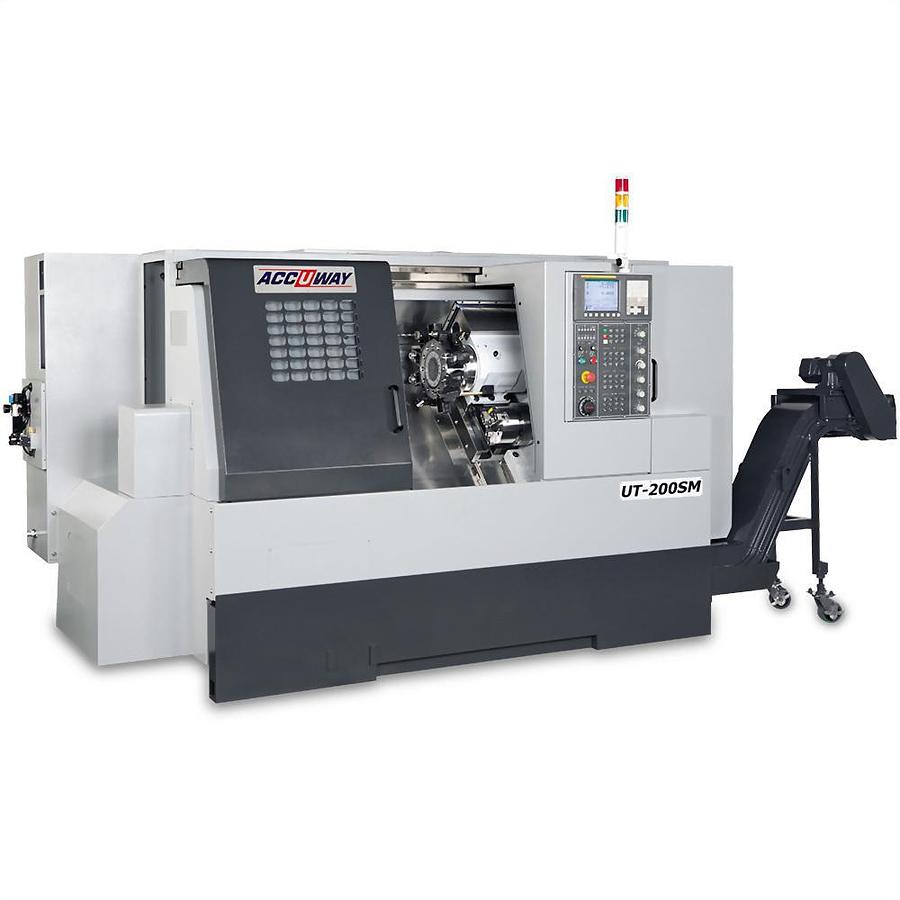

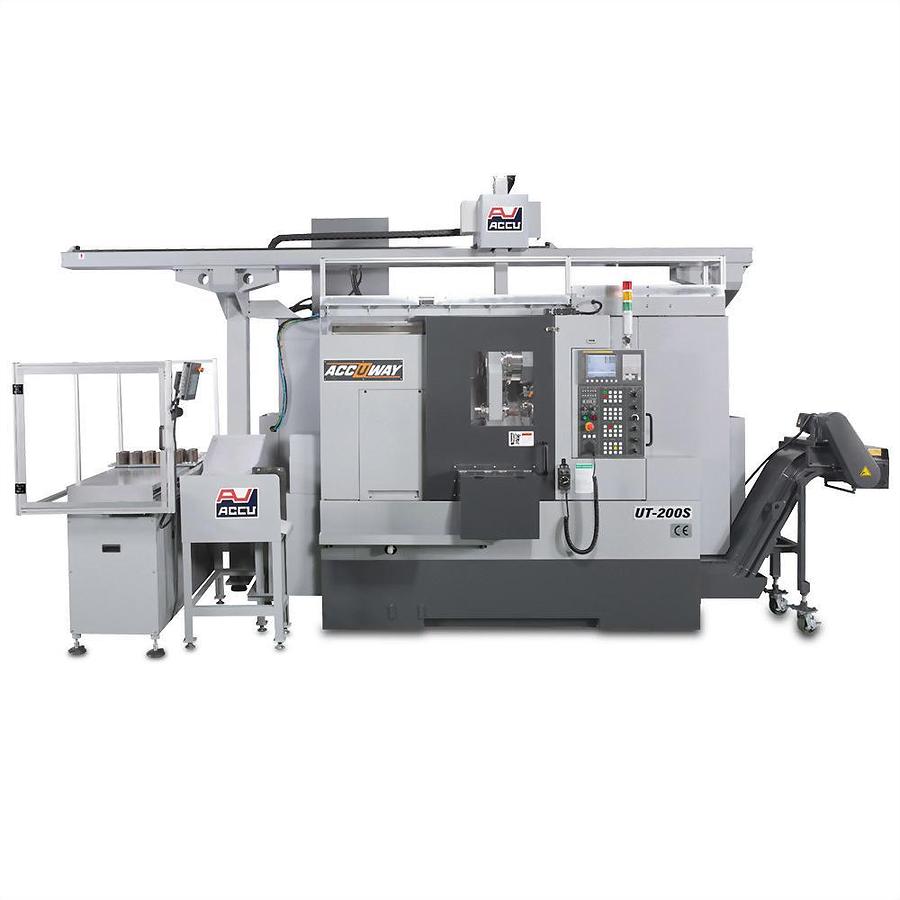

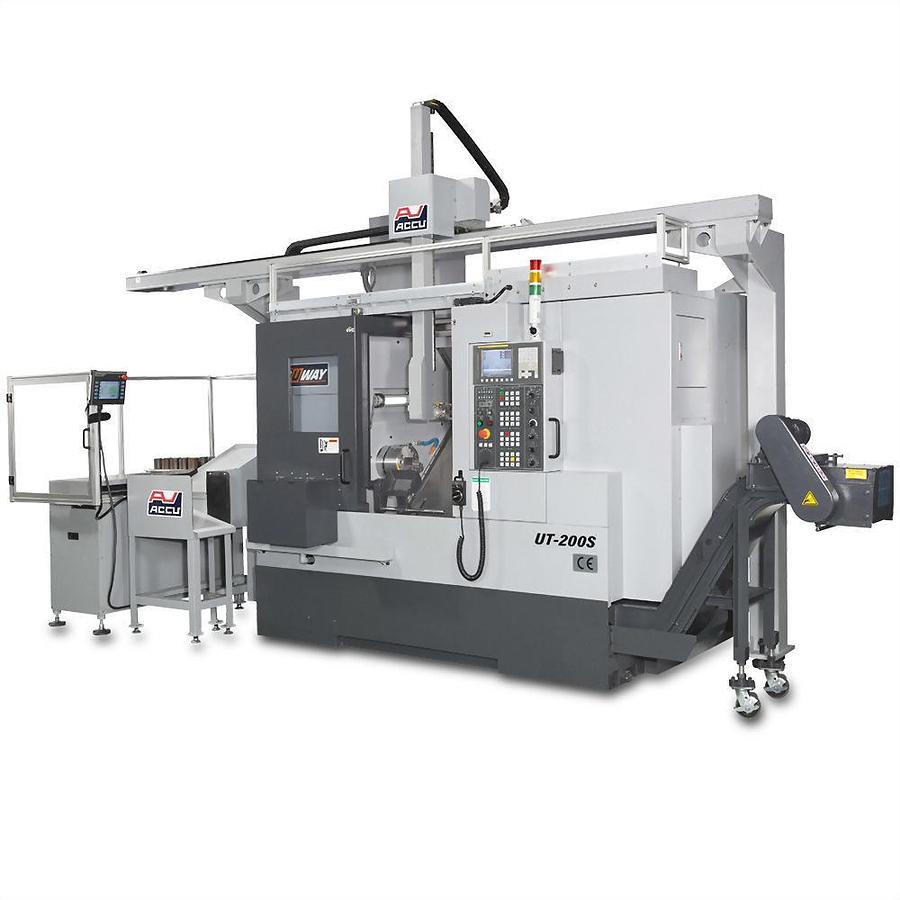

UT-200S/UT-200SM
Contact us for price
Description
Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Linear scale
0 degree rotary tool holder(UT-200SM)
90 degree rotary tool holder(UT-200SM)
Specifications
| Model | UT-200S UT-200SM |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 505 570 |
| Swing over saddle | mm 318 378 |
| Max. turning diameter(SP1) | mm 250 250 |
| Max. turning diameter(SP2) | mm 220 220 |
| Max. turning length | mm 480 400 440 370 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 A2-5 |
| Chuck diameter | inch 6 8 6 8 |
| Bar capacity | mm 44 44 |
| Spindle speed | rpm 6000 5000 6000 5000 |
| Spindle motor power(Cont. / 30min) | kW 5.5/7.5 5.5/7.5 |
| X-axis Travel | mm 220 220 |
| Z-axis Travel | mm 600 600 |
| B-axis Travel | mm 585 585 |
| X-axis Rapid Traverse Rate | m/min 20 20 |
| Z-axis Rapid Traverse Rate | m/min 20 20 |
| B-axis Rapid Traverse Rate | m/min 20 20 |
| Tooling system | BOT BMT/VDI |
| Turret driven type | Hydraulic/Servo Servo mechanical |
| Number of tools | station 12 12 |
| Square tool shank size | mm 20 20 |
| Round tool shank size | mm 32 32 |
| Machine dimension L x W x H | m 3.2 x 1.6 x 1.8 3.2 x 1.6 x 1.8 |
| Net weight | kg 4000 4000 |
