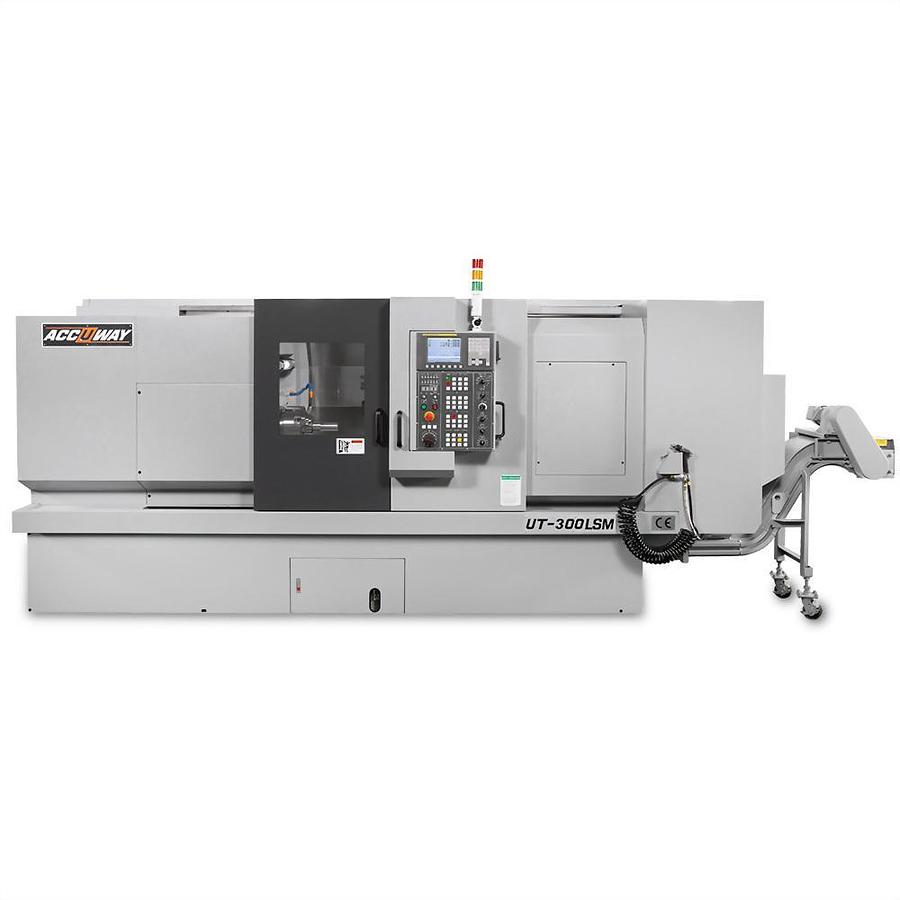

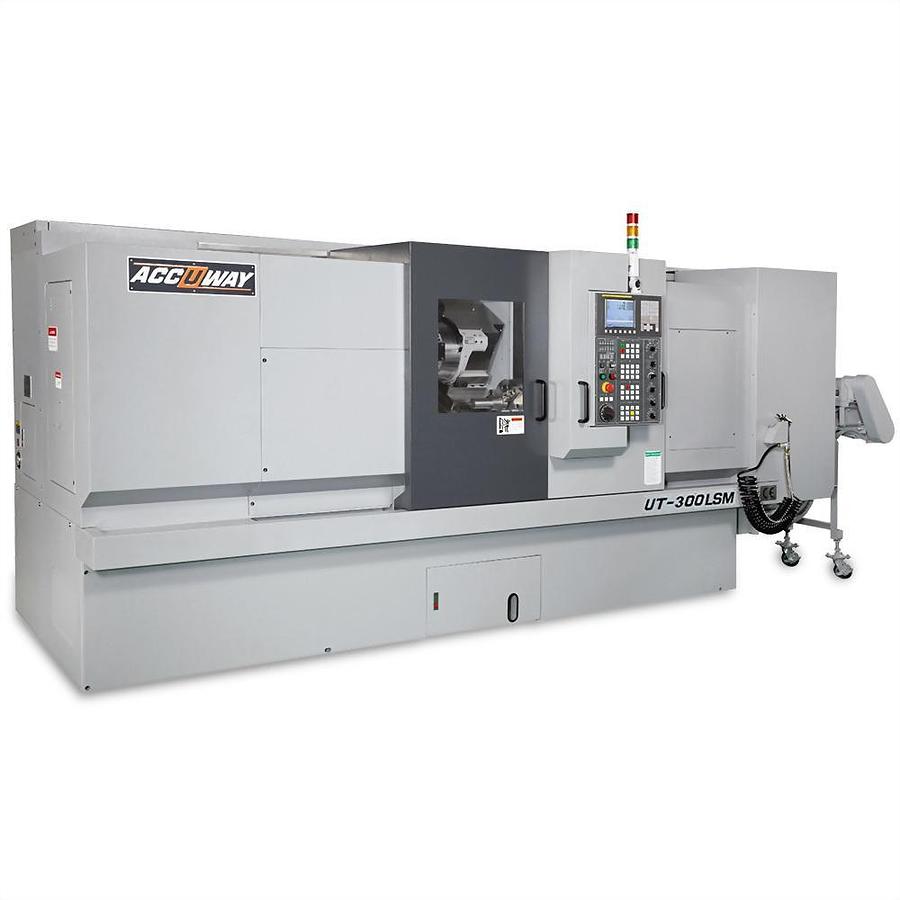

UT-300LS/UT-300LSM
Contact us for price
Description
Slant Bed Turning Center
STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light
OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Gear box
Transformer
CE version
Linear scale
0 degree rotary tool holder(UT-300LSM)
90 degree rotary tool holder(UT-300LSM)
Specifications
| Model | UT-300LS UT-300LSM |
| Condition | New |
| Controller | FANUC 0i-T |
| Swing over bed | mm 612 700 |
| Swing over saddle | mm 400 500 |
| Max. turning diameter(SP1) | mm 500 480 |
| Max. turning diameter(SP2) | mm 400 375 |
| Max. turning length | mm 1110 1040 1040 970 |
| Guide way type | Box |
| Spindle nose taper | ASA A2-5 A2-5 |
| Chuck diameter | inch 6 8 6 8 |
| Bar capacity | mm 44 44 |
| Spindle speed | rpm 6000 5000 6000 5000 |
| Spindle motor power(Cont. / 30min) | kW 5.5/7.5 |
| X-axis Travel | mm 300 275 |
| Z-axis Travel | mm 1250 1250 |
| B-axis Travel | mm 1200 1200 |
| X-axis Rapid Traverse Rate | m/min 20 20 |
| Z-axis Rapid Traverse Rate | m/min 24 24 |
| B-axis Rapid Traverse Rate | m/min 20 20 |
| Tooling system | BOT BMT-65 |
| Turret driven type | Hydraulic Servo mechanical |
| Number of tools | station 12 12 |
| Square tool shank size | mm 25 25 |
| Round tool shank size | mm 400 40 |
| Machine dimension L x W x H | m 4 x 1.8 x 1.9 3.9 x 1.8 x 1.9 |
| Net weight | kg 6200 6200 |
